Overview

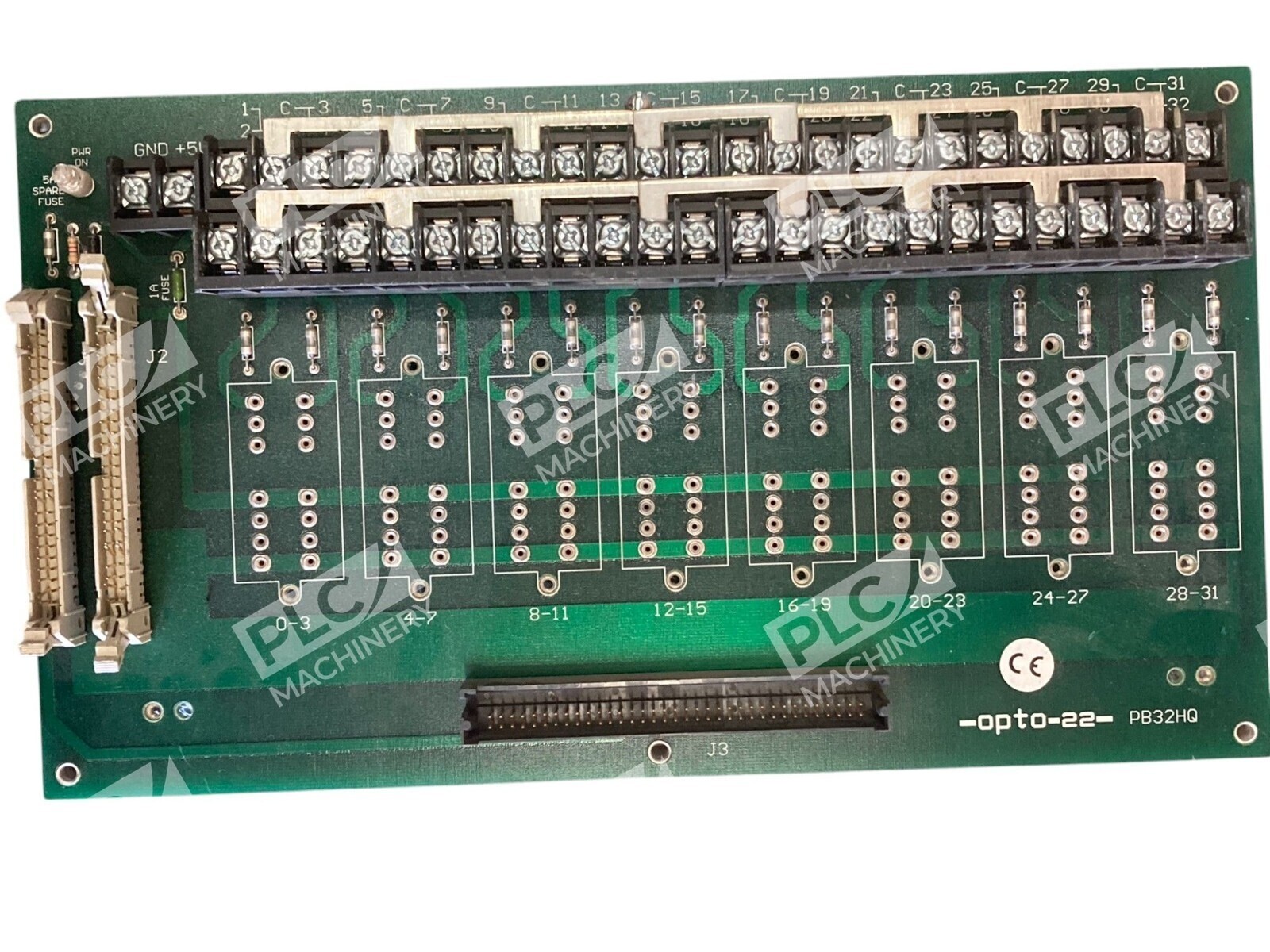

The Opto 22 PB32HQ is a high-density mounting rack designed for the Opto 22 Quad Pak I/O family. This 8-module rack houses discrete digital input and output modules in a compact form factor, making it ideal for applications requiring flexible I/O configuration in space-constrained control systems. The PB32HQ supports both serial (Pamux protocol) and Ethernet (OptoMMP protocol) connectivity through optional brain board modules.
Key Features
- Supports 8 Quad Pak I/O modules (32 total discrete points in 4-point increments)
- 50-pin screw terminal connector for secure wiring
- Compatible with B4 brain (Pamux serial protocol) or G4EB2 brain (Ethernet/OptoMMP protocol)
- Dense, vertical mounting footprint with header connector
- Enables mix-and-match digital I/O module selection
Technical Specifications
- Module Slots: 8 (4-point increment configuration)
- Total I/O Channels: 32 digital points maximum
- Connector Type: 50-pin screw terminal
- Mounting Style: Rack mount (vertical orientation)
- Operating Temperature: 0 to 70°C (95% relative humidity, non-condensing)
- Weight: 1.15 lbs
- RoHS Compliance: No
- Series: Quad Pak I/O family
- Protocol Support: Pamux (serial) or OptoMMP (Ethernet)
Typical Applications
The PB32HQ is commonly used in:
- Industrial automation and process control systems
- Building automation and facility monitoring
- Legacy control system upgrades and expansions
- Distributed I/O architectures using Pamux or Ethernet networks
- Machine control requiring modular, field-configurable I/O
Compatibility & Replacements
Compatible With
- Opto 22 B4 brain board (Pamux serial protocol)
- Opto 22 G4EB2 brain board (Ethernet/OptoMMP protocol)
- Opto 22 Quad Pak discrete I/O modules (input and output types)
- Pamux serial networks and OptoMMP Ethernet networks
- Legacy Opto 22 automation systems using modular I/O racks
Replaces / Drop-In Replacement For
The PB32HQ is the standard 8-module mounting rack for Opto 22 Quad Pak systems. Direct part-number equivalents are limited to this specific form factor. Verify compatibility with your system integrator before ordering to ensure proper brain board selection (B4 serial or G4EB2 Ethernet).
Works With
- Opto 22 Quad Pak module family (input, output, and relay modules)
- Pamux serial communication protocol
- OptoMMP Ethernet protocol (with G4EB2 brain)
- Opto 22 control software and configuration tools
- Industrial automation platforms supporting Opto 22 distributed I/O
