Overview

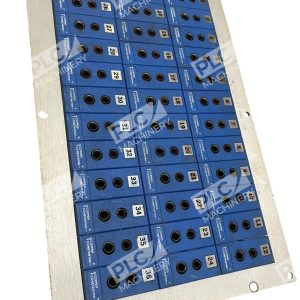

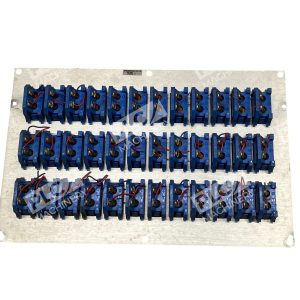

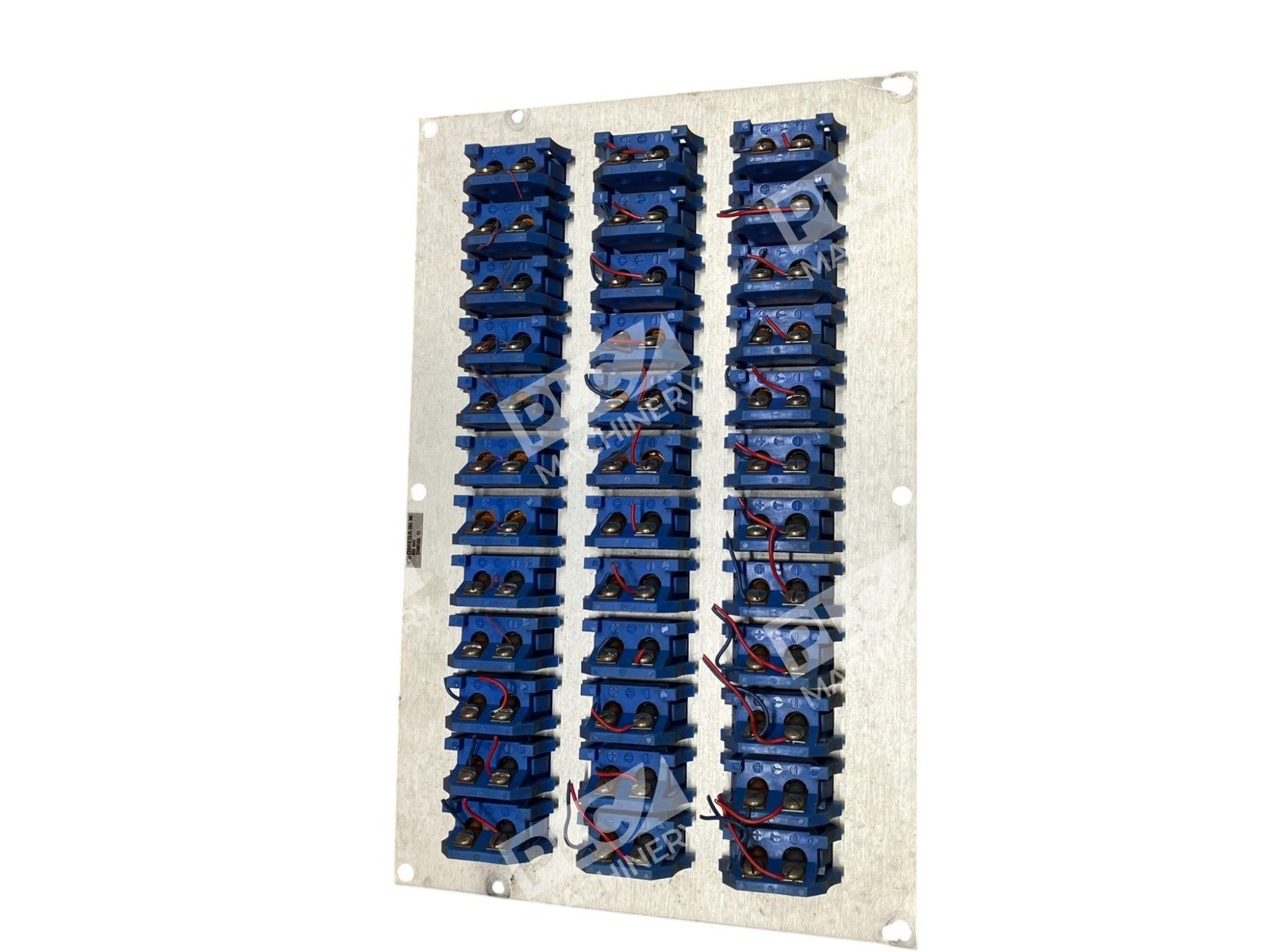

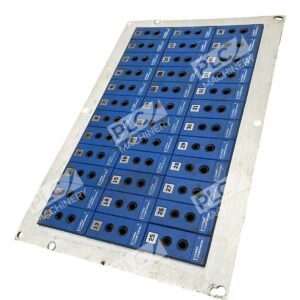

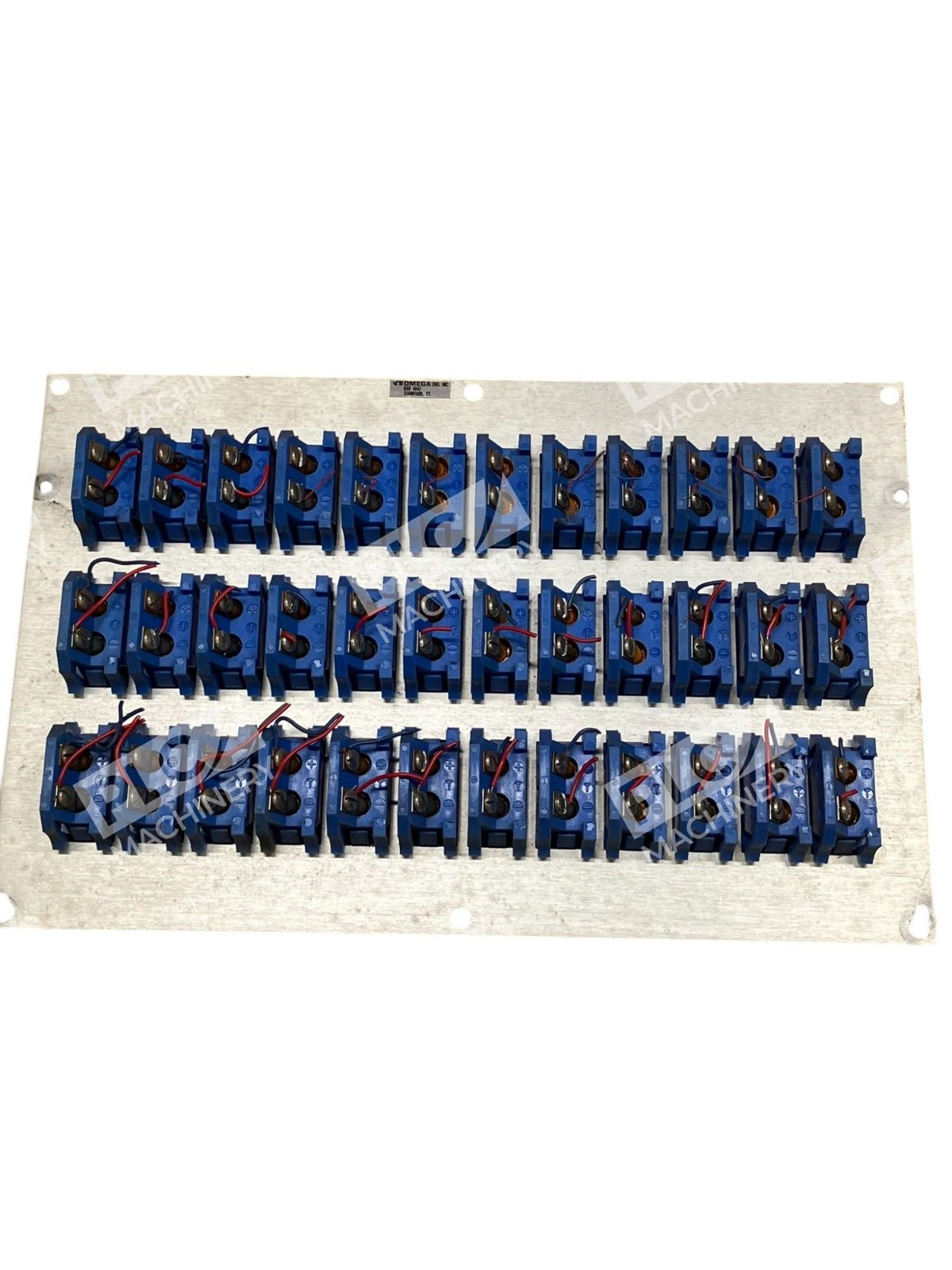

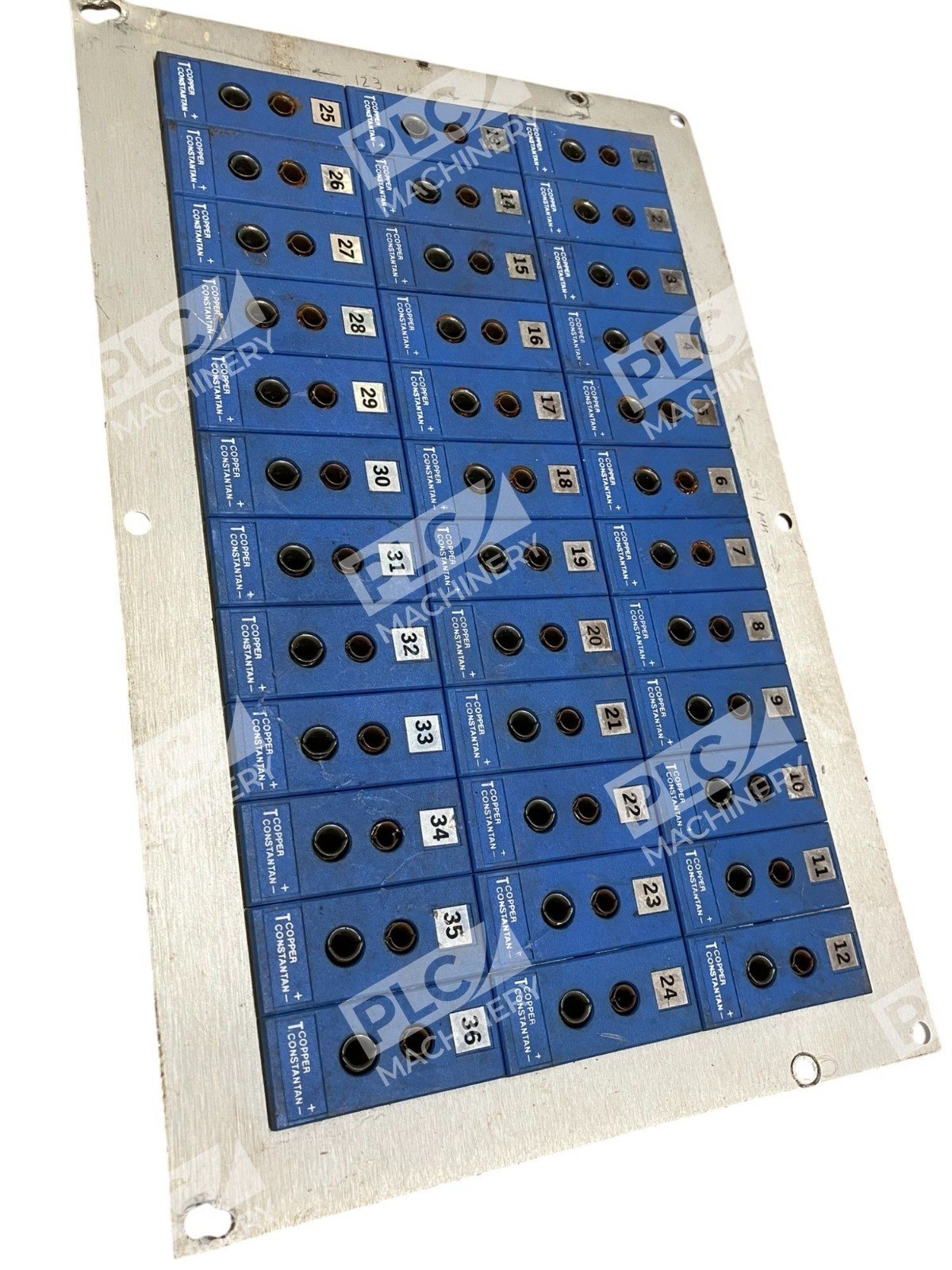

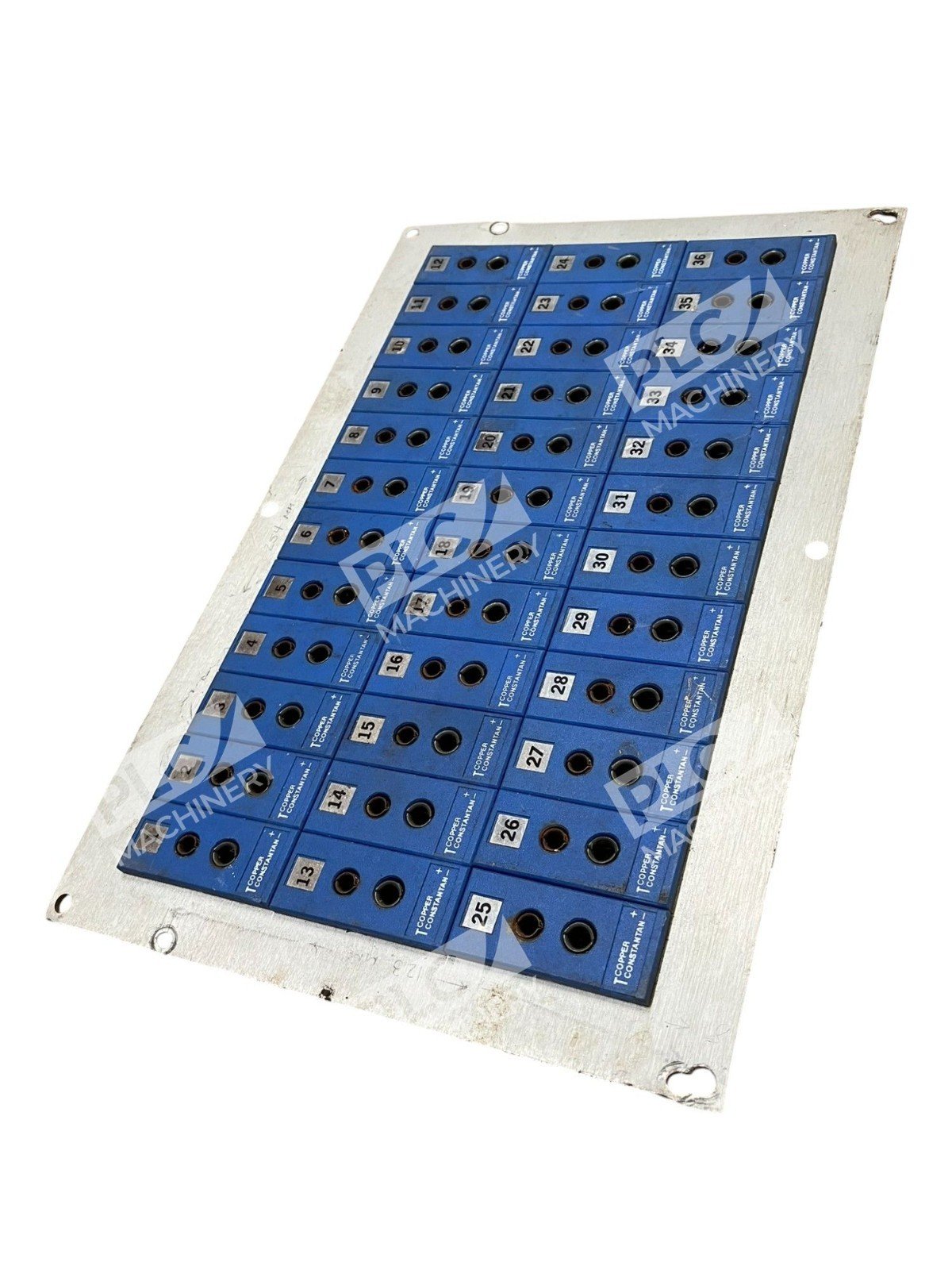

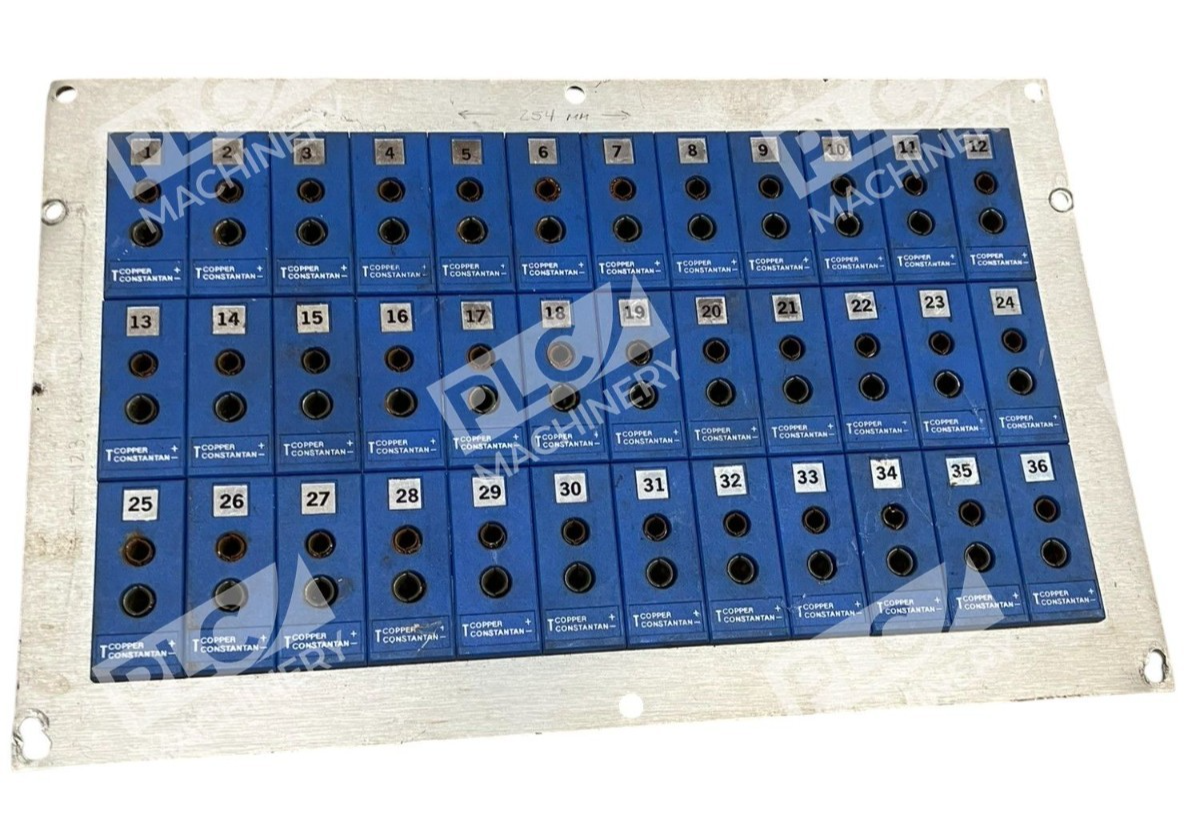

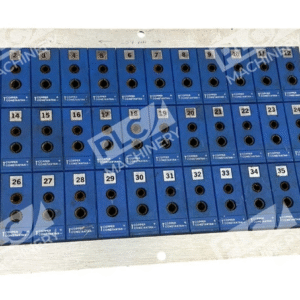

The Omega JP-T-F connector jacks are standard-size female thermocouple panel connectors designed for mounting on control panels and instrument cases. These standard size female thermocouple connectors mount on control panels or instrument cases, providing reliable Type T (Copper-Constantan) temperature measurement connections in industrial and commercial environments.
Key Features
- Panel jacks contain two female type T collet-type, spring-loaded connectors that accept any standard male thermocouple connector
- The panel jacks are molded of high-impact & glass-filled nylon & blue for durability and easy identification

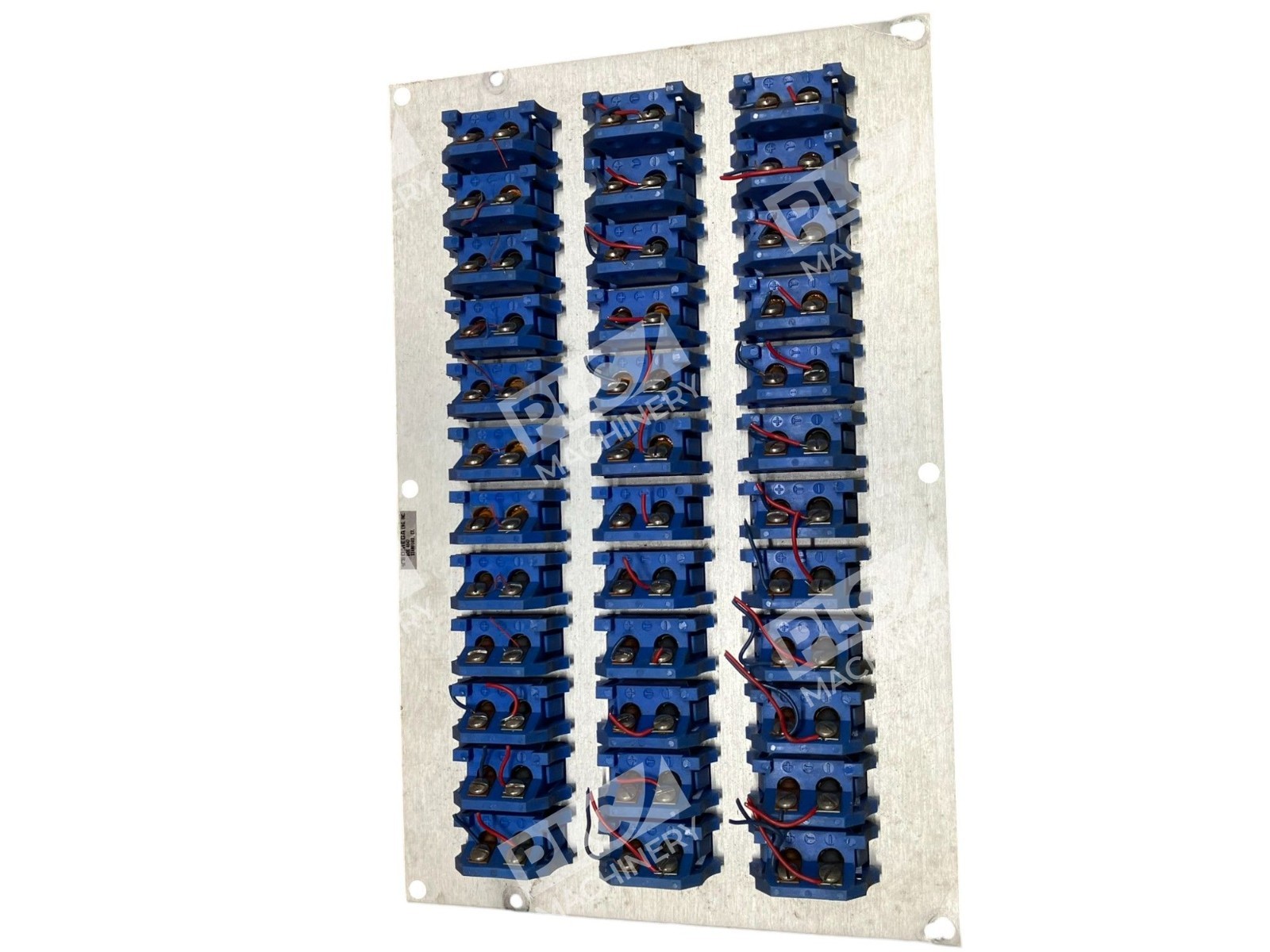

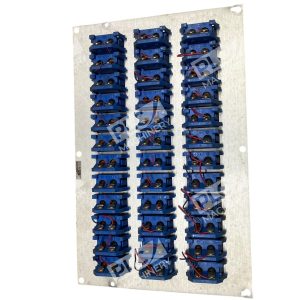

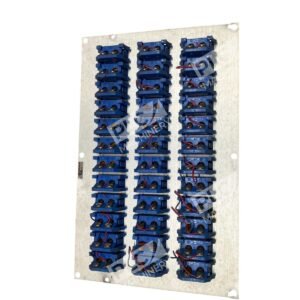

- Uses a round knock-out hole or rectangular cut-out in an existing panel for flexible mounting options
- Two-position female design suitable for duplex thermocouple circuits
- Color-coded blue for Type T thermocouple standard identification
Technical Specifications
- Thermocouple Type: Type T (Copper-Constantan)
- Gender: Female, 2-position
- Connector Style: Collet-type spring-loaded
- Housing Material: High-impact glass-filled nylon
- Housing Color: Blue
- Panel Length: 16.0 mm (0.63 inches)
- Panel Height: 44.5 mm (1.75 inches)
- Mount Type: Panel-mount
- Number of Contacts: 2

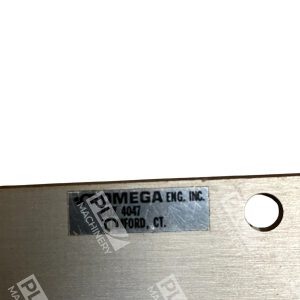

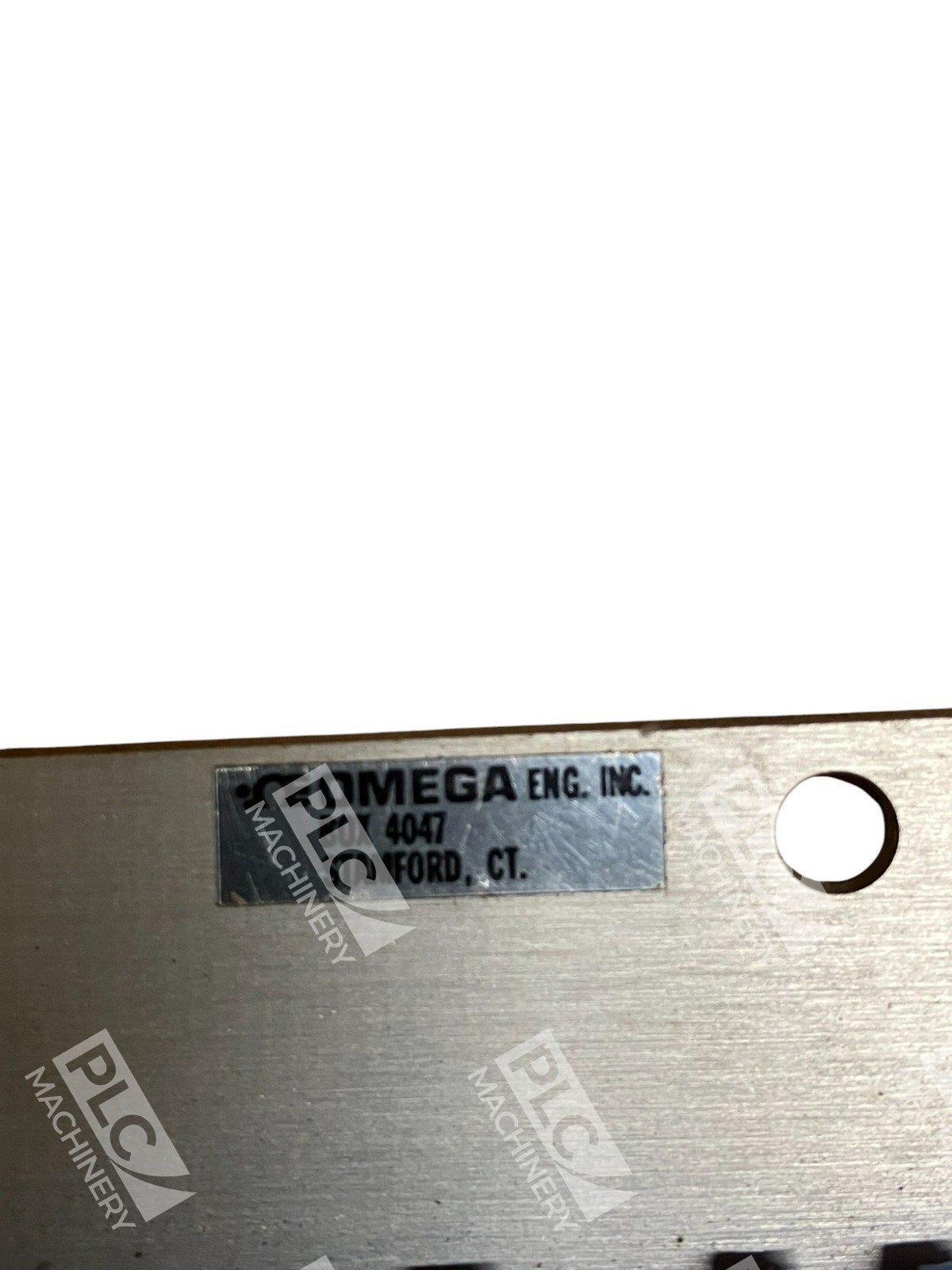

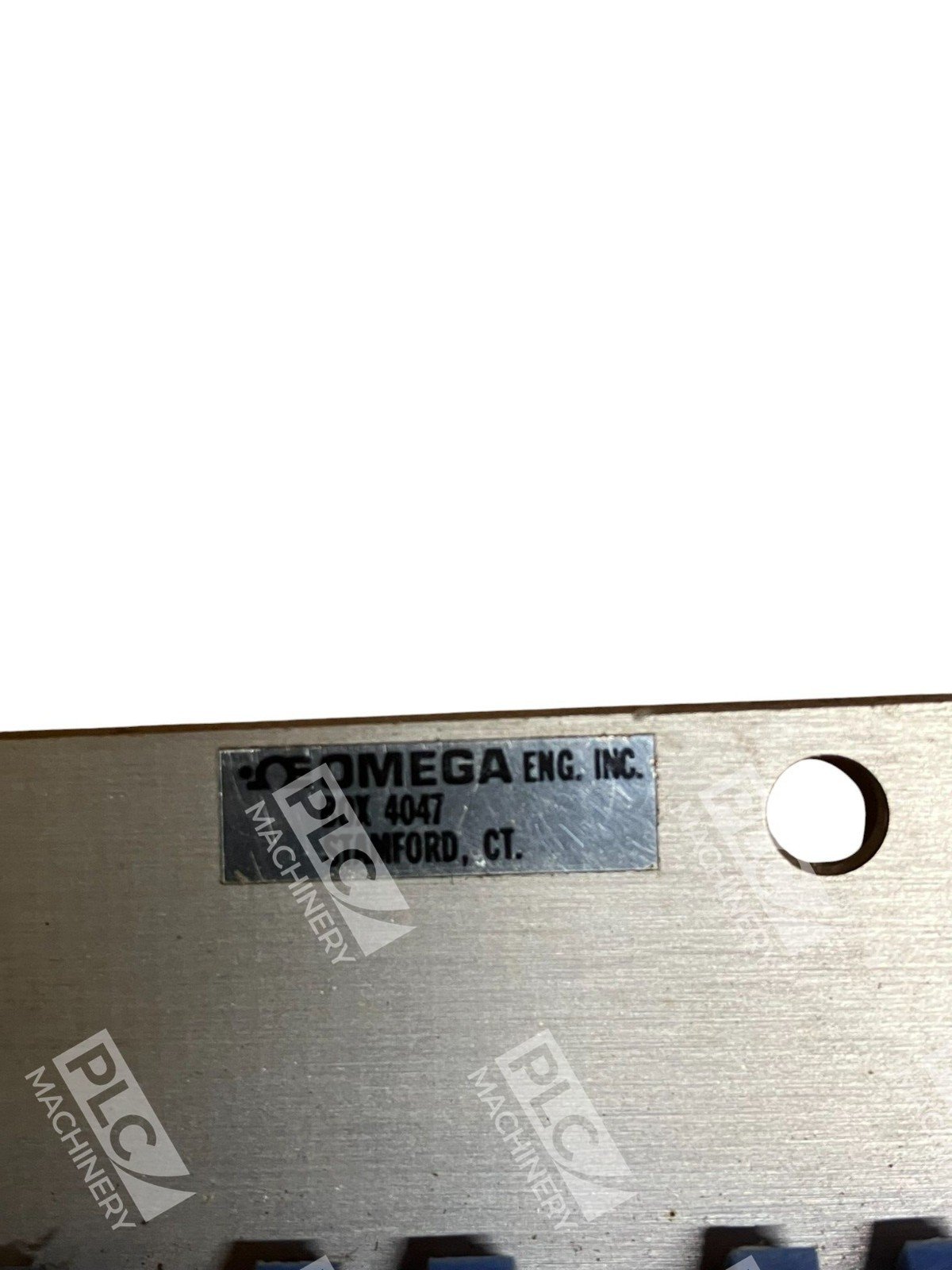

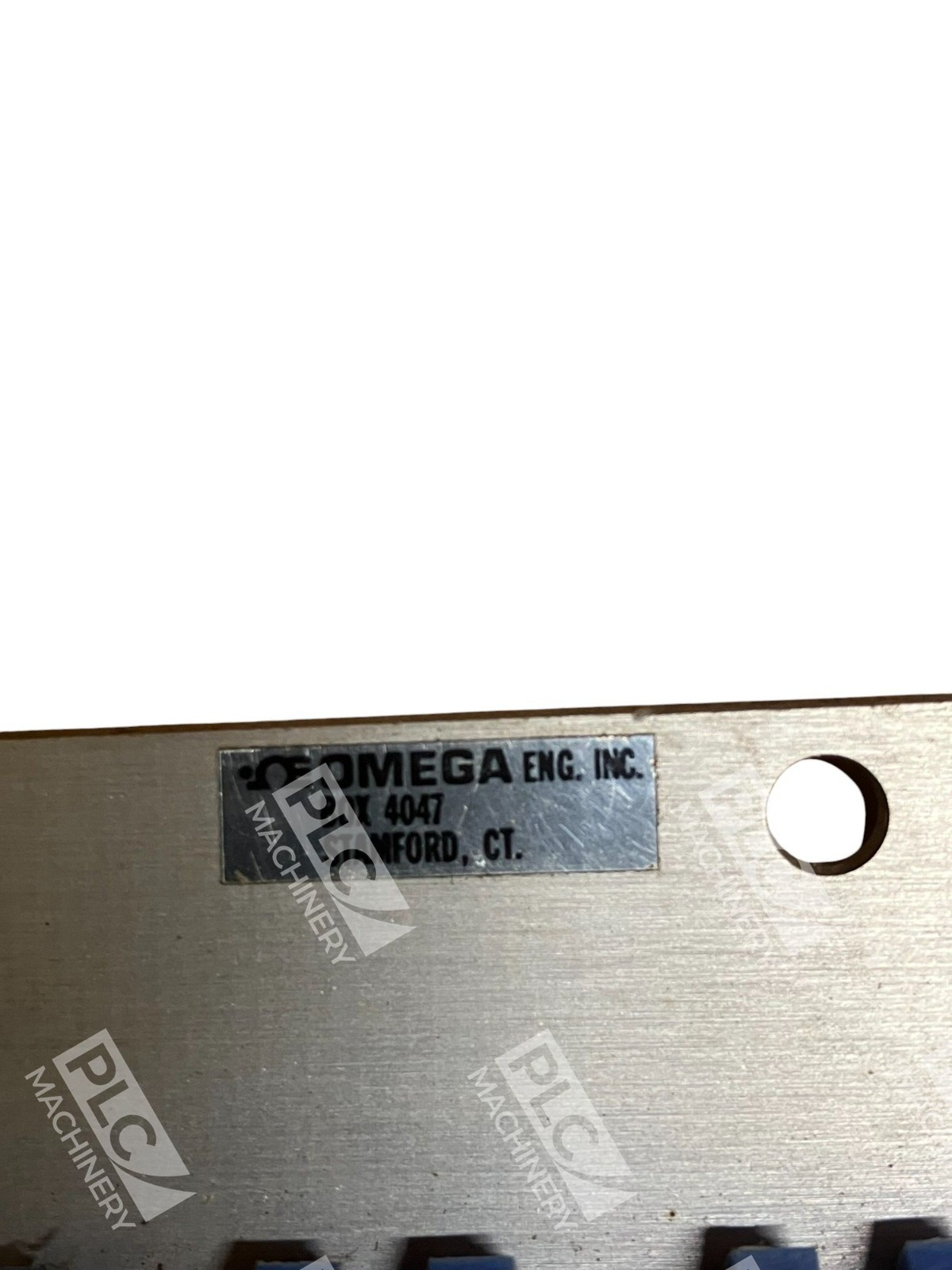

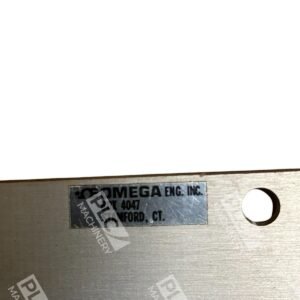

- Manufacturer: Omega Engineering
Typical Applications
- Laboratory and bench-top test equipment requiring Type T temperature measurement
- HVAC and refrigeration systems using copper-constantan thermocouples
- Industrial process control panels with thermocouple-based temperature sensing
- Medical and pharmaceutical equipment temperature monitoring
- Data acquisition systems and data loggers with thermocouple inputs
Compatibility & Replacements
Compatible With
- Standard Type T (Copper-Constantan) thermocouple male connectors
- Omega Engineering thermocouple wire and cable products
- Industrial temperature measurement systems and controllers using Type T inputs
- Panel-mounted instrumentation requiring thermocouple signal input
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This unit serves as a replacement for worn or damaged Omega JP-T-F panel jack assemblies in existing installations.
Works With
- Type T Copper-Constantan thermocouple wire (solid or stranded, 20-30 AWG)
- Omega Engineering temperature measurement accessories and connectors
- Standard industrial temperature controllers and data acquisition equipment with thermocouple inputs
