Overview

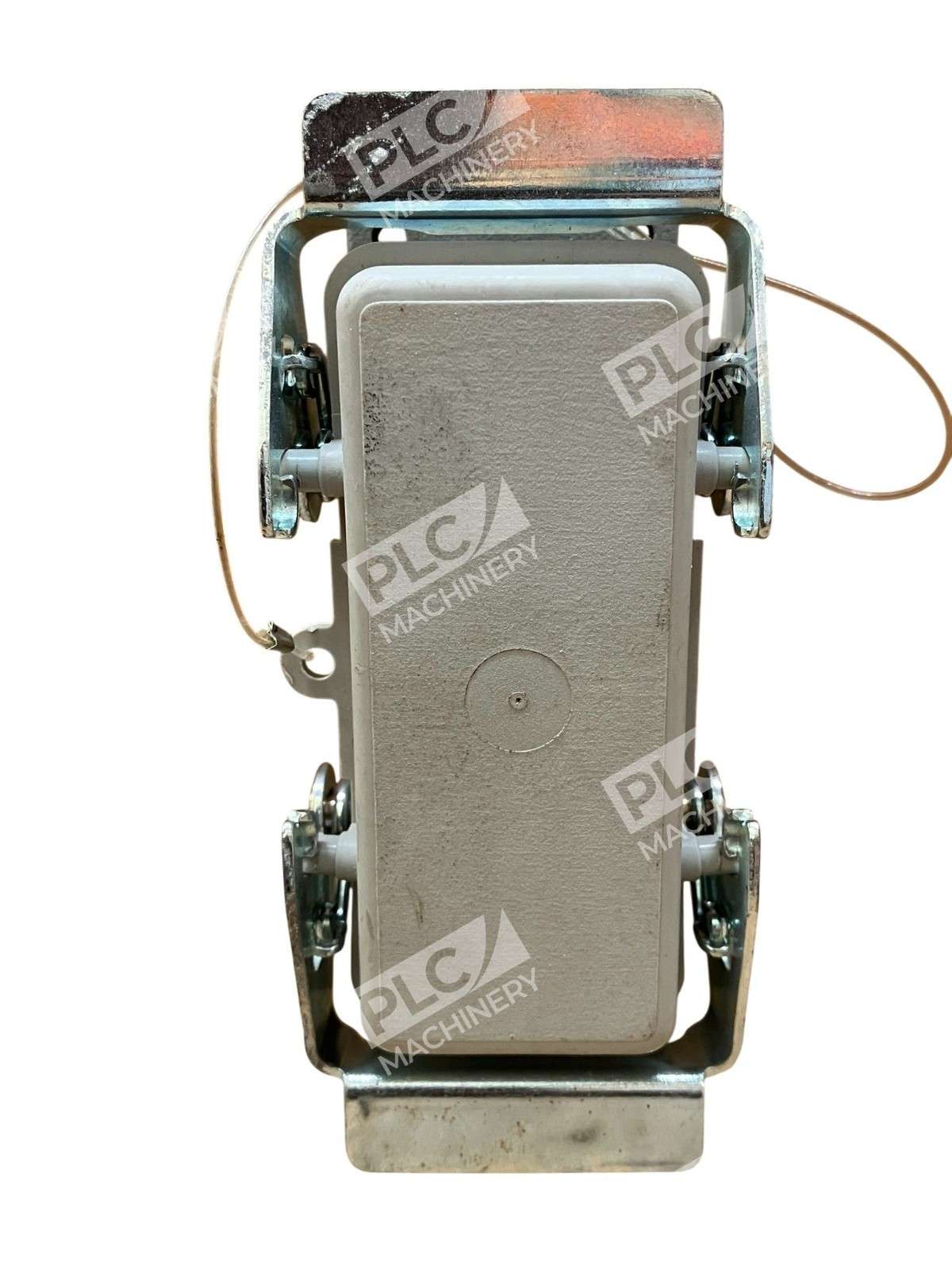

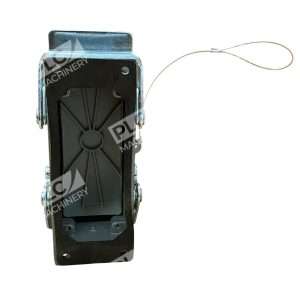

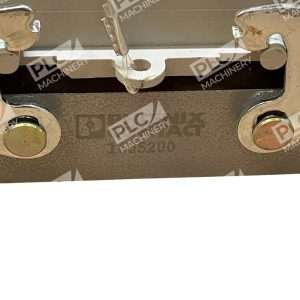

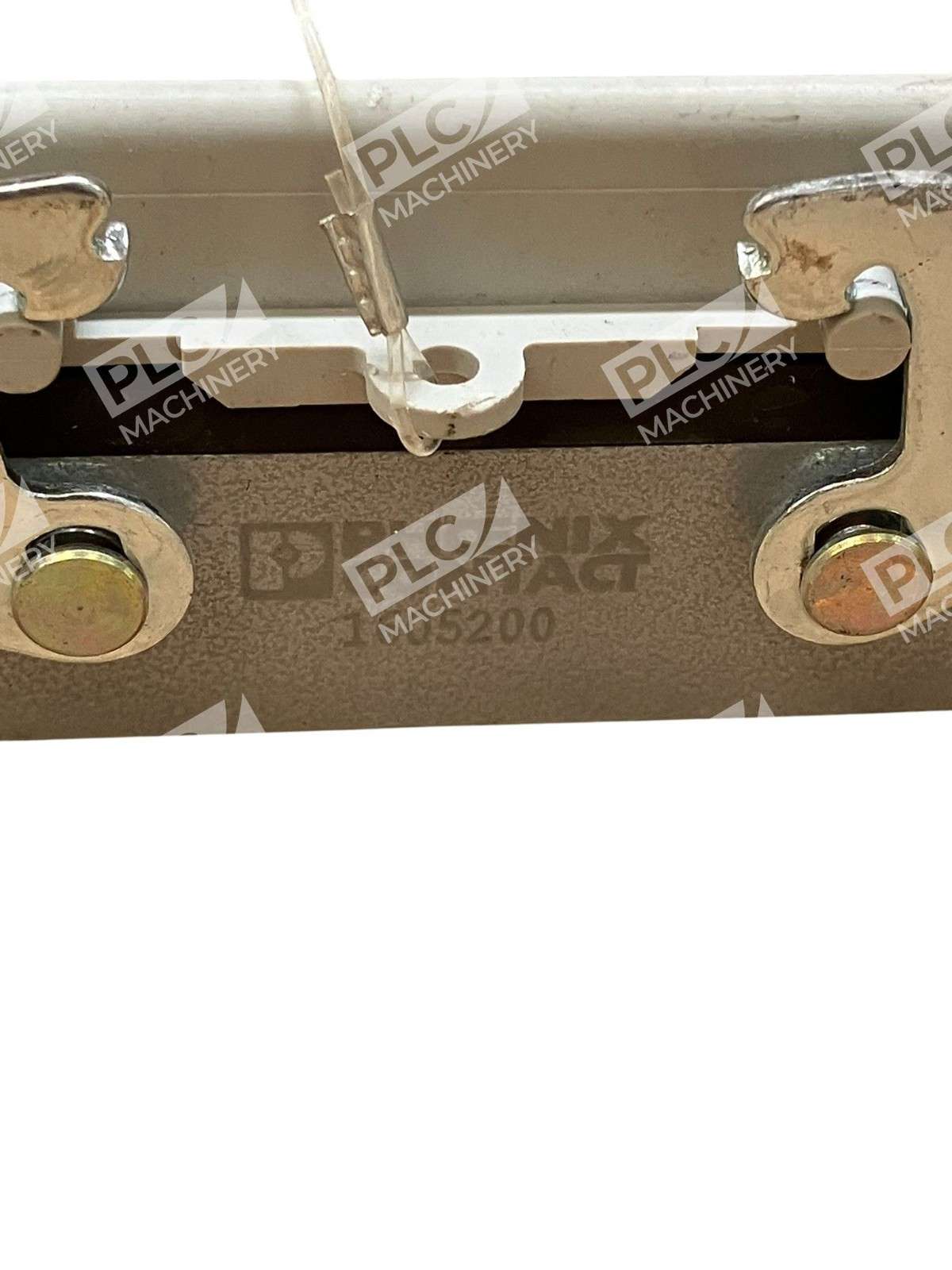

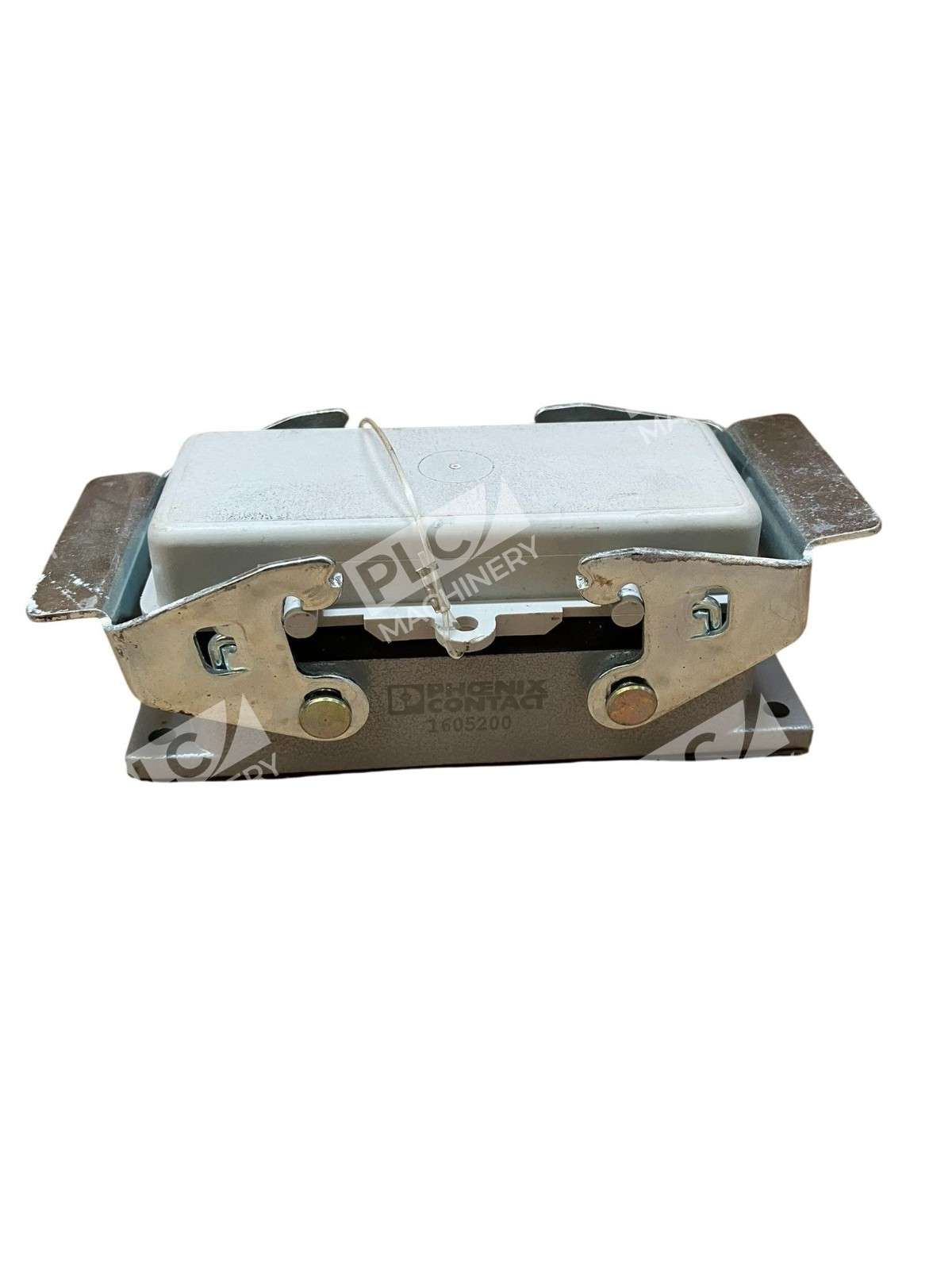

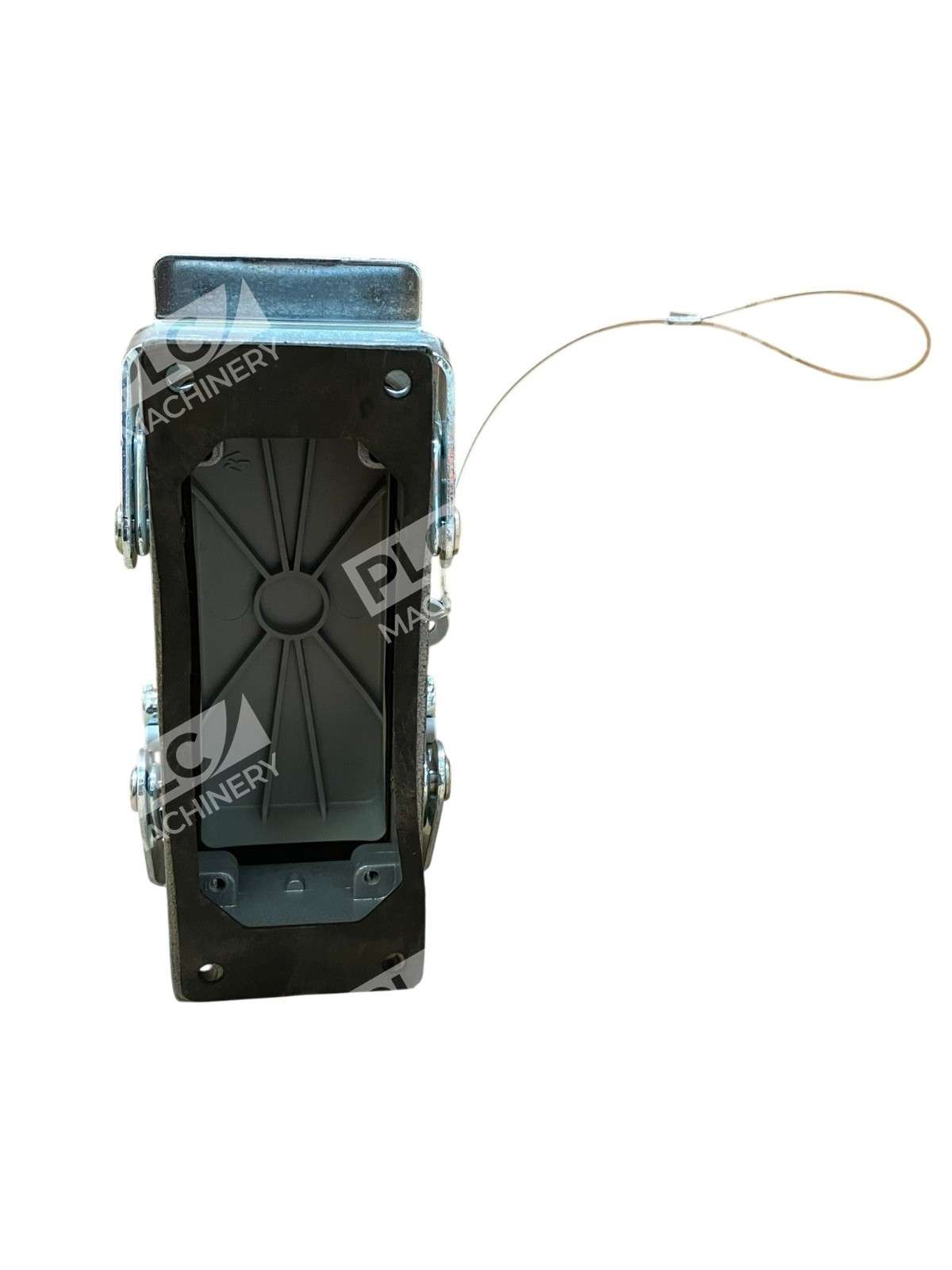

The Phoenix Contact 1605200 (HC-B 16-AMQ-A) is a heavy-duty panel mounting base housing for the HEAVYCON series of rectangular connectors. This component provides a secure mechanical interface between the connector housing and panel-mounted installations, engineered to withstand demanding industrial environments. The base features a sheet steel construction with double locking latch mechanism and includes a flat gasket for environmental sealing.
Key Features
- Double Locking Latch: Ensures reliable connector retention and prevents accidental disengagement during operation or vibration.
- Sheet Steel Construction: Durable, corrosion-resistant material rated for industrial power and signal applications.
- Integrated Flat Gasket: Provides environmental sealing to protect against moisture ingress and maintain IP protection ratings.
- Panel Mount Design: Compact 27 mm height optimized for cabinet and panel integration.
- HEAVYCON Series Compatible: Works with B16-sized contact inserts for configurable power and signal transmission.
Technical Specifications
- Rated Voltage: 500 V (AC/DC)
- Rated Current: 16 A per contact
- Connector Series: HC-B HEAVYCON, Size B16
- Latch Type: Double locking with manual operation
- Material: Sheet steel housing
- Height: 27 mm
- Gasket Type: Flat gasket included
- Connection Method: Push-in or screw terminal (insert-dependent)
- Environment Rating: Industrial—shock and vibration resistant per DIN EN 61373
Typical Applications
- Industrial control panels and electrical enclosures
- Machine automation and robotics interfaces
- Power distribution in manufacturing environments
- Signal and data transmission in harsh environments
- Modular connector system assemblies requiring robust panel integration
- Heavy equipment and off-road vehicle electrical systems
Compatibility & Replacements
Compatible With
- Phoenix Contact HC-B 16 contact insert modules (all variants)
- HC-B 16 protective covers and adapter plates
- Phoenix Contact modular connector system ecosystems
- Standard industrial panels and enclosure cutouts sized for B16 housings
Replaces / Drop-In Replacement For
- Verify specific model cross-references with Phoenix Contact technical support or your systems integrator, as the 1605200 is a specialized panel mount base component not typically substituted across manufacturers.
Works With
- HEAVYCON modular contact inserts (power, signal, and data variants)
- Phoenix Contact connection technology ecosystem (push-in and screw terminal options)
- Industrial control systems requiring heavy-duty rectangular connector interfaces
- Applications using standard B16 connector sizing and frame configurations
