Overview

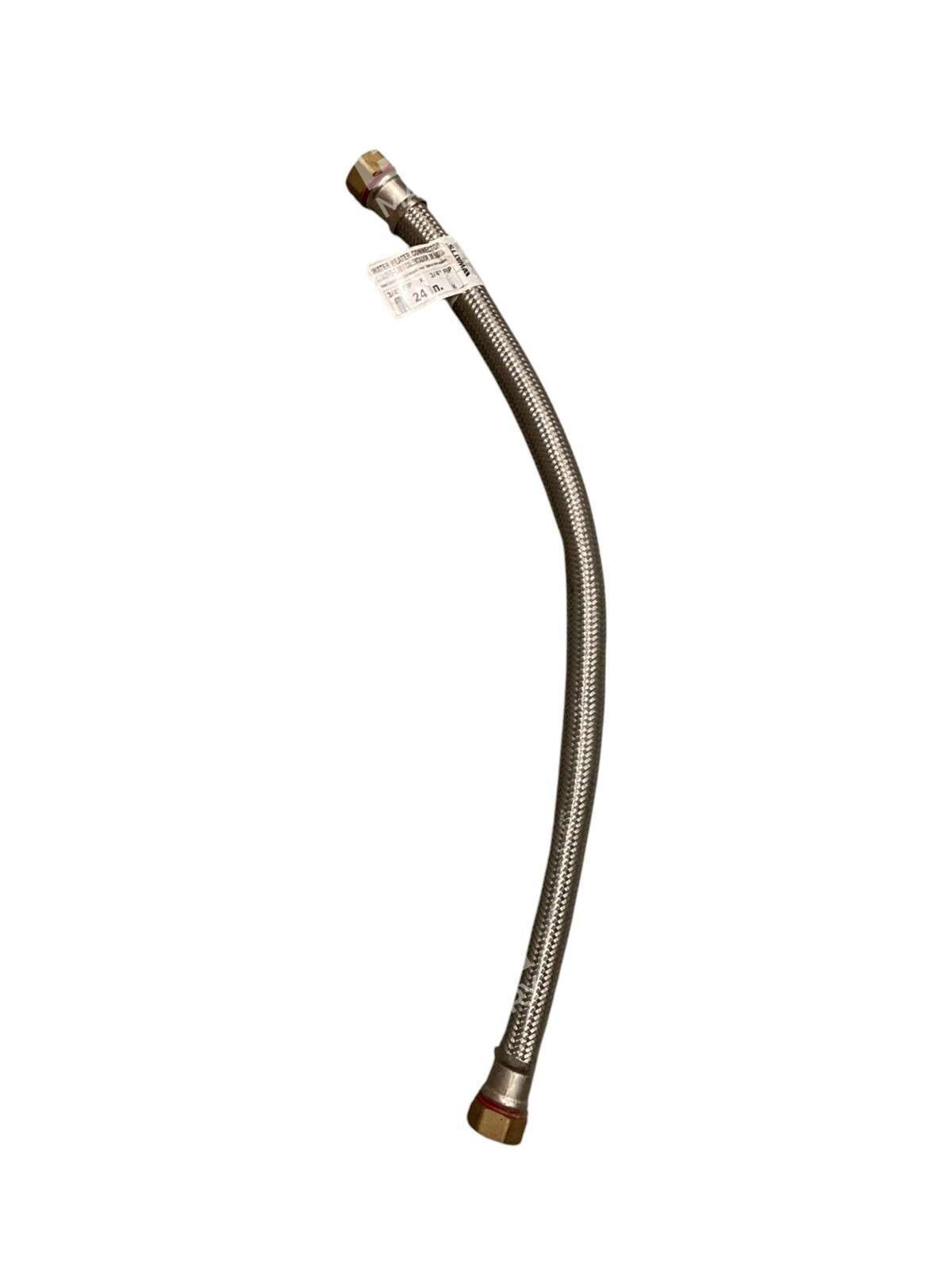

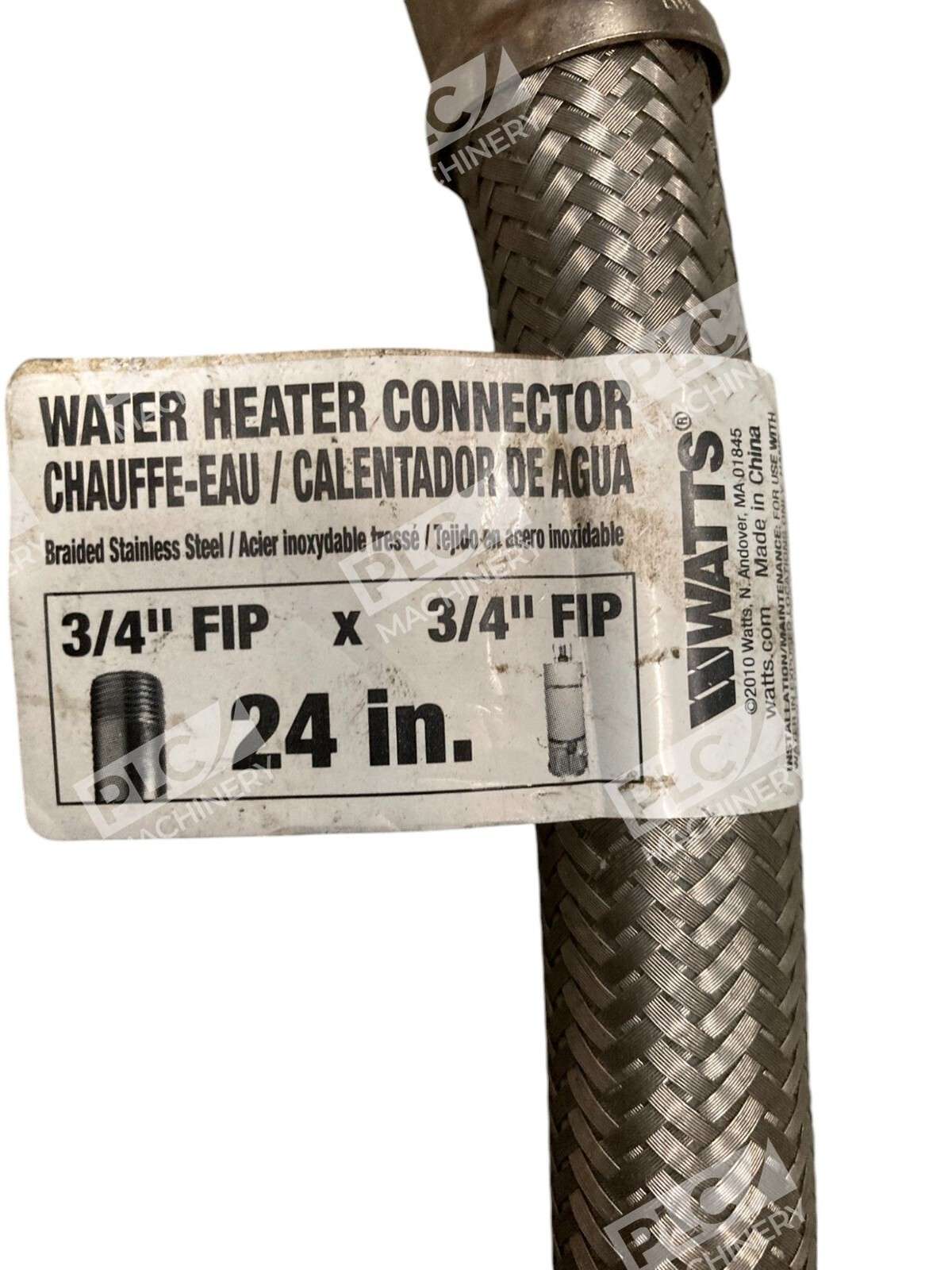

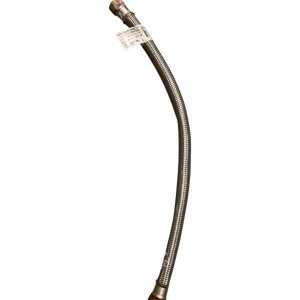

The Watts braided stainless steel water heater connector is designed for dependable connections between water heaters and supply lines. This 24″ connector features 3/4″ FIP x 3/4″ FIP threaded connections and combines a reinforced inner core with an exterior stainless steel braid to deliver both flexibility and durability in residential and light commercial installations.
Key Features
- Grade 304 stainless steel braided exterior protects against corrosion and resists crimping and kinking
- Reinforced PVC core provides non-toxic water supply with built-in strength
- Female iron pipe (FIP) connections on both ends for standard water heater and supply line mating
- 24-inch length provides flexibility for tight installations and connection routing
- Compact, field-friendly design allows easy installation in confined spaces
- Heavy-duty construction rated for standard residential water heater applications
Technical Specifications
- Connection Type: 3/4″ FIP x 3/4″ FIP
- Length: 24 inches
- Material: Grade 304 stainless steel braid with reinforced PVC core
- Max Burst Pressure: 1200 PSI
- Max Working Temperature: 221°F (105°C)
- Inside Diameter: 3/4 inch
- Manufacturer: Watts
- Certifications: UPC and lead-free compliant
Typical Applications
- Electric water heater inlet and outlet supply connections
- Gas water heater supply line installations
- Water softener inlet and outlet connections
- Flexible piping where rigid copper or steel cannot bend easily
- Replacement of corroded or kinked water supply lines
- Retrofit installations in residential and small commercial settings
Compatibility & Replacements
Compatible With
- Standard 3/4″ FIP water heater inlet/outlet ports
- 3/4″ FIP supply line connections on tanks and water softeners
- Residential water heater applications rated for 1200 PSI burst pressure
- Low-lead and NSF-compliant plumbing systems
Replaces / Drop-In Replacement For
- Worn, kinked, or corroded 3/4″ FIP x 3/4″ FIP 24″ braided connectors
- Factory-installed water heater connectors in standard residential units
- Older rigid copper or steel supply line assemblies (with adapter fittings)
- Verify connector type and length with your specific water heater model before ordering
Works With
- All standard residential electric water heaters with 3/4″ FIP connections
- Tankless water heater systems with 3/4″ female connections
- Water filtration and softening equipment with matching FIP ports
- Municipal and private water supply lines rated for 105°C continuous operation
