Overview

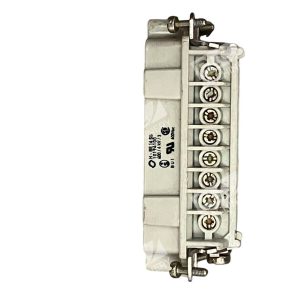

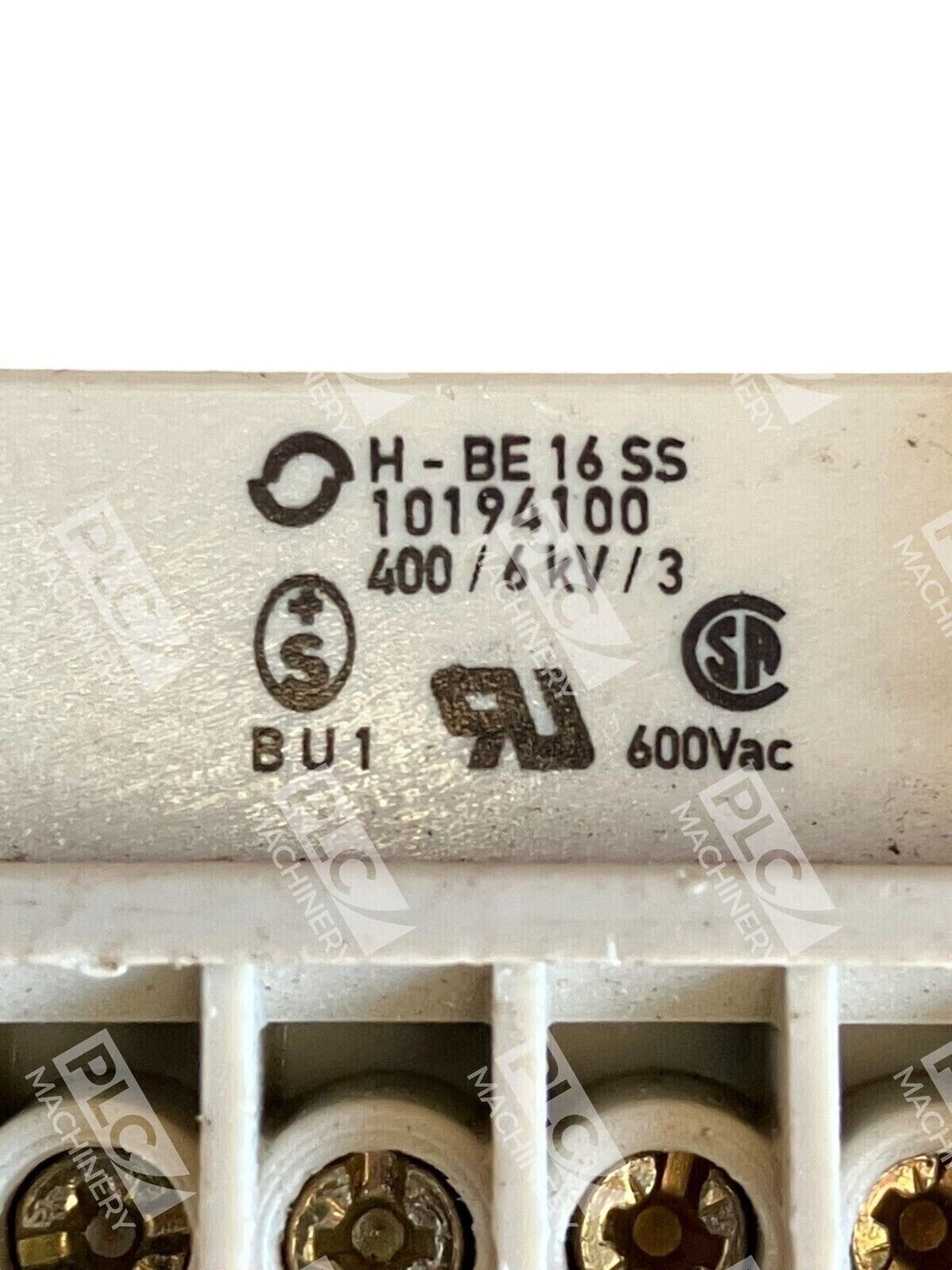

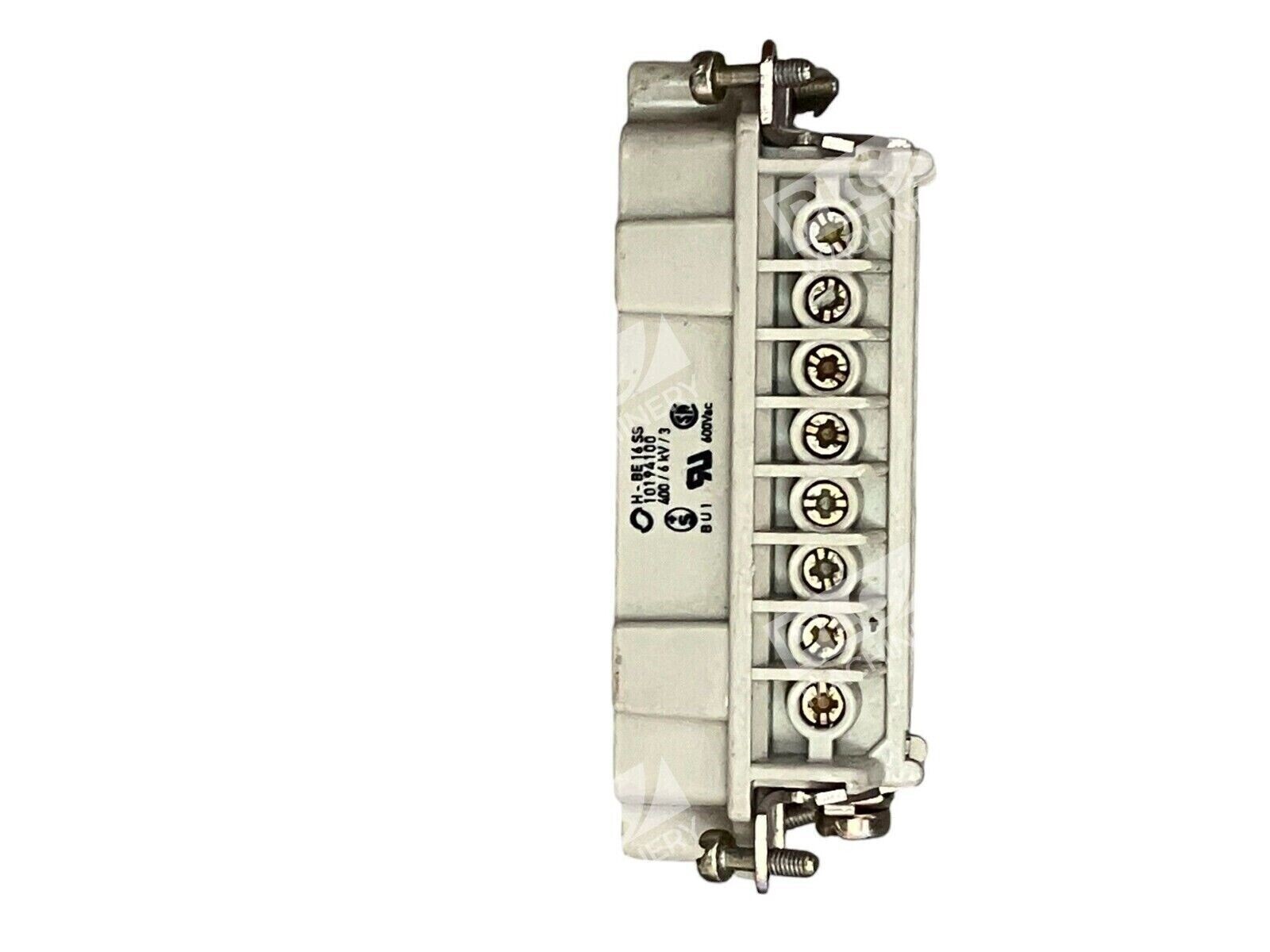

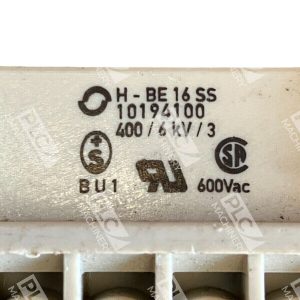

The Epic H-BE 16 SS connector (part number 10194100) is a 16-position rectangular connector from Lapp’s EPIC industrial connector line. This panel-mount insert features screw termination with 16 male pins arranged over 16 bottom terminals, each with side-adjust crimp capabilities. Rated at 400V/6kV/3, 16A, it delivers secure connections for harsh industrial environments.
Key Features
- 16-position screw terminal insert with side-adjust/crimp termination
- Rated 400V/6kV/3 at 16A current capacity
- Heavy-duty plastic housing, beige color
- Panel-mount orientation for fixed installation
- Copper alloy contacts with hard silver plating
- IP65-rated connector body for environmental protection
Technical Specifications
- Voltage Rating: 400V/6kV/3 (600 VAC)
- Current Rating: 16A per contact
- Number of Contacts: 16 positions
- Termination Method: Screw terminal with side adjustment
- Contact Material: Copper alloy with hard silver plating
- Housing Material: Heavy-duty plastic, beige
- IP Rating: IP65
- Mounting: Panel-mount (M20 thread)
- Dimensions: 3.334″ wide × 1.334″ deep × 1.230″ high
Typical Applications
The Epic H-BE 16 SS is ideal for:
- Industrial machinery and automation control panels
- Power distribution and signal switching circuits
- Machine tool control systems
- Modular machinery and plastics processing equipment
- Harsh-environment field installations with environmental protection requirements
- Any fixed-mount rectangular connector application requiring 16-position termination
Compatibility & Replacements
Compatible With
- Lapp EPIC H-BE rectangular connector housing kits
- Standard M20 panel-mount threaded bases
- EPIC H-BE hood assemblies and cable entry glands
- Screw-terminal industrial automation and control systems
- Fixed-insert rectangular connector installations
Replaces / Drop-In Replacement For
This insert (10194100) is compatible with EPIC H-BE 16 housing kits. Verify your specific housing part number matches H-BE 16 format before ordering. Related models in the series include H-BE 4, H-BE 6, and H-BE 10 positions for smaller terminal counts.
Works With
- EPIC rectangular connector housings and hoods
- M20 panel-mount thread entry systems
- Standard industrial control panel wiring harnesses
- Automation and PLC signal distribution networks
- IP65-rated enclosure systems
