Overview

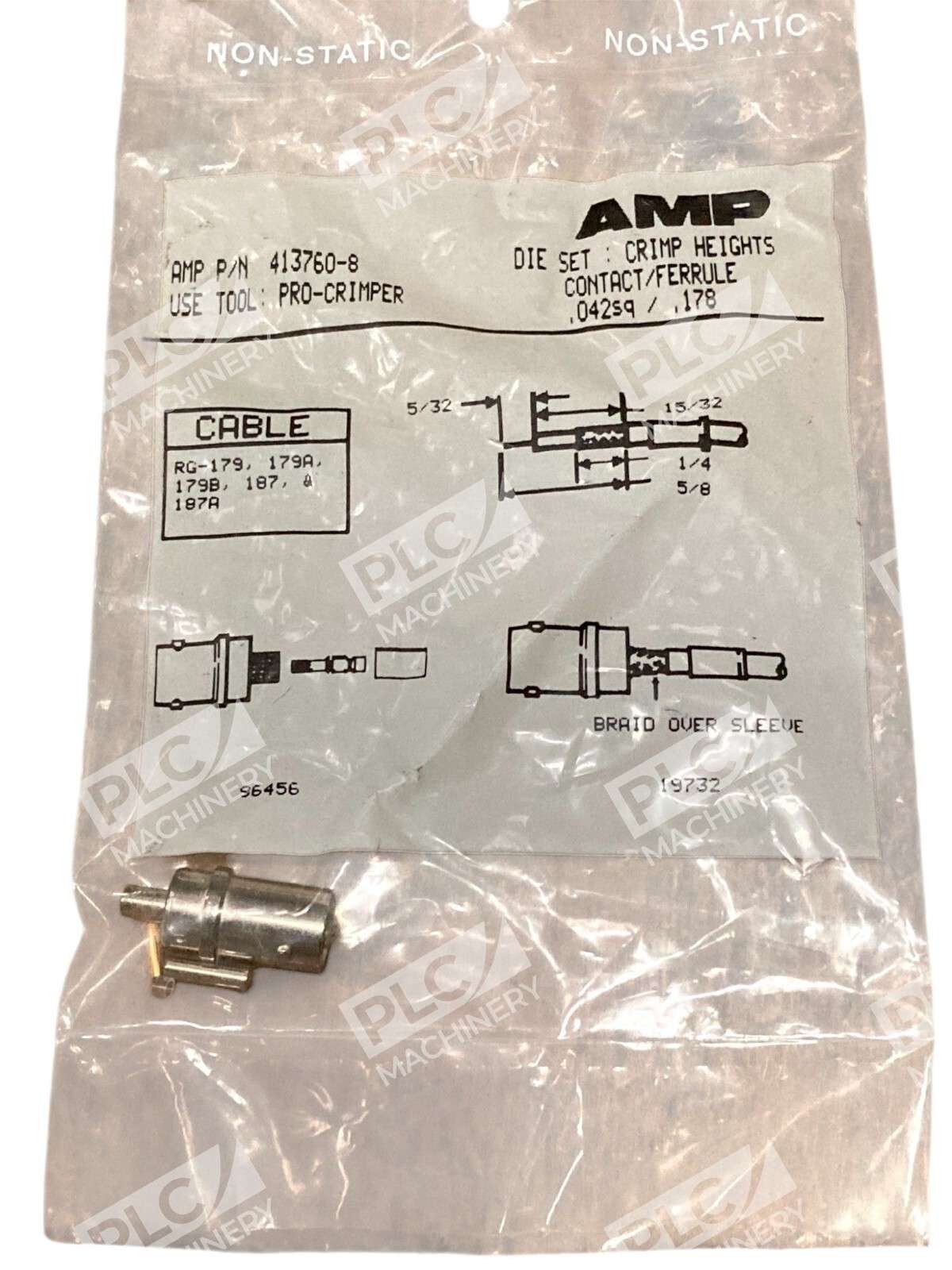

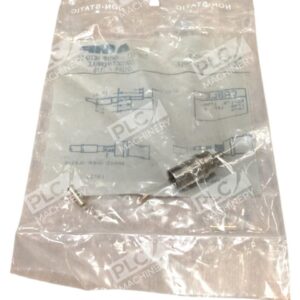

The TE Connectivity 413760-8 BNC connector is a precision 75 Ohm female jack connector engineered for professional RF and coaxial applications. Manufactured by TE Connectivity under the trusted AMP brand, this connector delivers reliable impedance matching and secure mechanical connections for RF signal transmission, video distribution, and test instrumentation. The free-hanging crimp design allows flexible installation in both in-line and bulkhead applications.
Key Features
- 75 Ohm impedance for proper RF signal integrity
- Female socket (jack) configuration for standard BNC plug mating
- Crimp-style terminal attachment for permanent, secure connections
- Free-hanging in-line design for flexible routing and installation
- TE Connectivity AMP quality and reliability
- RoHS compliant for modern equipment requirements
Technical Specifications
- Connector Type: BNC Jack (Female Socket)
- Impedance: 75 Ohm
- Mounting Style: Free-Hanging / In-Line Crimp
- Configuration: Female Socket
- Manufacturer: TE Connectivity / AMP
- Part Number: 413760-8
- Cable Attachment: Crimp Terminal
- Compliance: RoHS
Typical Applications
- RF test and measurement equipment
- Video and CCTV distribution systems
- Antenna and transmission line connections
- Laboratory instrumentation
- Broadcast and telecommunications infrastructure
- Industrial control and monitoring equipment
Compatibility & Replacements
Compatible With
- Standard BNC male plugs and adapters
- 75 Ohm coaxial cable assemblies
- RF test equipment and signal generators
- Video transmission systems
- Antenna connectors and RF distribution networks
Replaces / Drop-In Replacement For
- TE Connectivity AMP 413760-4 (alternative BNC variant)
- TE Connectivity AMP 413760-9 (alternative BNC variant)
- Generic 75 Ohm BNC female crimp connectors
Works With
- Standard BNC male connectors and RF plugs
- RG-58, RG-59, and RG-62 coaxial cables
- 75 Ohm impedance-matched RF systems
- Professional RF test and measurement tools
