Overview

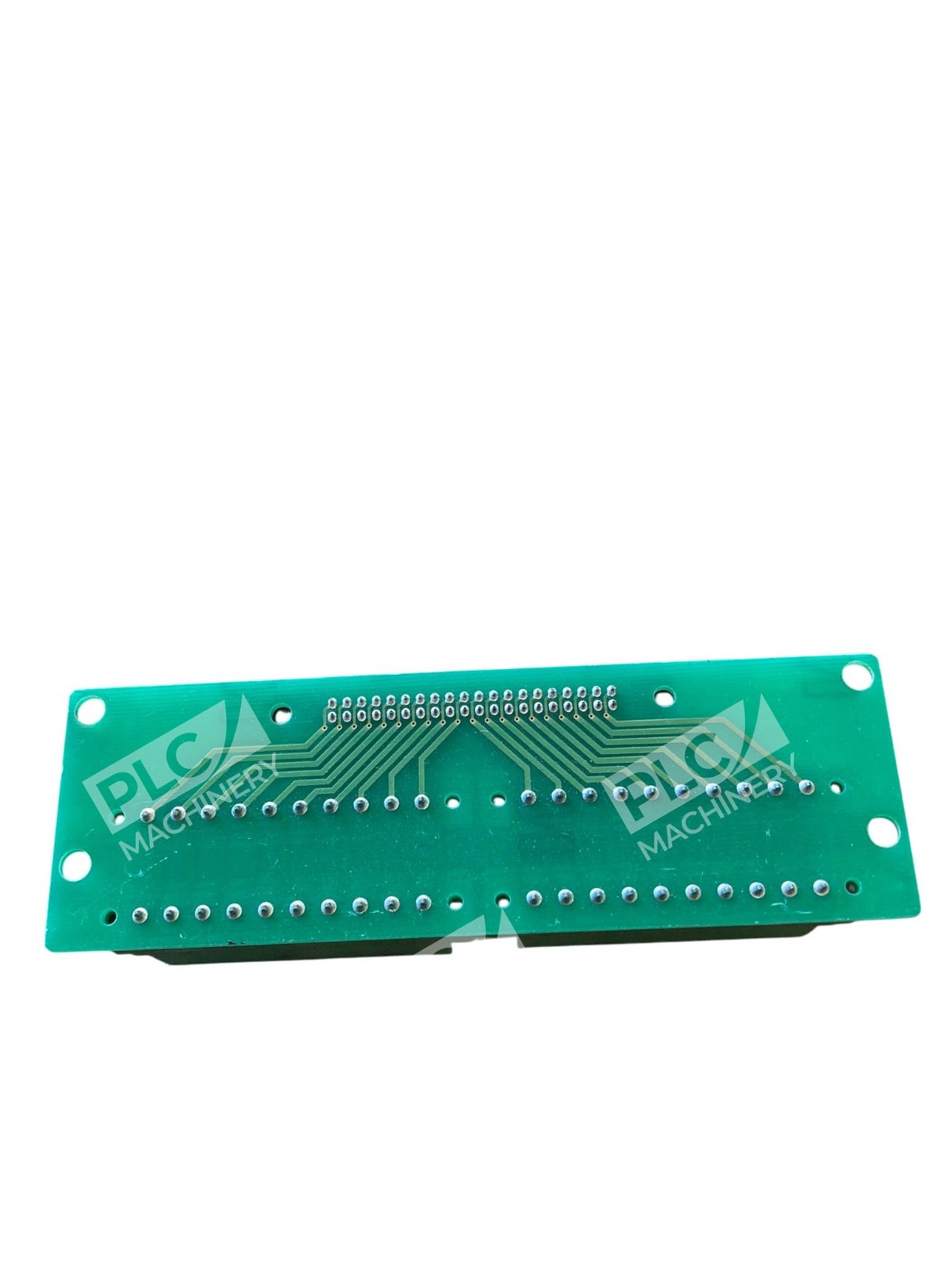

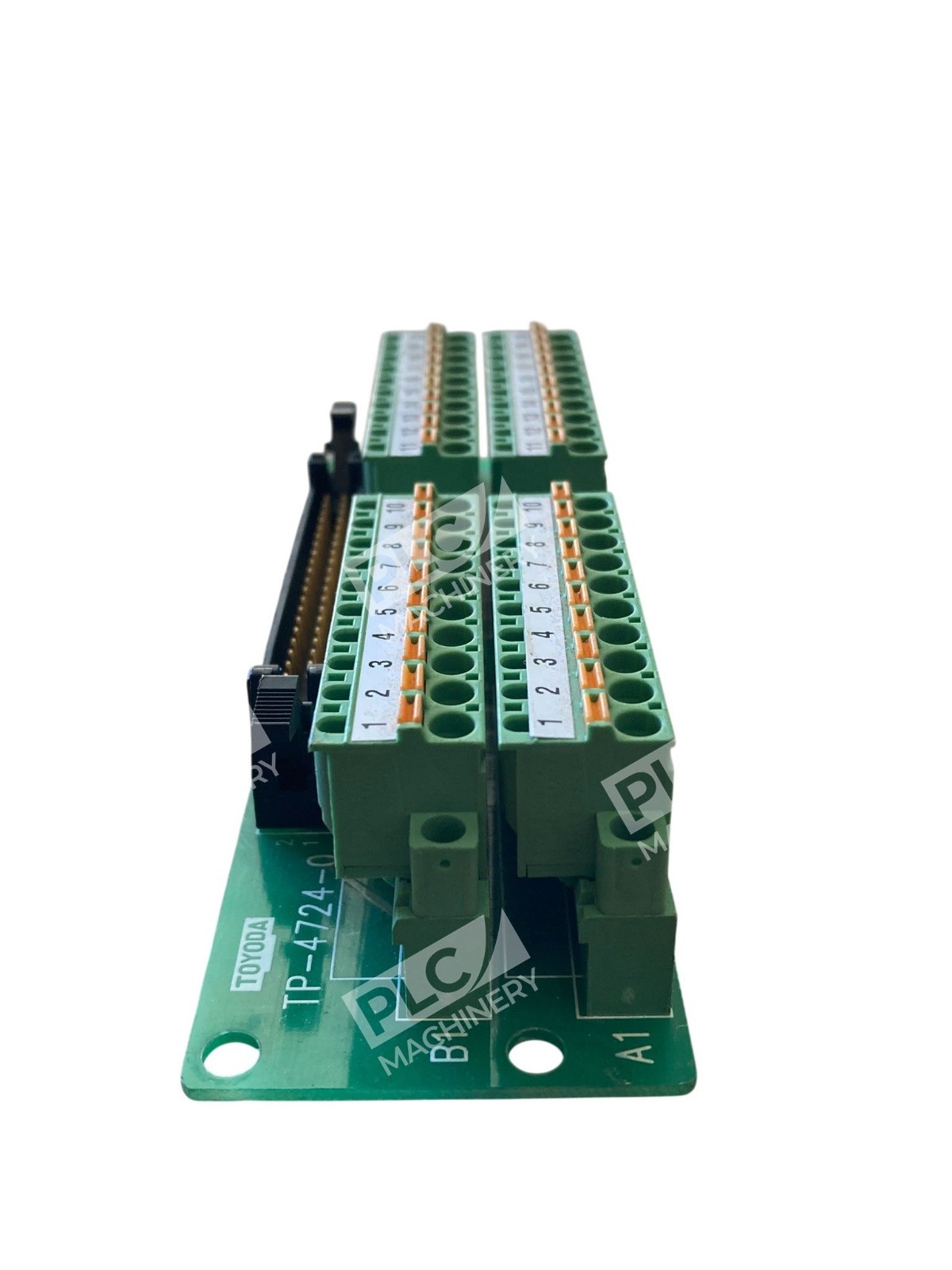

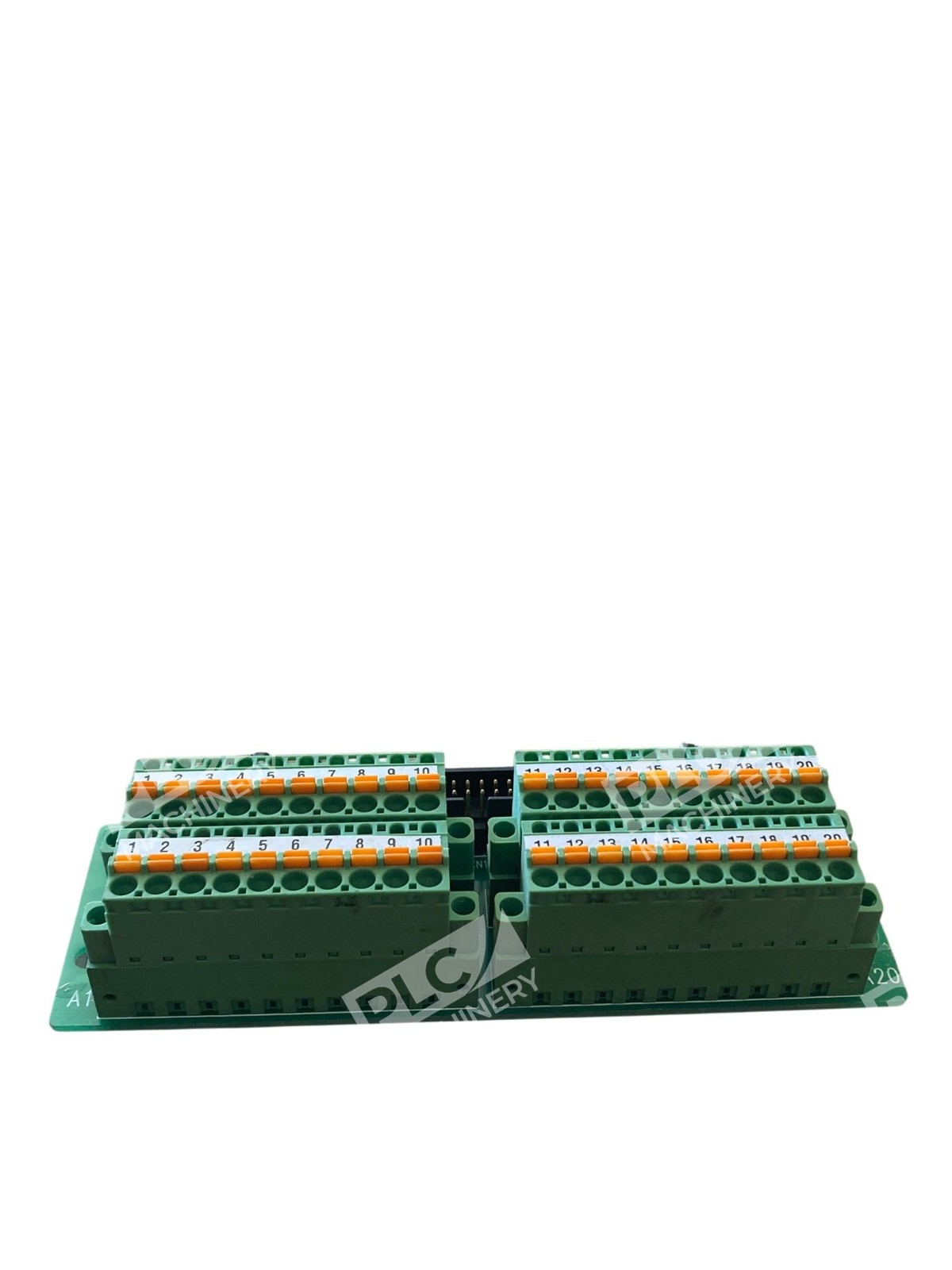

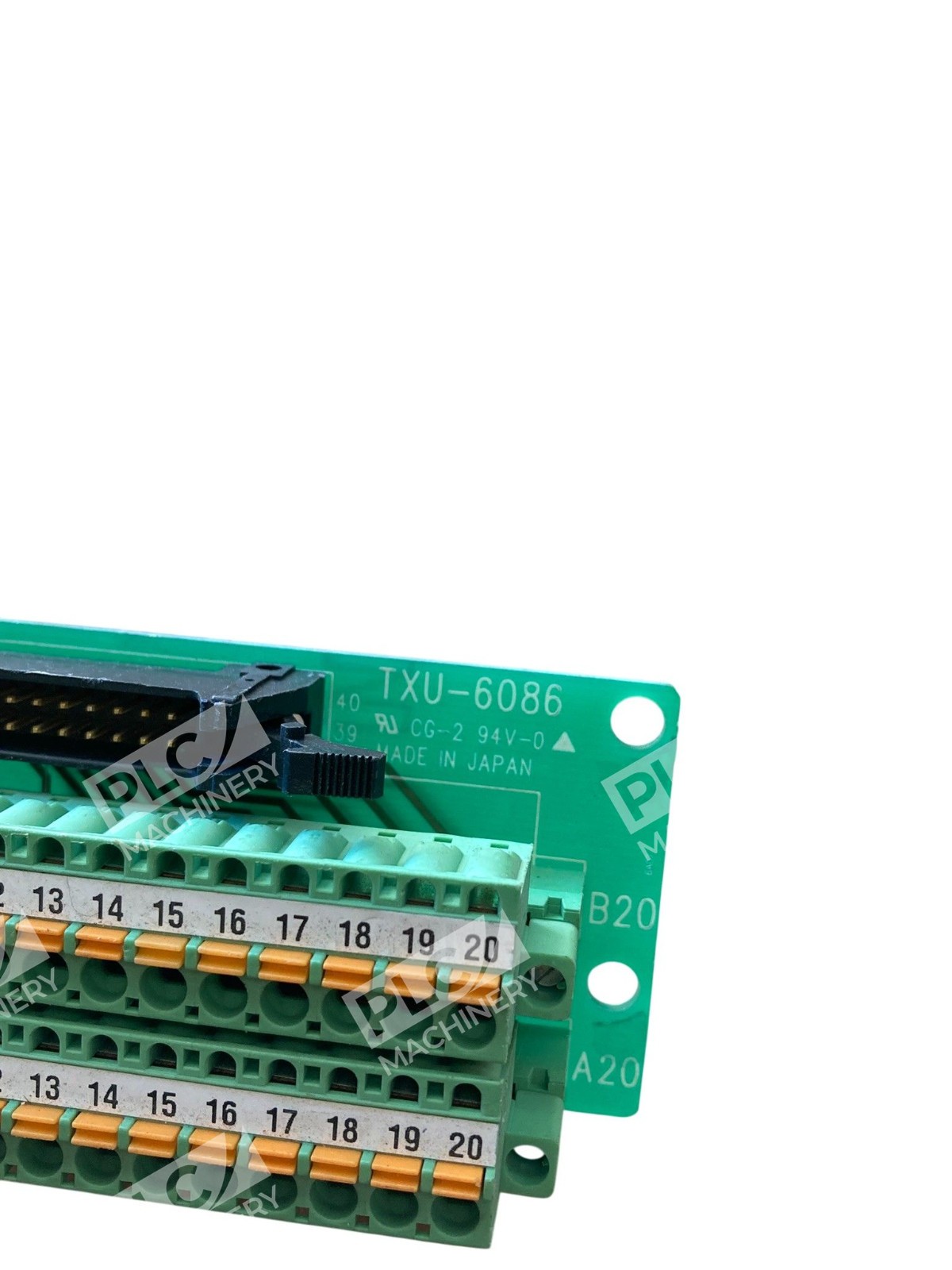

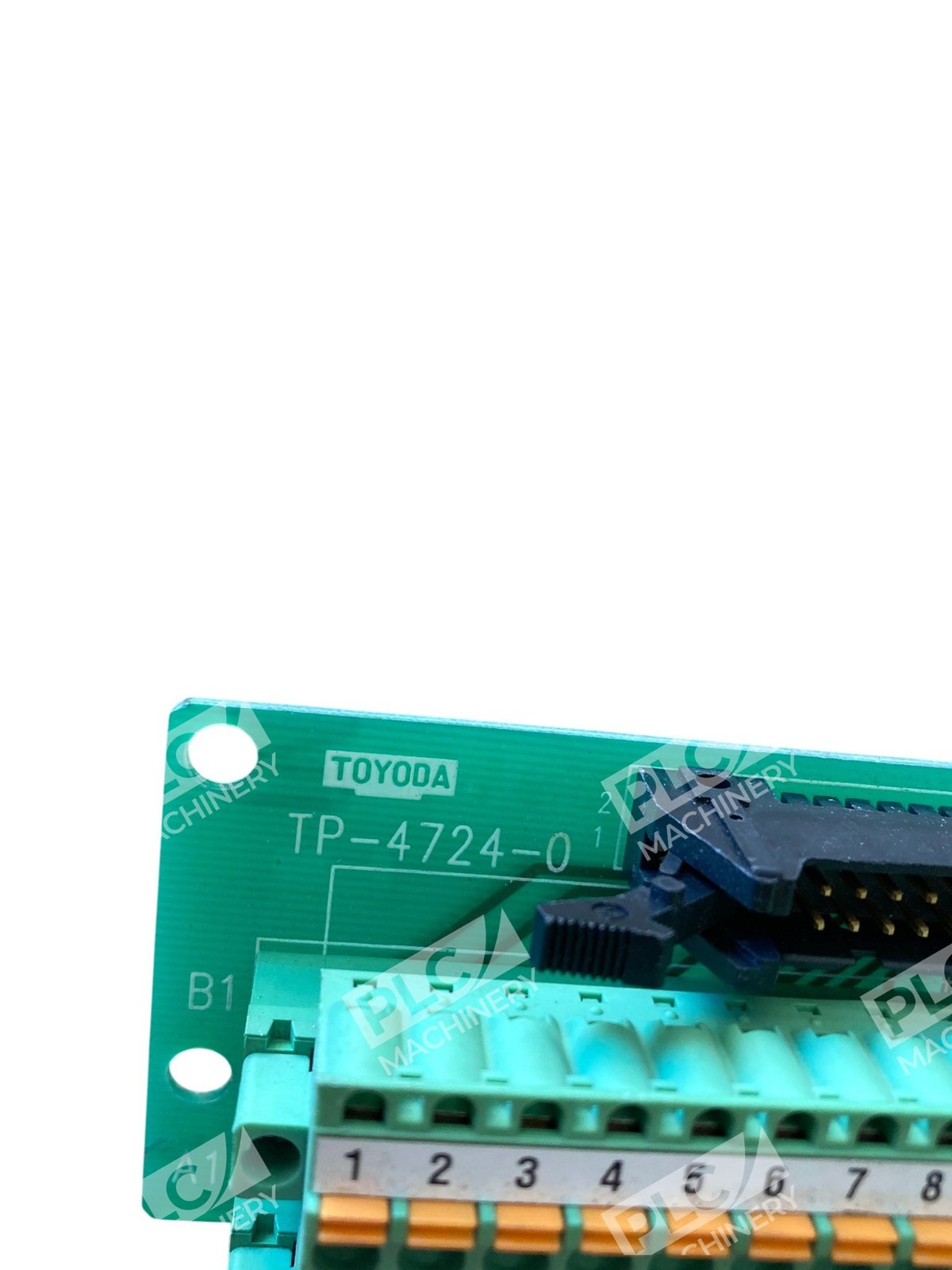

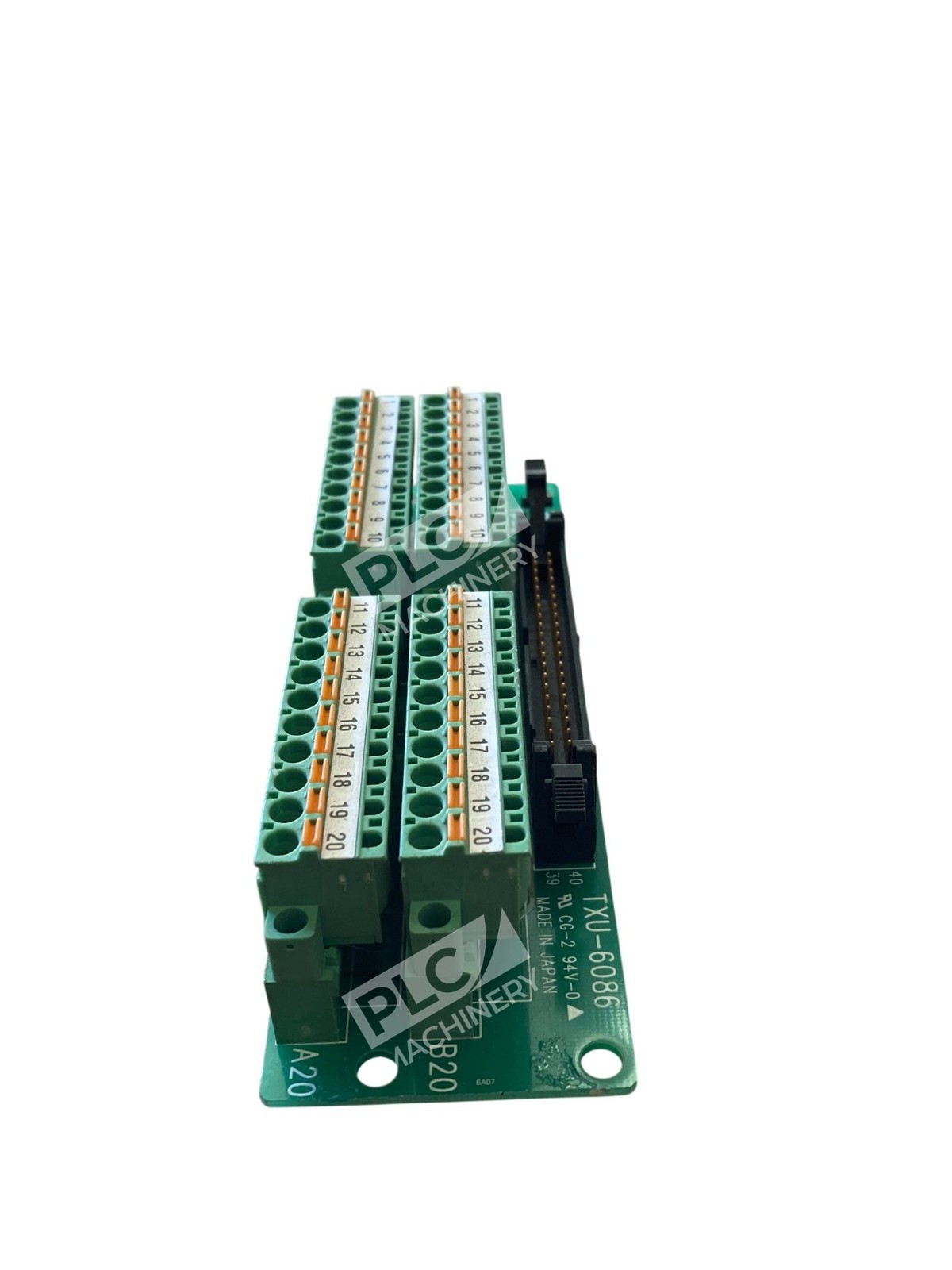

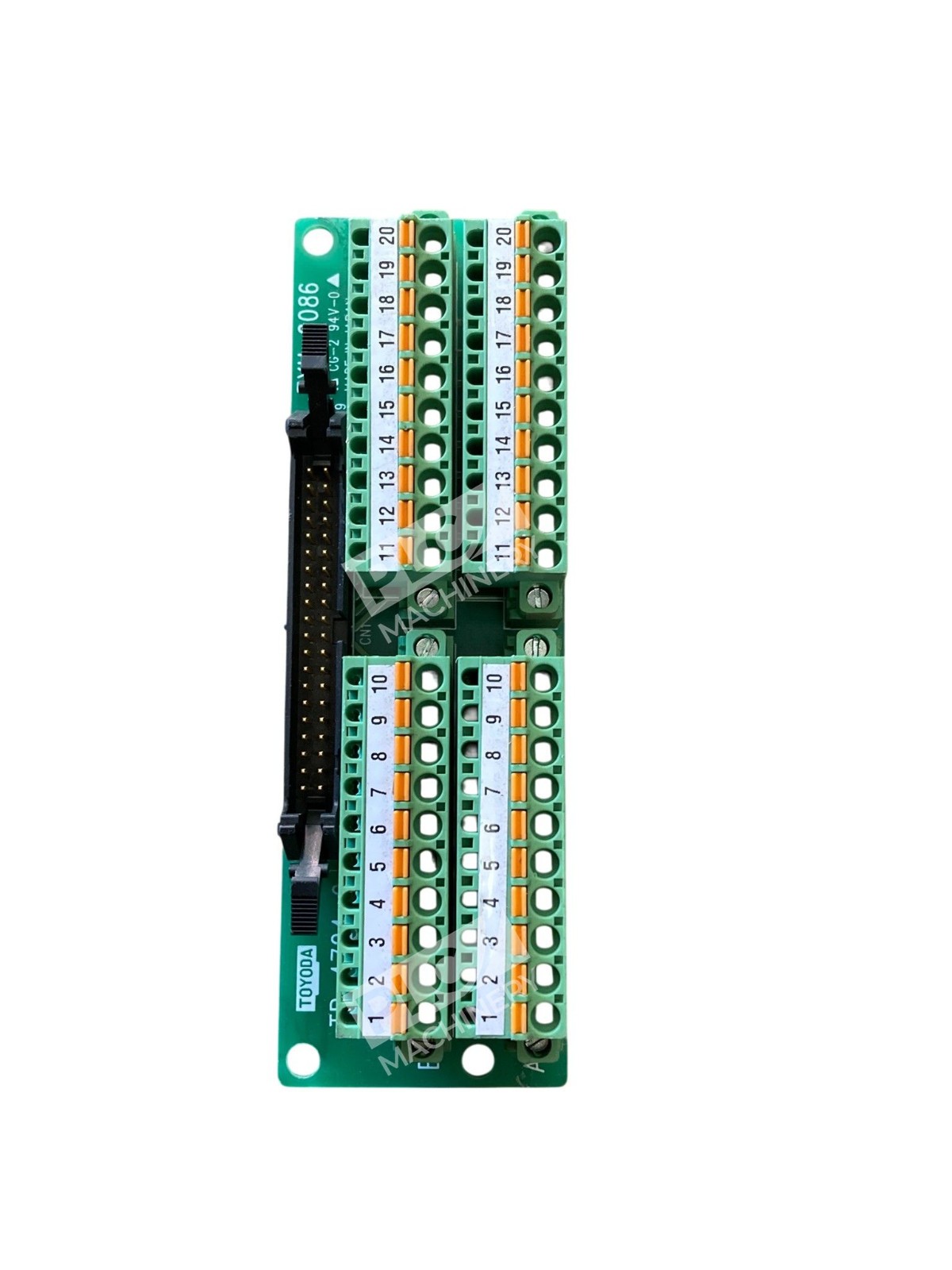

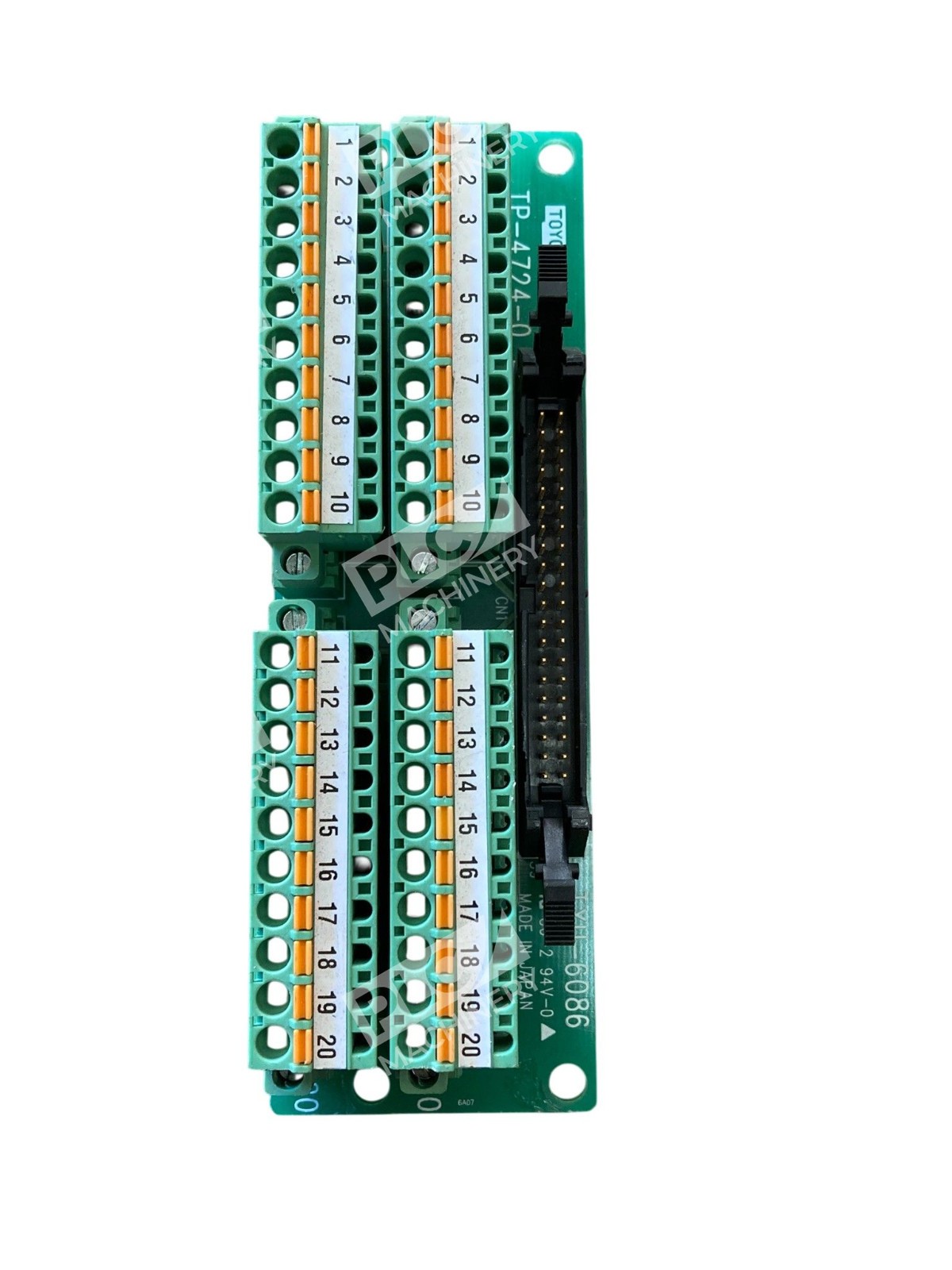

The Toyoda TP-4724-0 connector board is a precision interface module built for Toyopuc PLC control systems. This component handles communication and signal routing between the main controller and external automation devices, making it essential for maintaining system integrity and uptime in industrial motion control and process automation applications.
Key Features
- Designed for Toyopuc PC3 and compatible PLC architectures
- Supports multi-point signal connectivity for reliable industrial communication
- Compact circuit board design for standard mounting in control enclosures
- Used condition – fully functional and ready for deployment
- Drop-in replacement component for legacy Toyoda automation systems
Technical Specifications
Verify exact specifications with your Toyoda system documentation, as detailed datasheets for this specific model are not readily available in public sources.
Typical Applications
- Toyopuc PLC system expansion and add-on connectivity
- Industrial process control and machine automation
- Motion control interface bridging
- Legacy system upgrades and component replacement
- Plant maintenance and control system refurbishment
Compatibility & Replacements
Compatible With
- Toyopuc PC3 series PLC controllers
- Toyoda PC3JB-G and similar processor modules
- Toyopuc-based industrial automation systems
- Standard industrial enclosure and panel mounting applications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This connector board may serve as a direct replacement for equivalent Toyoda TP-series connector boards in Toyopuc systems, though model-to-model compatibility varies by configuration and firmware version.
Works With
- Toyopuc automation platforms
- Toyoda PLC motion control systems
- Standard 24VDC industrial control environments
- Legacy Toyopuc programming and diagnostic tools
