Overview

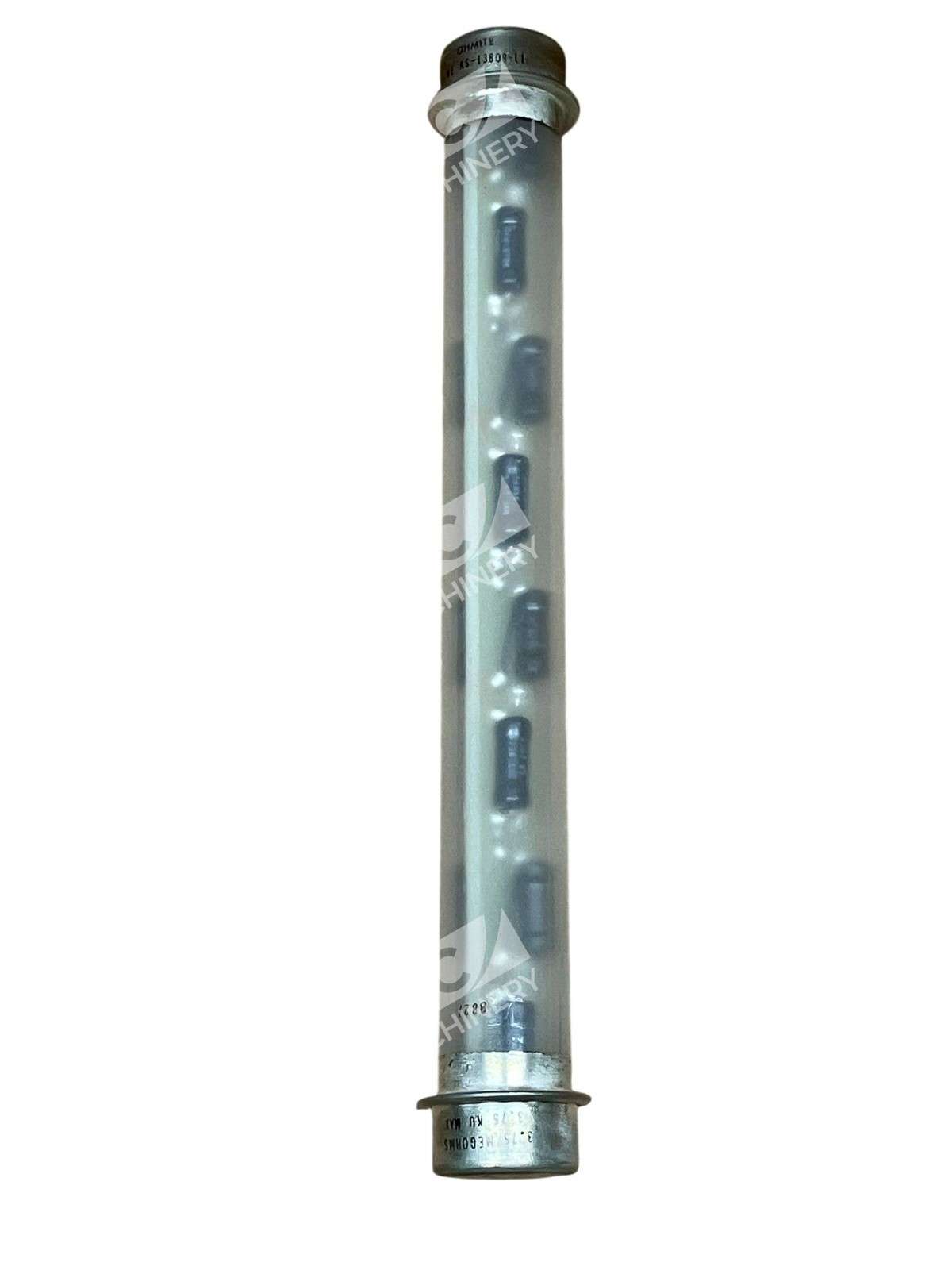

The Ohmite WE KS-13809-11 is a high-value resistor assembly with a resistance rating of 3.75MΩ. This vintage component was engineered for use in analog test instruments, particularly VOM (volt-ohm-milliammeter) meters and similar precision measurement equipment. As a product of Ohmite Manufacturing—a trusted resistor supplier since 1925—this assembly delivers the reliability and accuracy required for electronic repair and circuit restoration work.
Key Features
- Resistance rating: 3.75MΩ (3,750,000 ohms)
- Vintage electronics component for VOM and test instrument applications
- Ohmite quality manufacturing and construction
- Designed for precision measurement circuits
- Original assembly format suitable for direct replacement in compatible equipment
Technical Specifications
The following specifications apply to this resistor assembly:
- Resistance Value: 3.75MΩ (3,750,000 ohms)
- Manufacturer: Ohmite Manufacturing Co.
- Part Number: WE KS-13809-11
- Assembly Type: High-value resistor assembly
- Application Class: Vintage measurement equipment, VOM electronics
Typical Applications
High-value resistor assemblies such as the WE KS-13809-11 serve critical roles in precision measurement and electronic testing equipment:
- Analog multimeter (VOM) repair and restoration
- Test instrument circuit modules
- Measurement circuit networks
- Voltage divider and metering circuits
- High-impedance measurement applications
- Vintage electronics restoration and preservation
Compatibility & Replacements
Compatible With
This resistor assembly is compatible with:
- Analog volt-ohm-milliammeter (VOM) instruments
- Vintage test and measurement equipment requiring 3.75MΩ resistance
- Legacy measurement circuit designs
- Precision metering applications requiring high-value resistors
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment documentation before ordering. The Ohmite WE KS-13809-11 is designed to replace equivalent high-value resistor assemblies in compatible vintage test instruments. Confirm the exact mounting configuration and electrical specifications match your application requirements.
Works With
- Analog measurement circuits
- Vintage test instrument designs (1960s–1980s era)
- VOM meter circuit modules
- High-impedance input stage networks
