Overview

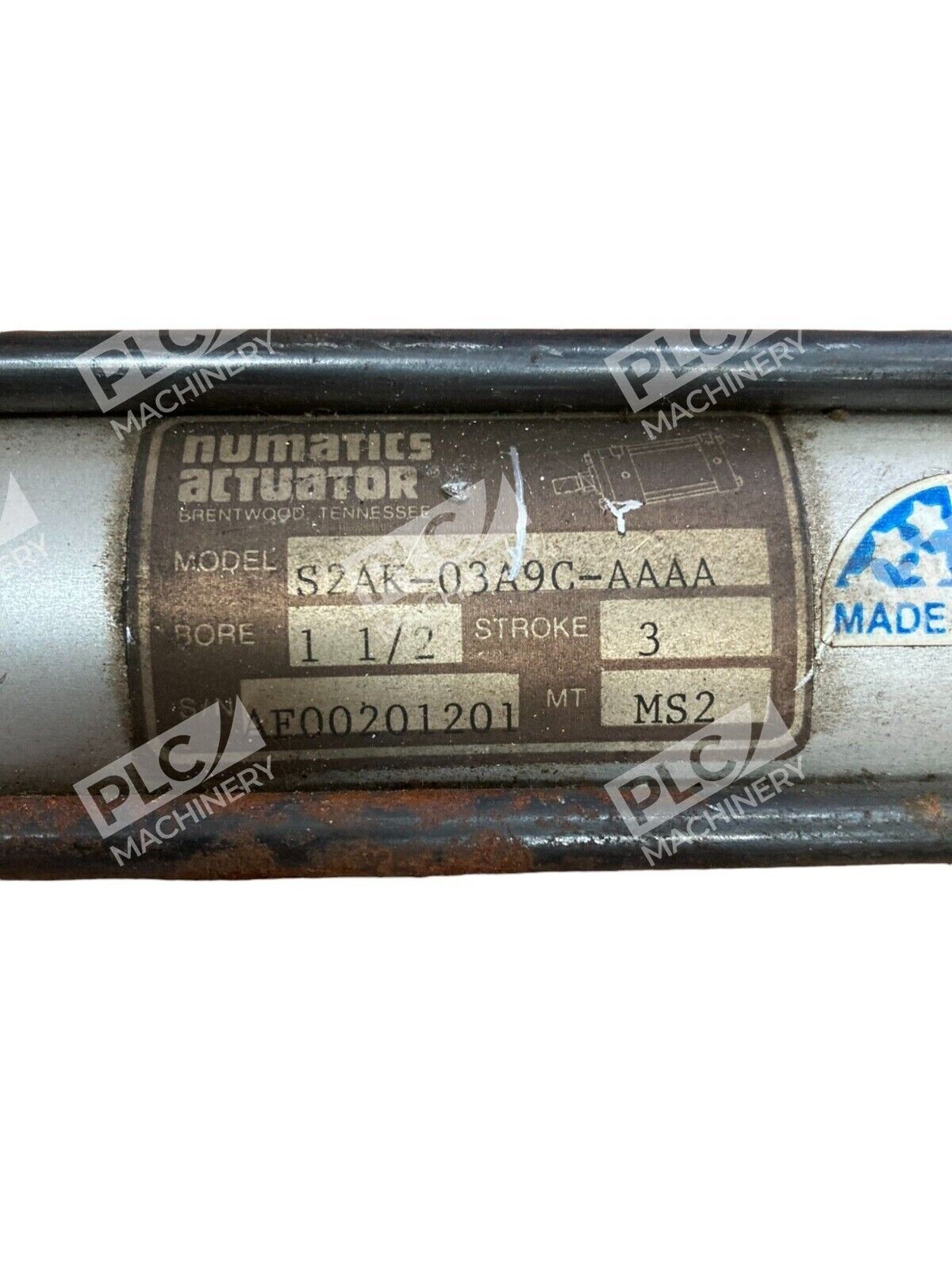

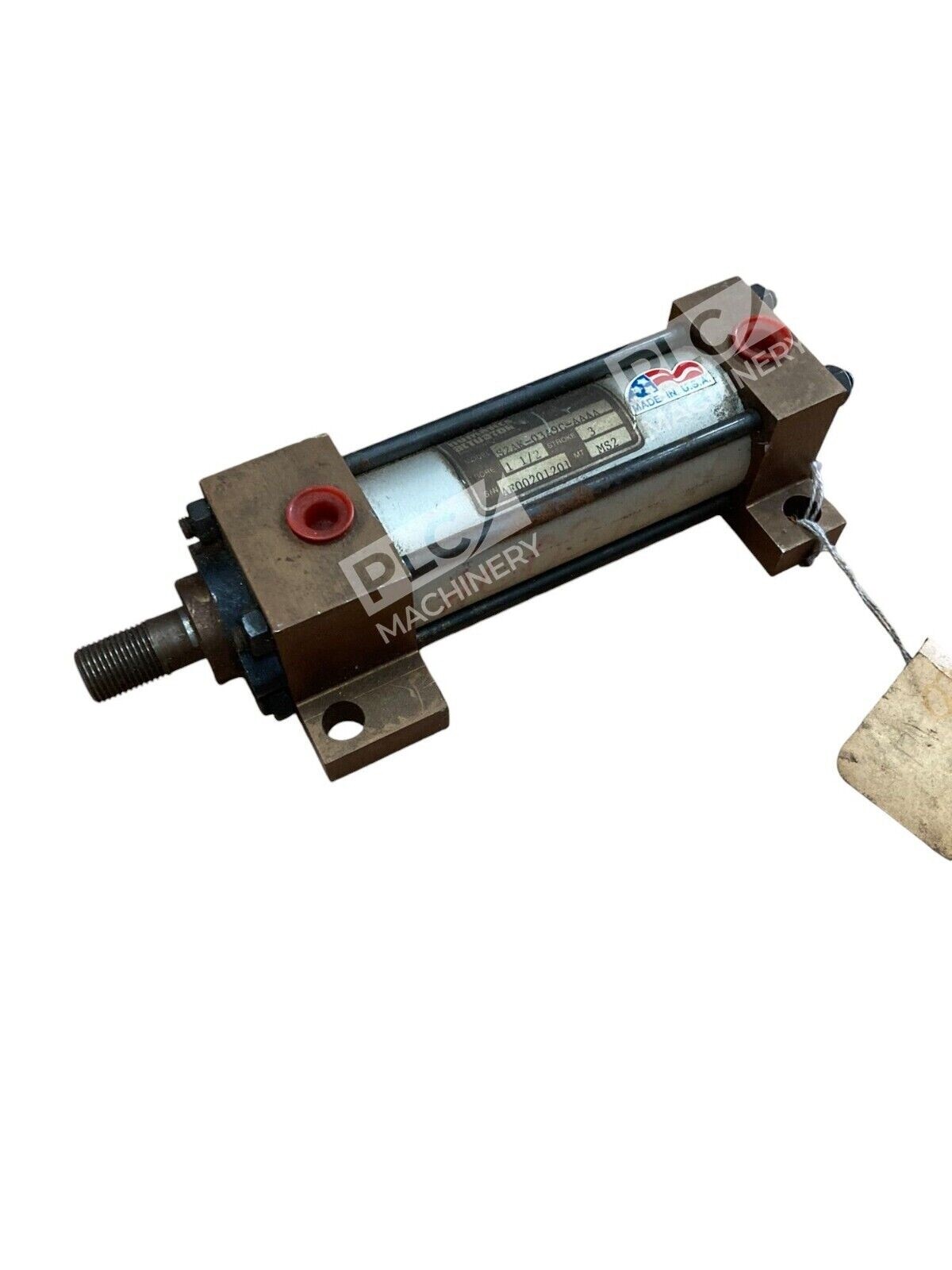

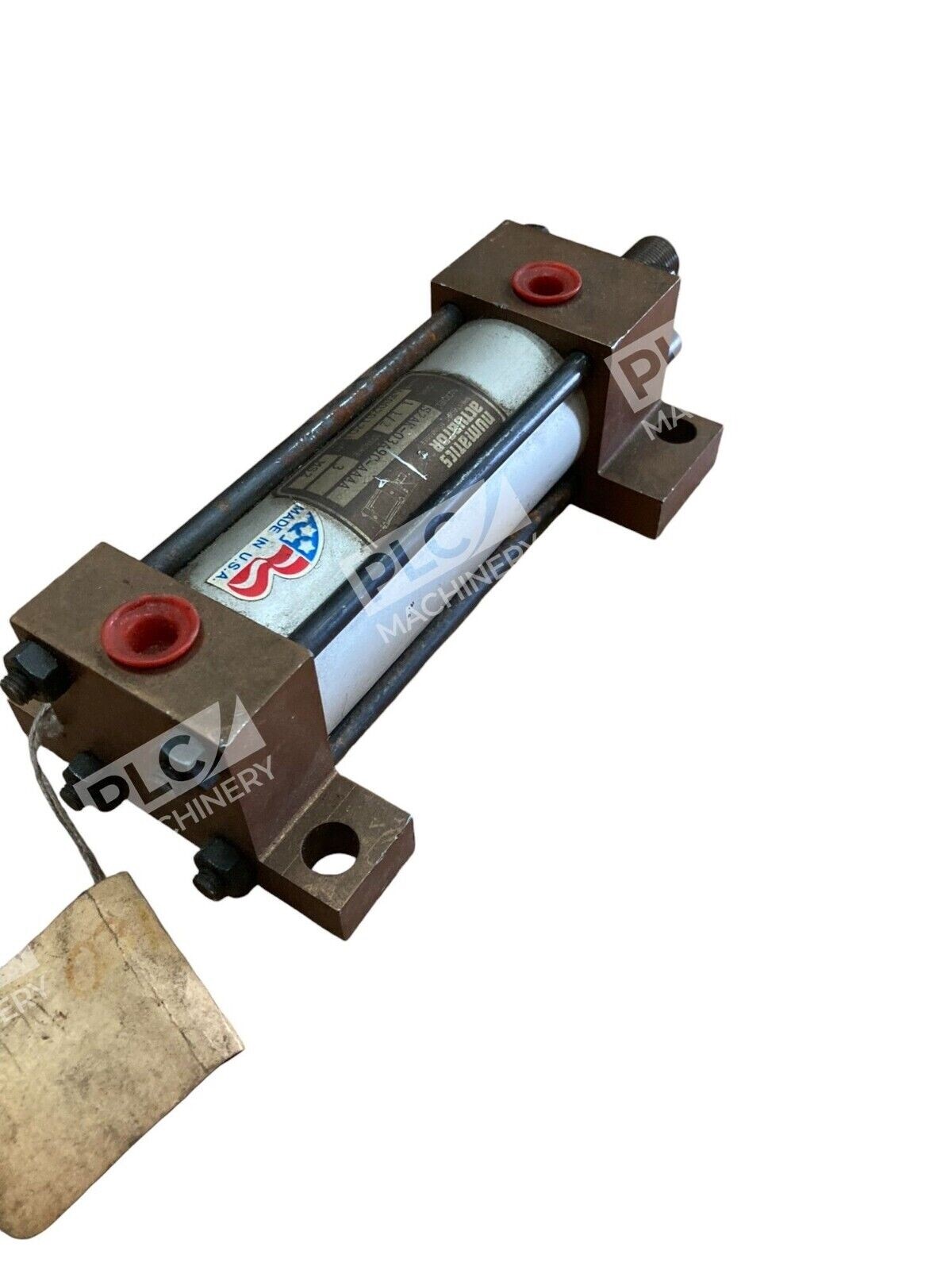

The Numatics S2AK-03A9C-AAAA is a double-acting, single-rod tie-rod pneumatic cylinder actuator engineered for demanding industrial pneumatic control systems. This NFPA interchangeable Series A cylinder combines proven construction with reliable performance in manufacturing, automation, and material handling applications. With a 1-1/2″ bore and 3″ stroke, the S2AK-03A9C-AAAA delivers consistent force output and precise positioning.
Key Features
- Double-acting design — pressurized extend and retract for full directional control
- NFPA interchangeable — compatible with standard pneumatic control and mounting systems
- Tie-rod construction — robust aluminum body with chrome-plated steel piston rod for corrosion resistance
- Aluminum alloy construction — lightweight, durable hard-coat anodized barrel with 6061-T6 aluminum head and cap
- Adjustable cushion capability — smooth deceleration reduces shock and extends component life
- 250 psi rated pressure — suitable for standard industrial pneumatic systems
Technical Specifications
- Bore diameter: 1-1/2″ (38 mm)
- Stroke length: 3″ (76 mm)
- Cylinder type: Double-acting, single-rod
- Maximum operating pressure: 250 psi
- Rated force (extend): 177 lbf @ 100 psi differential
- Rated force (retract): 146 lbf @ 100 psi differential
- Pneumatic ports: 3/8″ NPTF threaded (ports position 1)
- Piston rod: 7/16″-20 male threaded
- Mounting: Side lug configuration
- Barrel material: Hard-coat anodized aluminum
- Piston rod material: Chrome-plated steel
- Standard seals: Nitrile, self-lubricating with PTFE compound
- Rod bushing: Graphite-filled cast iron
- Piston: Aluminum alloy
Typical Applications
The S2AK-03A9C-AAAA is widely used in industrial automation for:
- Clamping and holding fixtures in manufacturing
- Material handling and transfer systems
- Assembly line automation
- Valve actuation and control
- Press and forming equipment
- Food processing and packaging machinery
Compatibility & Replacements
Compatible With
- Standard NFPA pneumatic control systems
- Pressure regulators rated 250 psi and below
- ISO 4401 solenoid valve manifolds
- Pneumatic directional control valves (4/2, 4/3, 5/2, 5/3)
- Standard pneumatic air preparation (filters, regulators, lubricators)
- Allen-Bradley and Siemens PLC pneumatic modules
- Rockwell CompactLogix I/O for solenoid control
Replaces / Drop-In Replacement For
The S2AK-03A9C-AAAA is a direct replacement for other Numatics MS2 and S2AK series cylinders with equivalent bore and stroke, such as models in the Numatics S2 and 2000 series families with matching 1-1/2″ bore and 3″ stroke specifications. Verify compatibility with your system integrator before ordering to confirm mounting, port location, and seal material compatibility with your specific application.
Works With
- Festo pneumatic systems and control interfaces
- ASCO air logic systems
- Parker pneumatic proportional controls
- SMC solenoid valve banks
- ISO 6431 standard pneumatic control circuits
- Pneumatic logic valve cascades
- Electronic proportional pressure regulators
