Overview

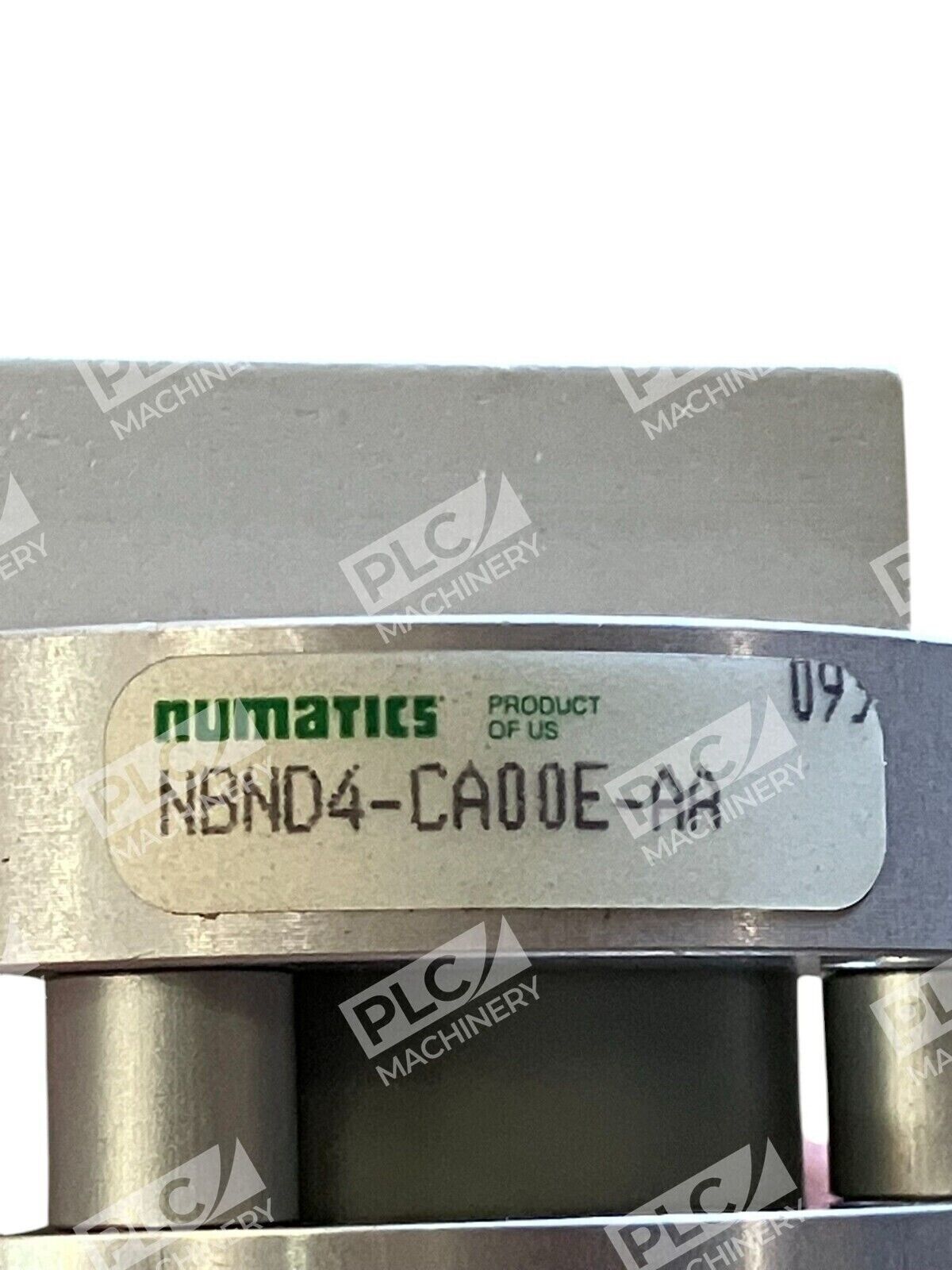

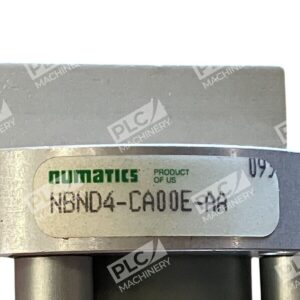

The Numatics NBND4-CA00E-AA is a compact pneumatic cylinder built on the proven NB series platform from ASCO Numatics. This double-acting twin-rod non-rotating tie-rod cylinder operates with a 1-1/2″ bore and provides compact actuation with threaded mounting at both ends and 1/8″ NPT threaded pneumatic ports. Designed for applications requiring robust, space-efficient linear motion control, this unit combines durable construction with straightforward installation for maintenance technicians and system integrators.
Key Features
- Double-acting twin-rod tie-rod construction for balanced load distribution and extended service life
- Rated for 200 psi maximum operating pressure and 15 psi minimum, with Buna-N internally lubricated seals, chrome-plated steel piston rod, stainless steel piston, and clear anodized aluminium alloy head and cap
- Compact NB series design fits tight spaces in machinery and control equipment

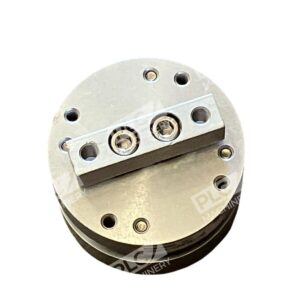

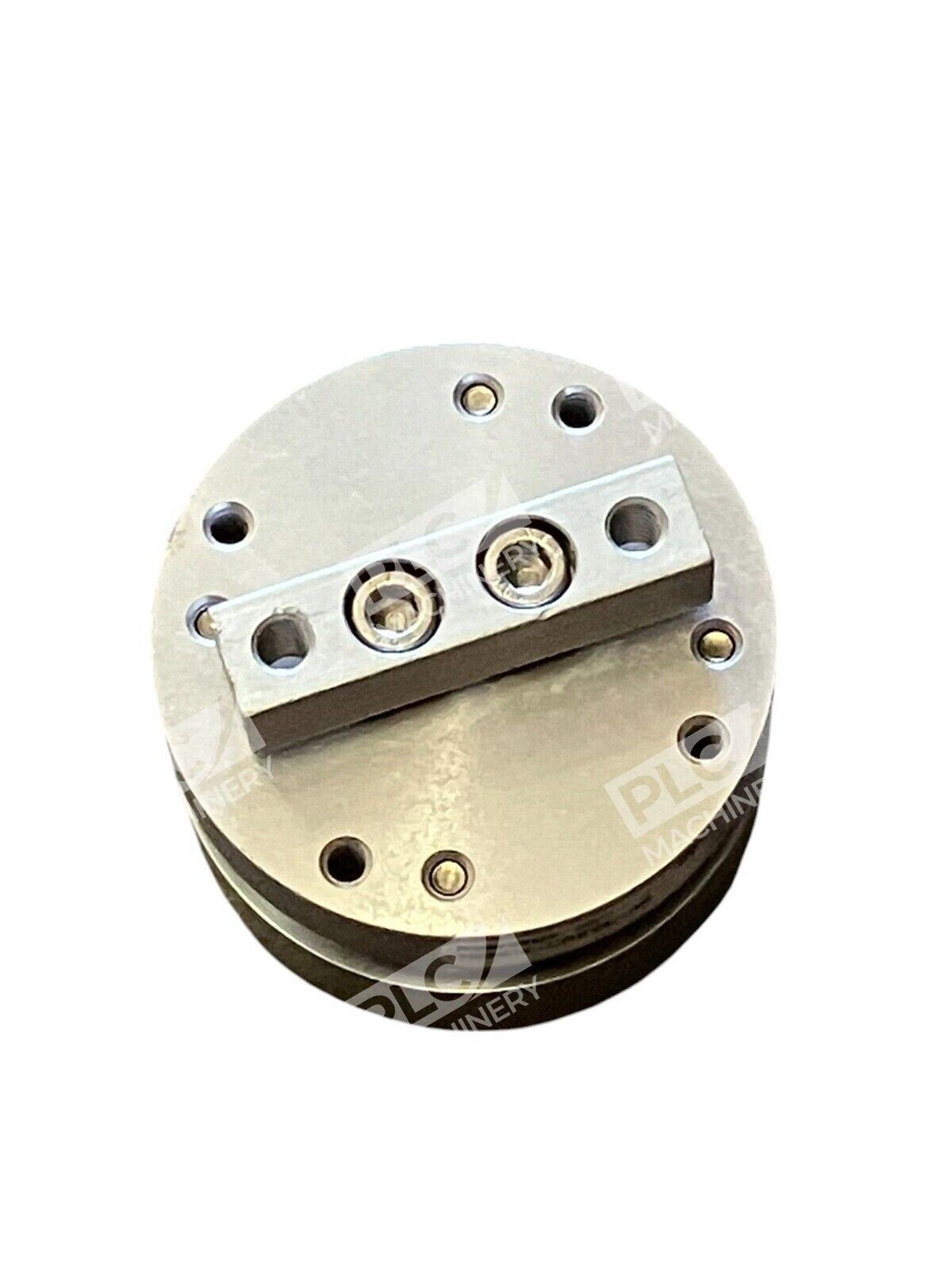

- 1/4-20 UNC female threaded rod end tool bar for flexible mounting and attachment options
- Non-rotating rod prevents tangling and simplifies linkage design
- Composite self-lubricating body with bronze rod bushing for extended intervals between service
Technical Specifications
The NBND4-CA00E-AA features a 1-1/2″ bore diameter with threaded mounting holes at both ends and 1/8″ NPT pneumatic ports positioned at standard location 1. Maximum operating pressure reaches 200 psi with a minimum of 15 psi, and the cylinder incorporates stainless steel tie bolts for enhanced corrosion resistance. The sealed rod design with quality elastomers ensures consistent performance across extended operating cycles.
Typical Applications
- Industrial automation machinery requiring compact linear actuation
- Manufacturing equipment clamping and positioning fixtures
- Control valve actuators and pneumatic logic circuits
- Assembly line automation with space-constrained layouts
- Material handling and transfer equipment
- Packaging machinery requiring synchronized multi-axis control
Compatibility & Replacements
Compatible With
- Standard compressed air systems (shop air, plant pneumatics)
- Pneumatic manifold blocks with 1/8″ NPT cavity ports
- Proportional and directional control valves (solenoid or manual)
- Pneumatic timing circuits and logic modules
- Industrial PLC and automation controllers via pneumatic solenoid interfaces
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Similar ASCO Numatics NB series cylinders with comparable bore and stroke may share mounting patterns; consult Numatics cross-reference documentation for exact interchangeability.
Works With
- Standard 1/8″ NPT pneumatic tubing and fittings
- Pneumatic solenoid valve systems (24 VDC and AC coil options)
- ISO 4401 (CETOP) ported manifold systems
- Manual and automated pneumatic control circuits
- Industrial compressed air filtration and lubrication equipment
