Overview
The Numatics PXCST is an industrial-grade cable cordset designed for pneumatic and control applications operating at 60VAC/75VDC. This single-ended cordset provides reliable electrical connectivity through a 3-pole straight female M8 connector and is engineered for durability in demanding factory and plant environments.
Key Features
- 3-pole M8 straight female connector with quick-disconnect capability
- 5 meter cable length for flexible installation routing
- 24 AWG wire conductors for industrial signal and power transmission
- PVC jacket rated for 60VAC and 75VDC operation
- Orange PVC exterior for easy identification and traceability
- Single-ended configuration for direct integration with sensors and pneumatic control devices
Technical Specifications

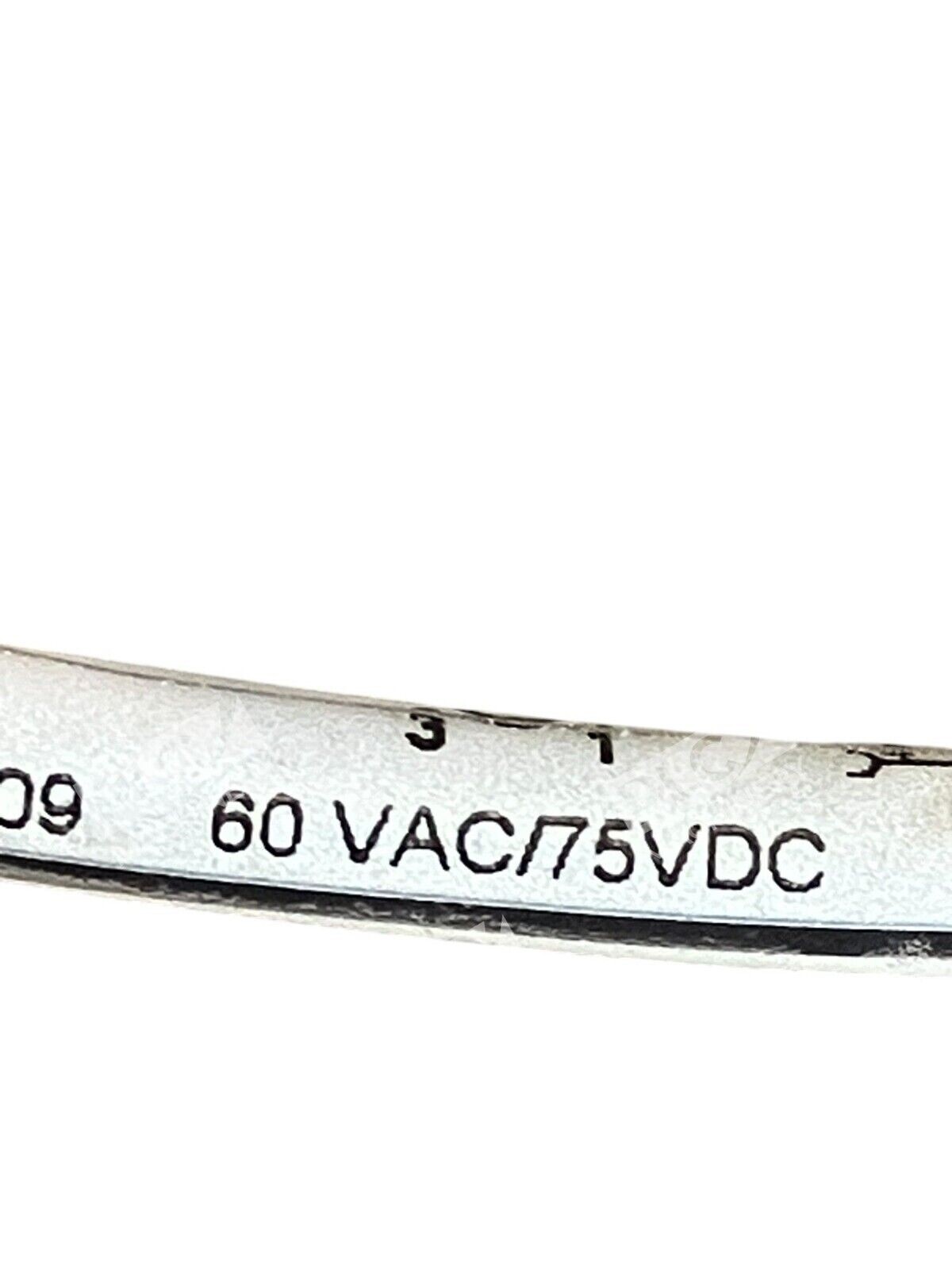

- Voltage Rating: 60VAC / 75VDC
- Connector Type: 3-pin M8 Female Straight
- Cable Length: 5 meters (16.4 feet)
- Wire Gauge: 24 AWG
- Jacket Material: PVC
- Configuration: Single-ended cordset
- Identification: Orange color
- Alternate Part Number: UC0134-002
Typical Applications
The PXCST cordset is commonly used for:
- Pneumatic solenoid valve control circuits
- Industrial sensor and transducer connections
- Machine control panel wiring and interconnects
- Automation equipment and assembly line installations
- Process control signal transmission in manufacturing facilities
Compatibility & Replacements
Compatible With
- M8 3-pin straight female jack receptacles
- Numatics/Aventics pneumatic control systems
- Industrial PLC and automation control networks
- Standard 60VAC/75VDC control circuits
- Pneumatic solenoid valve manifolds with M8 connectors
Replaces / Drop-In Replacement For
- Numatics UC0134-002 (equivalent part)
- Verify compatibility with your system integrator before ordering for legacy equipment applications.
Works With
- M8 quick-disconnect socket interfaces
- 3-pole industrial connector systems
- 24VAC/VDC industrial control relay circuits
- Pneumatic control and automation platforms compatible with M8 connectivity
