Overview

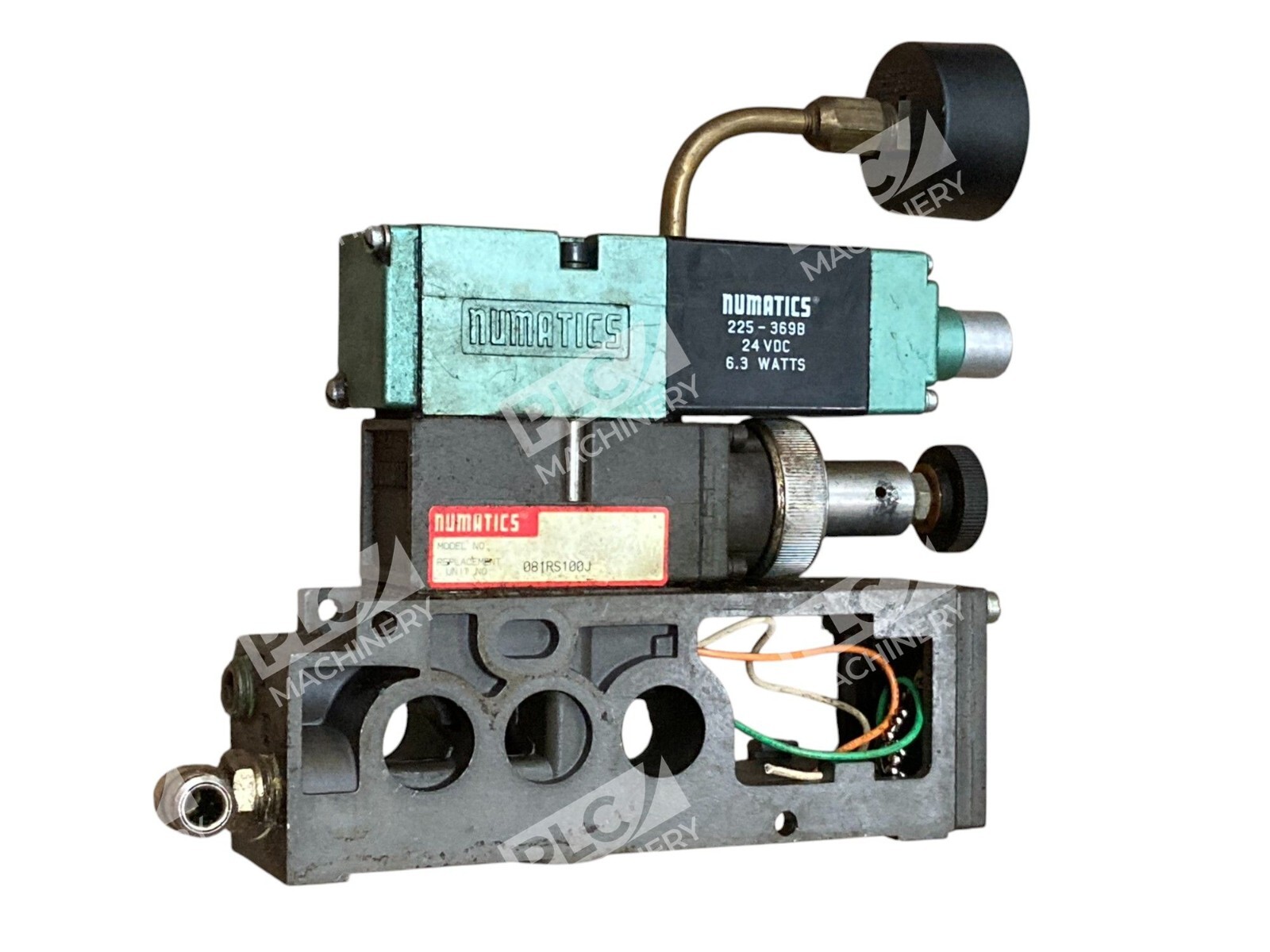

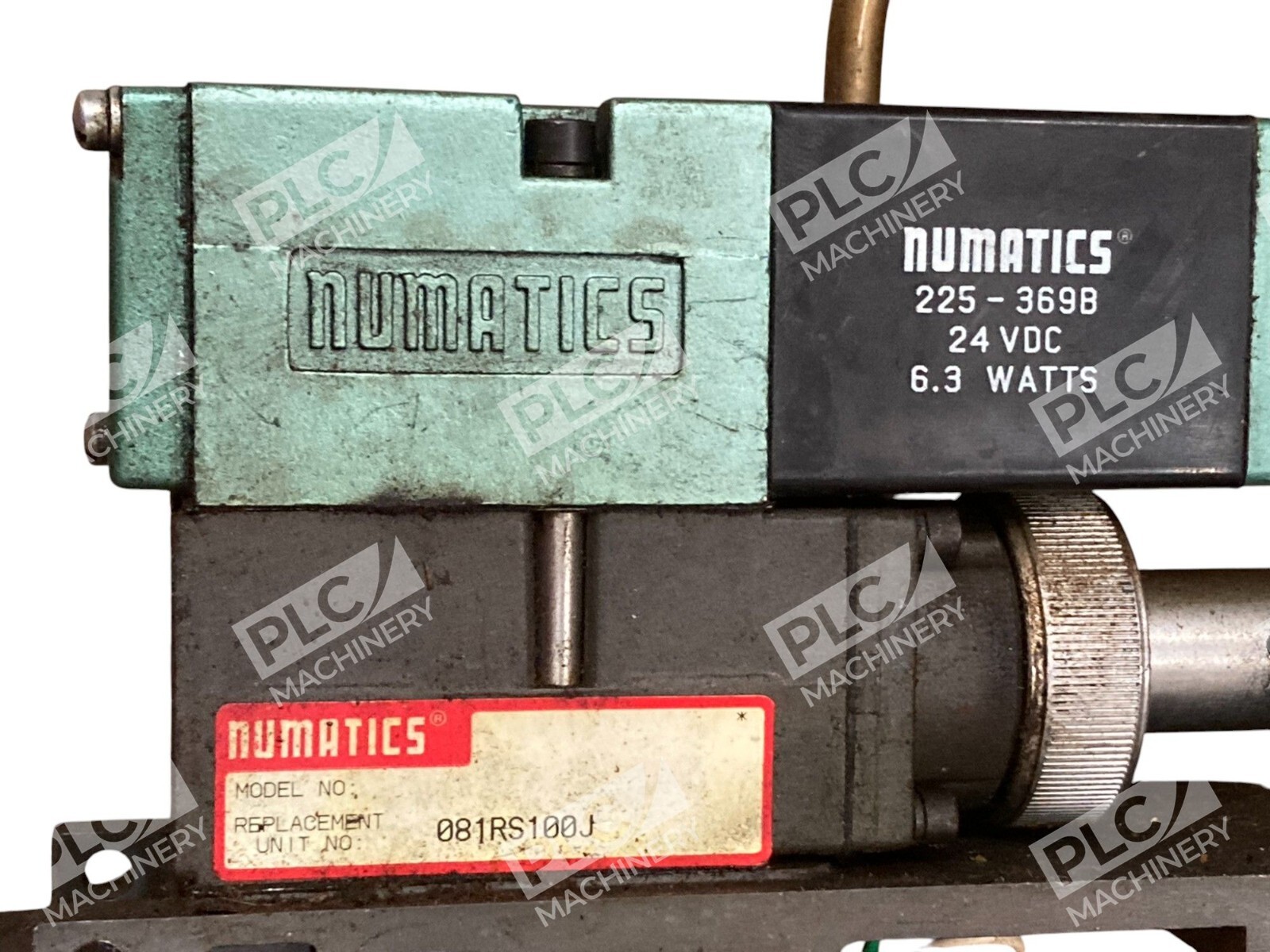

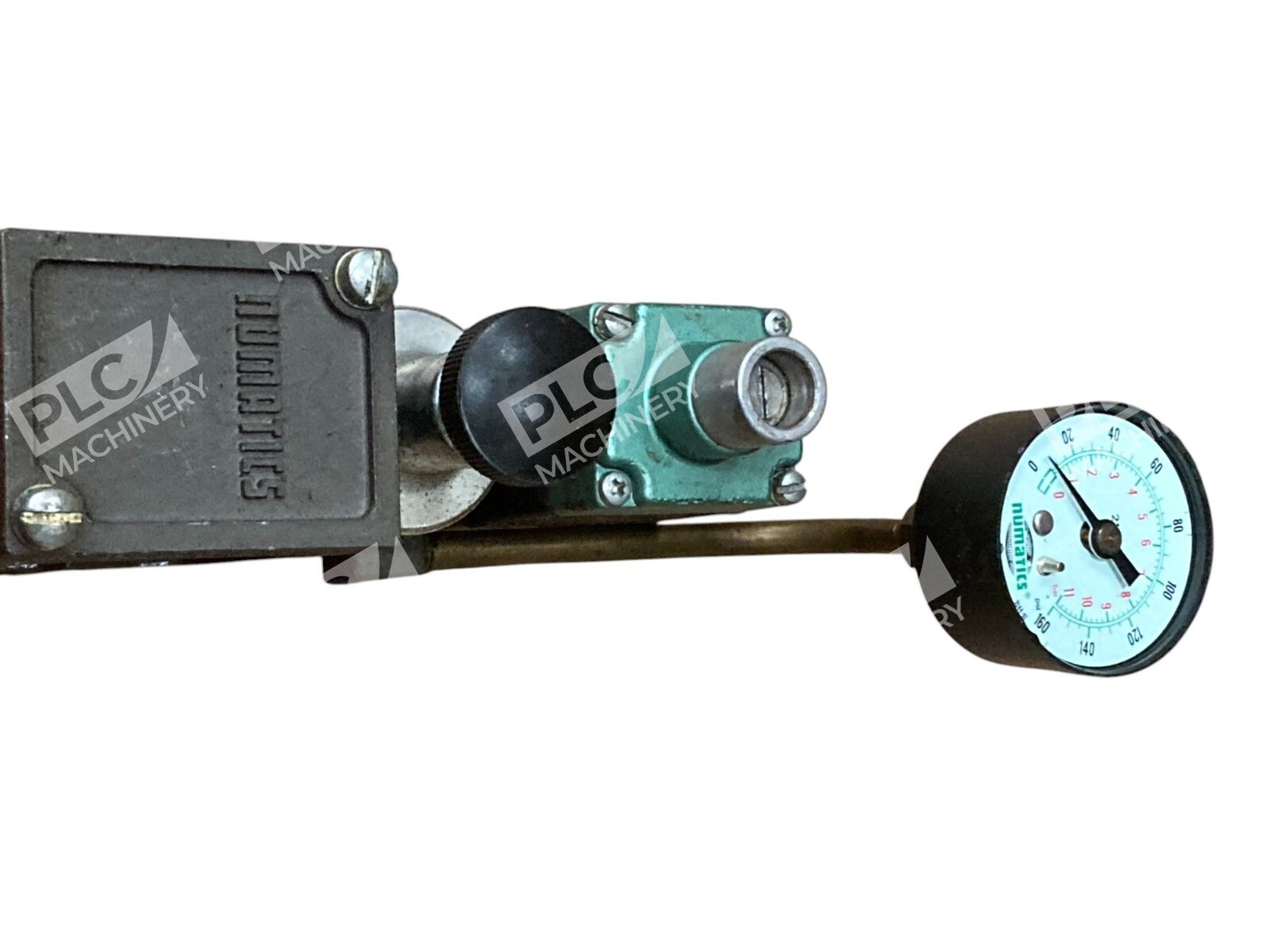

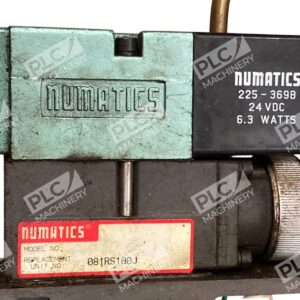

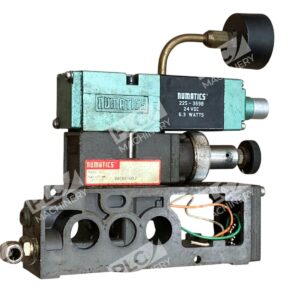

The Numatics 225-369B solenoid valve regulator manifold assembly (Model 081RS100J) is a reliable pneumatic control component designed for air media operation in industrial automation applications. This manifold assembly integrates solenoid valve operation with built-in regulator capability, allowing precise control and distribution of compressed air across multiple circuits. The assembly is ideal for process automation, machine control, and pneumatic system upgrades where modular, cost-effective valve control is needed.
Key Features
- Integrated solenoid valve and regulator in single manifold assembly
- 24 VDC coil rated at 6.3 watts for reliable electromagnetic actuation
- Modular design supports easy integration into existing pneumatic networks
- Designed for unlubricated and lubricated air service
- Industrial-grade construction for demanding automation environments
- Proven Numatics pneumatic valve technology
Technical Specifications
The Numatics 225-369B delivers the core specifications needed for pneumatic valve control:
- Coil Voltage: 24 VDC
- Power Consumption: 6.3 watts
- Valve Type: Solenoid-operated directional valve
- Media: Compressed air (lubricated or unlubricated)
- Operation: Electromagnetic pilot/solenoid actuation
- Assembly Configuration: Manifold block with integrated regulator
- Pilot Air Supply: Integral or external (verify with documentation)
Typical Applications
This solenoid valve regulator manifold is commonly deployed in:
- Automated assembly machinery and production lines
- Pneumatic actuator control systems
- Process automation and material handling equipment
- Multi-station CNC and rotary machinery
- Industrial test stands and diagnostic equipment
- OEM equipment retrofits and upgrades
Compatibility & Replacements
Compatible With
- Standard pneumatic manifold mounting systems
- 24 VDC control circuits and PLC outputs
- Industrial compressed air supply systems (filtered, regulated)
- ISO 4401 and ISO 1219 pneumatic circuit standards
- Numatics FlexiBlok and modular valve assemblies
Replaces / Drop-In Replacement For

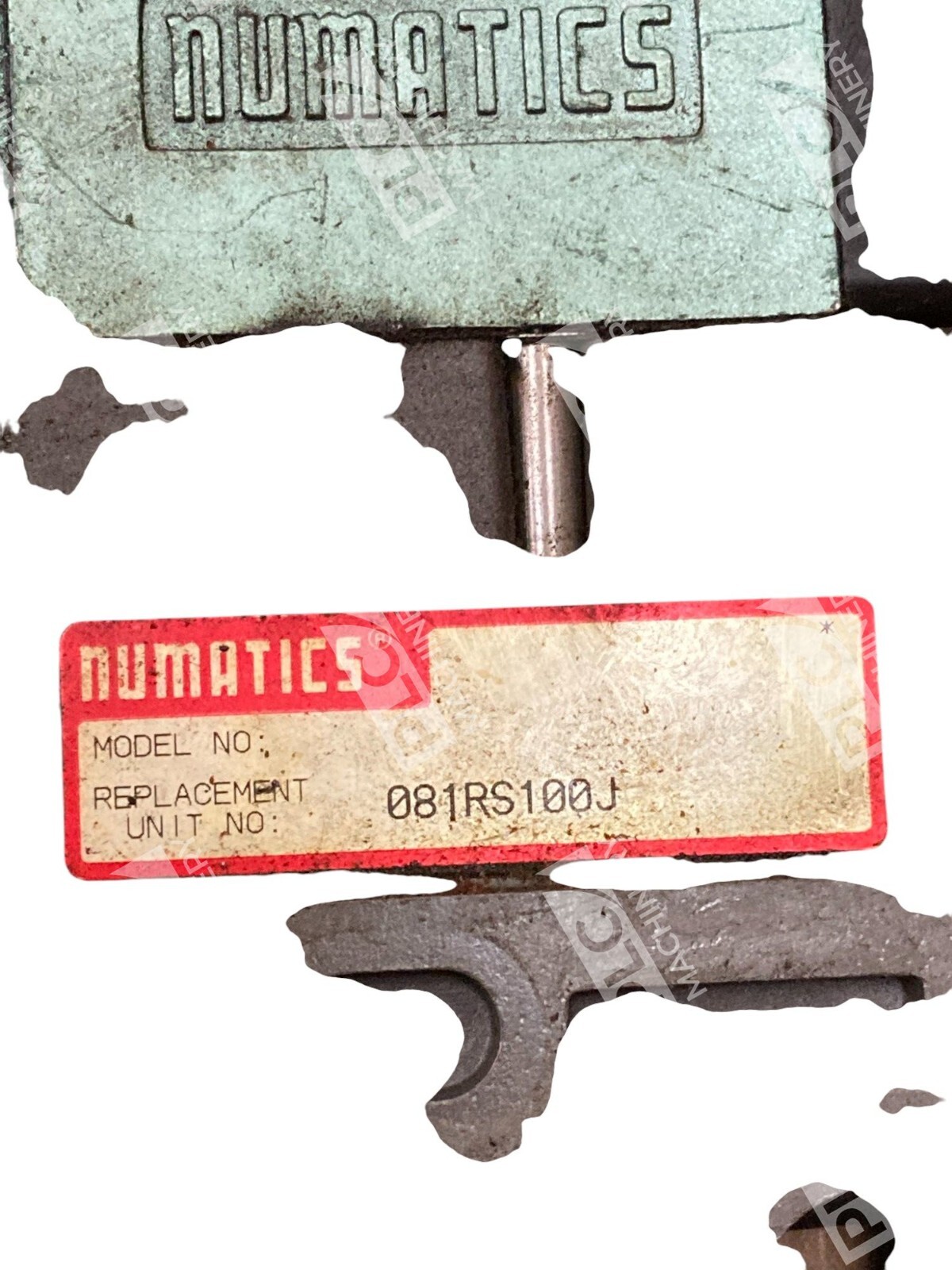

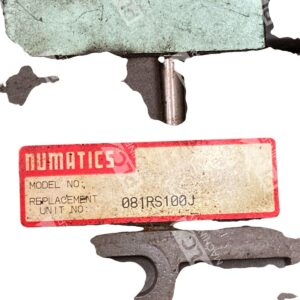

Verify compatibility with your system integrator before ordering. The 081RS100J assembly code may indicate specific configurations—confirm that replacement matches your original manifold block specifications, port sizes, and flow ratings.
Works With
- 24 VDC DC power supplies and programmable logic controllers (PLCs)
- Standard pneumatic tubing and fittings (NPT or ISO metric ports—verify port type)
- Pressure regulators and exhaust silencers
- Gauge options for system monitoring
- ISO 15407 modular valve standards
