Overview

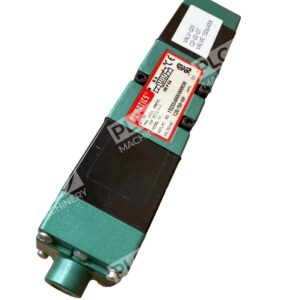

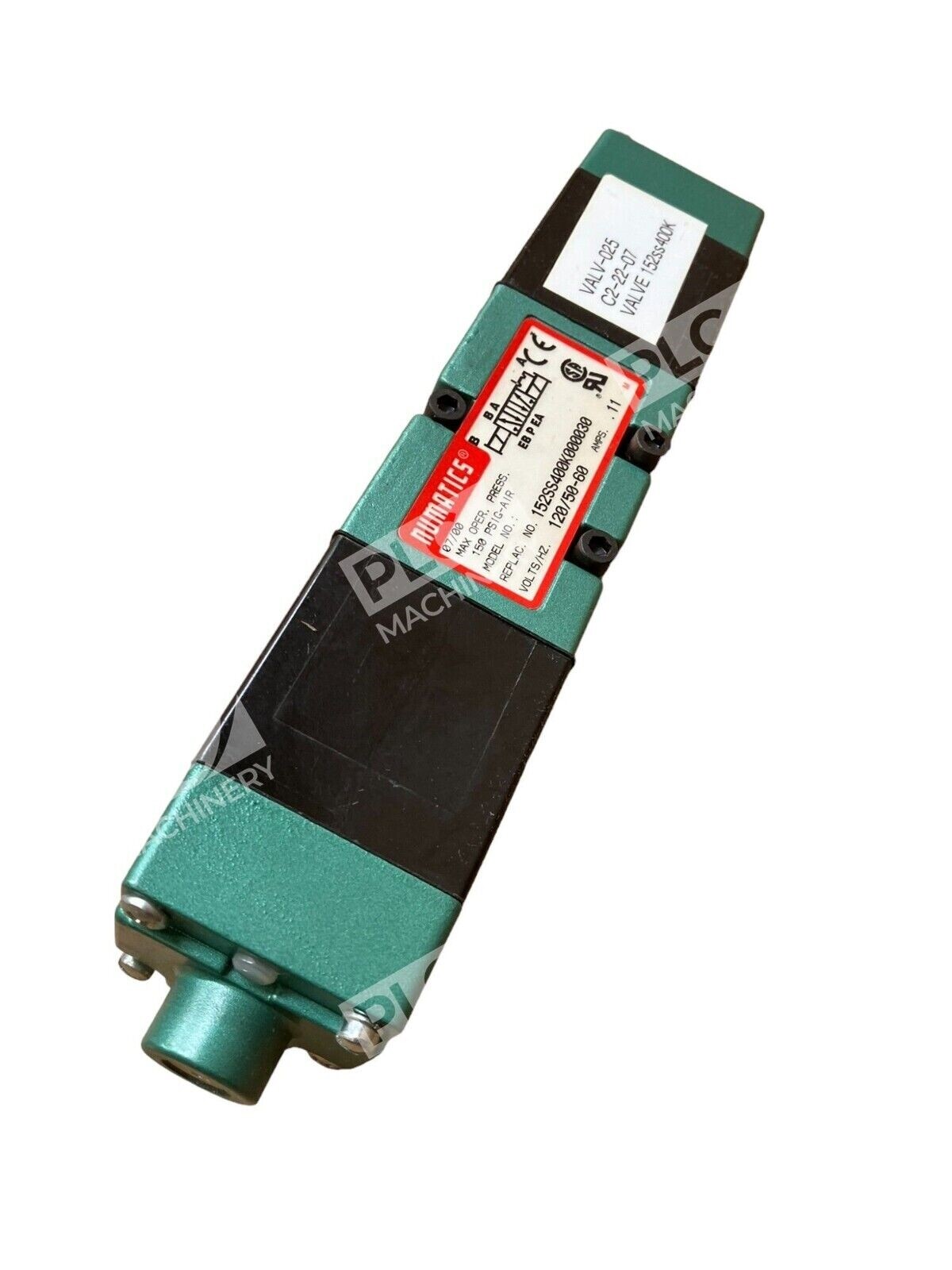

The Numatics 152SS400K000030 is a Mark 15 series double direct solenoid valve designed for pneumatic control applications in industrial automation. This 4-way, 2-position directional control valve features a compact, modular construction with plug-in solenoid coils and NPTF ported base. The valve operates across a pressure range of 28″ Hg vacuum to 150 psig, making it suitable for compressed air circuits in manufacturing, machine control, and automation systems.
Key Features
- Double direct solenoid actuation with spring return or detent options
- Modular base-mounted design allowing tool-free solenoid coil replacement
- High flow capacity of 65–69 scfm at 80 psig operating pressure
- NPTF threaded ports compatible with standard pneumatic fittings
- Compact dimensions (3.3″ H × 2.16″ W) for space-constrained installations
- Available sandwich speed control and pressure regulator options
Technical Specifications

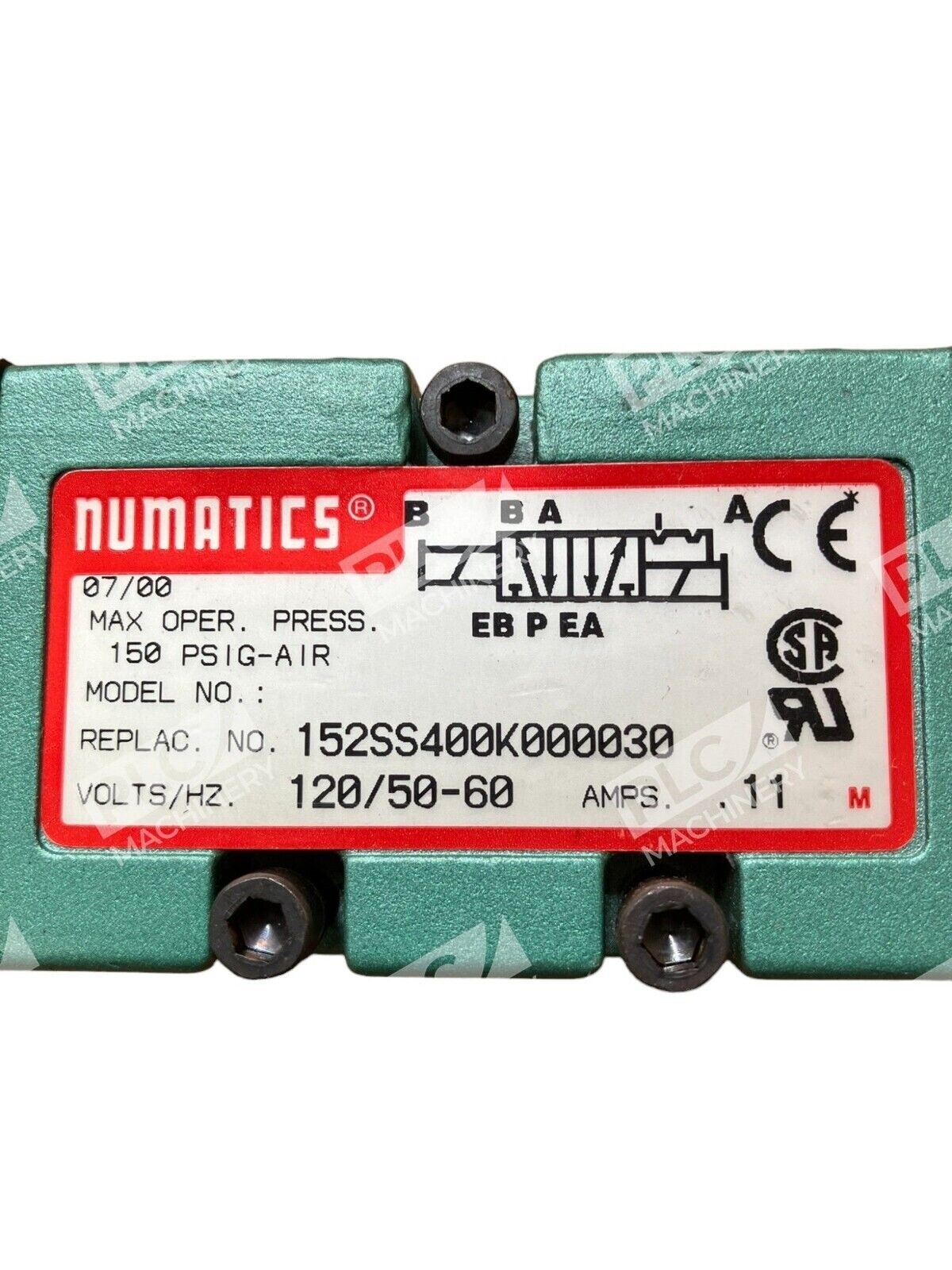

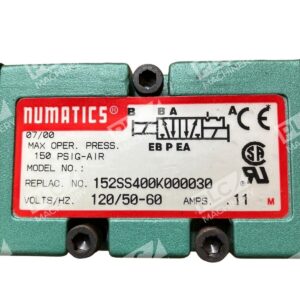

- Series: Mark 15 (152SS4)
- Configuration: 4-way, 2-position, double direct solenoid
- Port Size: 1/2 inch NPTF
- Pressure Range: 28″ Hg vacuum to 150 psig (10 bar)
- Flow Capacity: 65–69 scfm @ 80 psig
- Cv Rating: 1.5
- Solenoid Voltage: 110–120VAC, 50–60 Hz
- Operating Temperature: −10°F to +115°F (−23°C to +46°C)
- Spool/Sleeve Configuration: Metal-to-metal
- Ports: 5-ported, NPTF threads
- Mounting: Base-mounted with manifold compatibility
Typical Applications
The Numatics 152SS400K000030 is widely used in:
- Machine tool automation and CNC pneumatic circuits
- Industrial clamping and workholding systems
- Pneumatic actuator control in transfer and assembly lines
- Press and punch machine valve circuits
- Factory automation and robotics support systems
- Packaging and material handling equipment
Compatibility & Replacements
Compatible With
- Numatics Mark 15 and PA 15 series bases and manifolds
- Compressed air systems operating at 28″ Hg to 150 psig
- Standard pneumatic fittings (1/2″ NPTF ports)
- Sandwich-mounted speed controls and pressure regulators
- Industrial PLC and automation control systems
Replaces / Drop-In Replacement For
- Earlier Mark 15 series directional valves with identical port sizes and solenoid configuration
- Other 4-way/2-position double direct solenoid valves with equivalent flow ratings
- Verify compatibility with your system integrator before ordering to ensure base and manifold compatibility
Works With
- Pneumatic control circuits and automated machinery
- Standard industrial compressed air supplies
- Numatics sandwich pressure regulators and speed control modules
- 24VDC and 120VAC pilot control electronics
- NPTF-threaded pneumatic tubing and fittings
