Overview

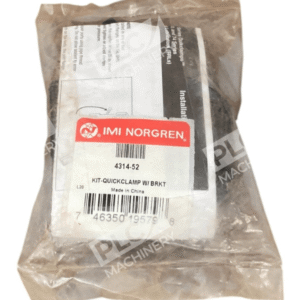

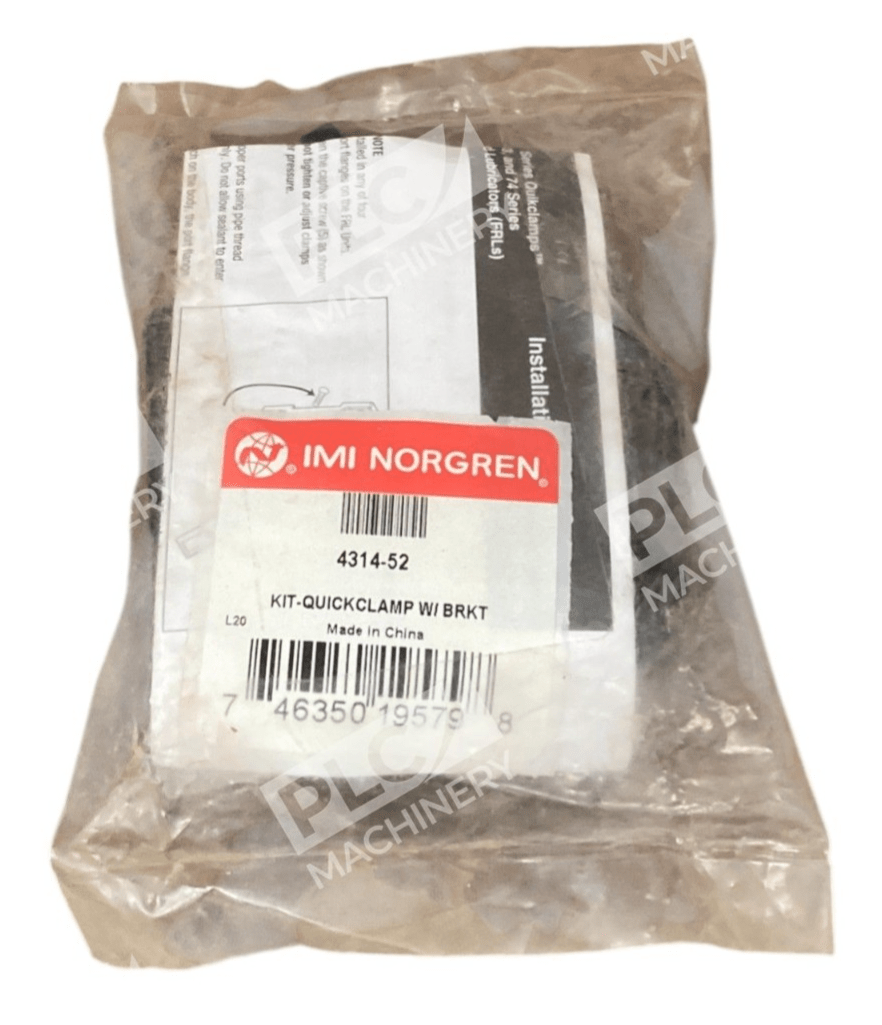

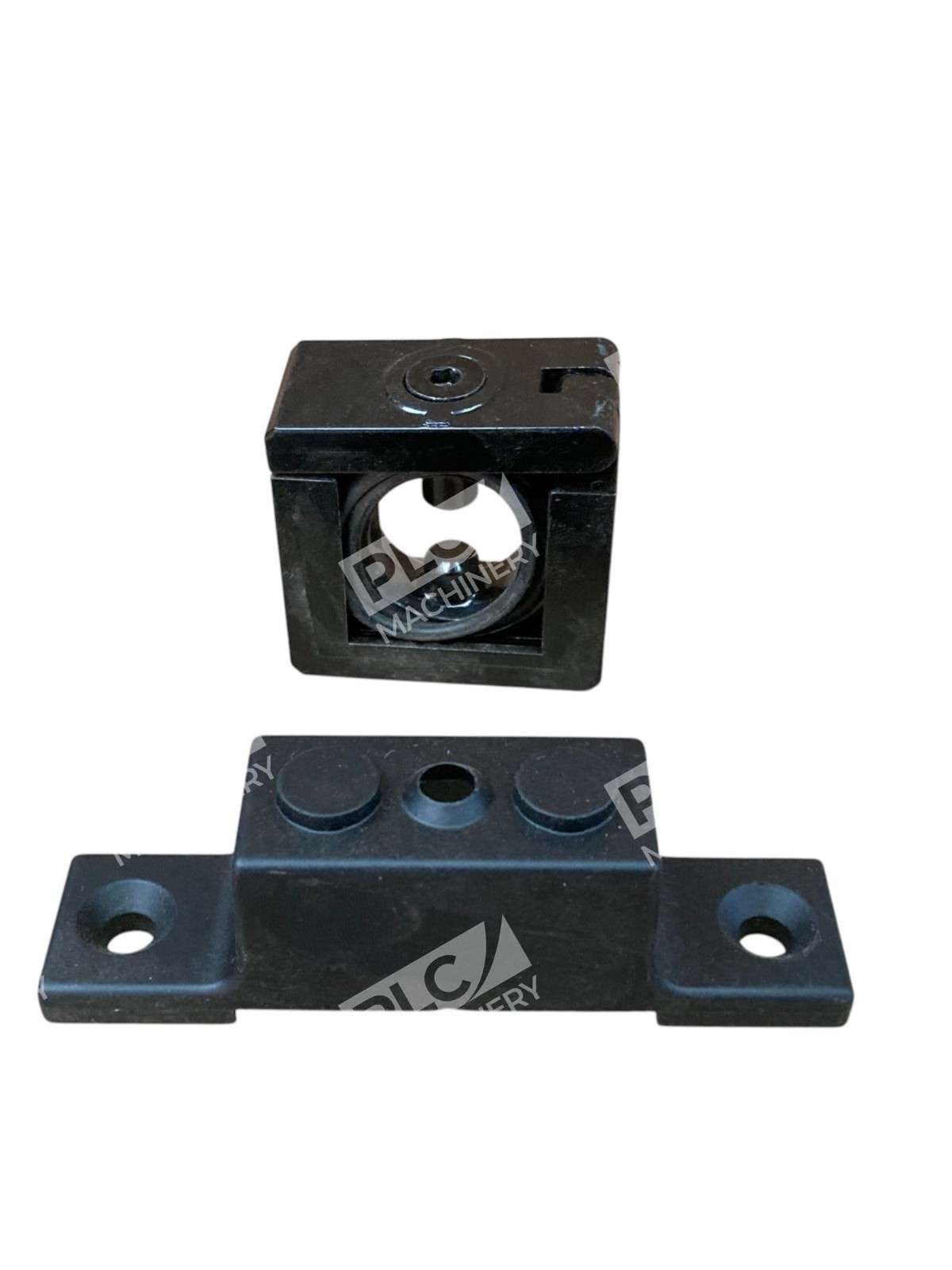

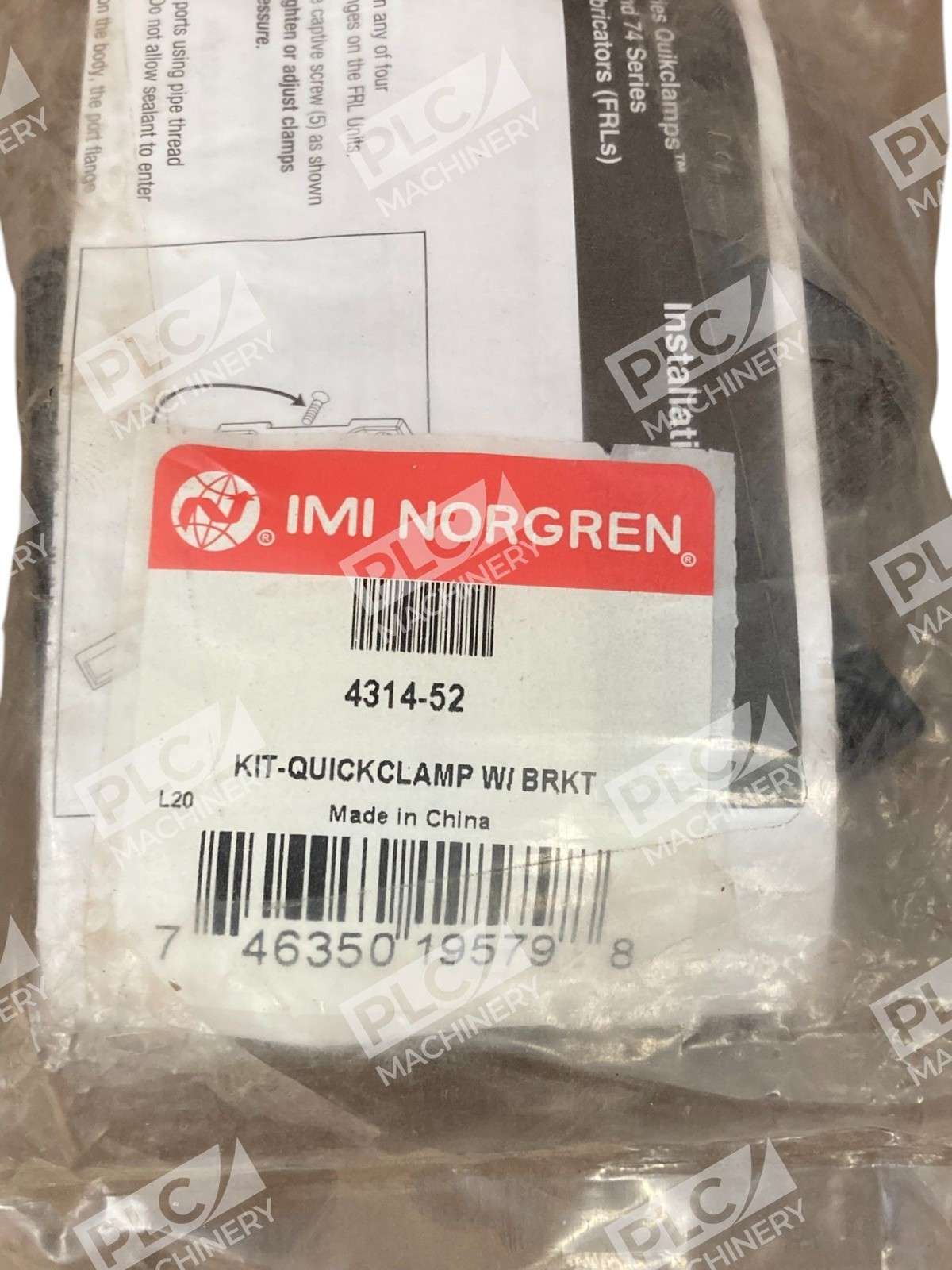

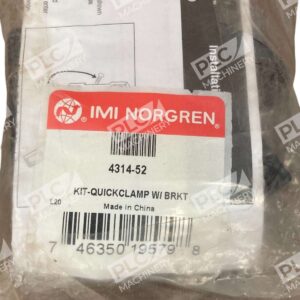

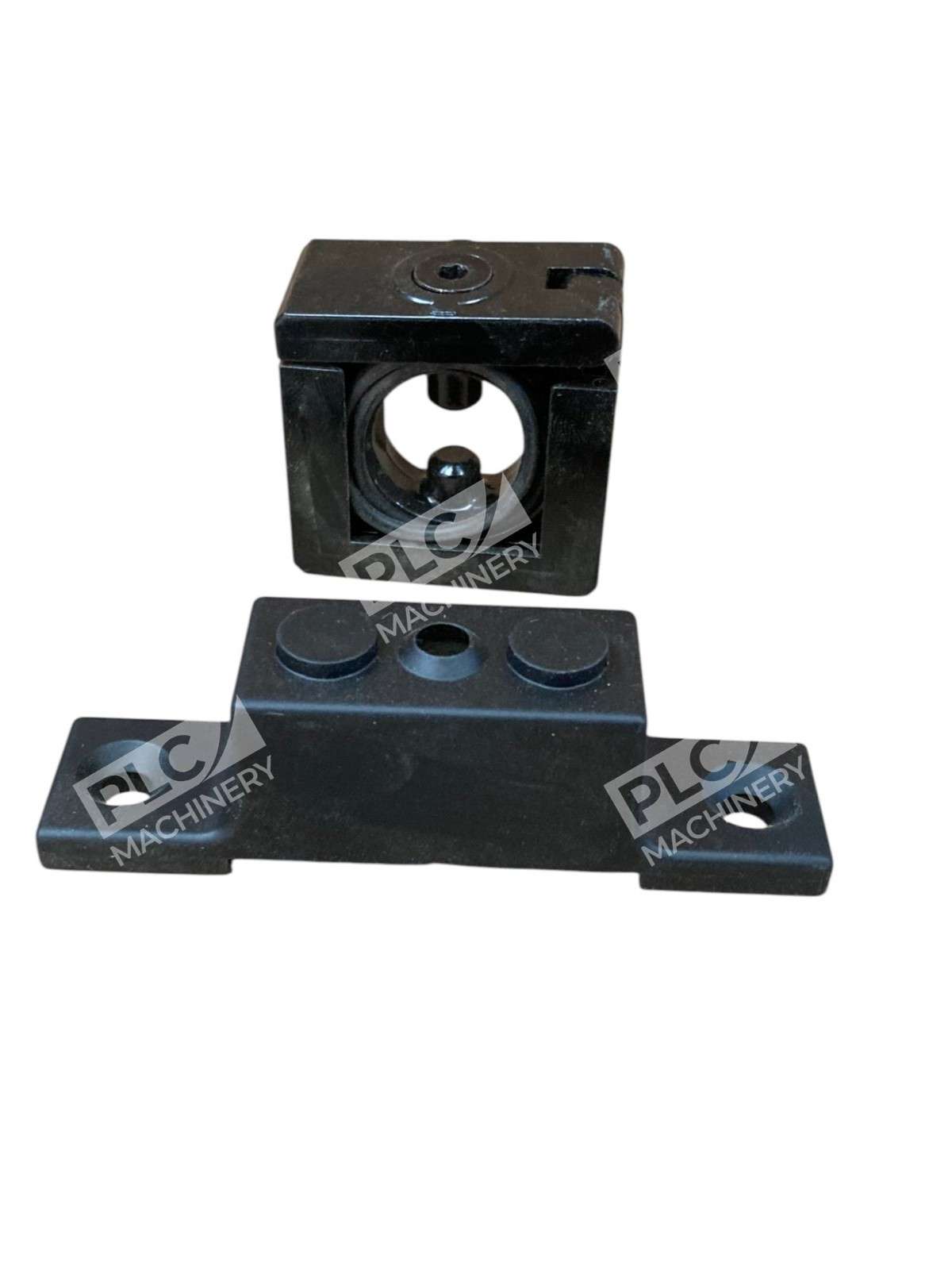

The Norgren 4314-52 is a quick clamp bracket kit engineered for pneumatic system integration. This modular quick clamp assembly with wall-mounting bracket provides straightforward installation for compressed air filtration systems. Built on a proven platform used in industrial air preparation, the 4314-52 delivers reliable mounting and secure clamping without complex tooling or lengthy downtime.
Key Features

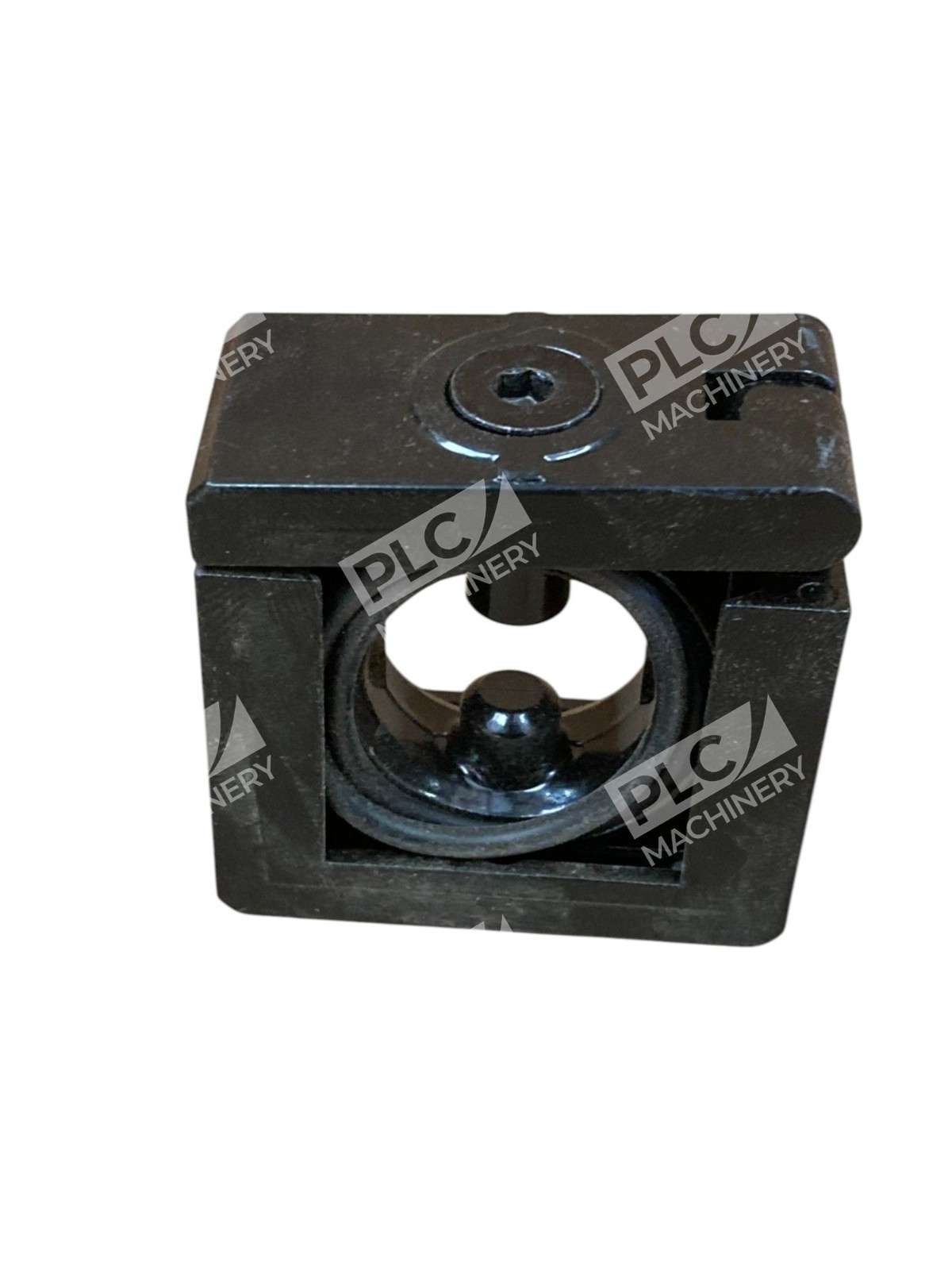

- Modular quick clamp design for rapid installation and removal

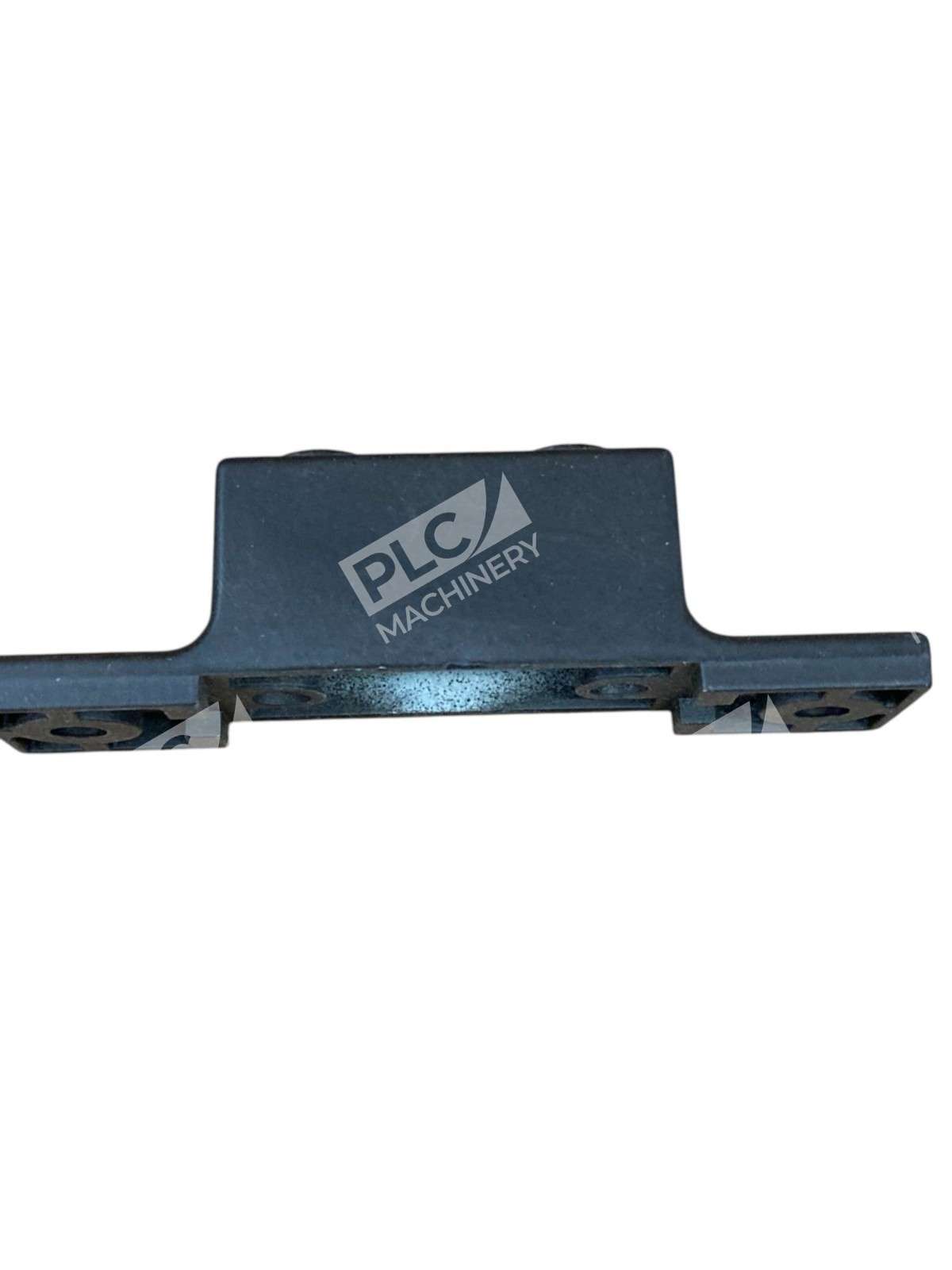

- Integrated wall-mounting bracket for flexible system layout
- Compatible with EXCELON 73 and 74 Series filter housings
- Zinc and aluminum construction for corrosion resistance
- No special tools required for assembly or maintenance
- Supports intermediate and standard compressed air filters
Technical Specifications
| Part Number | 4314-52 |
| Manufacturer | Norgren (IMI Division) |
| Product Type | Quick Clamp with Wall Mounting Bracket |
| Series Compatibility | Excelon 73 & 74 Series |
| Filter Types Supported | Intermediate & Standard Compressed Air Filters |
| Material Construction | Zinc & Aluminum |
| Mounting Type | Wall Mount |
| Installation | Modular clamp system—tool-free assembly |
Typical Applications
- Pneumatic system air preparation and filtration
- Compressed air production facilities and compressor stations
- Manufacturing plant air distribution networks
- Mobile or temporary air supply systems
- Equipment retrofit and system upgrades
- Maintenance and filter replacement projects
Compatibility & Replacements
Compatible With
- Norgren EXCELON 73 Series filters
- Norgren EXCELON 74 Series filters
- Standard compressed air filter housings (intermediate & standard duty)
- Wall-mounted pneumatic system layouts
Replaces / Drop-In Replacement For
The Norgren 4314-52 is the OEM quick clamp and bracket assembly for EXCELON 73 and 74 Series. There are no direct interchangeable models from other manufacturers for this complete clamp-bracket kit. The 4214-52 is designed for EXCELON 72 Series and is not a replacement for the 4314-52.
Works With
- Norgren EXCELON compressed air filter series
- Pneumatic system piping and manifolds (NPT and metric connections)
- Standard compressed air hoses and fittings
- Industrial air supply networks
