Overview

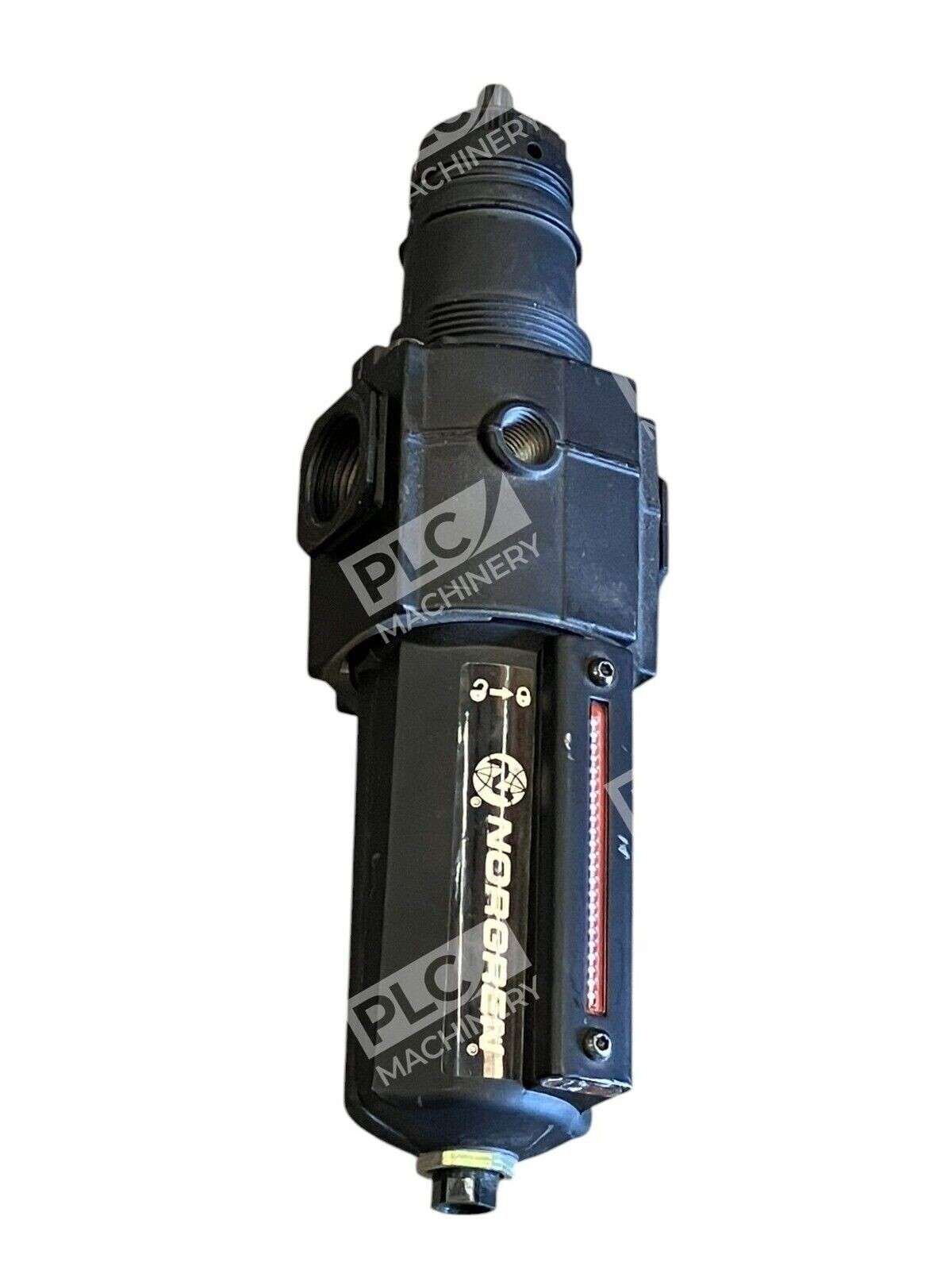

The Norgren B74G-6AK-AD1-RMG is a 3/4″ PTF (NPT) Excelon series filter/regulator that combines accurate pressure adjustment with bulk water (moisture) and particle removal in one unit, saving space and pneumatic connections for the same or improved performance. This configuration features a 5 µm filter element, automatic drain, aluminum metal bowl with liquid level indicator, relieving diaphragm, push-to-lock knob adjustment, and an integral pressure gauge calibrated in bar and PSI.
Key Features
- Modular Excelon design — allows inline installation or modular installation with other Excelon products
- High-efficiency conditioning — 5 µm particulate filtration with bulk liquid water removal
- Automatic drain with aluminum die-cast bowl and polyamide liquid level indicator
- Push-to-lock adjustment knob with tamper-resistant accessory option
- Quick-release bayonet bowl for fast service access
- Built-in round pressure gauge with bar/PSI dual scale
Technical Specifications
Verified specifications for the Norgren B74G-6AK-AD1-RMG from the manufacturer datasheet and authorized distributors:
Typical Applications
The B74G series is widely deployed as the primary compressed air preparation unit at machine inlets and FRL stations. Common applications include:
- Machine tool and CNC pneumatic supply conditioning
- Packaging, bottling, and assembly line air prep
- Robotic cell and end-of-arm tooling supply
- Pneumatic actuator and valve manifold feed lines
- General industrial 3/4″ NPT compressed air systems
Compatibility & Replacements
The Norgren B74G-6AK-AD1-RMG is part of the IMI Norgren Excelon B74G series and integrates directly with other Excelon modular components (lubricators, shutoff valves, and manifolds) using compatible mounting kits and yokes. Norgren-listed accessories include service kits 4338-04 and 4383-700, mounting kits 4324-50, 4314-51, 4314-52, 4368-51, 4348-89, and 4355-51, gauges 18-015-013 and 18-015-209, and manifold blocks 4315-02, 4315-03, 4315-04, and 4316-50. A similar higher-flow variant is the B84G-6AK-AD1-RMG. The 40 µm element version of this same model is the B74G-6AK-AD3-RMG.
