Overview

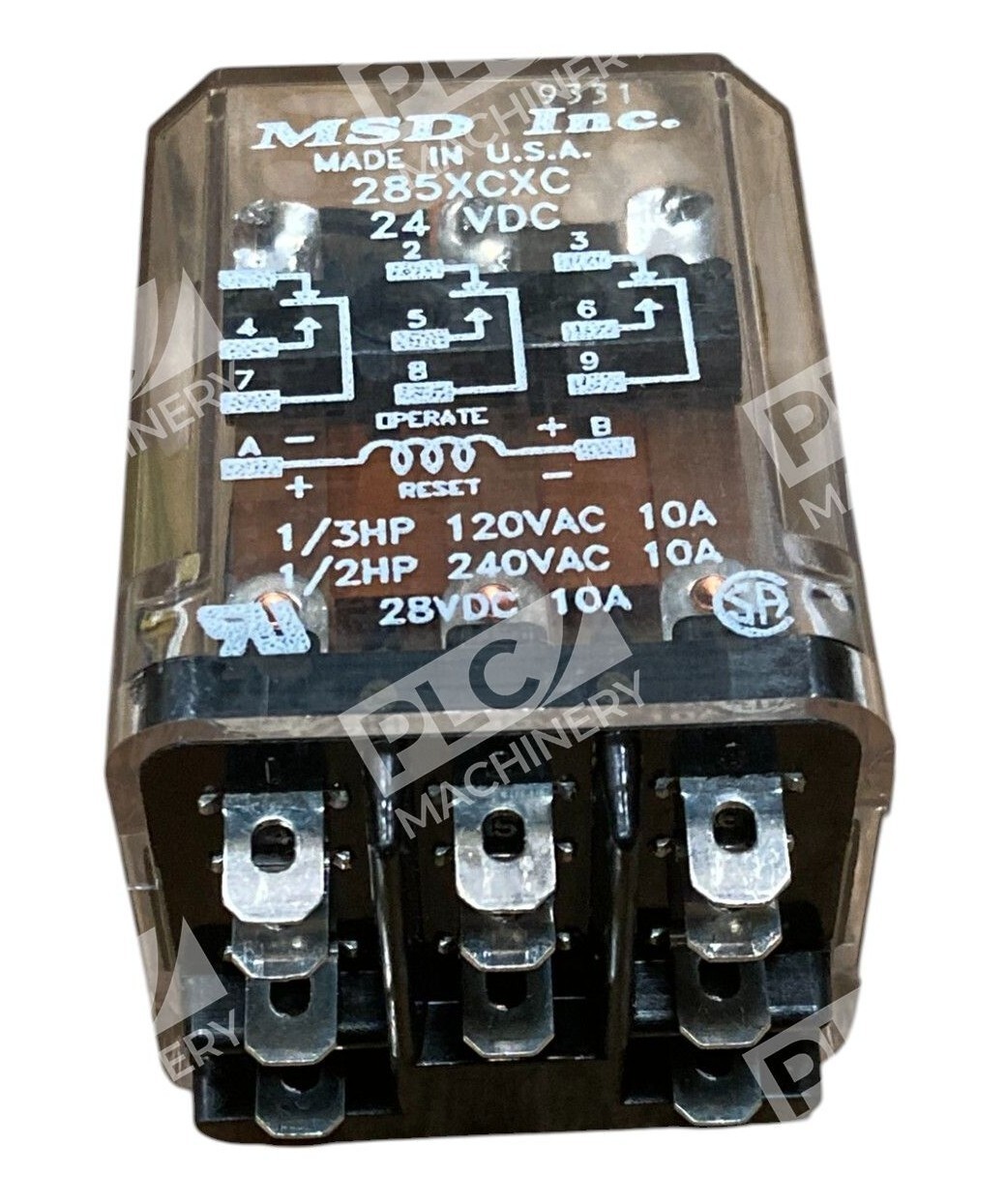

The Struthers-Dunn 285XCXC is a general purpose electromechanical relay engineered for reliable switching in industrial and commercial electrical systems. With a 24VDC coil, 10A contact rating, and 1/3 horsepower capacity, this relay delivers dependable performance in motor control circuits, automation equipment, and power distribution applications.
Key Features
- 24VDC coil voltage with robust electromagnetic operation
- 10A contact current rating for reliable switching under load
- 1/3 horsepower capacity suitable for motor and power applications
- Overbuilt, ruggedized design typical of Struthers-Dunn construction
- General purpose configuration for wide application flexibility
- New in box condition, tested and ready for immediate deployment
Technical Specifications
- Manufacturer: Struthers-Dunn, Inc.
- Model Number: 285XCXC
- Coil Voltage: 24 VDC
- Contact Rating: 10A at coil voltage
- Horsepower Rating: 1/3 HP
- Contact Type: Electromagnetic switching contacts
- Application Type: General purpose industrial relay

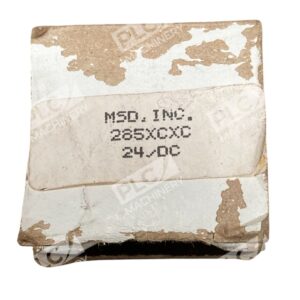

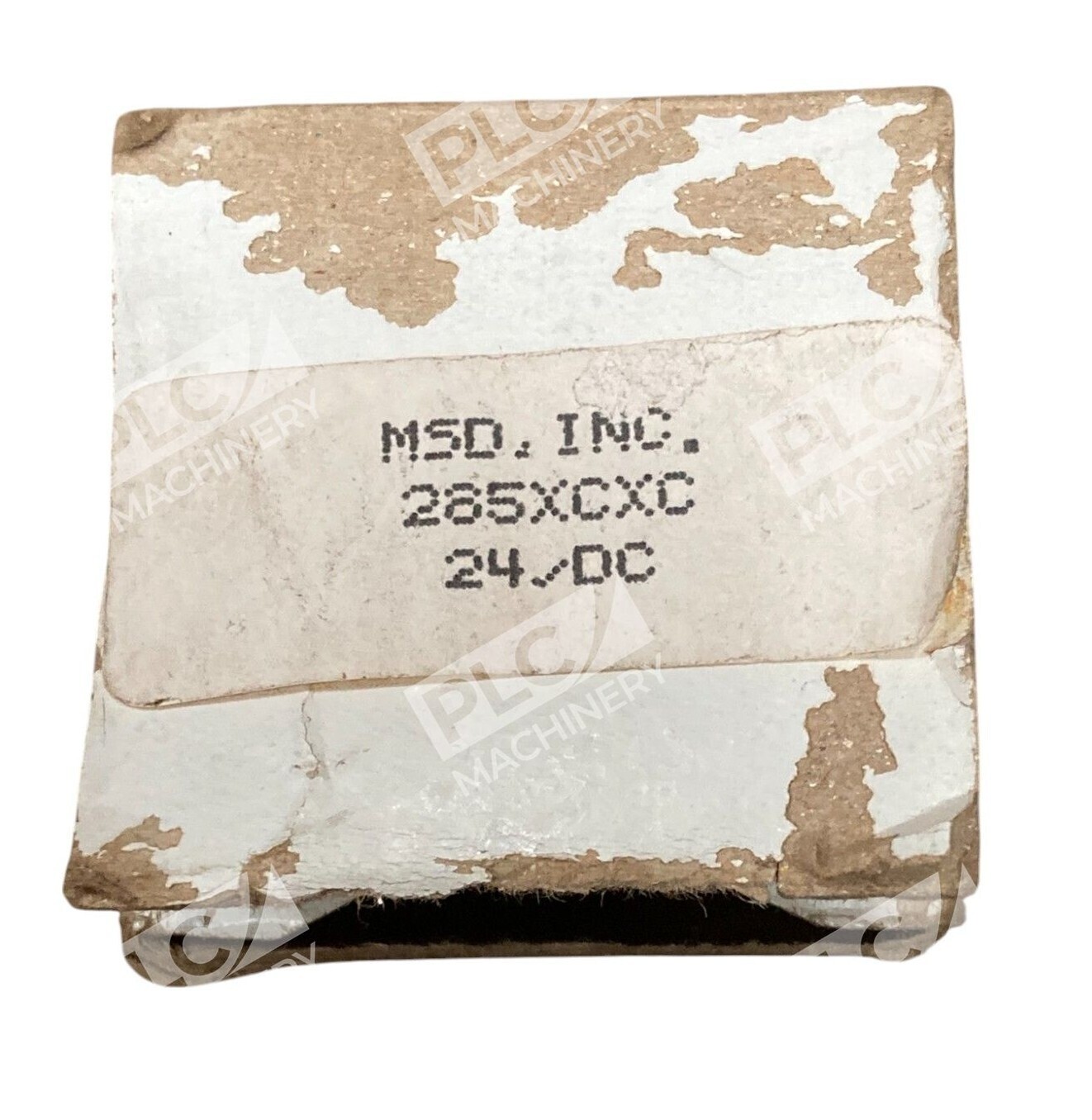

- Condition: New in box
Typical Applications
The 285XCXC is well-suited for:
- Motor control circuits and contactor applications
- Industrial automation and process control switching
- Power distribution and electrical equipment switching
- Factory automation and machinery control systems
- Electrical interlock and safety circuits
Compatibility & Replacements
Compatible With
- 24VDC control systems and power supplies
- Industrial motor control panels and circuit boards
- Factory automation and PLC-based control systems
- General purpose electrical switching circuits
Replaces / Drop-In Replacement For
Verify with your system integrator or control system documentation for specific equivalent or replacement models, as relay cross-references vary by application and contact configuration.
Works With
- 24VDC power supplies and control circuits
- Motor control centers (MCCs) and starter panels
- Industrial PLC and DCS systems
- Electrical interlocking and safety systems
