Overview

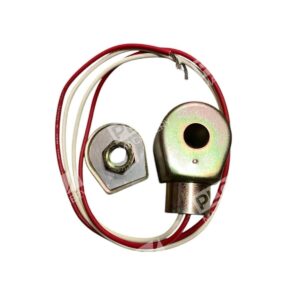

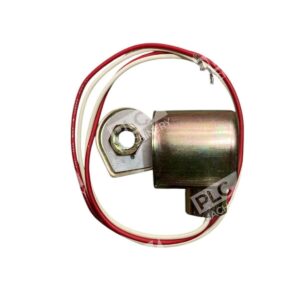

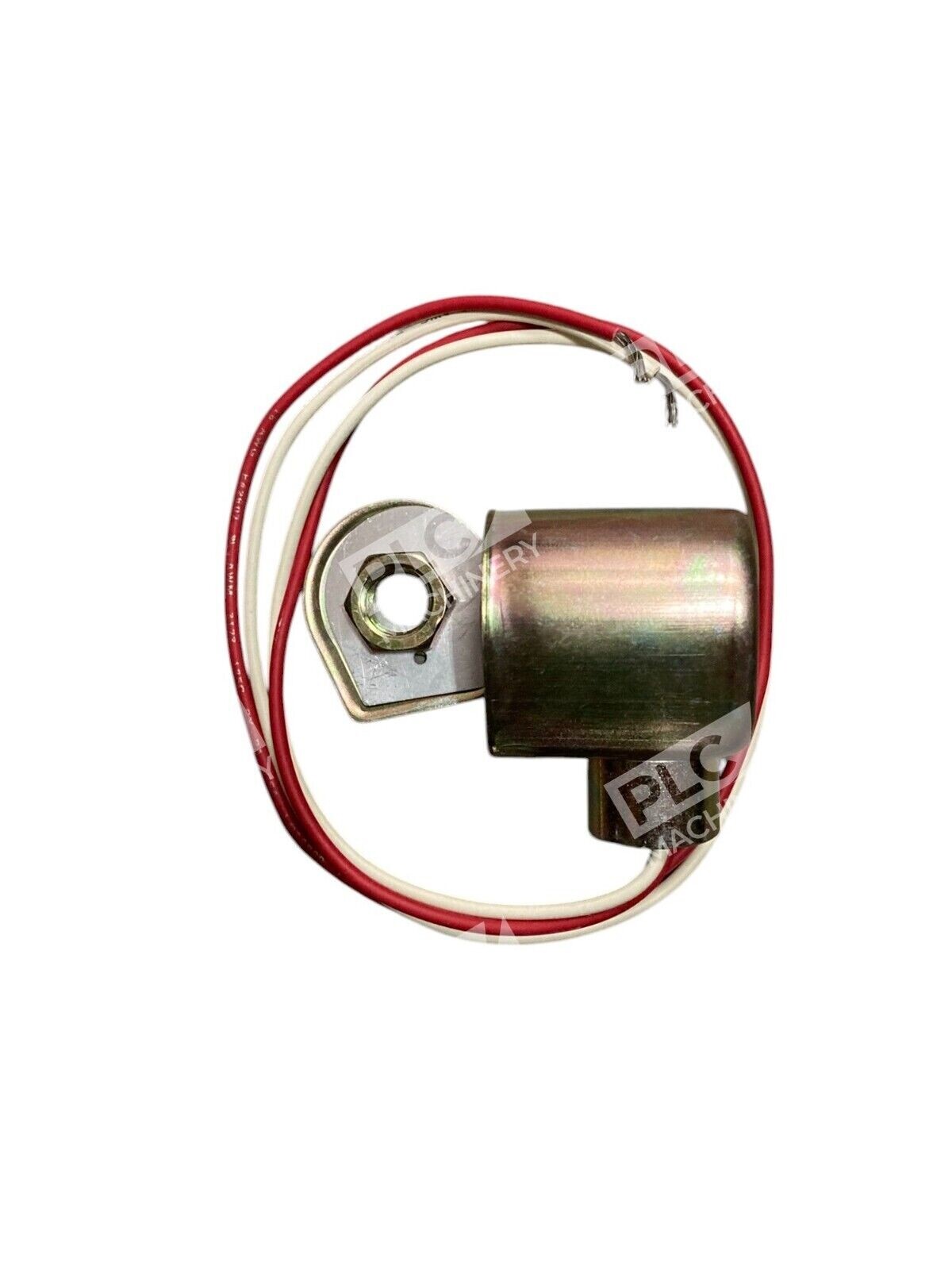

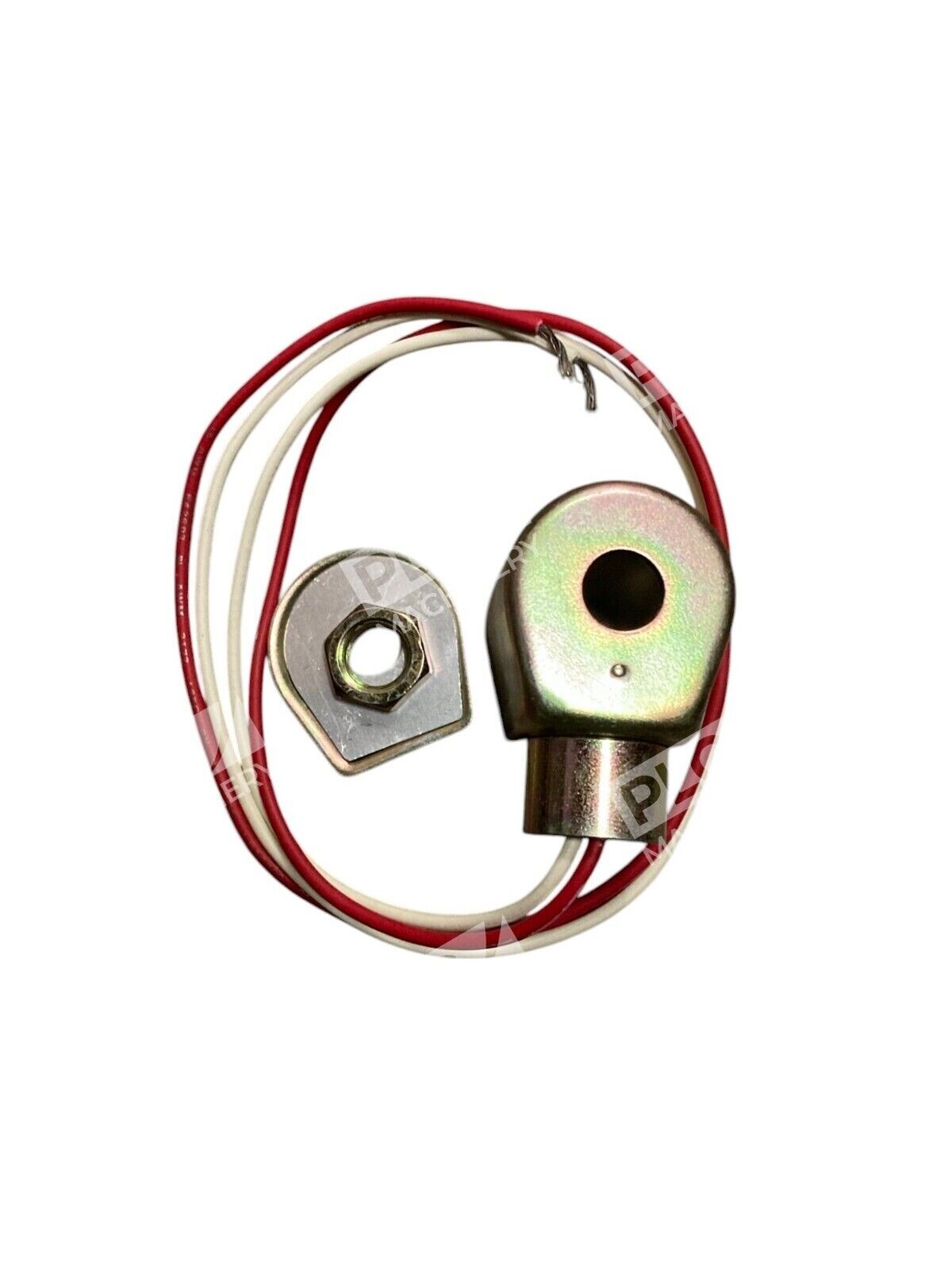

The Delta Power 80010 is a 12 VDC solenoid coil engineered for reliable hydraulic valve operation in mobile equipment and industrial fluid power systems. This diode coil features dual 1/4″ spades, arc suppression diode, 22 watts nominal power, and 1.80 amps rated current. Designed and manufactured in the USA by Delta Power Company, the 80010 combines robust encapsulation with dependable electromagnetic actuation for demanding hydraulic applications.
Key Features
- Arc suppression diode for transient voltage protection
- Water-resistant encapsulated design for harsh operating environments
- Operating temperature range of -40°F to 392°F (-40°C to 200°C)
- Class N magnet wire with 18 gauge, 24-inch lead wires rated 600 volts
- Continuous duty rated at ±10% nominal voltage
- Reversible coil installation on Delta Power cartridge valve bodies
Technical Specifications
See specifications table below for voltage, power rating, current, terminal configuration, and physical dimensions.
Typical Applications
- Mobile construction equipment (loaders, excavators, graders)
- Agricultural machinery hydraulic systems
- Material handling and lifting platforms
- Industrial press and clamp control circuits
- Directional control valve actuation
- Pneumatic and hydraulic pump regulation
Compatibility & Replacements
Compatible With
- Delta Power D-Type cartridge valves and manifolds
- Solenoid-operated directional control valves (4/3, 4/2 configurations)
- Proportional valve coil systems
- 12 VDC hydraulic control circuits
- Dual solenoid actuation assemblies
Replaces / Drop-In Replacement For
- Delta Power model 80010 (OEM equivalent)
- Delta Power model 39680010
- Previous generation 12 VDC coil assemblies with 1/4″ spade terminals
Works With
- Delta Power proportional control valve systems
- 12 VDC vehicle electrical harnesses (trucks, mobile equipment)
- Industrial programmable logic controller (PLC) solenoid driver circuits
- Standard 3-pin DIN and 2-pin terminal connectors
- Arc suppression diode protection for all DC supply configurations
