Overview

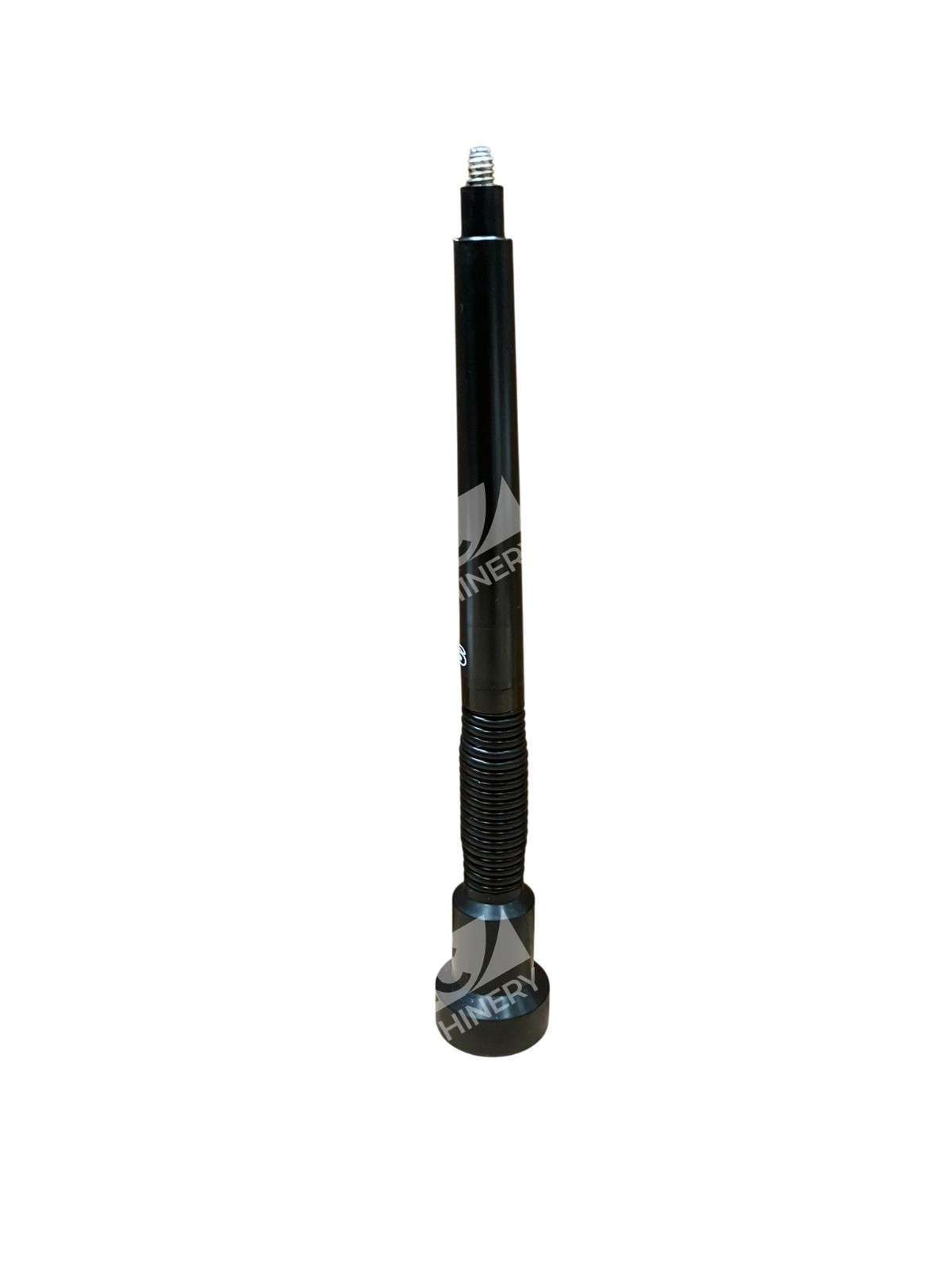

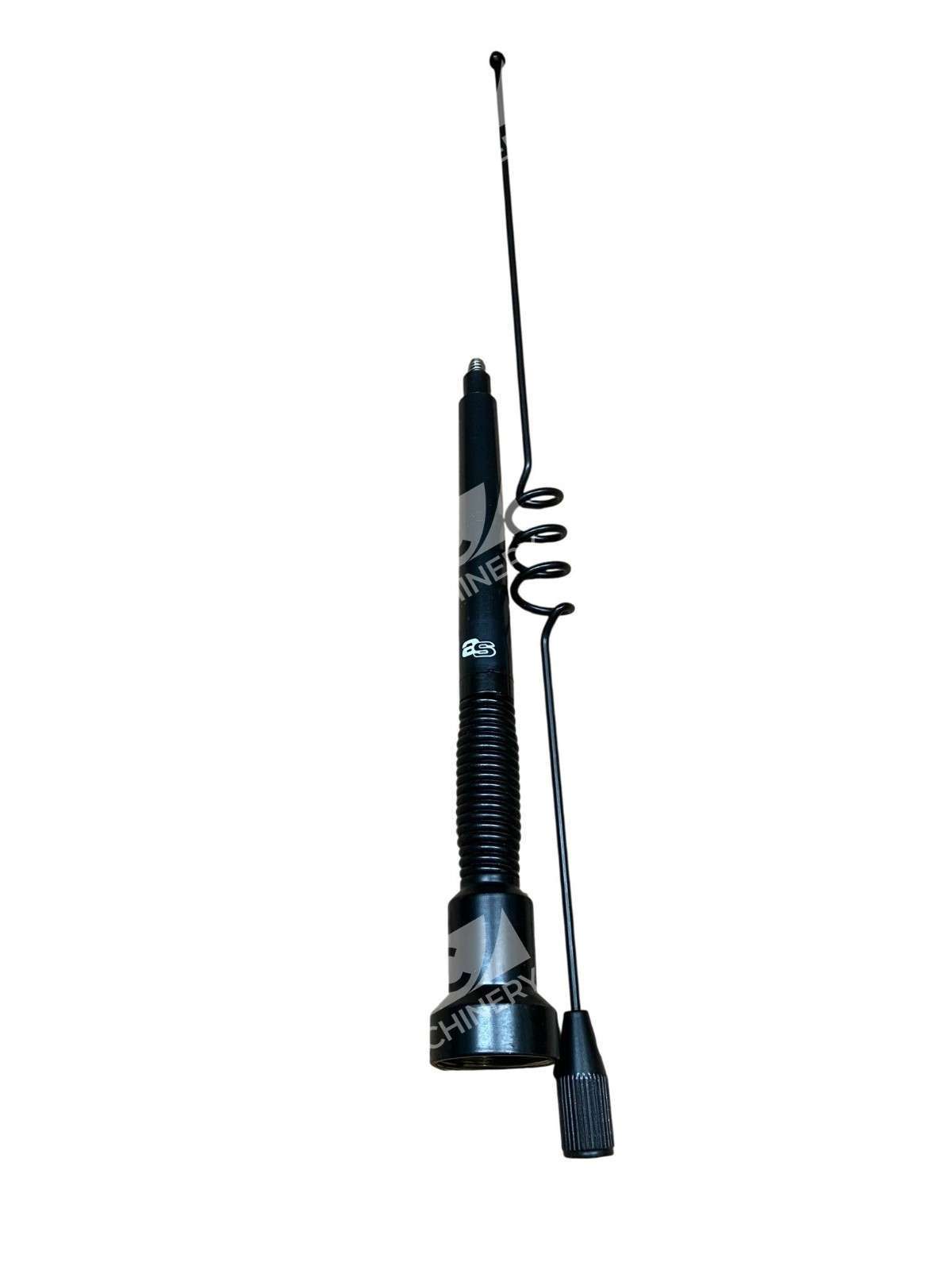

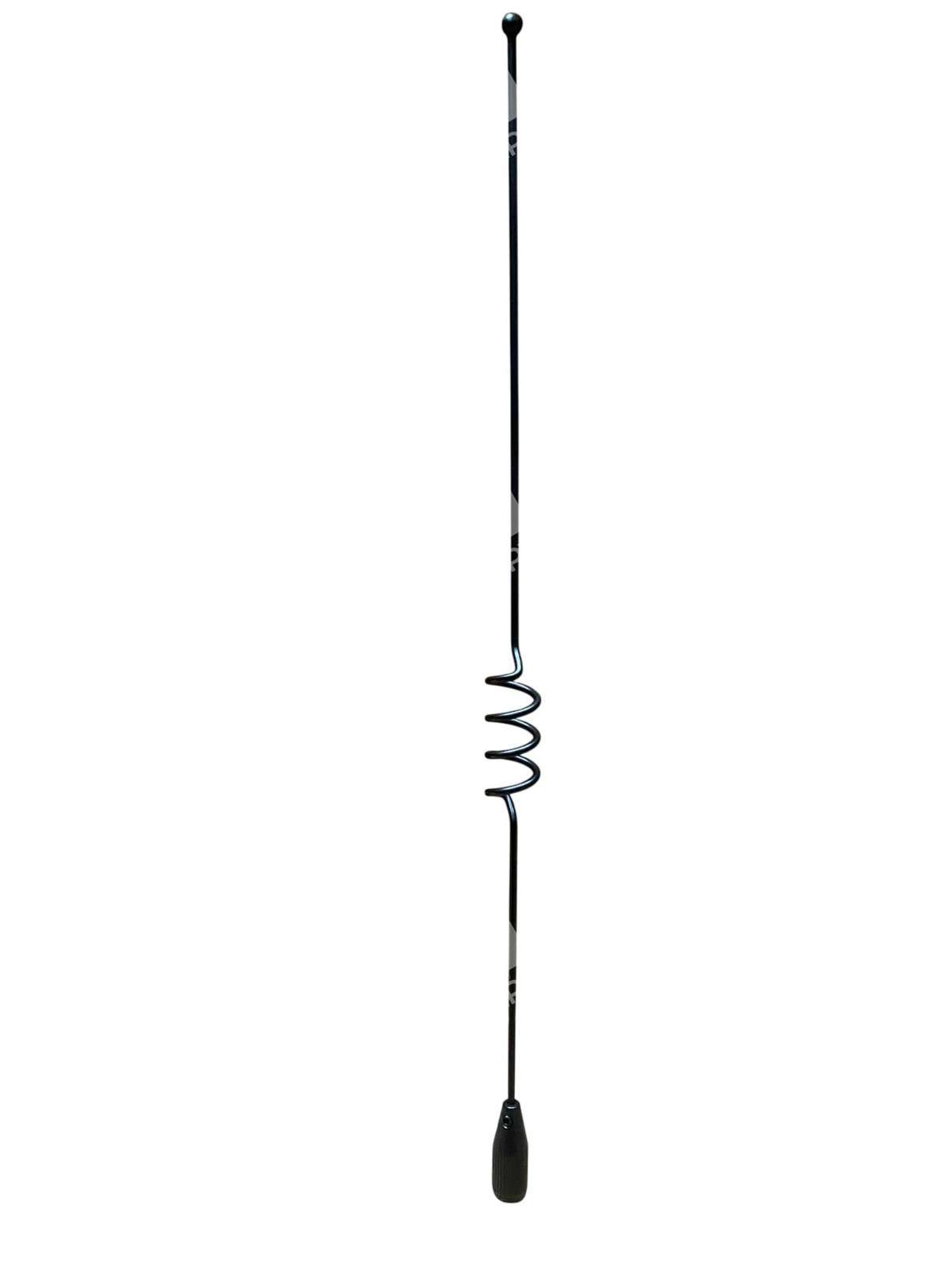

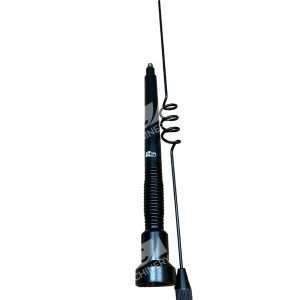

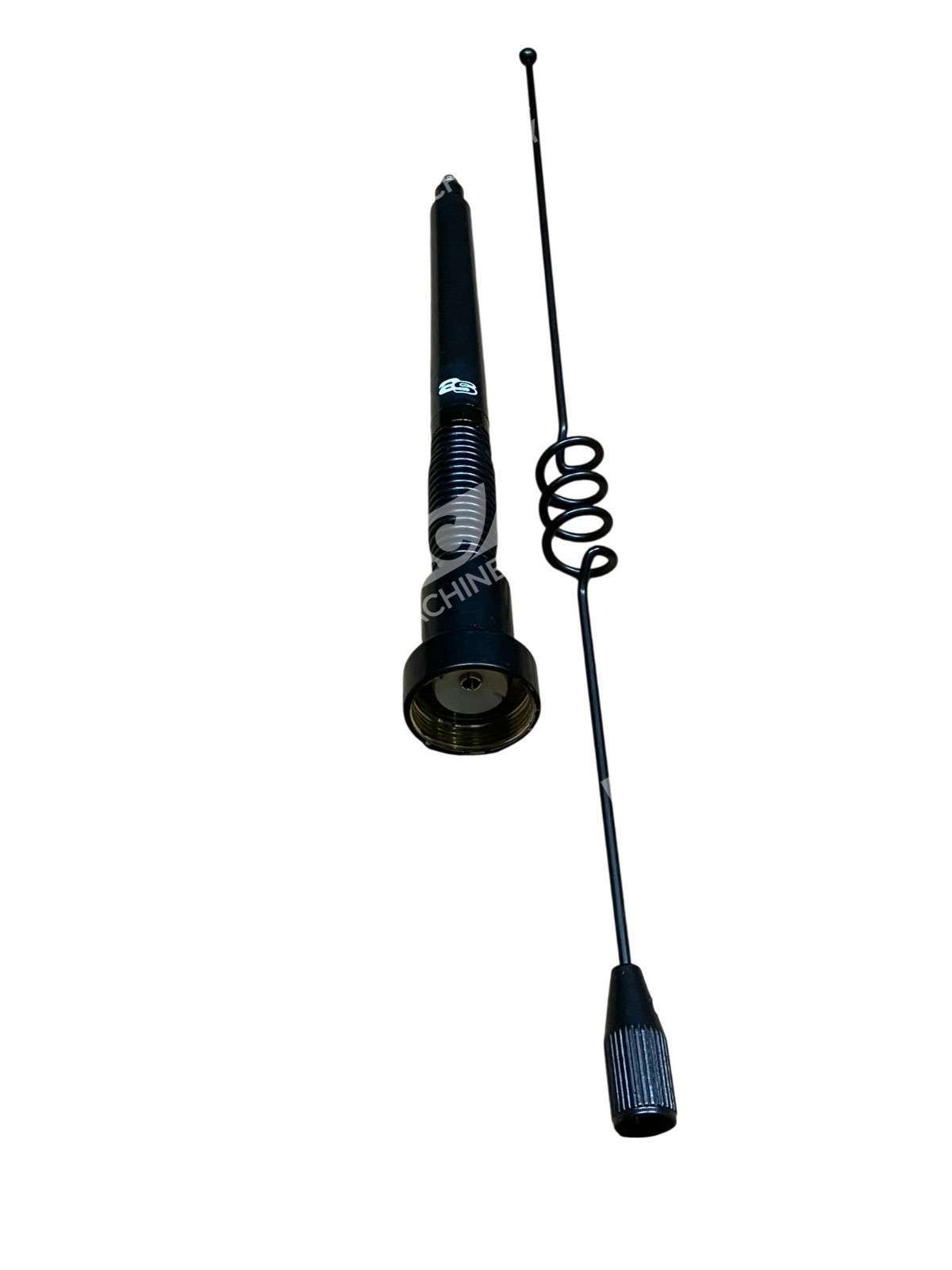

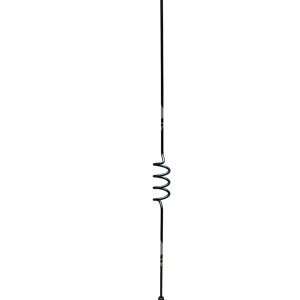

The ASP-915 is a mobile CB radio antenna engineered for reliable communications in mobile applications. Built with stainless steel construction and an integrated loading coil, this antenna delivers consistent signal performance across standard CB frequencies. The NMO mount design provides a secure, industry-standard connection point for professional-grade installations.
Key Features
- Integrated loading coil for optimized impedance matching and signal efficiency
- Stainless steel body resists corrosion and extends outdoor service life
- NMO mount connector ensures compatibility with standard through-hole or magnetic NMO mounting systems
- Compact mobile design for roof, hood, or fender mounting
- Suitable for 26–27 MHz CB band frequency range
Technical Specifications
- Mount Type: NMO (1¼” × 18 TPI threading standard)
- Material: Stainless steel radiator
- Construction: Loaded dipole with integral tuning coil
- Frequency Band: 26–27 MHz (Citizens Band)
- Antenna Type: Mobile whip with magnetic loading
Typical Applications
The ASP-915 is ideal for mobile CB radio systems in trucks, vans, RVs, and emergency response vehicles. The stainless steel and loaded design make it suitable for long-term outdoor exposure. It pairs well with standard CB transceivers and provides adequate ground-plane performance when mounted on metal surfaces.
Compatibility & Replacements
Compatible With
- Standard NMO through-hole mounts (1¼” × 18 TPI)
- Magnetic NMO antenna mounts on metal vehicle surfaces
- CB radios with standard 50-ohm antenna connectors (via appropriate coax termination)
- All CB radio transceivers operating in the 26–27 MHz band
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or installer before ordering. The ASP-915 directly replaces other NMO-mount CB antennas of comparable design and loading specifications.
Works With
- Coaxial cable assemblies with NMO female connectors
- Standard CB radio coax (RG-58 or RG-8X recommended for optimal performance)
- SWR meters for antenna tuning and impedance matching
- Any vehicle with a suitable metal roof, hood, or fender for ground plane mounting
