Overview

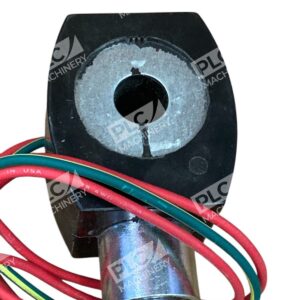

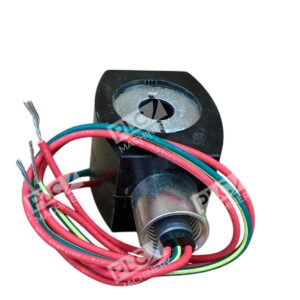

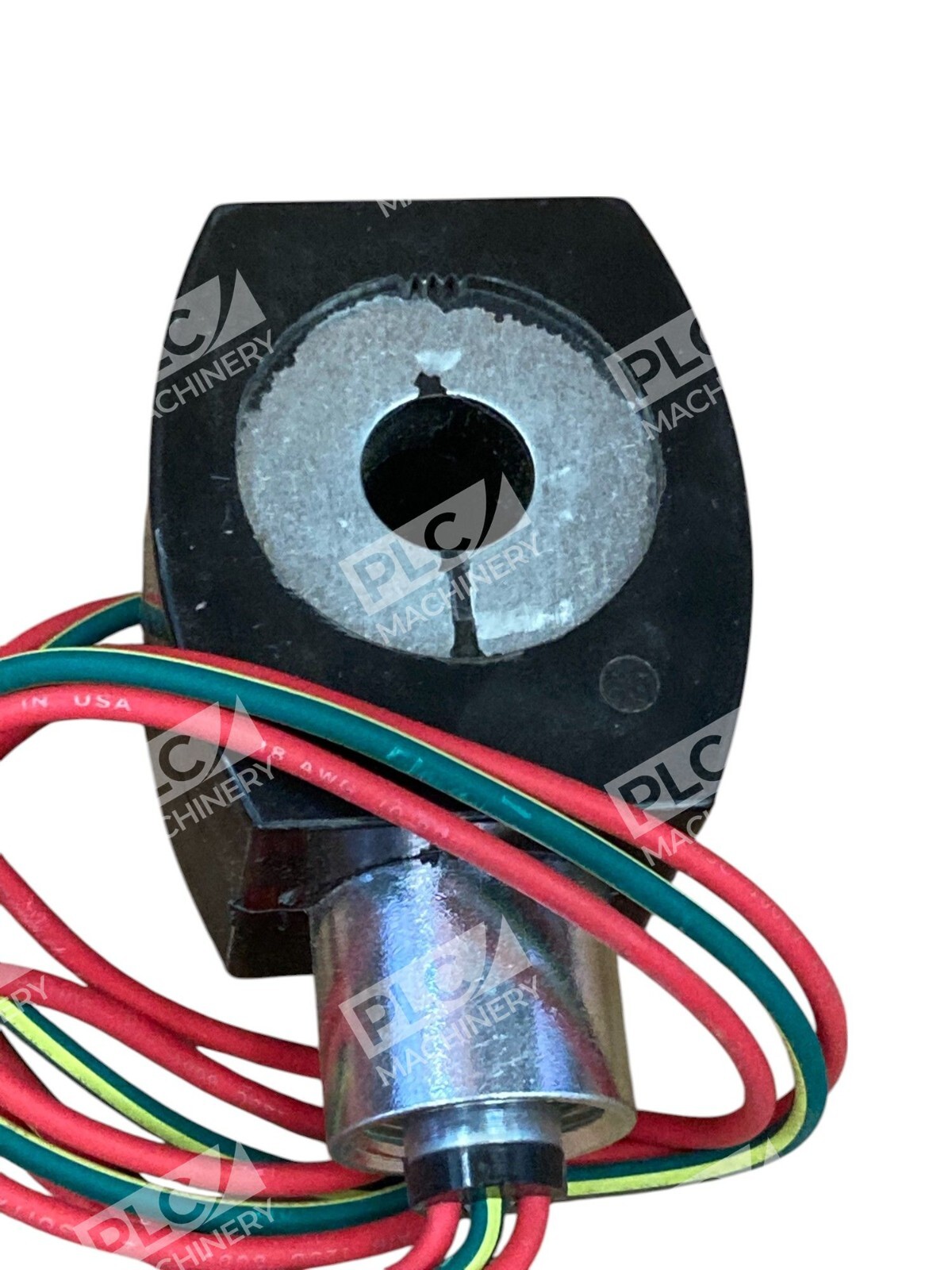

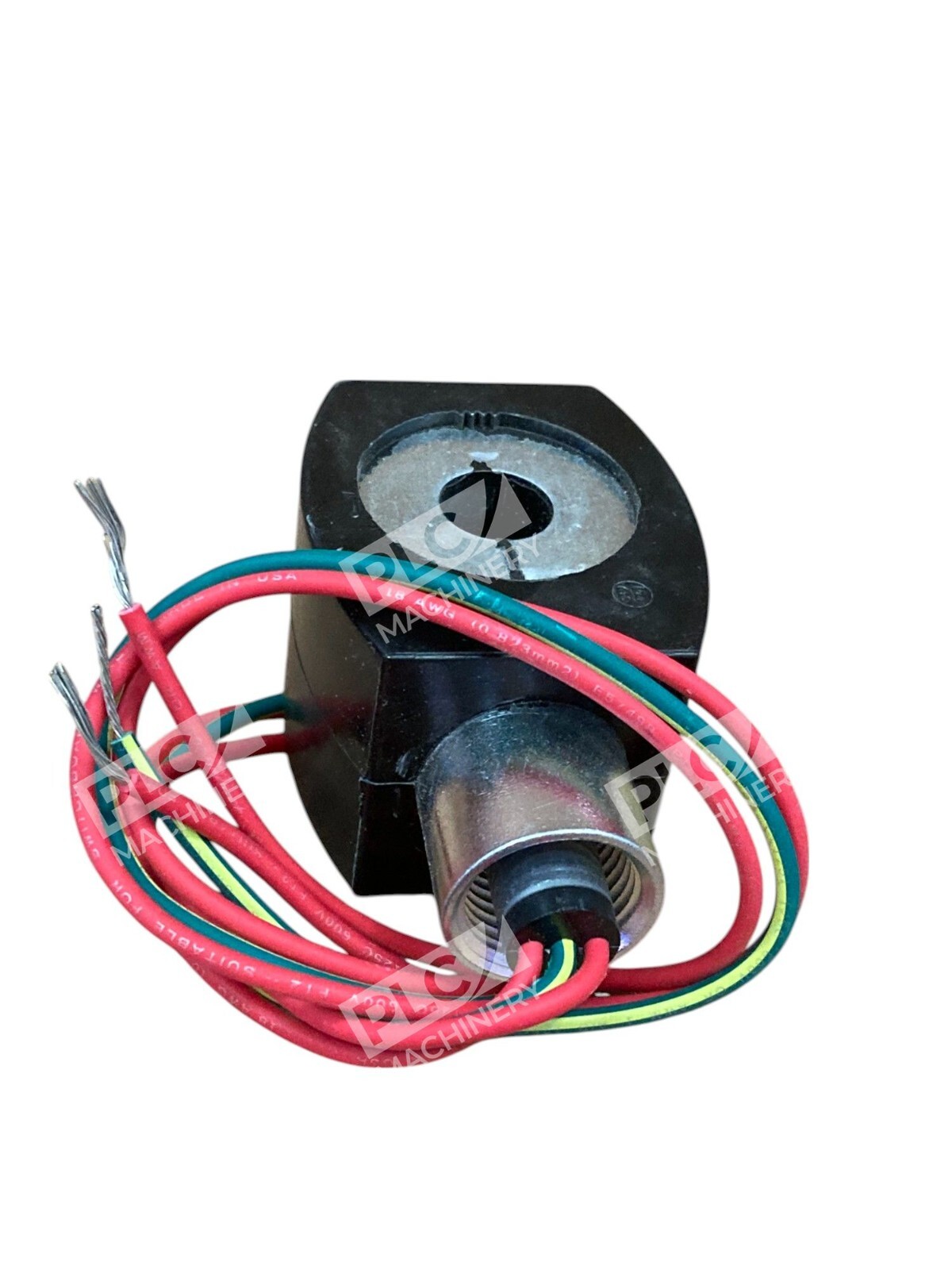

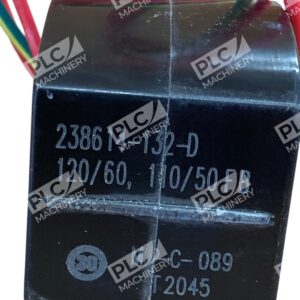

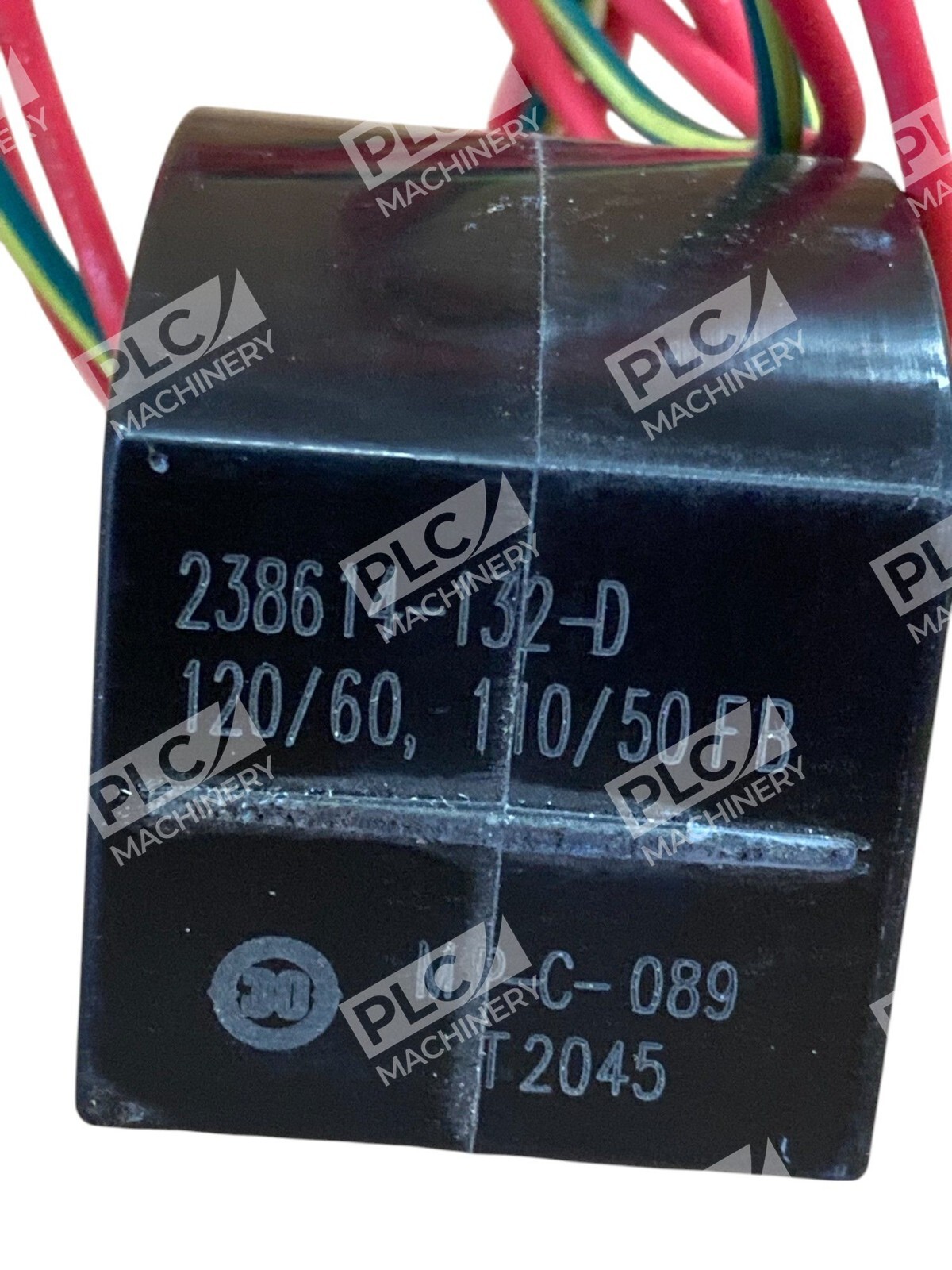

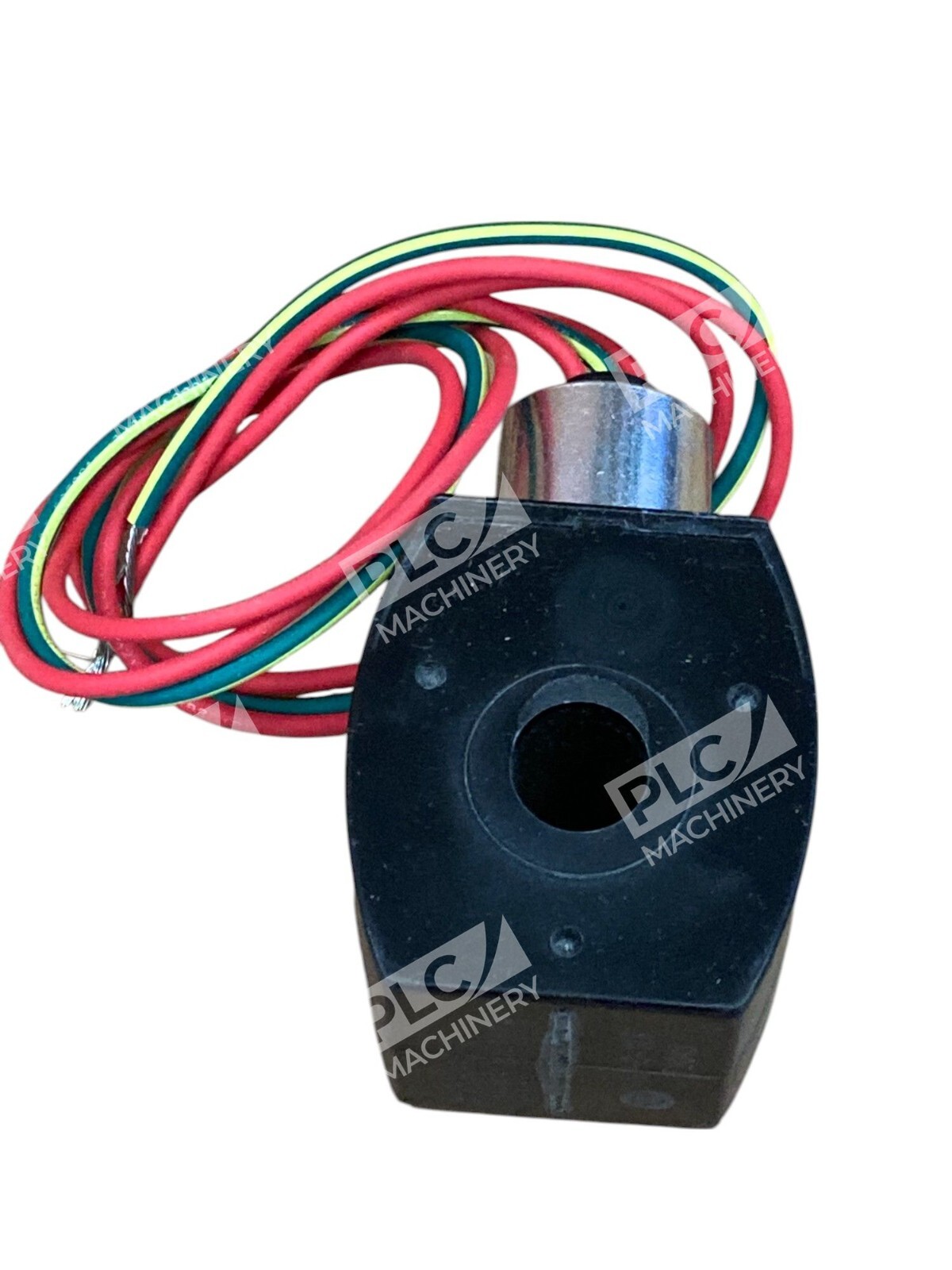

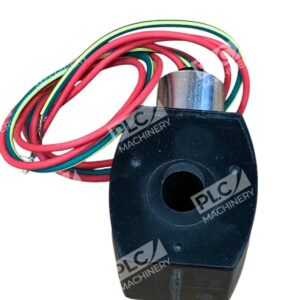

The ASCO 238614-132-D is a general service solenoid coil engineered for industrial valve and manifold control applications. This Red Hat Series 238 coil operates at 120VAC/60Hz and is designed as a direct replacement for ASCO EF-series solenoid valve bodies. Built to NEMA 7 and 9 explosion-proof standards, this unit is suitable for hazardous and general-duty applications alike.
Key Features
- 120VAC, 60Hz rated for North American industrial power systems
- 17.1W power consumption with Class F insulation rating
- NEMA 7 and 9 explosion-proof certification

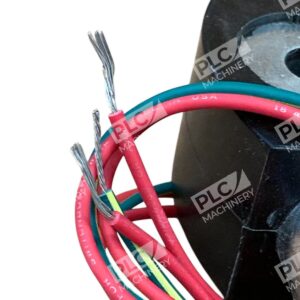

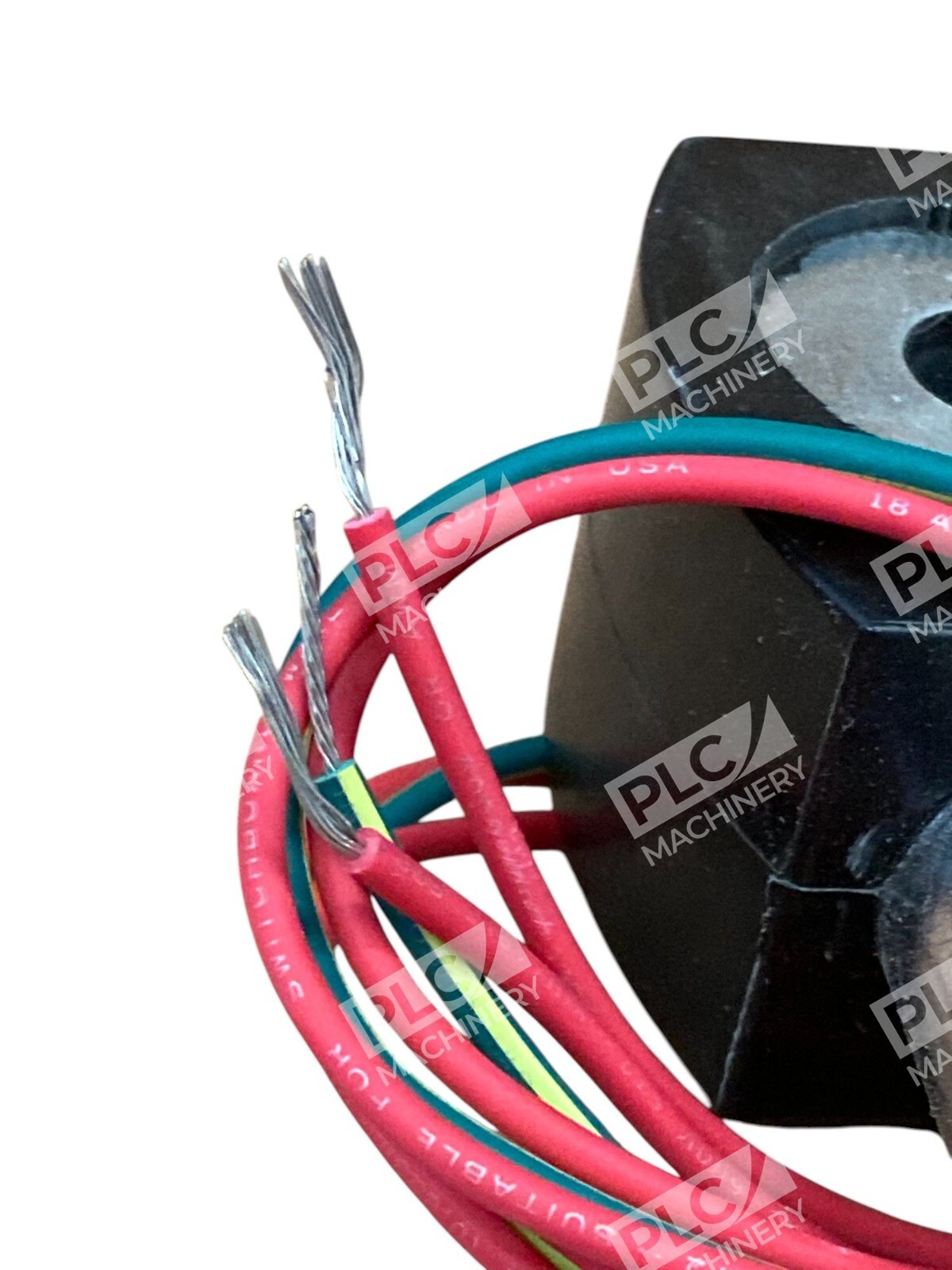

- 18-inch molded leads for standard terminal box connections
- UL Component approved; CSA certified
- Red Hat MXX/M12 connector design for quick coupling
Technical Specifications
- Voltage Rating: 120V AC
- Frequency: 60 Hz
- Power Consumption: 17.1 watts
- Holding VA: 40 VA
- Inrush VA: 93 VA
- Insulation Class: F
- Electrical Connection: 18 inches molded leads
- Connector Type: MXX, M12 (Red Hat)
- Approvals: UL Component, CSA Certified
- NEMA Rating: 7, 9 (Explosion-Proof)
- Series: ASCO Series 238 General Service
- Enclosure Type: No junction box, hazardous location rated
Typical Applications
The ASCO 238614-132-D is commonly deployed in:
- Hydraulic and pneumatic valve control systems
- Industrial pump manifold solenoid activation
- Plumbing and water circulation systems
- Process automation requiring explosion-proof rated components
- OEM equipment and machinery requiring standard Red Hat solenoid replacement
Compatibility & Replacements
Compatible With
- ASCO EF8262H212 General Service Solenoid Valve
- ASCO EF8262H230 General Service Solenoid Valve
- ASCO EF8210G006 General Service Solenoid Valve
- ASCO EF8320G200 120/60, 110/50 valve bodies
- ASCO EF8320G192 120/60, 110/50 valve bodies
- Standard ASCO Series 238 valve manifolds with MXX connector interface
Replaces / Drop-In Replacement For
This coil is a direct replacement for OEM ASCO Red Hat solenoid coils on Series 238 EF-body valves. When ordering replacement coils, verify the valve model number to ensure proper fit. Confirm compatibility with your system integrator before ordering if model number is uncertain.
Works With
- ASCO Red Hat connector interface (MXX/M12)
- 120/110VAC 60/50Hz dual-voltage valve bodies
- Pneumatic and hydraulic control circuits
- NEMA 7 and 9 rated enclosure and hazardous location installations
