Overview

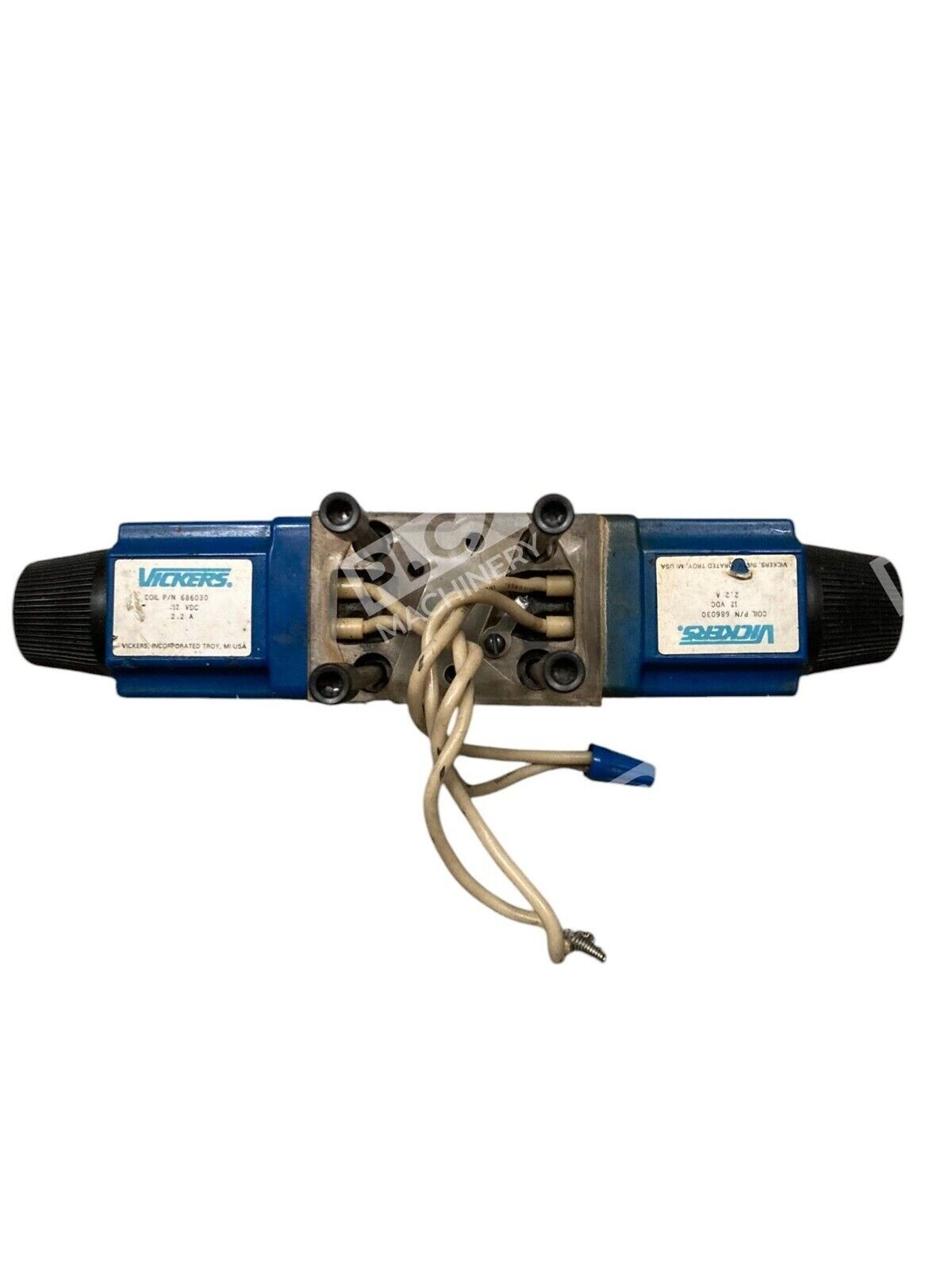

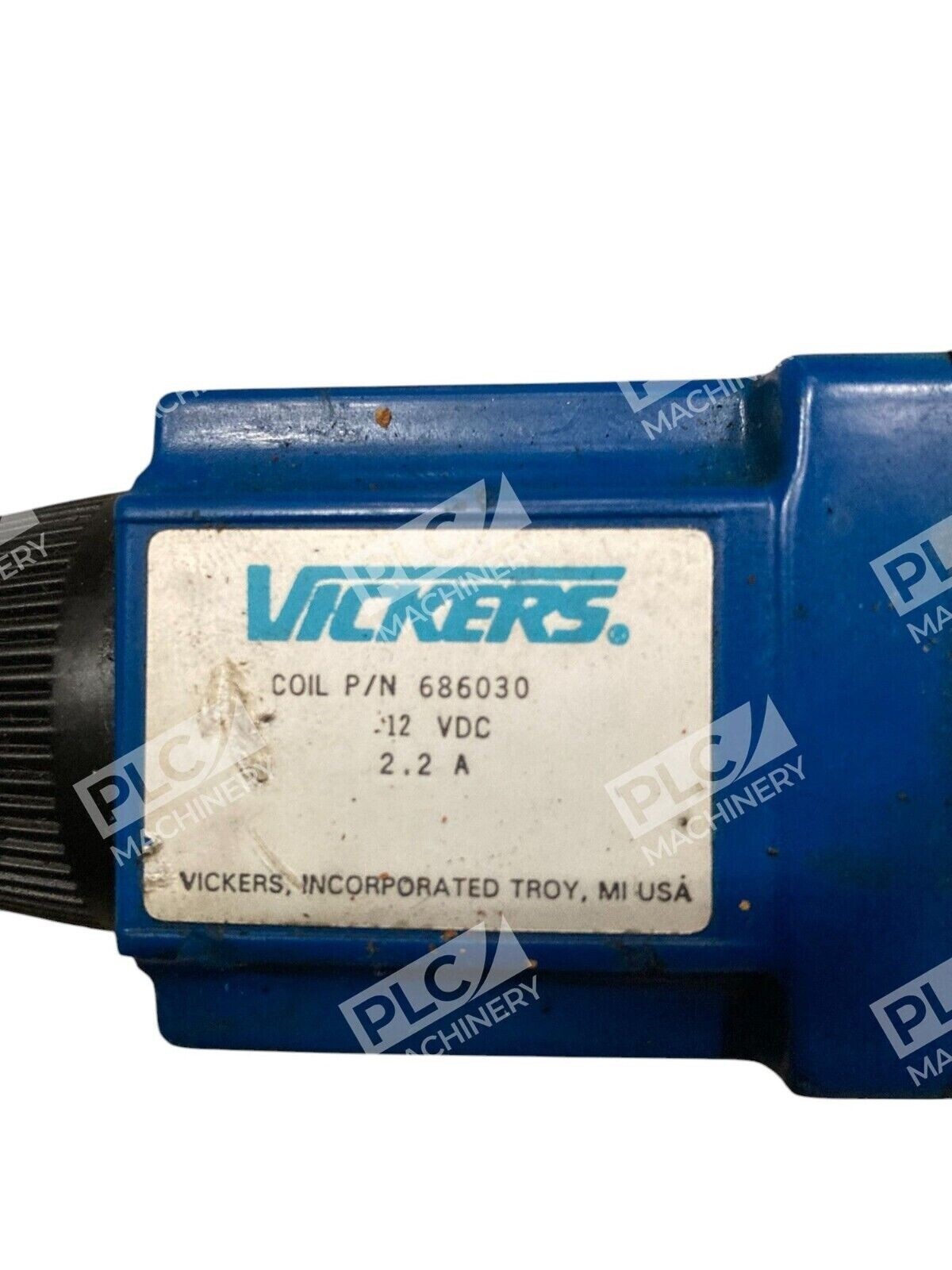

The Vickers 686030 is a dual-coil solenoid assembly rated for 12VDC operation at 2.2A per coil. Manufactured by Eaton Vickers, this component is designed for integration with Vickers directional control valves used in hydraulic power transmission and industrial motion control systems. As a replacement or spare coil, it provides reliable electromagnetic actuation for pilot and main stage valve control.
Key Features
- 12VDC rated voltage with 2.2A current per coil
- Dual-coil configuration for proportional or pilot valve applications
- Designed for Eaton Vickers directional control valve platforms
- Molded, weather-resistant coil construction
- Standard cavity mounting compatibility with Vickers valve bodies
Technical Specifications
- Input Voltage: 12 VDC
- Coil Current: 2.2 A per coil
- Coil Configuration: 2-coil (dual solenoid)
- Coil Type: Molded, weather-proof design
- Operating Temperature Range: -10°C to +70°C (typical)
- Manufacturer: Eaton Vickers (Danfoss)
- Part Number: 686030
Typical Applications
- Directional control valve actuation in hydraulic systems
- Proportional valve pilot stage control
- Industrial automation and machinery motion control
- Mobile equipment hydraulic circuit management
- OEM equipment replacement and maintenance
Compatibility & Replacements
Compatible With
- Vickers DG4V-3 series directional control valves
- Vickers DG4V-3S series proportional valves
- Eaton Vickers directional control valve platforms
- Standard NG6 (CETOP-05) cavity manifold systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 686030 is designed as a replacement coil for specific Vickers valve bodies; cross-reference your valve model code and coil designation against Eaton Vickers technical documentation to confirm direct substitution.
Works With
- Eaton Vickers hydraulic control systems
- Standard 12VDC power supplies and control modules
- Proportional valve electronics and pilot control circuits
- Industrial PLC and motion control systems
