Overview

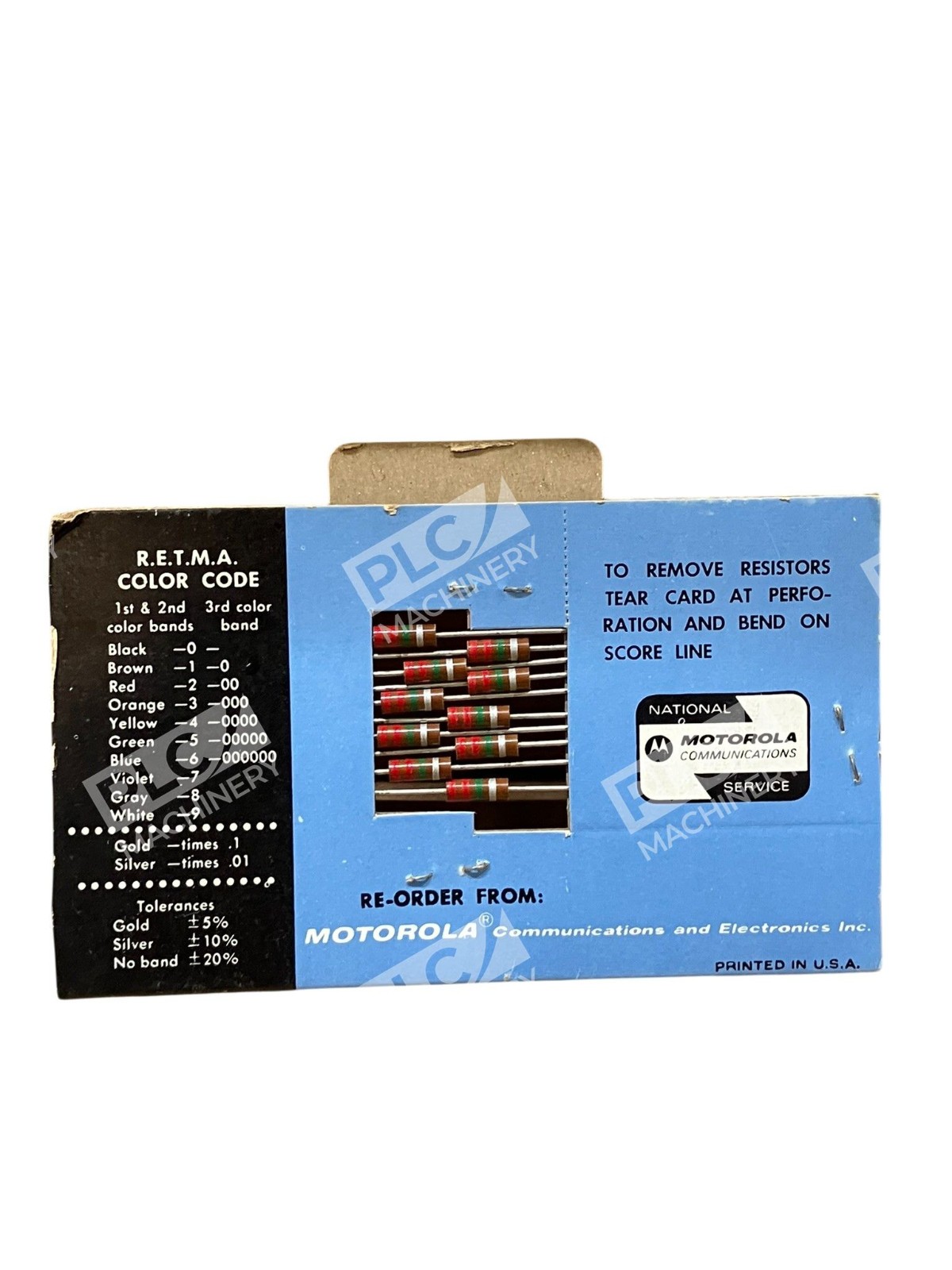

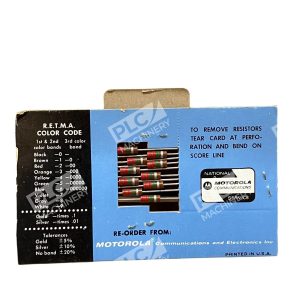

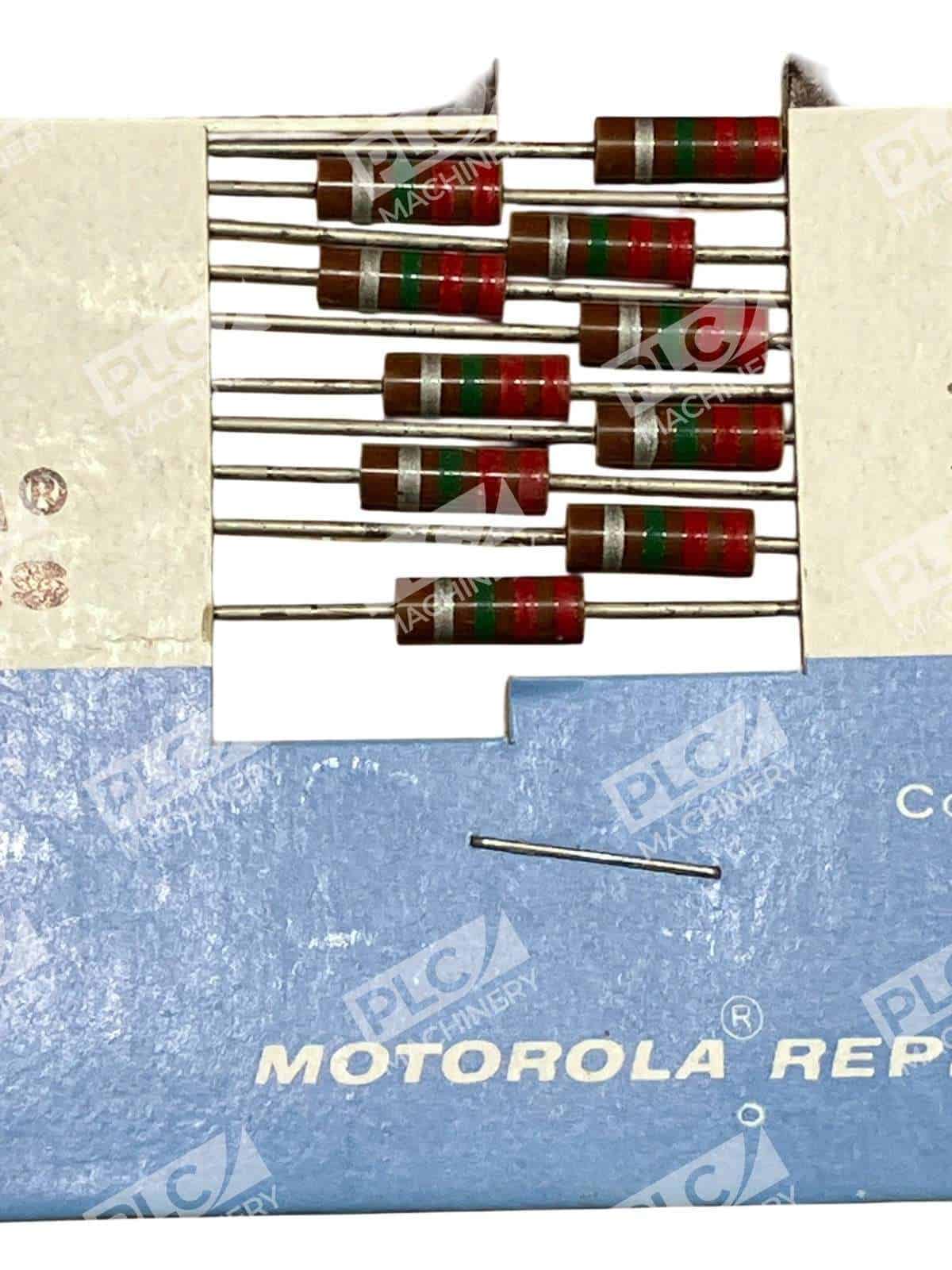

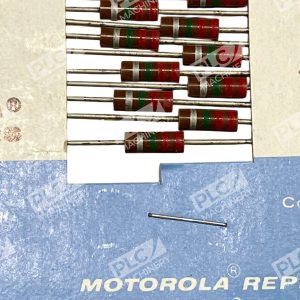

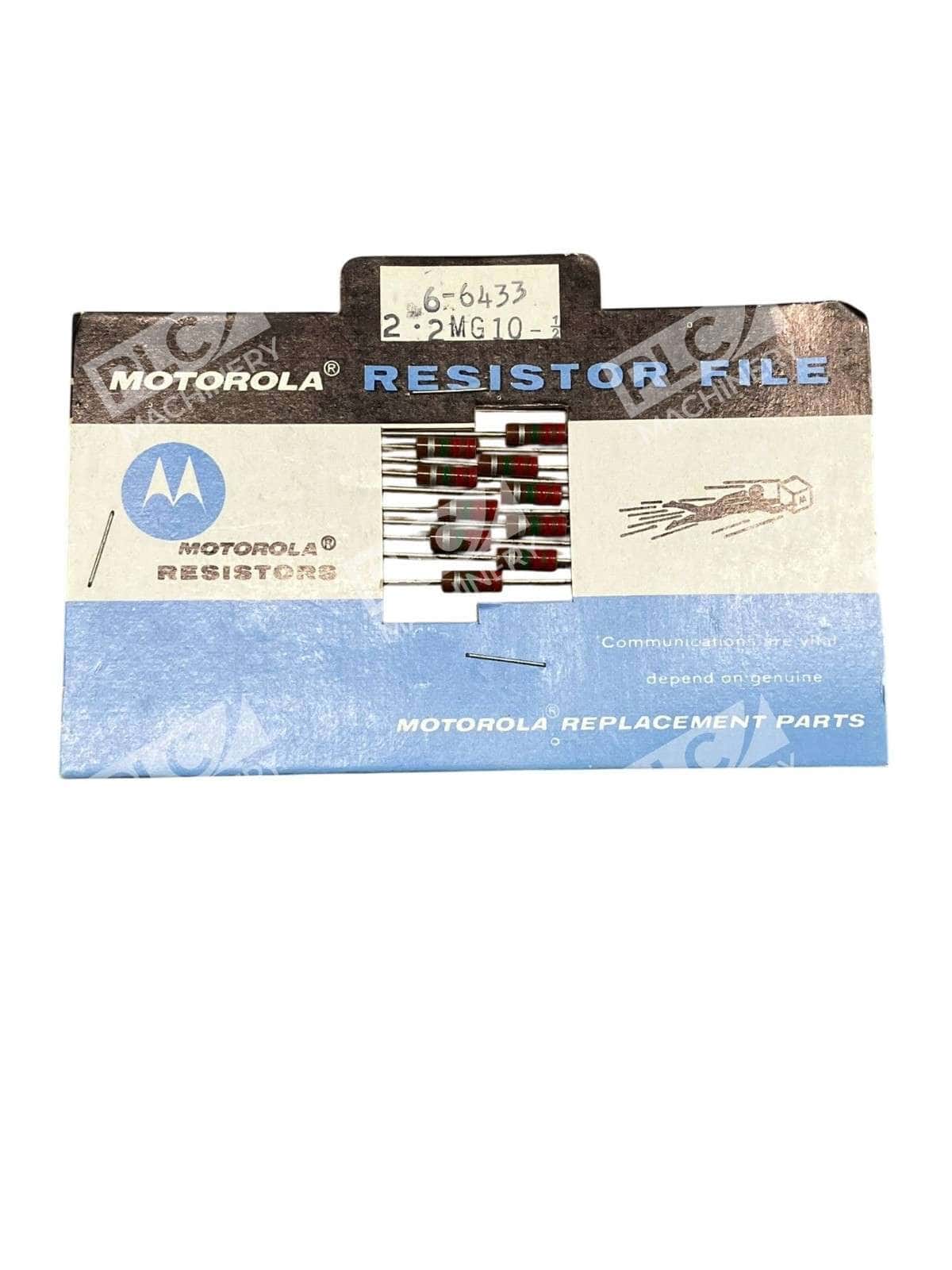

The Motorola 6-6433 is a fixed carbon composition resistor rated at 2.2M Ohm with 1/2W power handling and ±10% tolerance. This axial-lead through-hole component features U.S. construction and is optimized for high-reliability applications in industrial electronics, test equipment, and vintage audio/video restoration. As NOS (New Old Stock), it remains unused and fully functional.
Key Features
- Resistance: 2.2M Ohm (±10% tolerance)
- Power Rating: 1/2W (0.5W)
- Termination: Axial leads for through-hole mounting
- Construction: Carbon composition element
- Origin: Made in the United States
- Condition: New Old Stock (NOS)—never installed or used
Technical Specifications
Carbon composition resistors like the Motorola 6-6433 offer inherent pulse-handling capability and noise performance suitable for analog circuits, bias networks, and load applications. The 1/2W rating accommodates moderate dissipation in audio preamps, measurement instruments, and industrial control systems.
- Resistance Value: 2.2 MΩ
- Tolerance: ±10%
- Power Rating: 0.5W (1/2W)
- Termination Style: Axial
- Composition: Carbon
- Lead Type: Tinned copper
Typical Applications
- Vintage audio amplifier restoration and repair
- Industrial control circuit replacement
- Test and measurement equipment
- High-impedance bias and load networks
- Electronics inventory and component banks
Compatibility & Replacements
Compatible With
- Standard through-hole PCB layouts with 0.1″ or larger pad spacing
- Any circuit requiring a 2.2M Ohm, 1/2W resistor element
- Vintage and restoration electronics projects
- Analog amplifier and filter circuits
Replaces / Drop-In Replacement For
The Motorola 6-6433 is a direct replacement for equivalent 2.2M Ohm, 1/2W carbon composition resistors in legacy equipment repair. Verify compatibility with your system integrator before ordering to ensure footprint and electrical specifications meet application requirements.
Works With
- Standard through-hole assembly and hand-soldering techniques
- Legacy PCB designs from the 1970s–1990s
- Any circuit topology using high-impedance load or bias resistors
