Overview

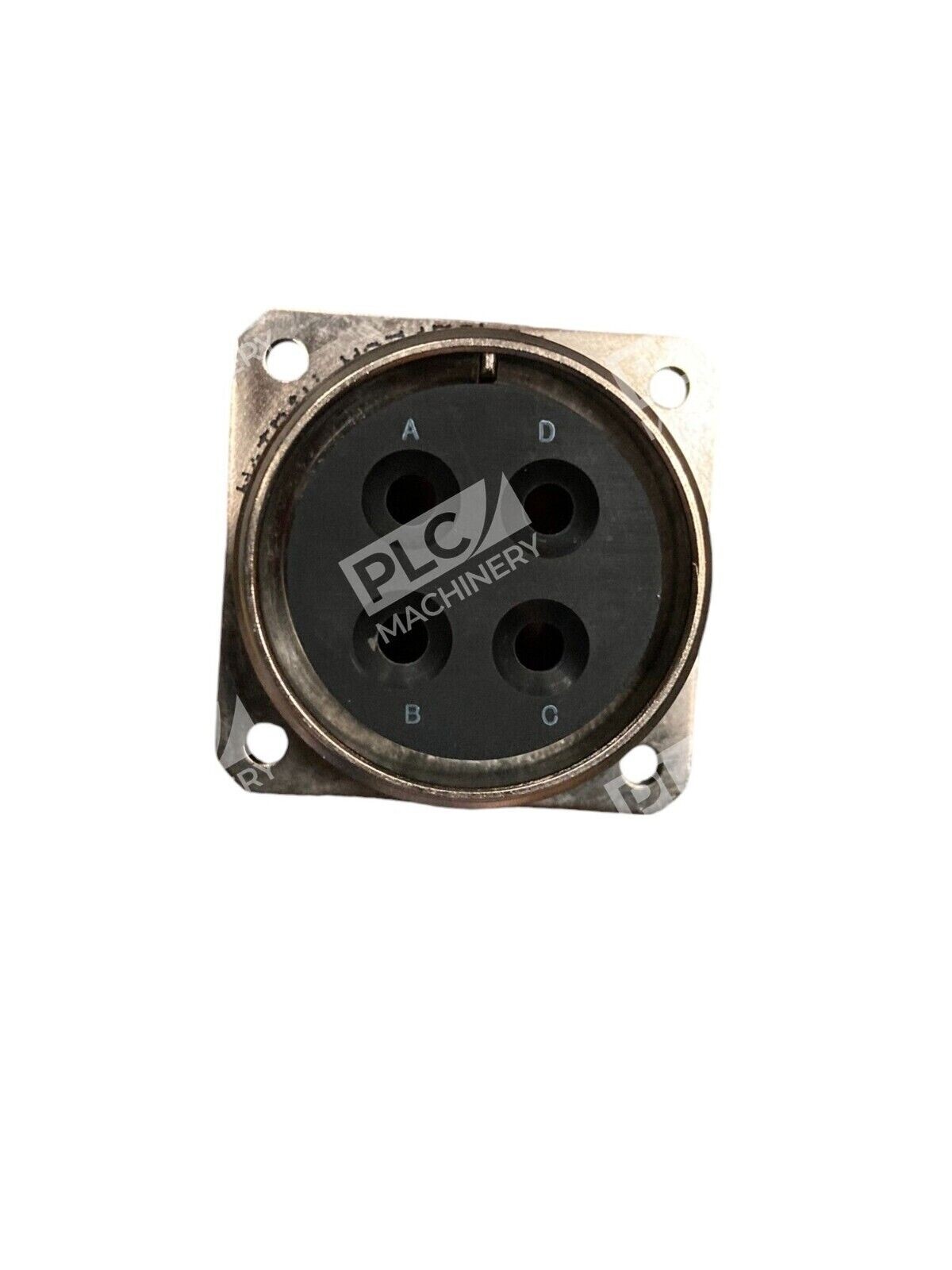

The MS3452L24-22S is a military-specification circular connector receptacle manufactured to MIL-DTL-5015 standards. Featuring a robust aluminum shell with electroless nickel finish and 24-pin socket contact configuration, this panel-mount receptacle delivers proven reliability in harsh aerospace, military, and industrial environments.
Key Features
- MIL-DTL-5015 military-grade qualification for demanding applications
- 24-pin socket contact arrangement (24-22 configuration)
- Aluminum shell with electroless nickel (conductive) finish for corrosion resistance
- Rear-release crimp contact design for secure mating
- Panel-mount flange with threaded fastening
- Wide operating temperature range suitable for extreme environments
Technical Specifications
- Part Number: MS3452L24-22S
- Connector Standard: MIL-DTL-5015
- Configuration: 24-pin socket contacts (24-22)
- Mounting Type: Panel mount with flange
- Shell Material: Aluminum
- Shell Finish: Electroless nickel (conductive)
- Contact Type: Rear-release crimp
- Contact Finish: Gold-plated
- Fastening Type: Threaded
- Operating Temperature: -55°C to +175°C
Typical Applications
- Aerospace and avionics equipment
- Military communications and control systems
- Industrial automation and power distribution
- Test and measurement instrumentation
- High-reliability automotive systems
- Marine and naval platforms
Compatibility & Replacements
Compatible With
- MIL-DTL-5015 standard connector systems
- Military and aerospace-grade panel mounting systems
- Standard 24-pin circular connector plug assemblies (24-22 interface)
- Rear-release crimp contact harnesses
Replaces / Drop-In Replacement For
- Equivalent MS3452L24-22S receptacles from other QPL-qualified suppliers
- Verify compatibility with your system integrator before ordering for specific application requirements
Works With
- MIL-DTL-5015 compliant mating plugs and receptacles
- Standard insertion/removal tools for MS-series connectors
- Military specification contact crimp tooling
- Industrial and aerospace interconnect systems
