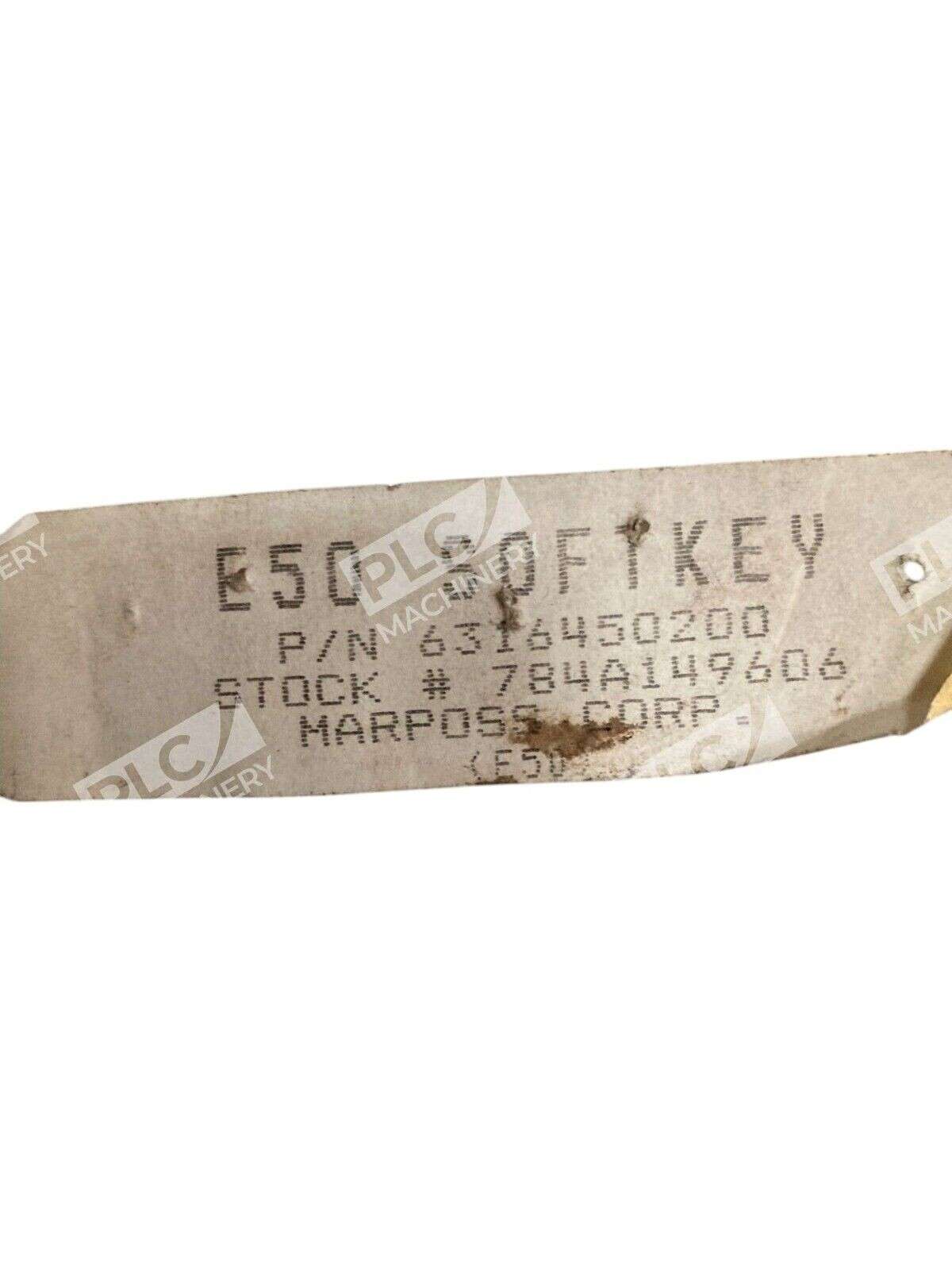

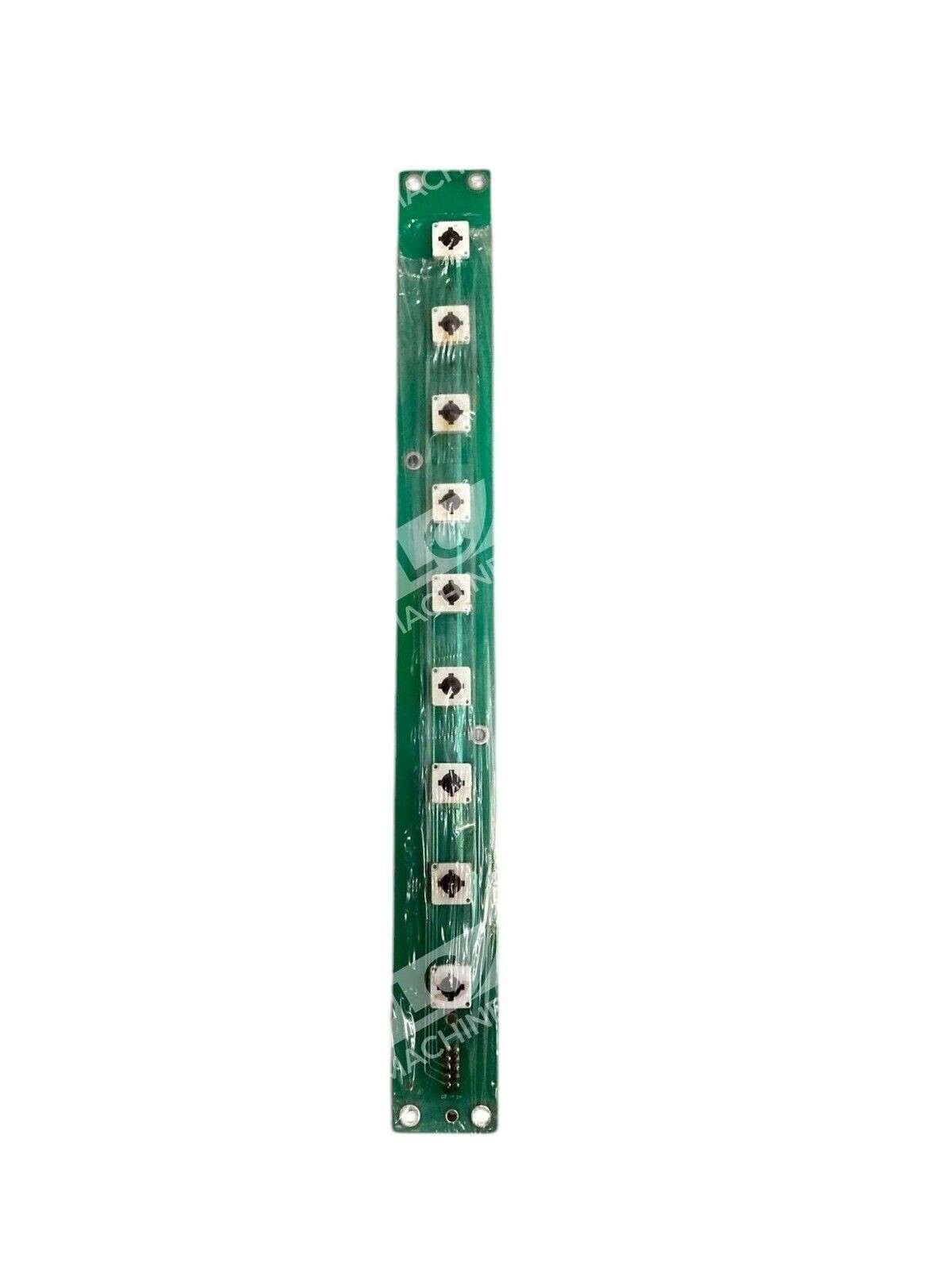

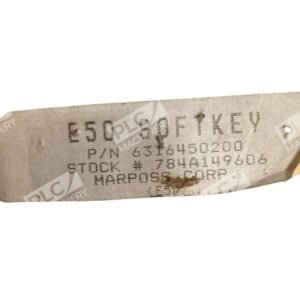

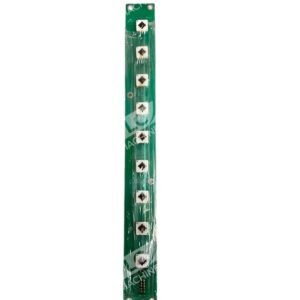

Marposs 6316450200 board relay designed for precision measurement and inspection applications. This relay board is part of Marposs’s E50 Softkey electronic control architecture, used in dimensional gauging and quality control systems across manufacturing environments.
Overview
The Marposs 6316450200 board relay serves as a signal switching and control component in Marposs measurement systems. Built for industrial shop-floor conditions, this board integrates into E50-series measurement instrument configurations where reliable switching of measurement probe signals, calibration commands, and system logic is required. The unit is supplied in New – No Box condition, making it suitable for replacement or integration into existing systems.
Key Features
- General-purpose relay board for Marposs E50 Softkey systems
- Precision-grade PCB assembly for measurement and inspection instruments
- Reliable signal switching for probe and control circuits
- Designed for in-process and post-process measurement applications
- New – No Box condition, ready for integration
Technical Specifications
Complete electrical and mechanical specifications are available upon request. Consult the original system documentation or contact your system integrator for:
- Input voltage requirements
- Output relay contact ratings
- Signal logic levels and timing
- PCB form factor and mounting interface
- Environmental operating ranges
Typical Applications
- Dimensional measurement and inspection systems
- CNC grinding machine gauges and compensators
- In-process and post-process quality control stations
- Precision probe and sensor signal conditioning
Compatibility & Replacements
Compatible With
- Marposs E50 Softkey measurement systems
- Marposs precision gauge heads and probe assemblies
- Machine tool CNC control integration
- Marposs measurement equipment manufactured prior to system architecture updates
Replaces / Drop-In Replacement For
This board is the direct factory replacement for part number 6316450200 in legacy Marposs E50-series measurement configurations. Verify compatibility with your specific system serial number and revision before ordering.
Works With
- Marposs proprietary measurement software
- Machine tool CNC interfaces (Siemens, Fanuc, Mitsubishi, etc.)
- RS-232 and hardwired control protocols
- Standard 24 VDC industrial control systems
