Overview

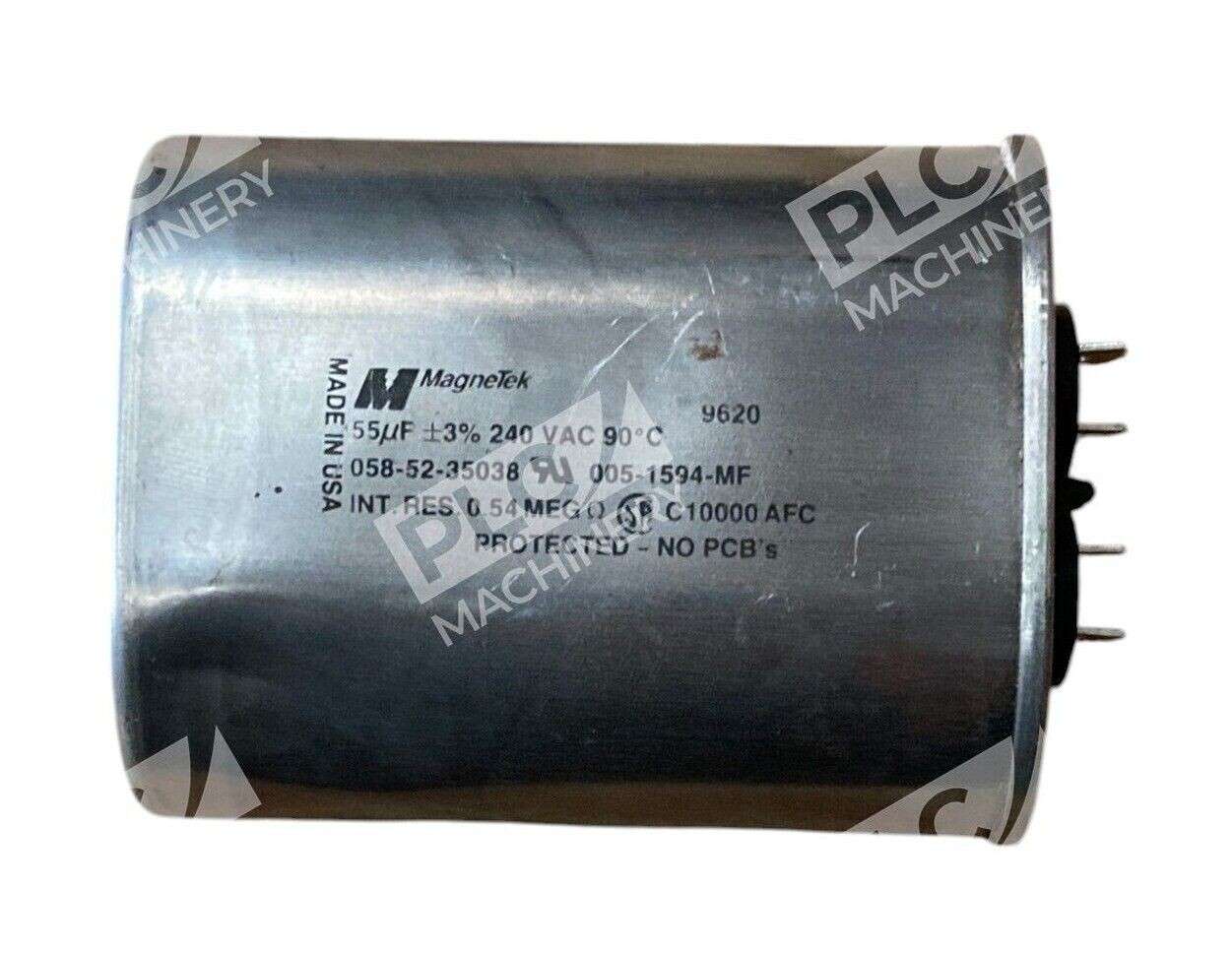

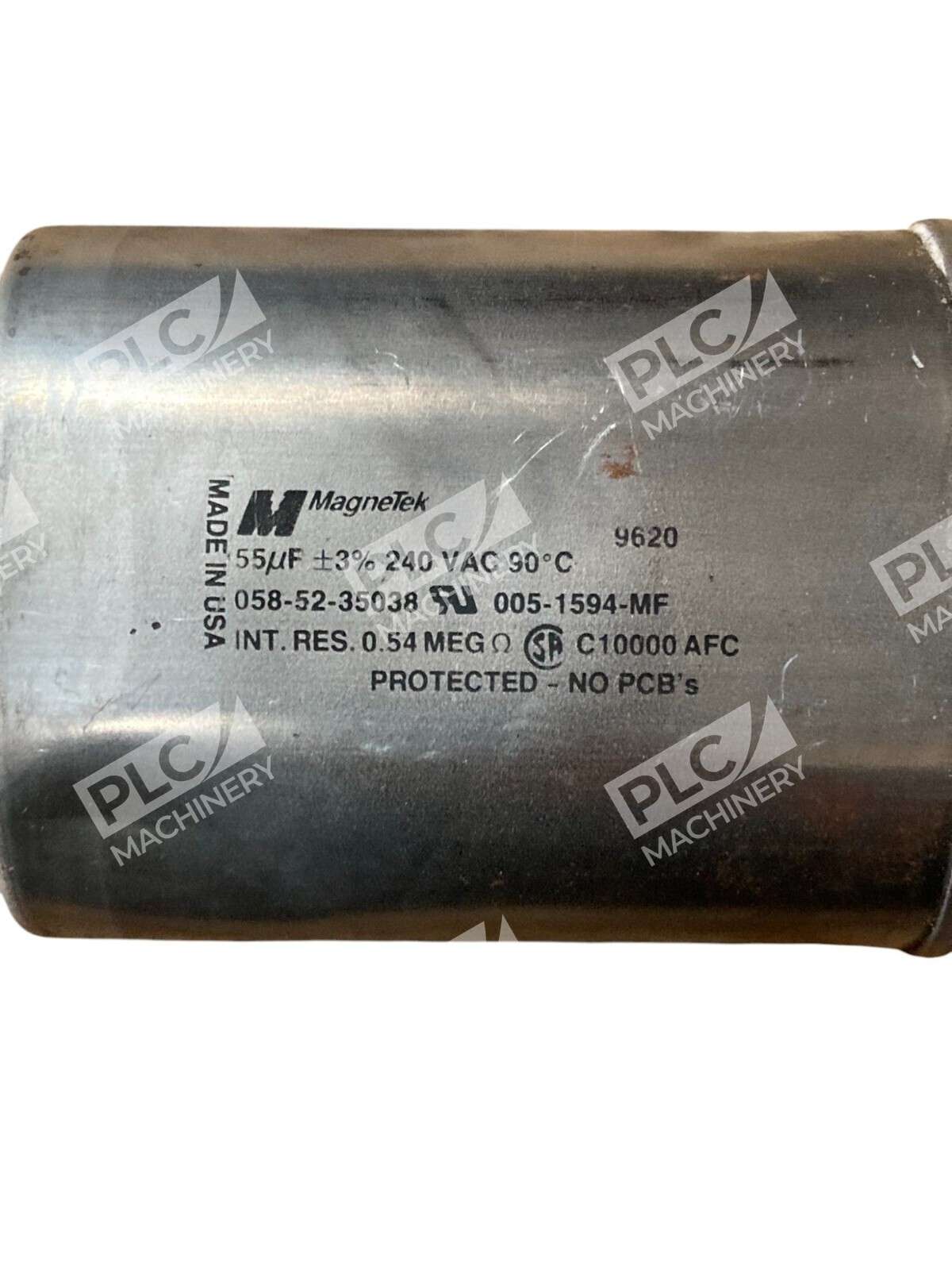

The MagneTek 005-15940MF C10000AFC is a robust oil-filled capacitor designed for 240VAC industrial applications. With its proven design and reliable performance, this unit serves as a cost-effective replacement for aging run capacitors and power factor correction systems in motor-driven equipment.
Key Features
- Oil-filled construction for enhanced reliability and cooling
- 55µF nominal capacitance with ±3% tolerance
- 240VAC, 60 Hz rated voltage and frequency
- Low internal resistance (0.54 megohm) for minimal self-discharge

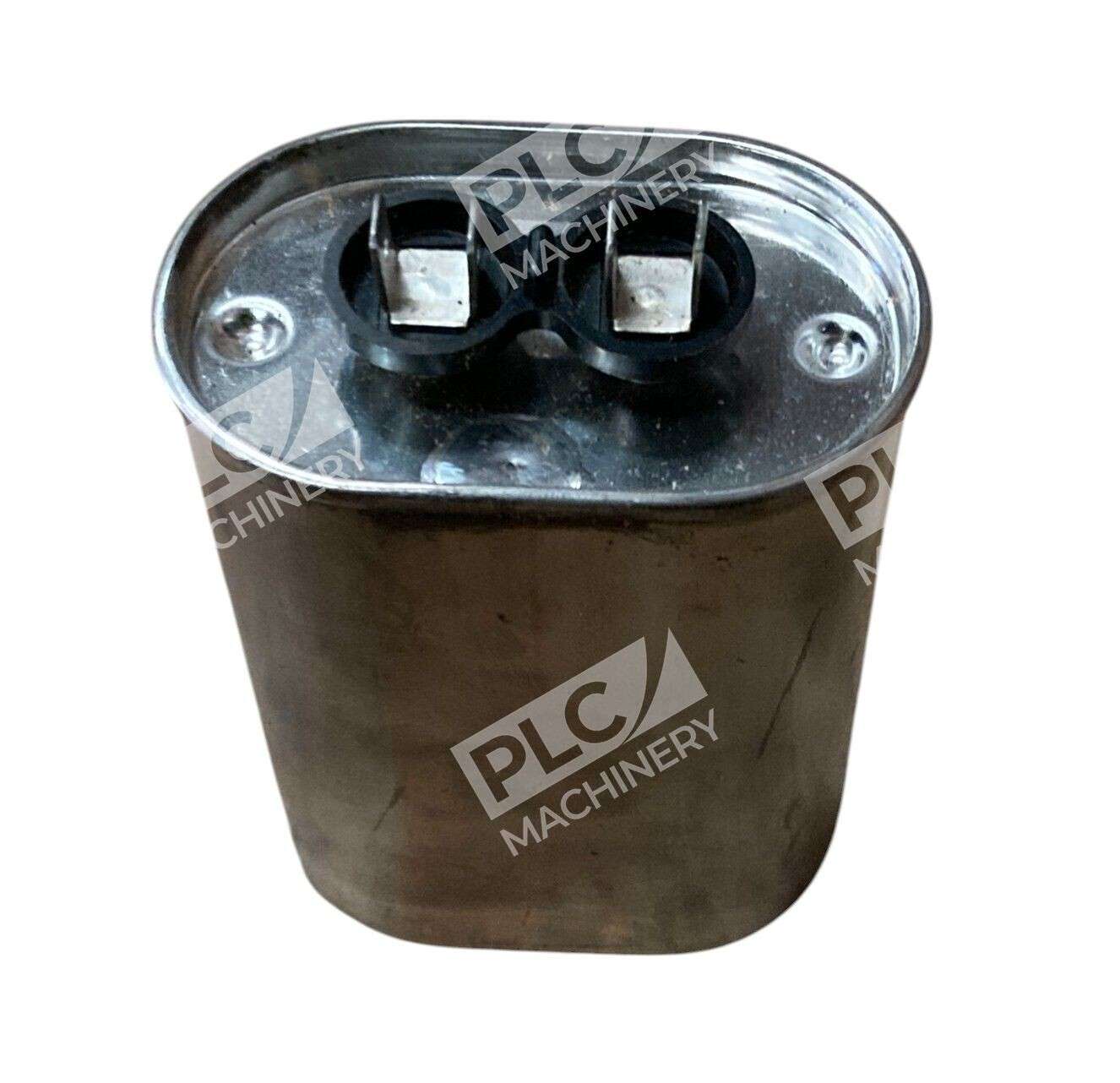

- Oval form factor for flexible mounting in confined spaces

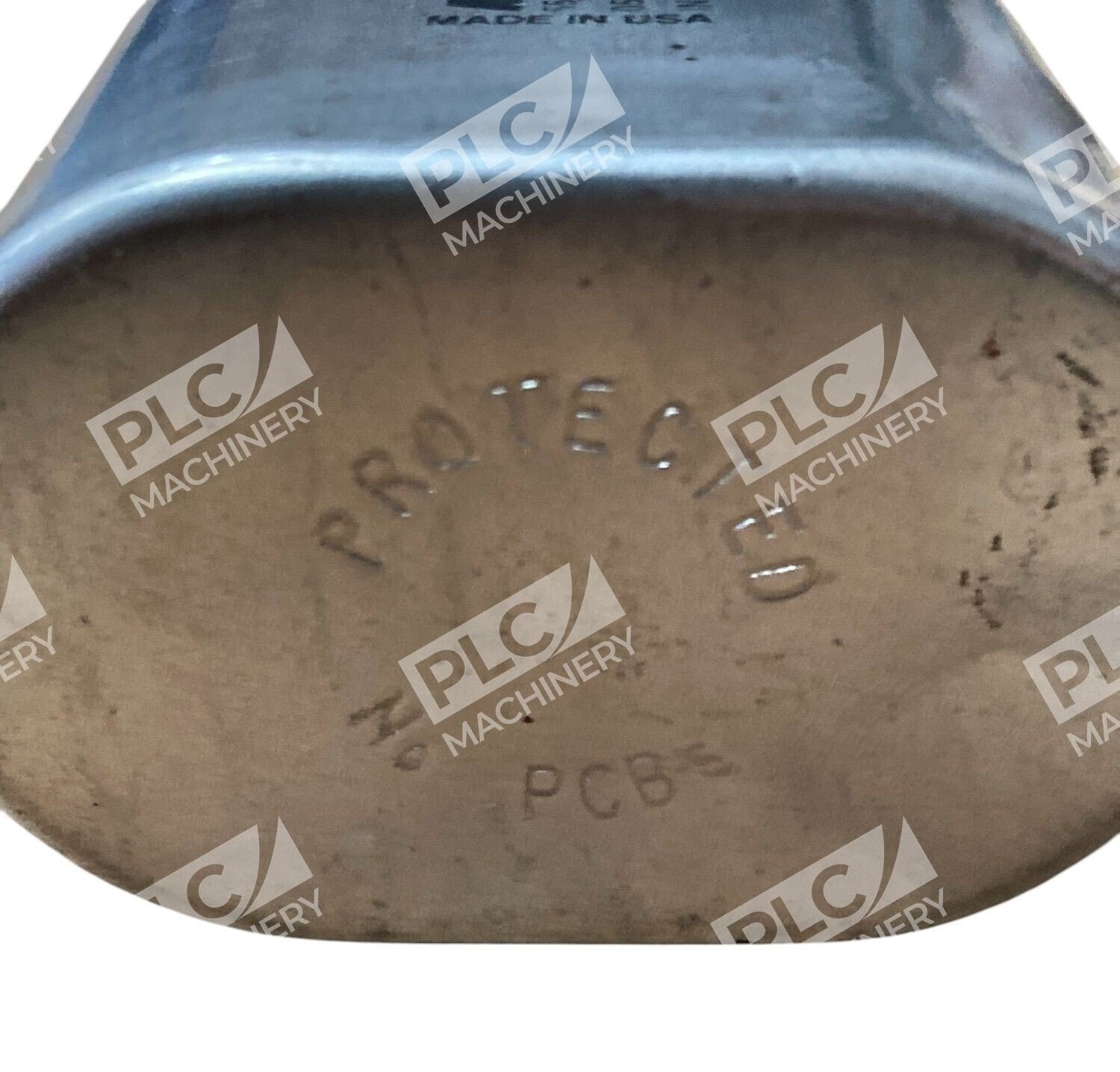

- Protected design (no PCB connections)
- 100°C maximum operating temperature
Technical Specifications
This capacitor meets legacy industrial standards for motor control and power conditioning applications where robust, proven components are required.
Typical Applications
- Motor run capacitors in single and three-phase systems
- Power factor correction in industrial facilities
- HVAC compressor and fan motor support
- Legacy equipment retrofits and repairs
- Process machinery with 240VAC power distribution
Compatibility & Replacements
Compatible With
- 240VAC, 60 Hz power distribution systems
- Three-phase and single-phase motor circuits
- Legacy industrial motor control panels
- Power factor correction systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering, as oil-filled capacitor replacements require matching voltage, frequency, capacitance, and physical dimensions.
Works With
- Allen-Bradley and Rockwell motor starters
- Siemens SINAMICS motor control systems
- Standard industrial contactor and relay panels
- General-purpose induction motors (1–10 HP range typical)
