<h2>Overview</h2>

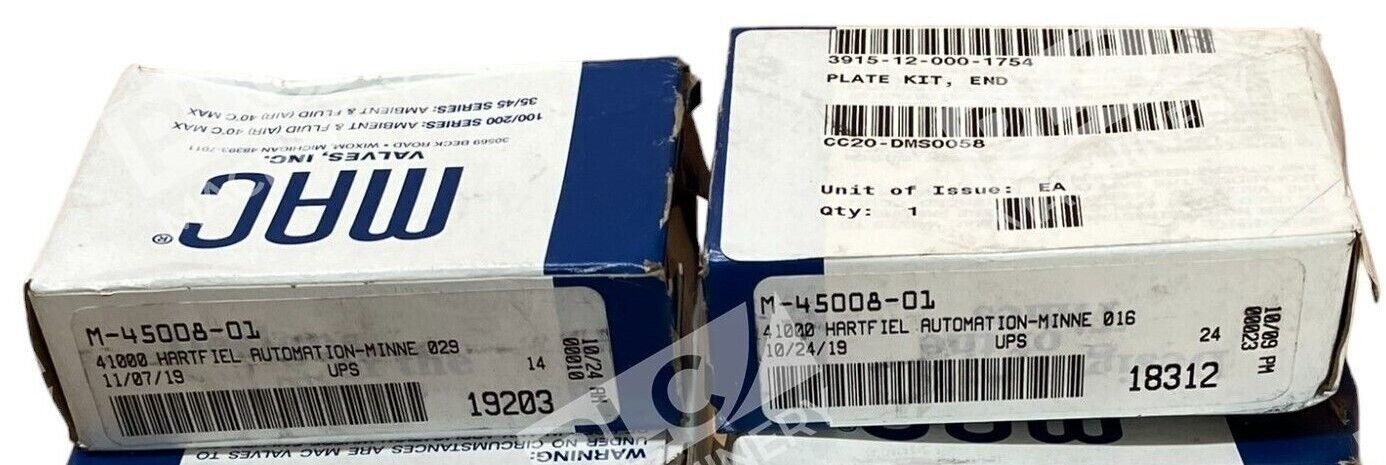

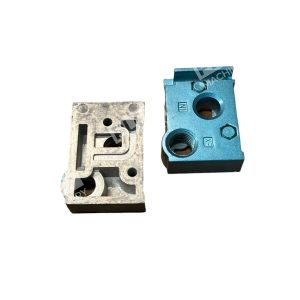

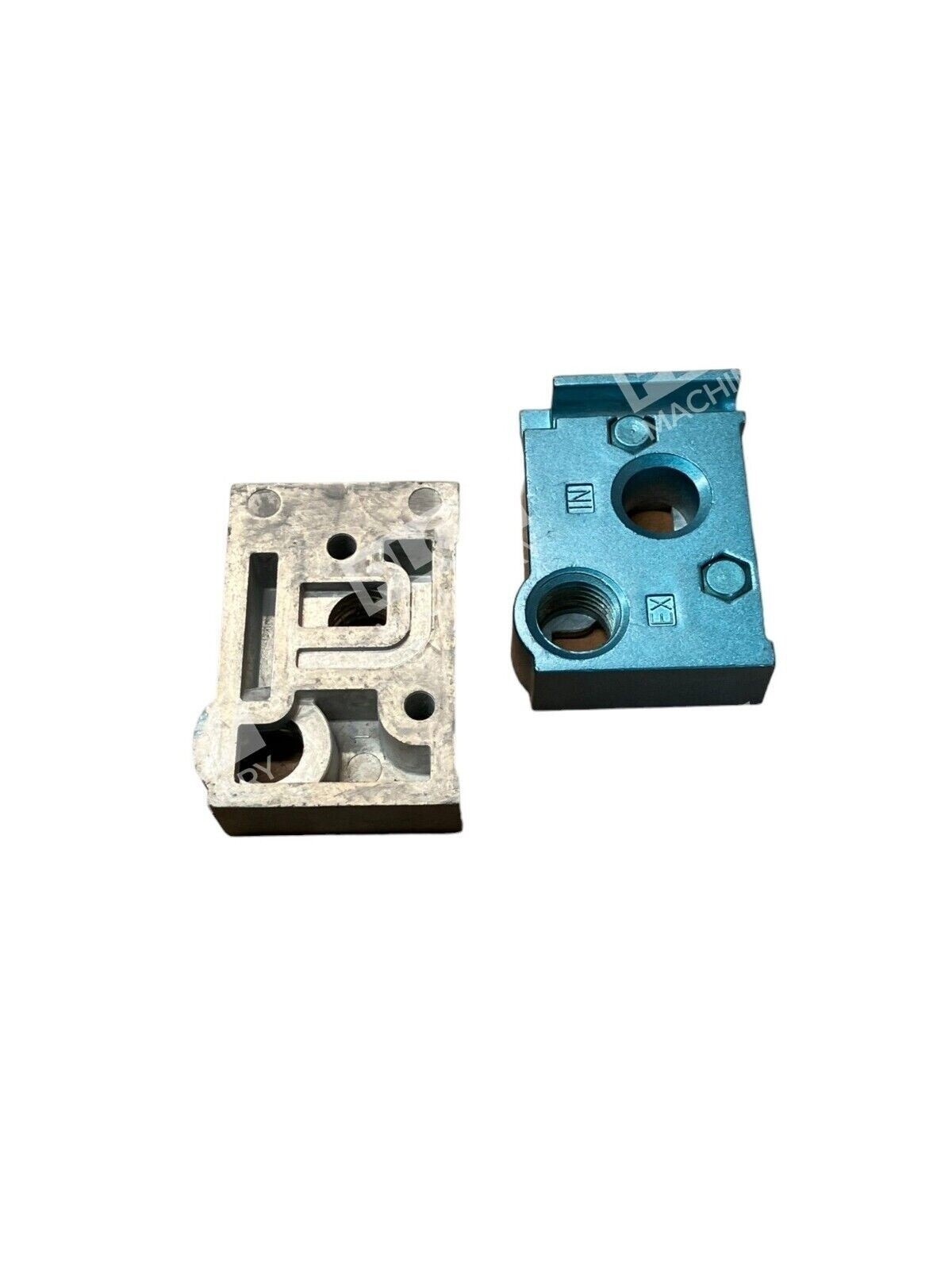

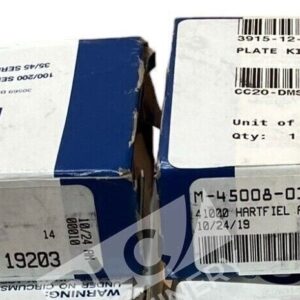

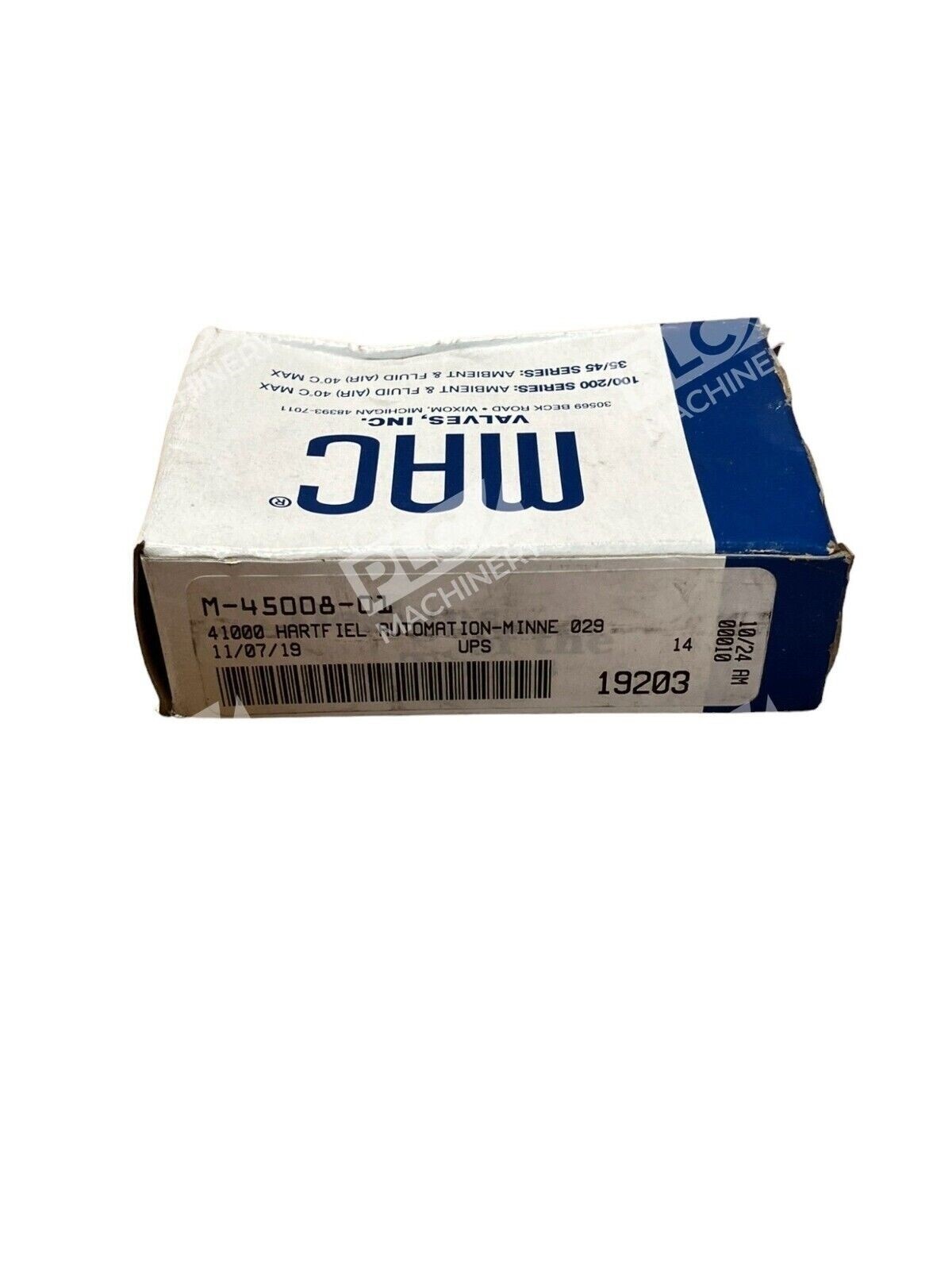

<p>The <strong>MAC M-45008-01 End Plate Kit</strong> is a pressure sealing solution designed for MAC 45 series pneumatic manifold systems. This kit includes two end plates that mount between manifold blocks to prevent leakage and ensure system integrity. The pressure seal construction maintains tight connections in pneumatic valve manifold assemblies commonly used in industrial automation and fluid power applications.</p>
<h2>Key Features</h2>
<ul>

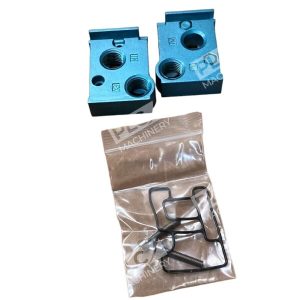

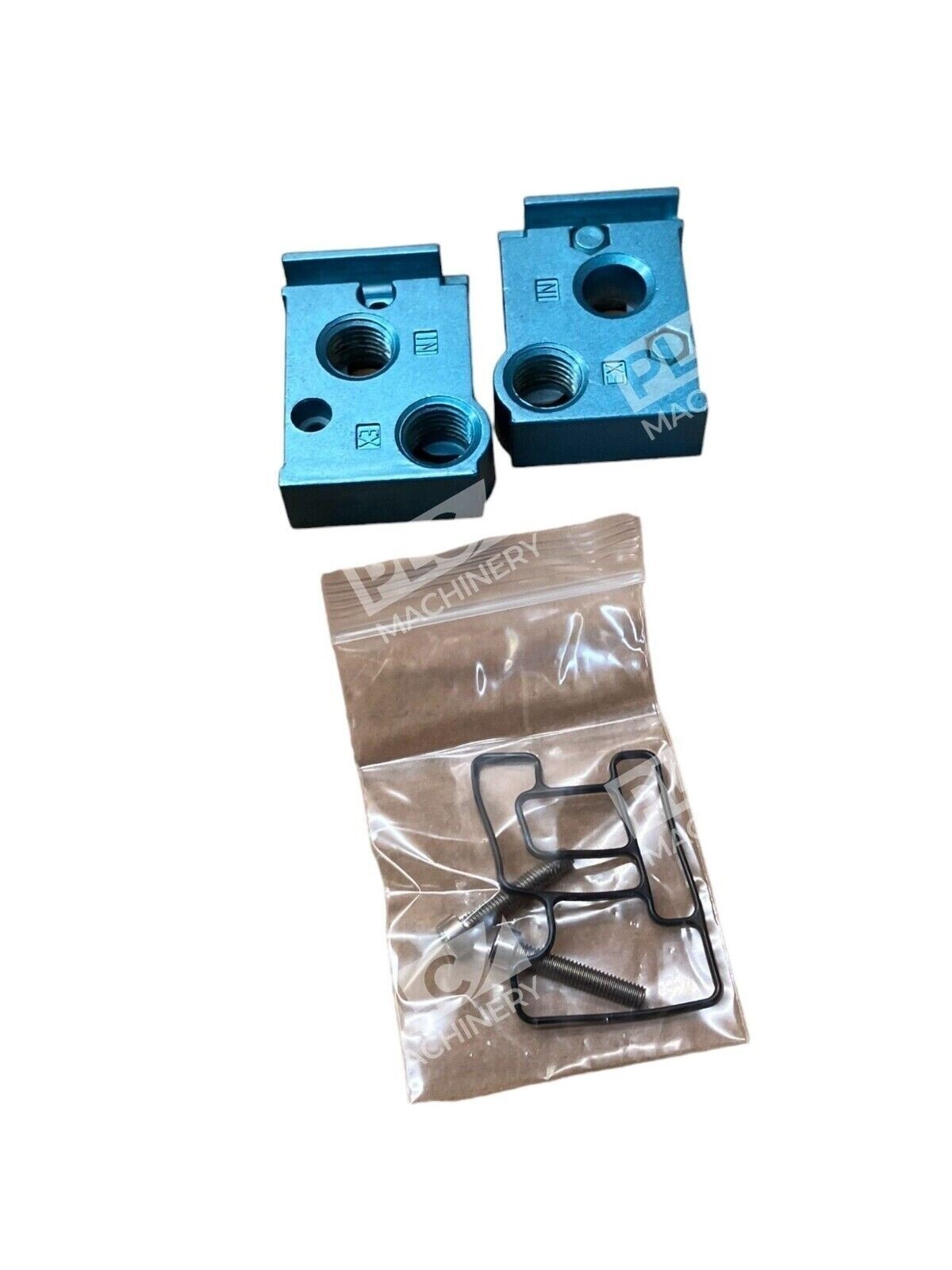

<li>Two end plates per kit for complete manifold sealing</li>

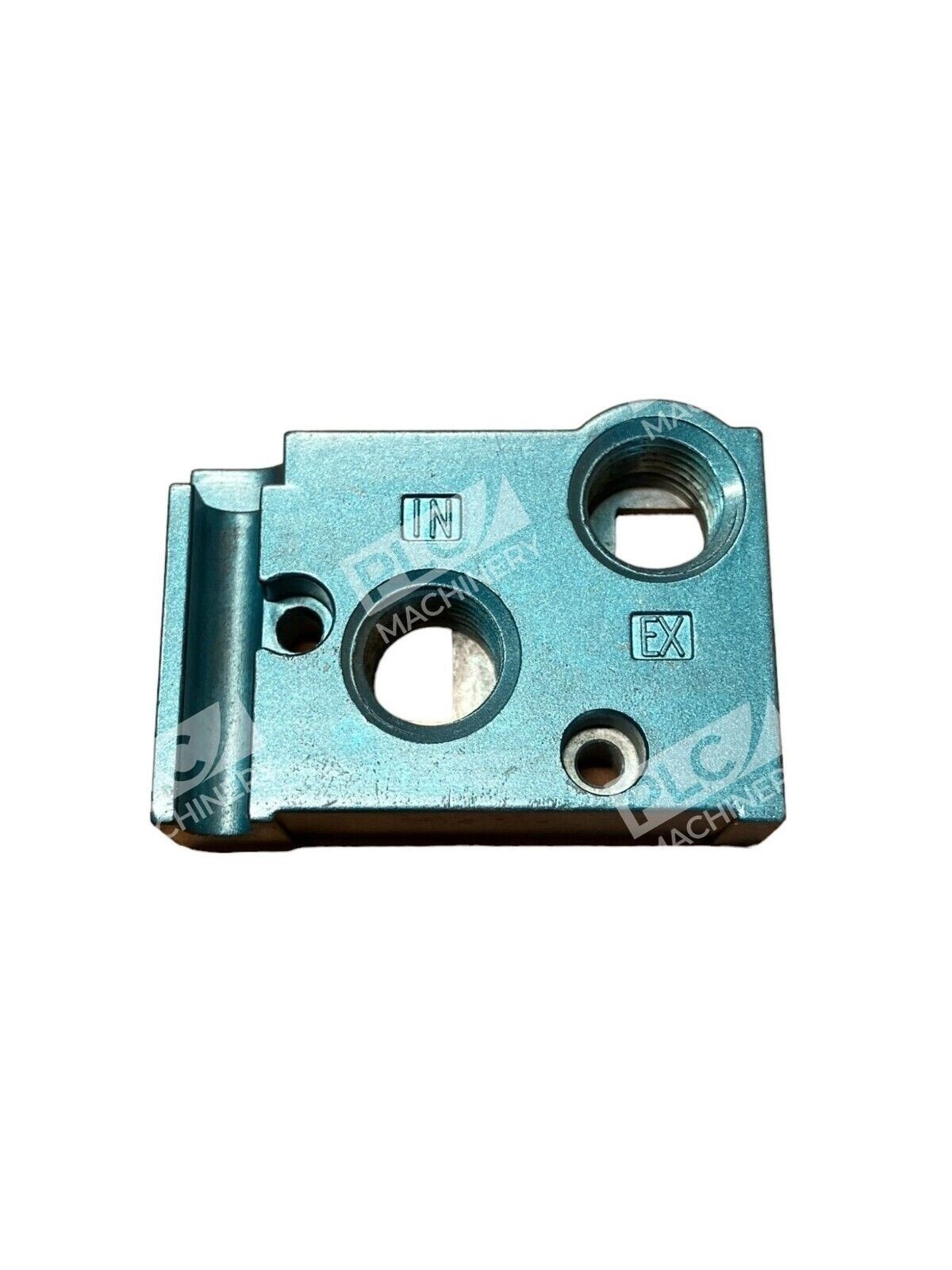

<li>1/4″ NPTF threaded female pneumatic ports</li>
<li>Compatible with MAC 45 series manifold blocks</li>
<li>Mounts on left-hand (LH) or right-hand (RH) manifold sides</li>
<li>Pressure seal design prevents internal leakage</li>
<li>Standard replacement for MAC valve systems</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Manufacturer:</strong> MAC VALVES INC</li>

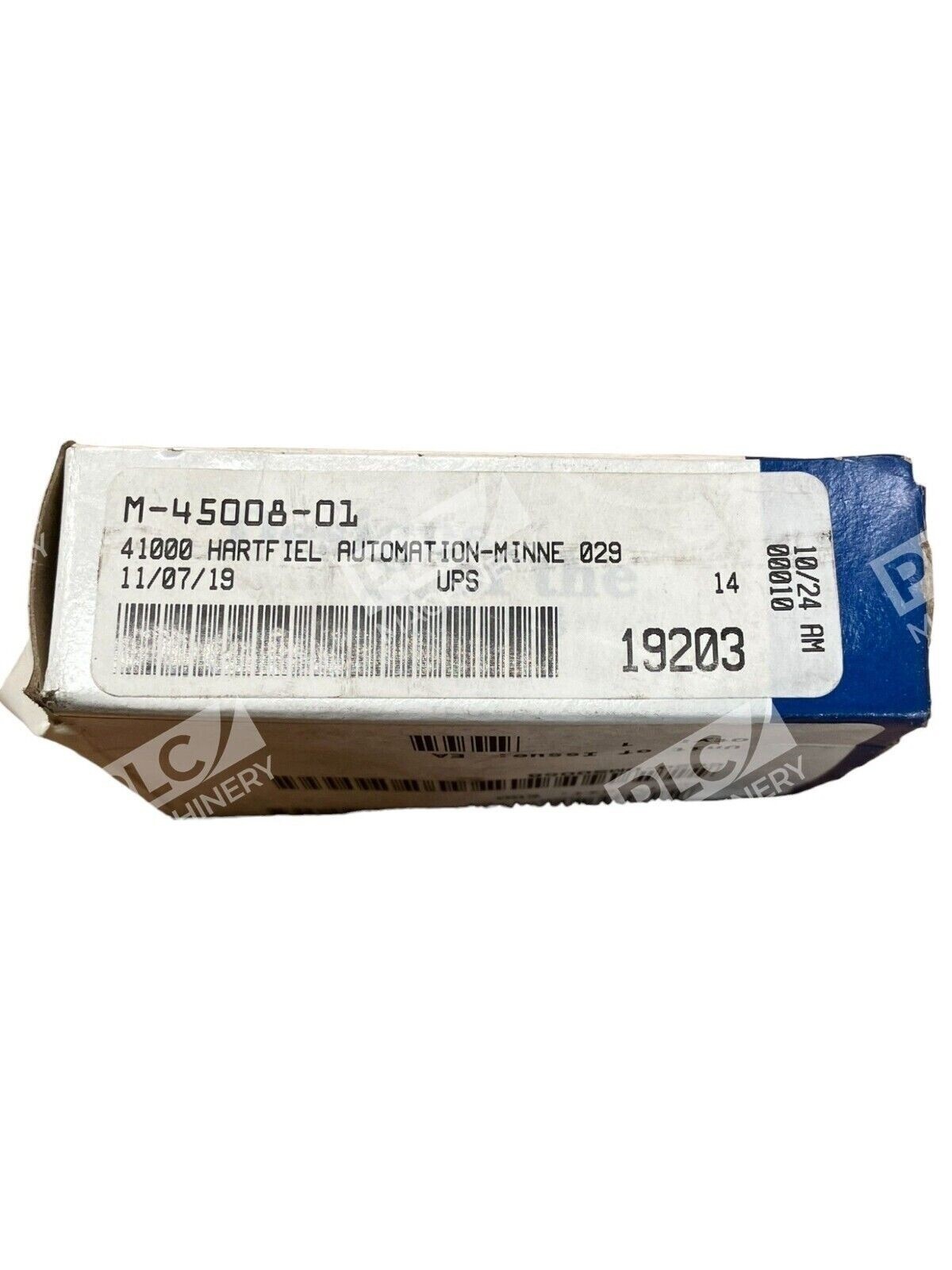

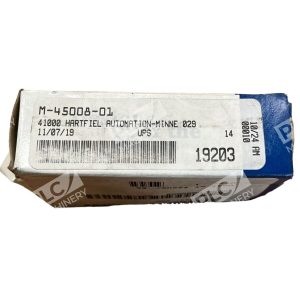

<li><strong>Part Number:</strong> M-45008-01</li>
<li><strong>Product Type:</strong> End Plate Kit</li>
<li><strong>Series:</strong> MAC 45 Series</li>
<li><strong>Port Type:</strong> 1/4″ NPTF threaded female</li>
<li><strong>Quantity per Kit:</strong> 2 end plates</li>
<li><strong>Mounting:</strong> Left-hand (LH) or right-hand (RH)</li>
<li><strong>Function:</strong> Pressure seal between manifold</li>
<li><strong>Status:</strong> Commercialized</li>
</ul>
<h2>Typical Applications</h2>
<p>The MAC M-45008-01 end plate kit is used in a variety of pneumatic and fluid power systems including:</p>
<ul>
<li>Industrial automation valve manifold assemblies</li>
<li>Pneumatic control system manifold blocks</li>
<li>Machinery and process equipment with MAC valve banks</li>
<li>Pressure test and calibration systems</li>
<li>Replacement sealing for existing MAC 45 series installations</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>MAC 45 series manifold valve blocks</li>
<li>MAC pneumatic valve systems</li>
<li>Industrial pneumatic manifold assemblies</li>
<li>Standard 1/4″ NPT pneumatic port configurations</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Original MAC M-45008-01 end plates</li>
<li>Equivalent to M4500801</li>
</ul>
<h3>Works With</h3>
<ul>
<li>MAC 45 series pneumatic manifold systems</li>
<li>Pneumatic valve networks and control circuits</li>
<li>Industrial automation integration with manifold-based control</li>
</ul>
