<h2>Overview</h2>

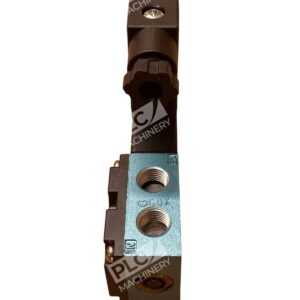

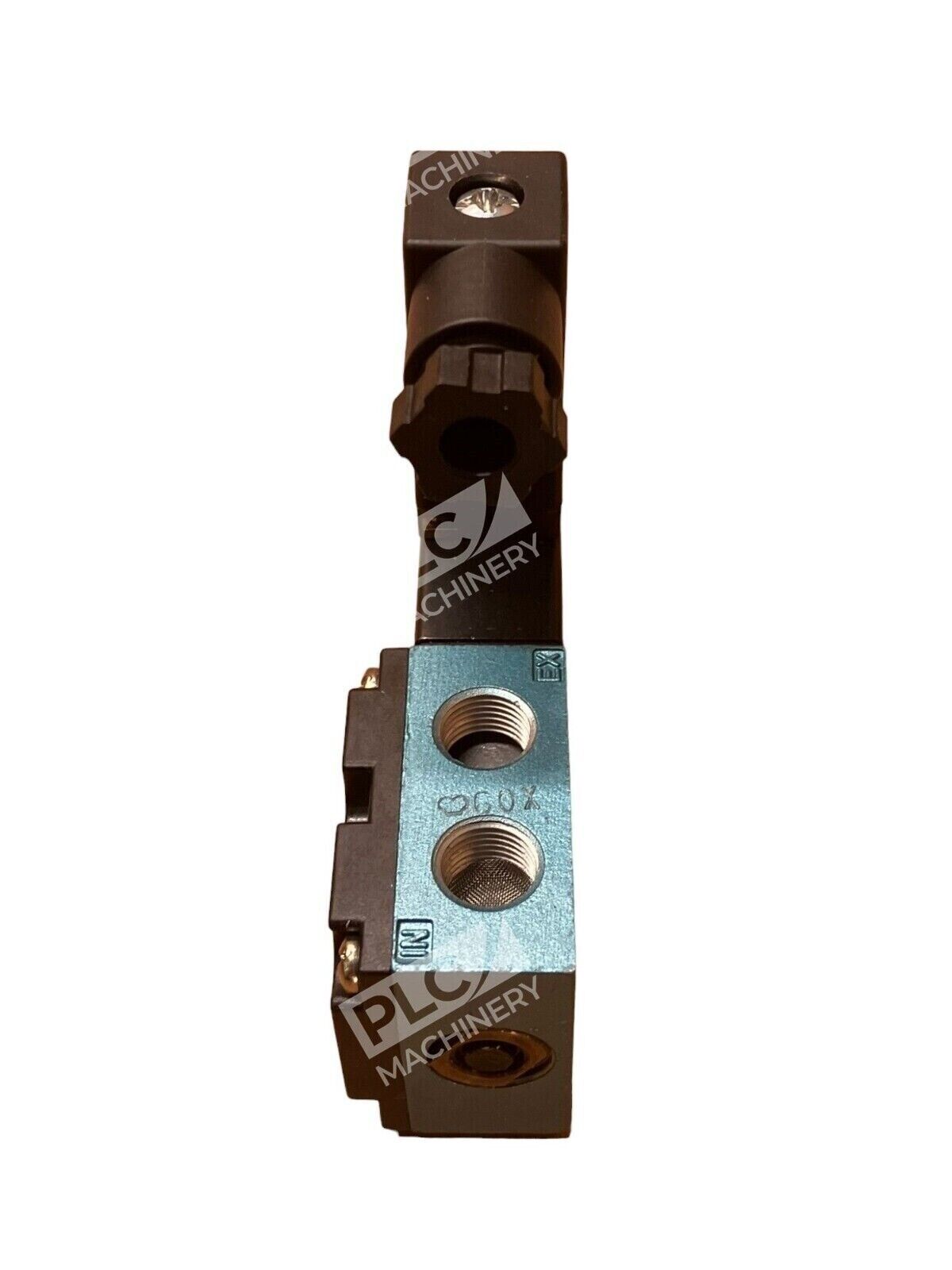

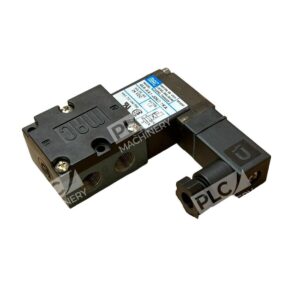

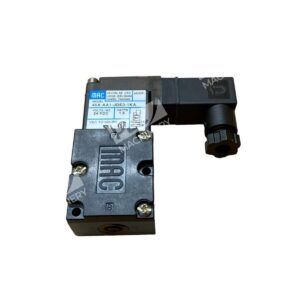

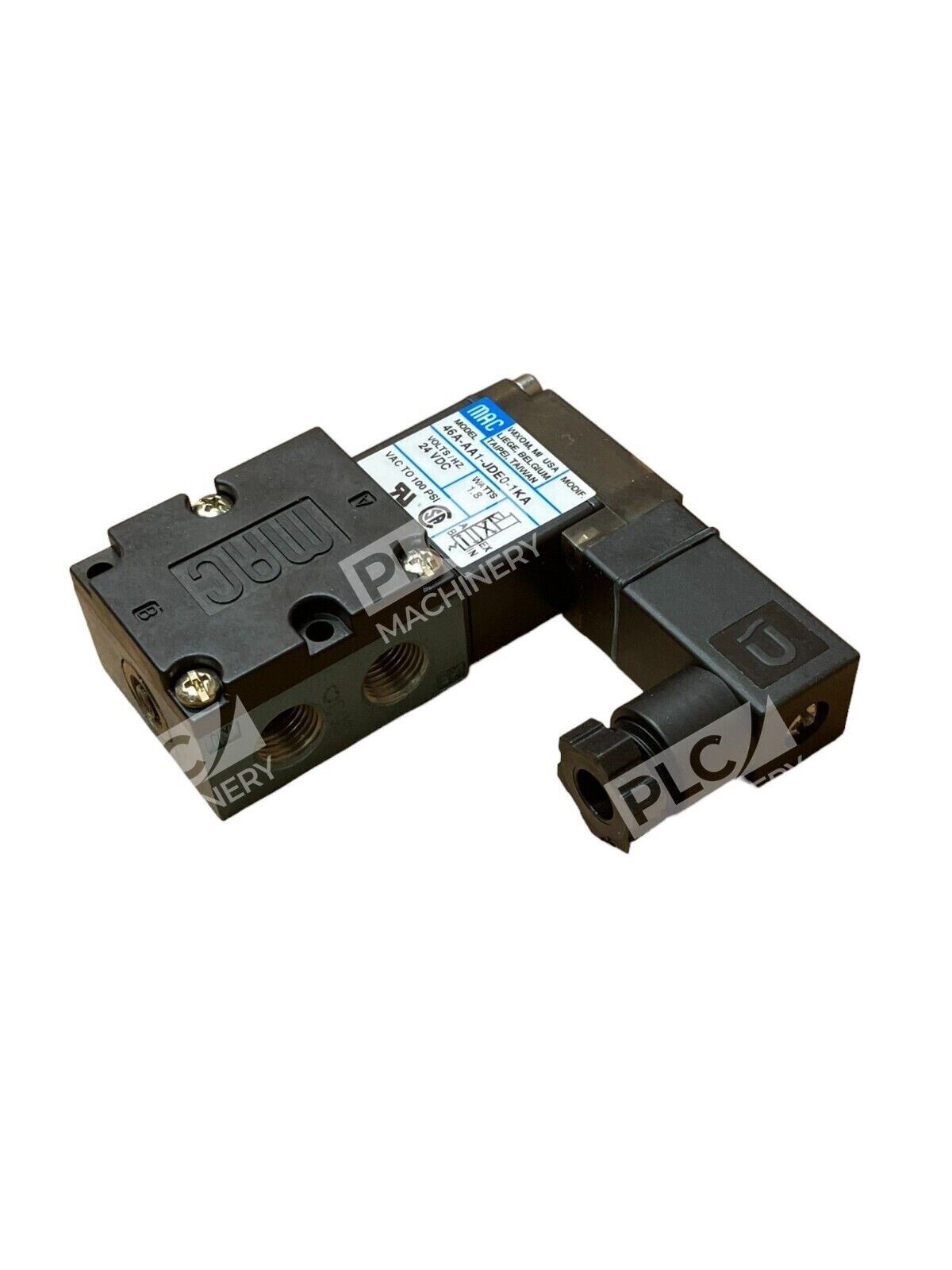

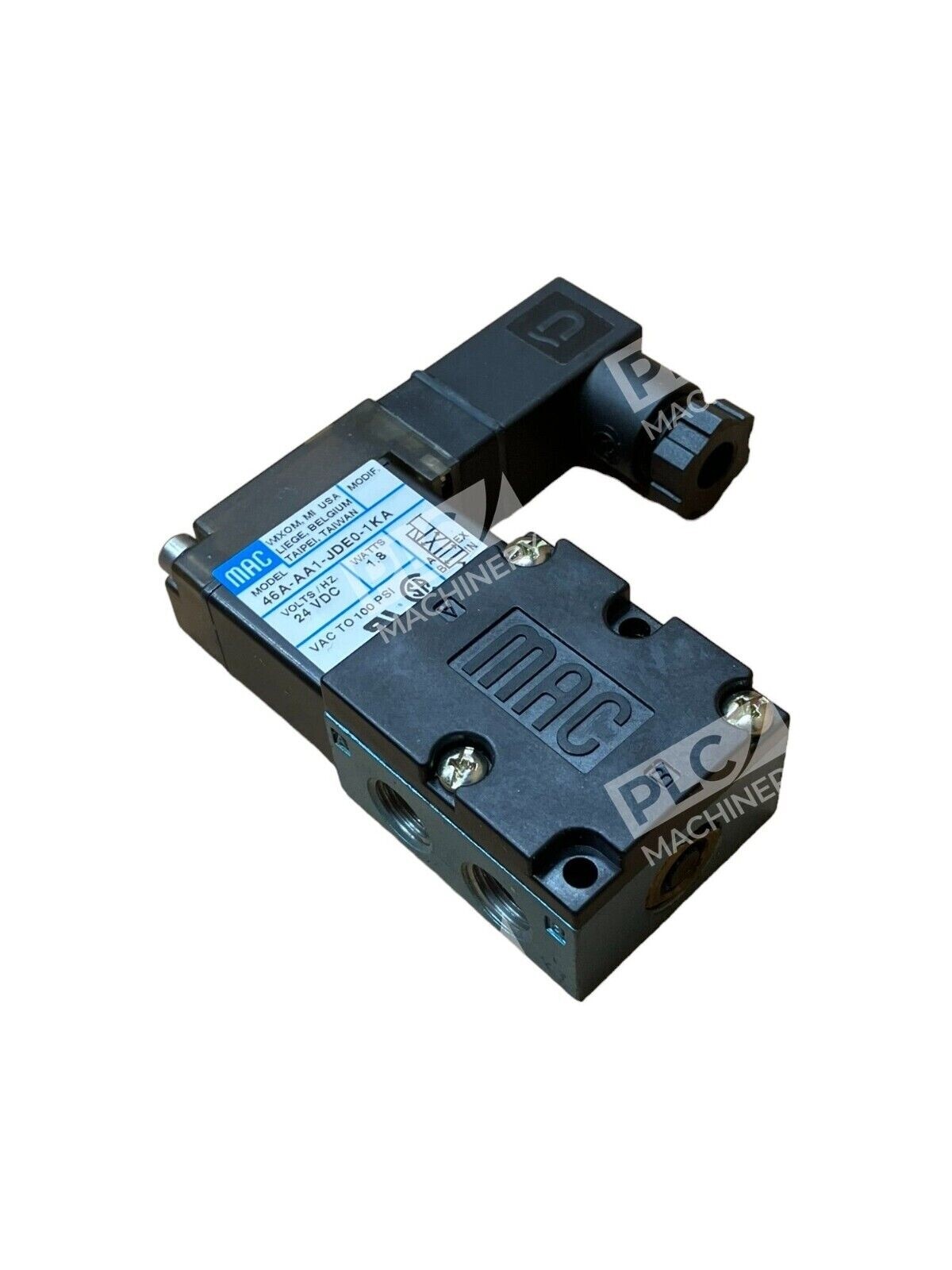

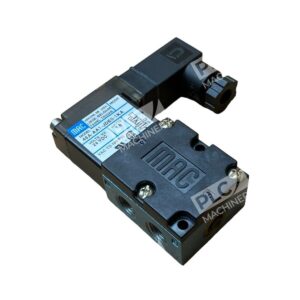

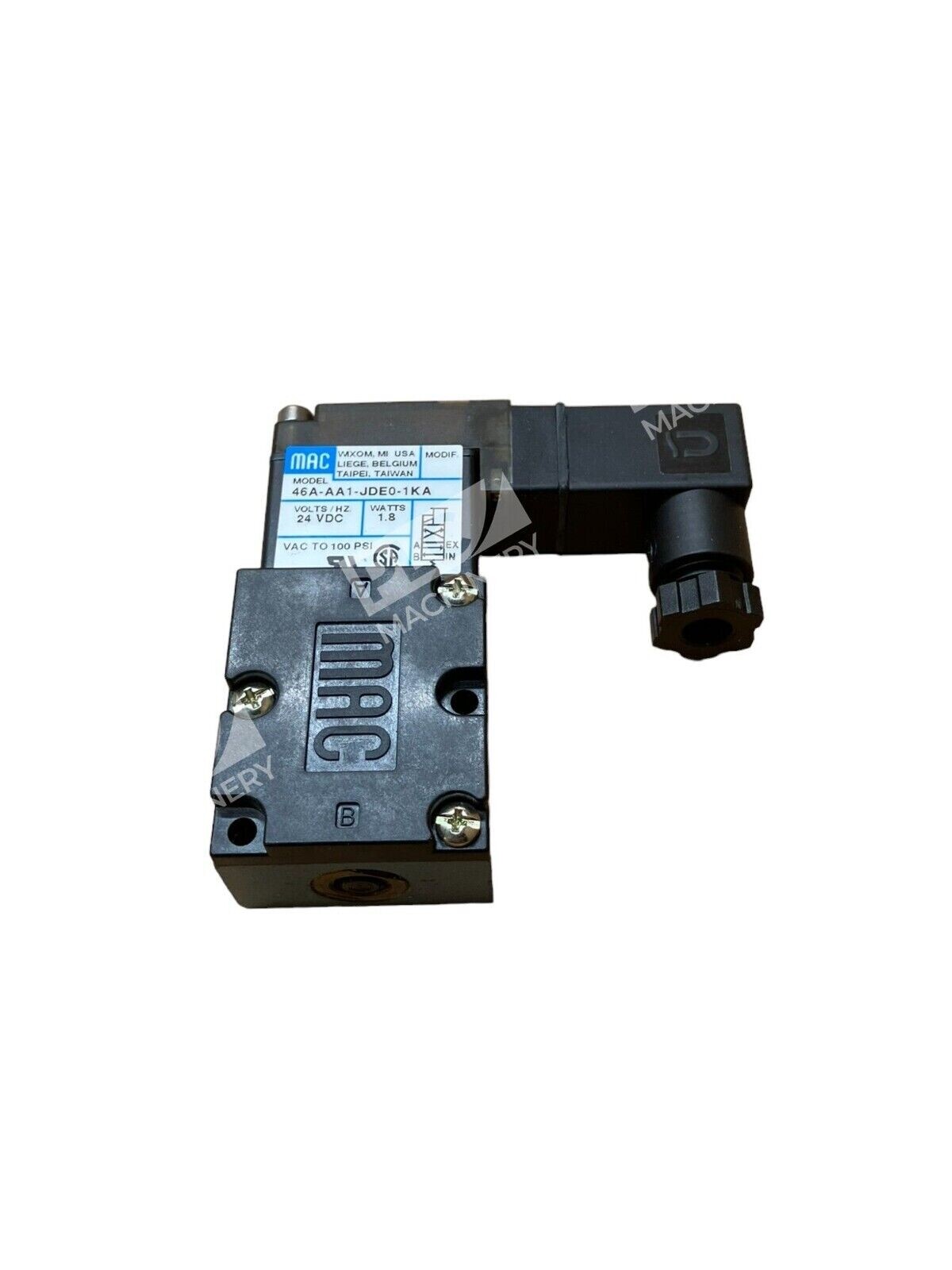

<p>The MAC 46A-AA1-JDE0-1KA is a 4-way, single solenoid pneumatic control valve from MAC Valves’ proven 46 series. Designed for pneumatic actuation and precise flow control, this valve integrates a patented MAC solenoid with a balanced poppet design, delivering consistent performance across manufacturing, assembly automation, and test equipment applications. Built for both lube and non-lube service environments.</p>
<h2>Key Features</h2>
<ul>
<li><strong>4-Way, 2-Position Configuration</strong> — Single solenoid actuator with internal pilot and manual override for flexible operational control</li>
<li><strong>Fast Response Times</strong> — Patented high-force MAC solenoid enables rapid, repeatable switching for demanding cycle rates</li>
<li><strong>Balanced Poppet Design</strong> — Reduces pilot pressure requirement, improves linearity, and extends service life</li>
<li><strong>Compact Form Factor</strong> — Minimal footprint suitable for in-line or sandwich manifold installation</li>
<li><strong>Manual Operator Override</strong> — Non-locking recessed manual button allows emergency or maintenance control</li>
<li><strong>Versatile Pneumatic Ports</strong> — 1/8″ NPTF female threaded connections for standard tubing and manifold integration</li>
</ul>
<h2>Technical Specifications</h2>
<ul>

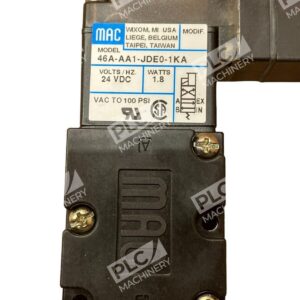

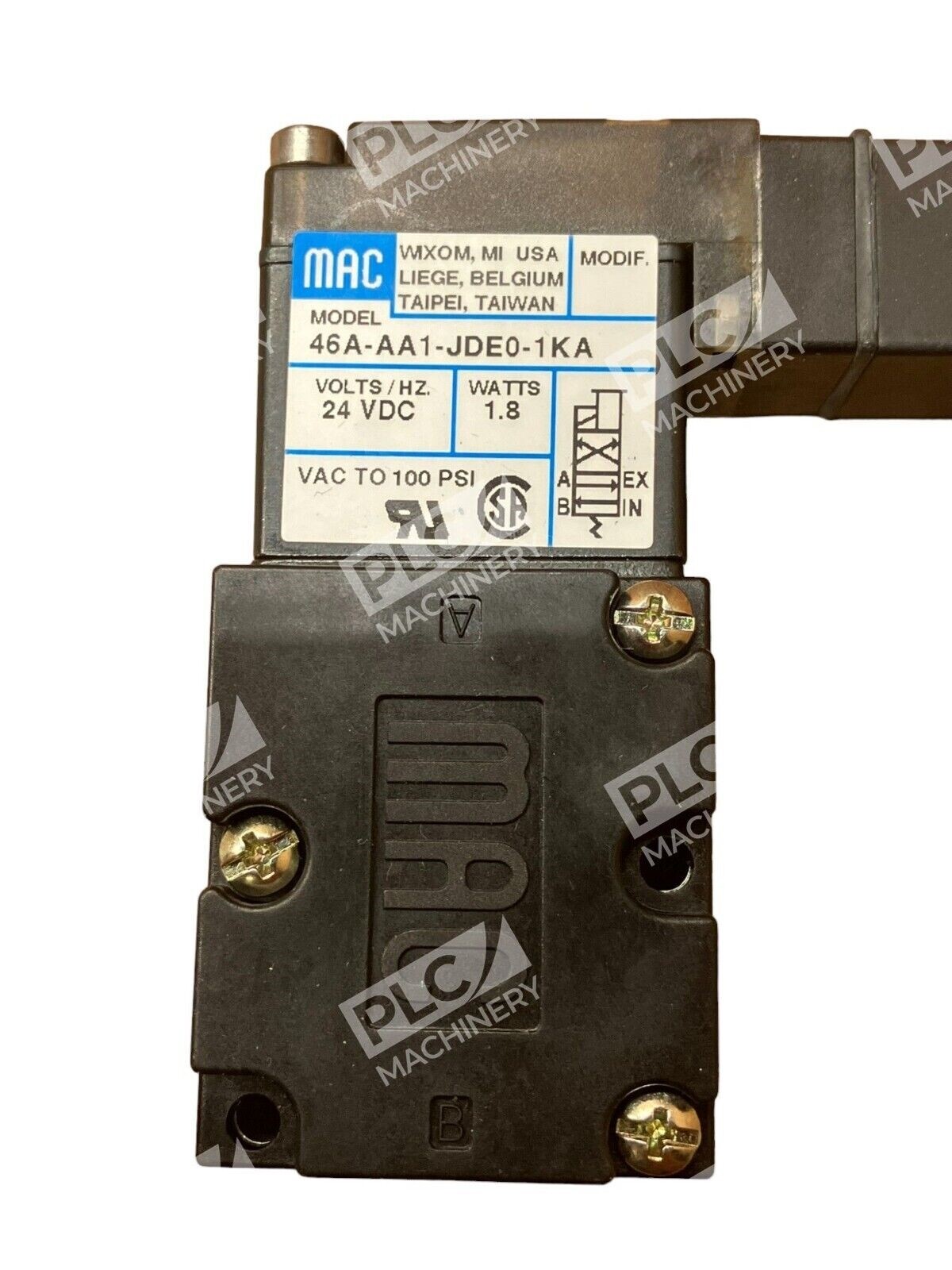

<li><strong>Part Number:</strong> 46A-AA1-JDE0-1KA</li>
<li><strong>Valve Type:</strong> 4-Way, 2-Position Spool Solenoid Valve</li>
<li><strong>Series:</strong> MAC 46 Series</li>
<li><strong>Actuation:</strong> Single Solenoid (Electrical)</li>
<li><strong>Pilot Type:</strong> Internal Pilot Operated</li>
<li><strong>Solenoid Voltage:</strong> Verify with manufacturer specifications</li>
<li><strong>Pressure Range:</strong> Vacuum to 120 PSI (typical 46 series specification)</li>
<li><strong>Port Size:</strong> 1/8″ NPTF Female Threaded</li>
<li><strong>Port Configuration:</strong> 4 Ports, 2 Positions</li>
<li><strong>Connector:</strong> Male Mini DIN 43650 Plug</li>
<li><strong>Dimensions:</strong> Approximately 45 mm H × 27 mm W × 71 mm D (typical 46 series)</li>
<li><strong>Manual Override:</strong> Non-Locking Recessed Button</li>
<li><strong>Operation:</strong> Monostable (Spring Reset)</li>
<li><strong>Service:</strong> Lube and Non-Lube Compatible</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Pneumatic cylinder and actuator control</li>
<li>Assembly line automation and robotic motion control</li>
<li>Machine tool and press automation</li>
<li>Test equipment and production fixtures</li>
<li>Vacuum and pressure switching applications</li>
<li>OEM equipment replacement and upgrades</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Standard industrial pneumatic systems (pilot-operated control air)</li>
<li>Pneumatic manifold blocks with sandwich or subplate mounting</li>
<li>24 VDC control circuits (verify solenoid voltage for your unit)</li>
<li>Automated machine and assembly line systems</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Verify compatibility with your system integrator before ordering.</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Standard industrial PLC control systems via solenoid coil wiring</li>
<li>Pneumatic tubing (NPT female threaded ports)</li>
<li>DIN 43650 connector-compatible control harnesses</li>
<li>MAC manifold accessory kits and flow control accessories</li>
</ul>
