Overview

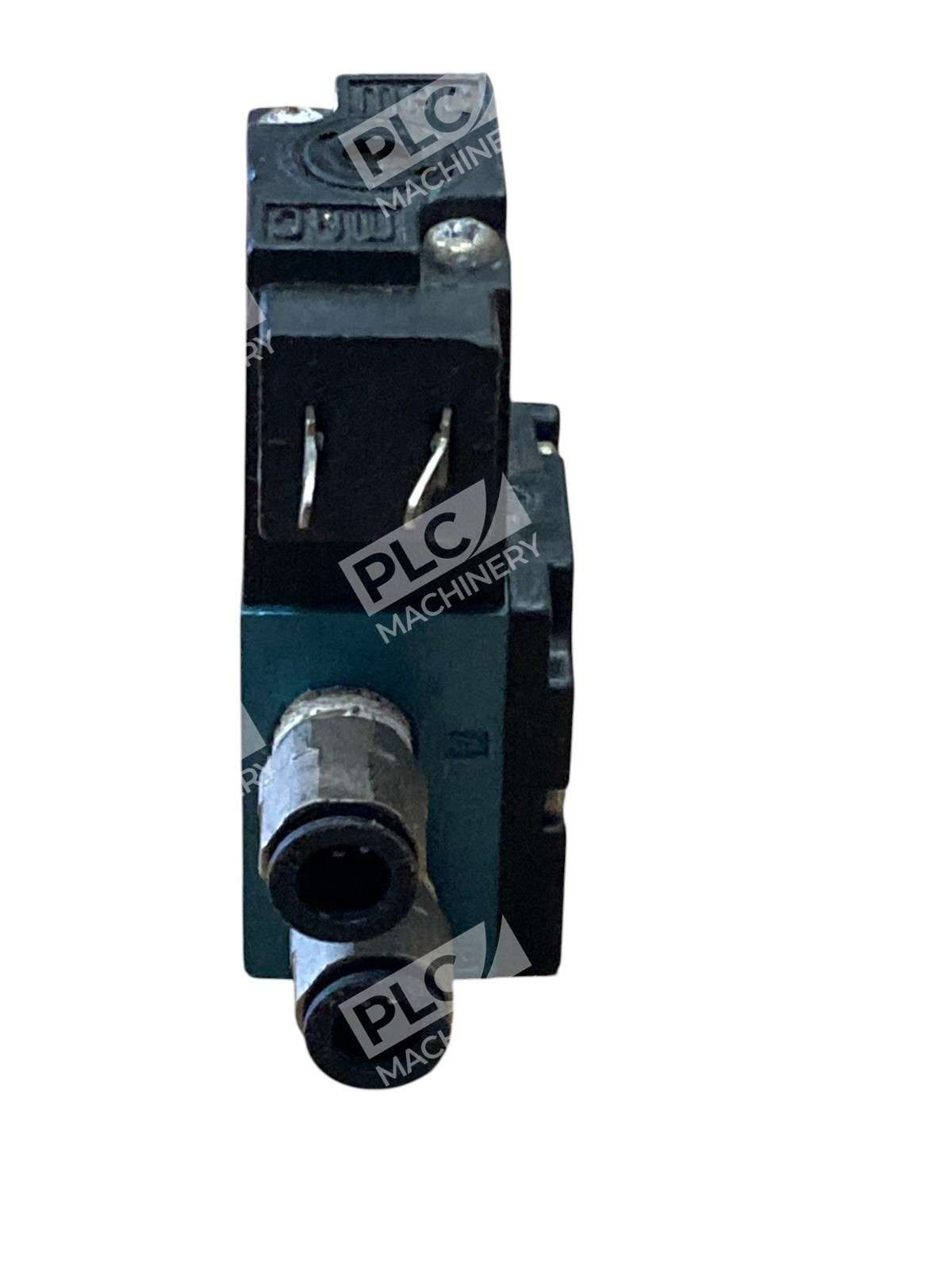

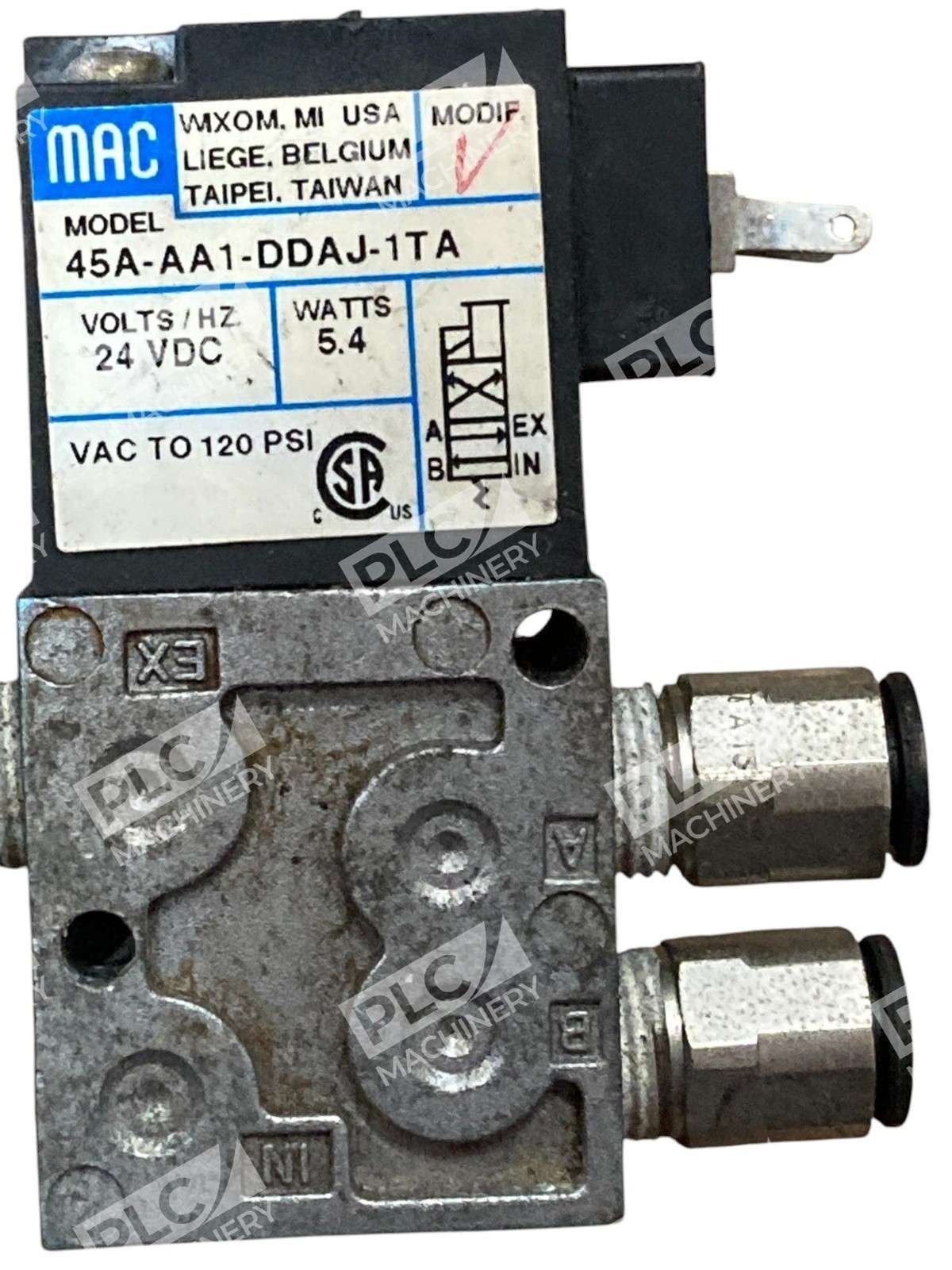

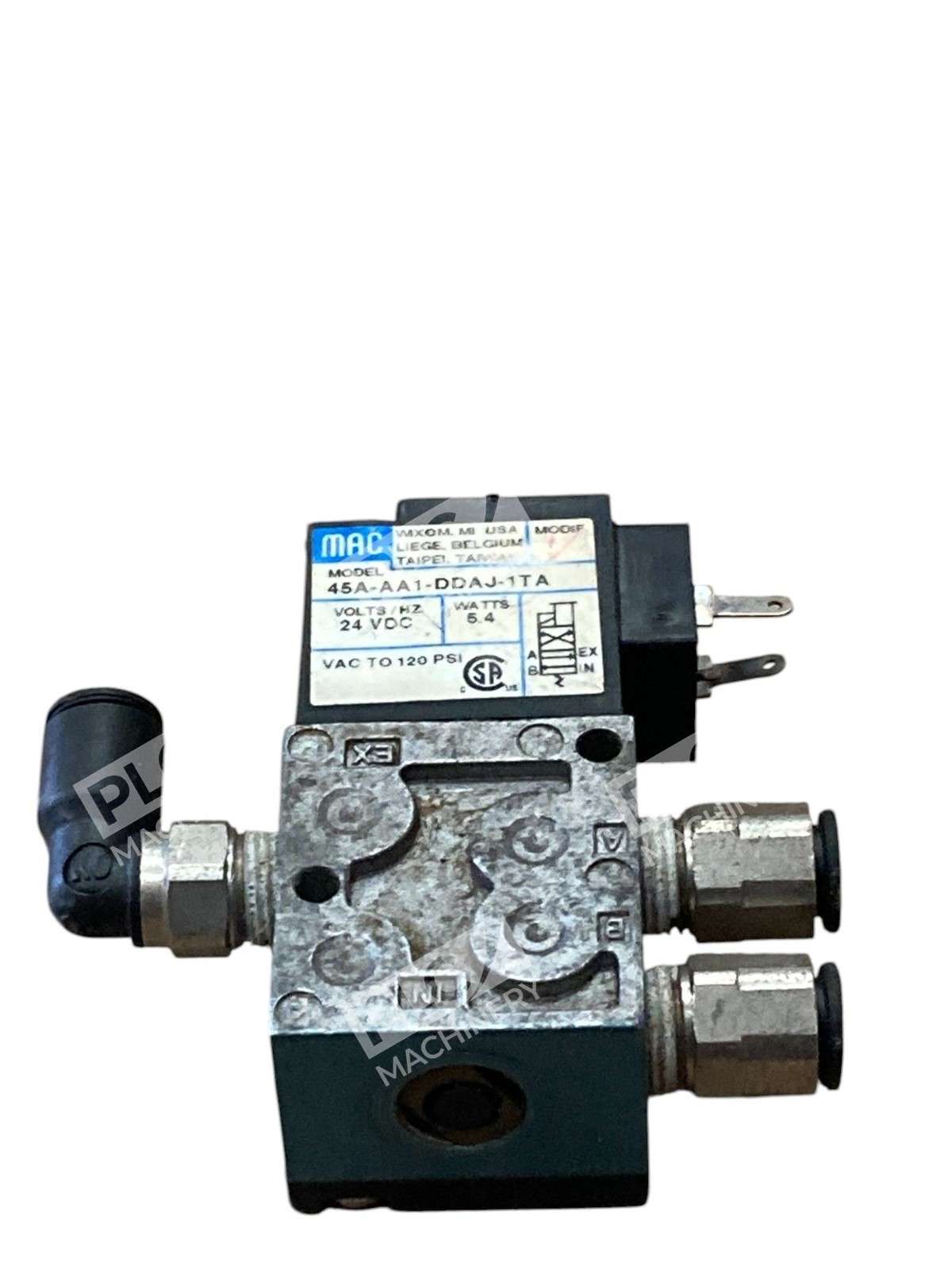

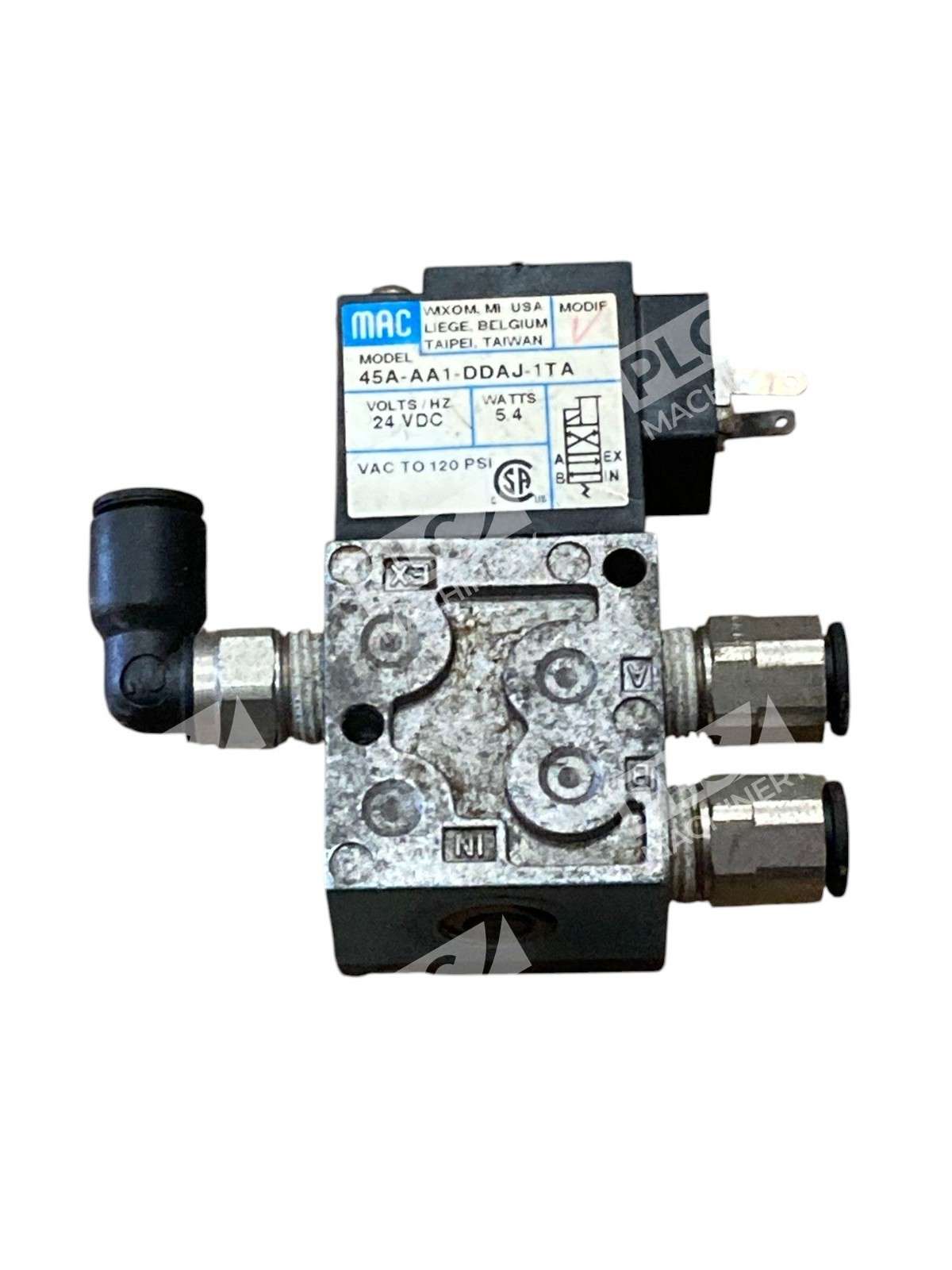

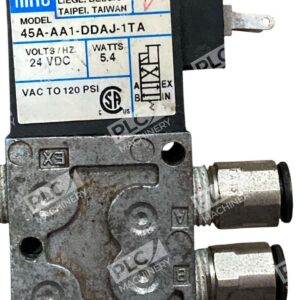

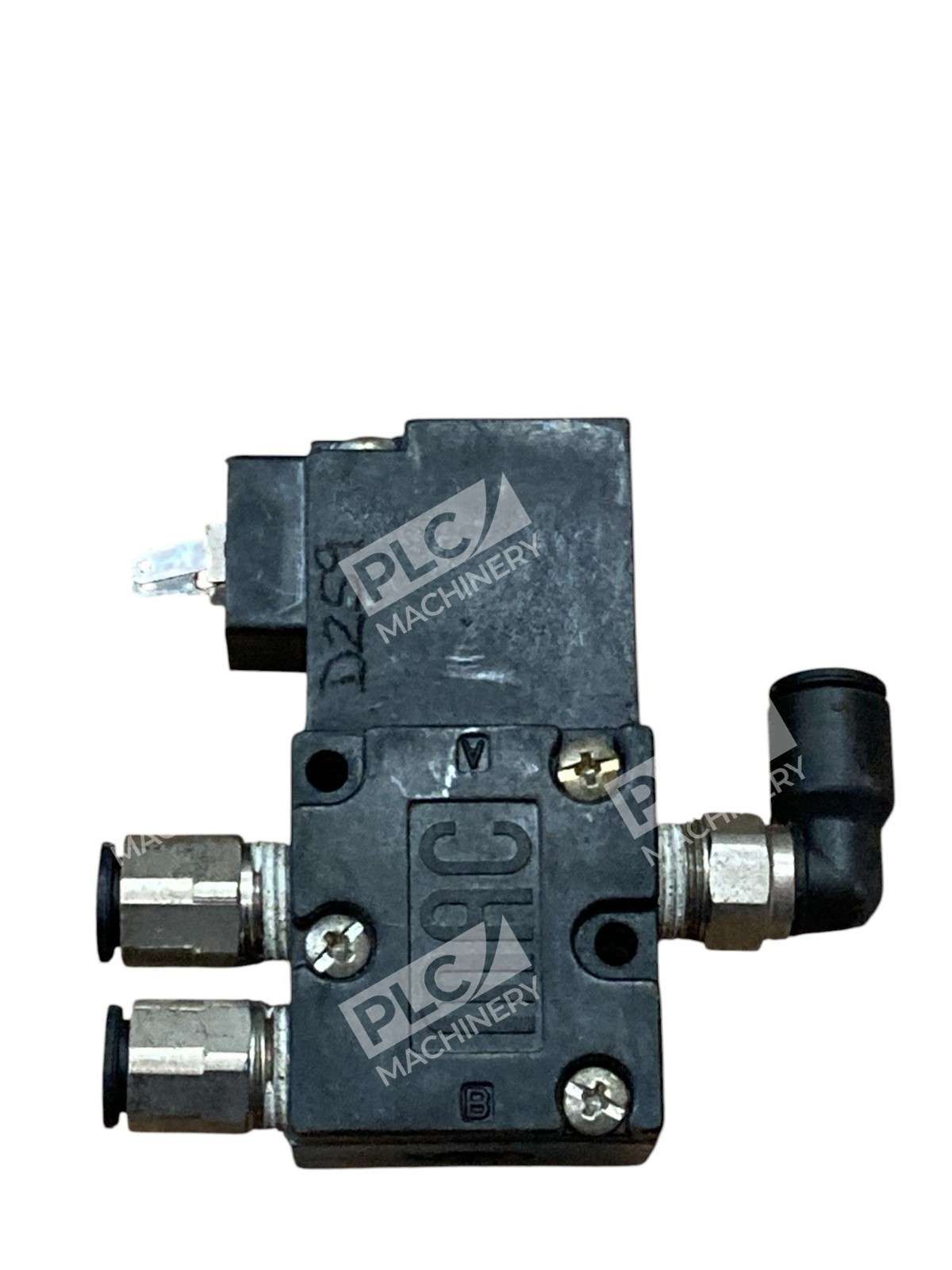

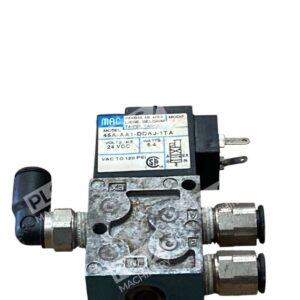

The MAC 45A-AA1-DDAJ-1TA is a direct solenoid-operated 4-way poppet valve from MAC Valves’ proven 45 Series. This compact, electronically actuated control valve operates at 24VDC with a 5.4W power consumption. The unit delivers precise pneumatic and vacuum control in a single, integrated package suitable for industrial automation, machine control, and motion applications requiring rapid response and long service life.
Key Features
- Direct Solenoid Operation: Patented short stroke solenoid with balanced poppet and conical seats for high shifting forces and fast response
- 4-Way, 4-Port Configuration: Individual in-line installation with 4 × 1/8″ NPTF threaded female pneumatic ports (A, B, EXH, IN)
- Monostable Operation: Steel mechanical spring reset with non-locking recessed manual operator for fail-safe control
- High Flow & Precision: Bonded balanced poppets for high flow, precise repeatability, and consistent operation
- Extended Cycle Life: Unique poppet cushions provide extremely long service life
- Flexible Piping: Balanced poppet design permits operation as 4-way, 3-way, or 2-way, normally closed or normally open, or for vacuum, diverter, or selector applications
Technical Specifications
Electrical & Control:
- Control Voltage: 24VDC
- Power Consumption: 5.4W
- Solenoid Type: Direct, single-coil
- Manual Override: Non-locking recessed operator
Pneumatic Performance:
- Valve Type: 4-way, 4-port direct solenoid poppet
- Port Size: 1/8″ NPTF (female threaded)
- Flow Coefficient (Cv): 0.15
- Operating Pressure Range: Vacuum to +120 psi
- Operation: Monostable (spring return)
Physical:
- Dimensions: H 63mm × W 25mm × D 62mm
- Connector: Mini plug-in DIN 43650 (coil encapsulated, Class A)
- Material: Ductile iron body; aluminum-alloy end plates
- Weight: 0.47 lbs (approximately)
Typical Applications
The MAC 45A-AA1-DDAJ-1TA is widely used in:
- Automated machinery and assembly line control
- Air cylinder actuation and motion control
- Pneumatic tool operation and air distribution
- Vacuum pick-and-place systems
- Solenoid valve banks and manifold systems
- OEM equipment requiring compact, high-cycle solenoid control
Compatibility & Replacements
Compatible With
- Compressed air and inert gases (nitrogen, argon)
- Vacuum systems (rated vacuum to +120 psi)
- 24VDC control circuit power supplies
- Manifold bases and sub-bases designed for 45 Series mounting
- Standard pneumatic tubing (1/8″ NPT)
- Industrial PLC and automation control systems
Replaces / Drop-In Replacement For
- 45AAA1DDAJ1KA (equivalent mini plug-in DIN 43650 variant)
- 45AAA1DDAJ1JB (equivalent rectangular DIN 43650 variant)
- Other 45A-AA1-DDAJ series valves with different electrical connectors
Works With
- 24VDC industrial power supplies and transformers
- Relay logic and PLC discrete outputs
- Pneumatic tubing fittings (1/8″ NPT)
- Manifold circuit bars and cavity blocks (45 Series standard)
- MAC Valves optional flow controls, pressure regulators, and isolation valves
- Standard manual override hand levers and linkages
