Overview

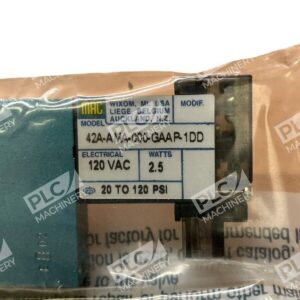

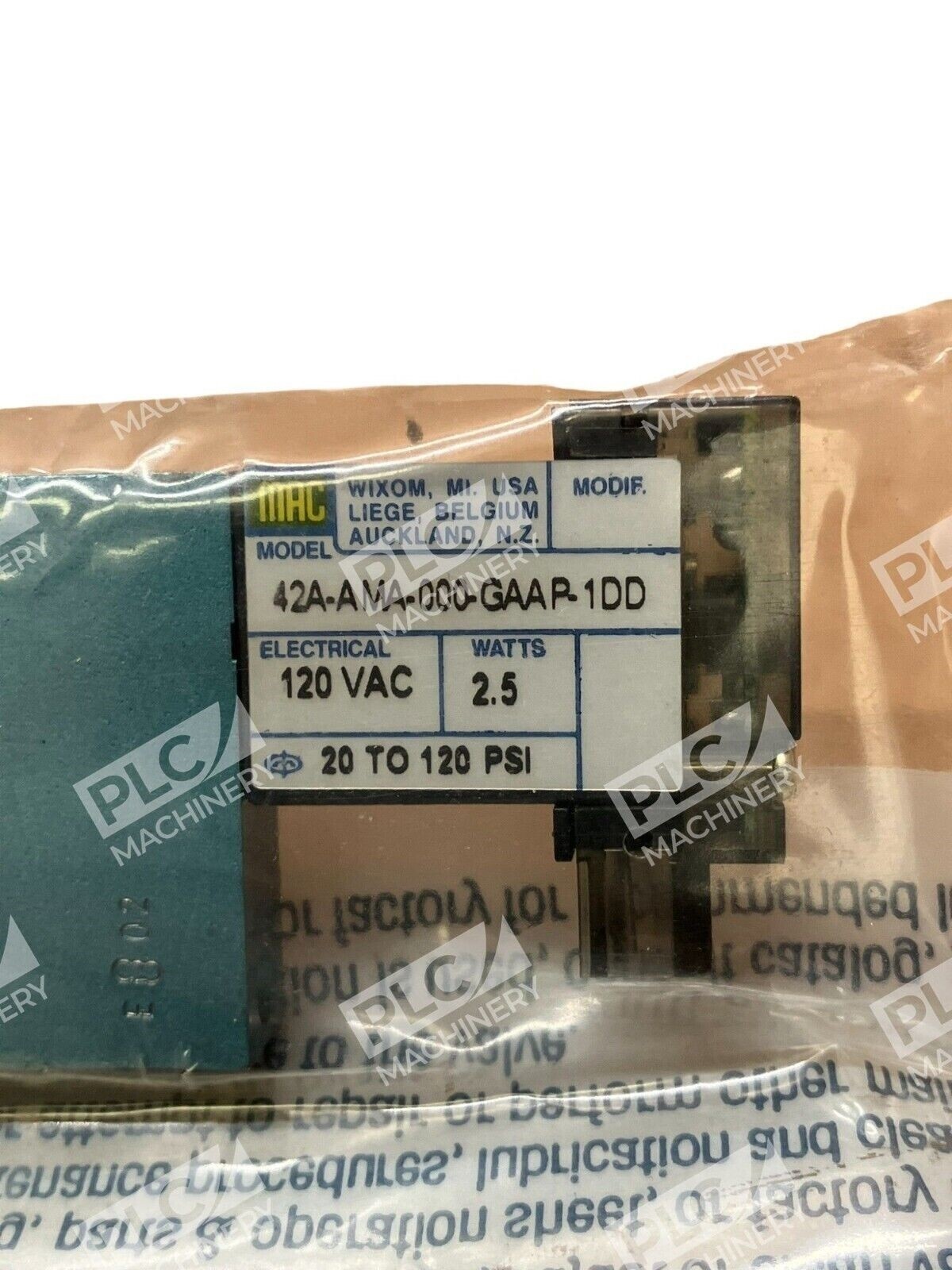

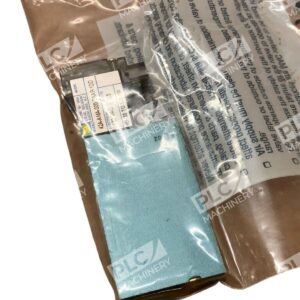

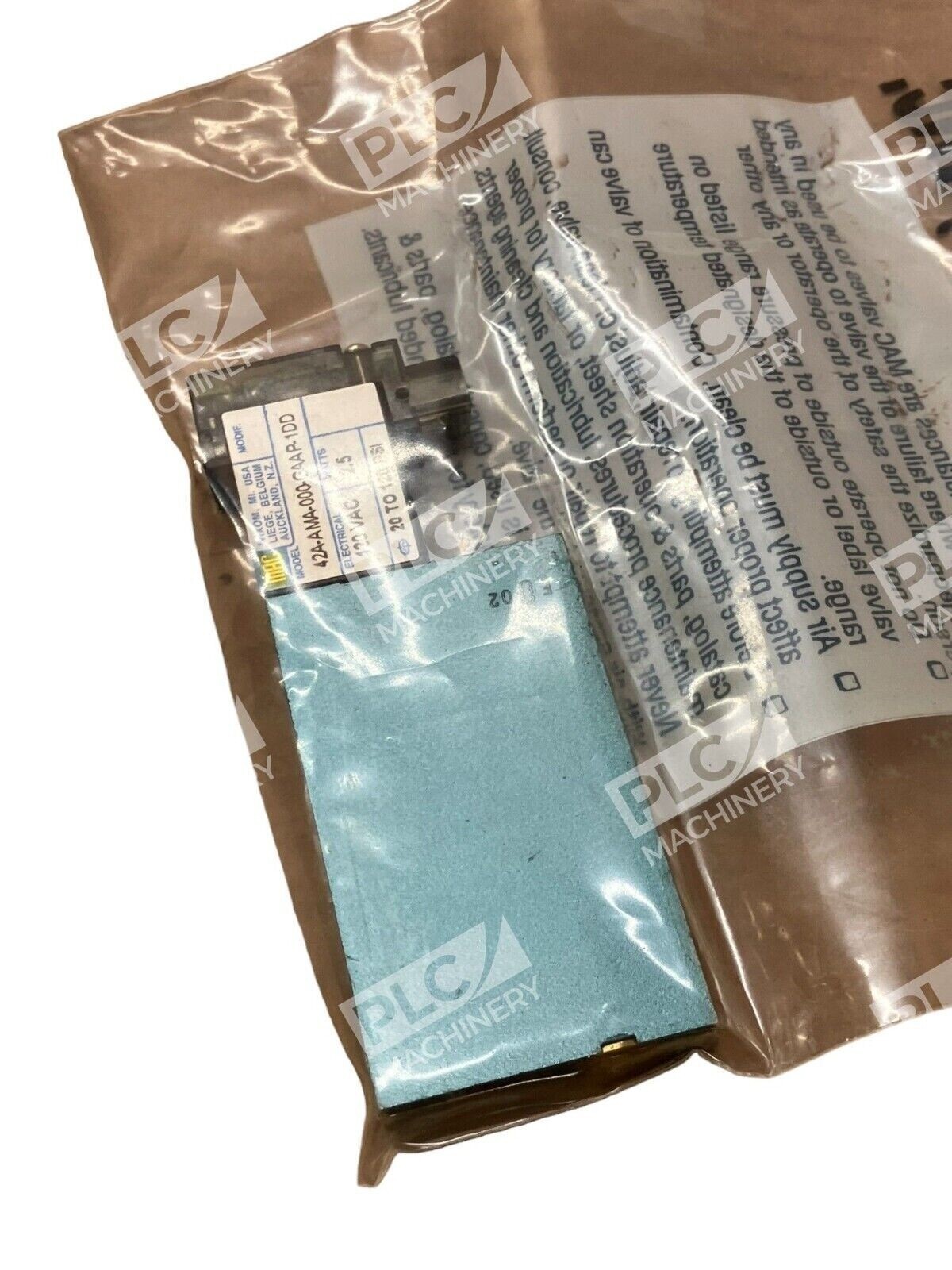

MAC 42A-AMA-000-GAAP-1DD Solenoid Valve
The MAC 42A-AMA-000-GAAP-1DD is a 4-way, 2-position solenoid valve from MAC Valves Inc., engineered for demanding pneumatic control applications. This pilot-operated spool valve features a compact 10mm body with integral 4-way pilot design, delivering consistent high flow and repeatable response times across varying inlet pressures. Rated 120VAC and consuming only 2.5W, this valve is suitable for process automation, material handling, packaging, and industrial machinery control.
Key Features
- Pilot-Operated Spool Design: Low minimum operating pressure with no pistons, reducing resistance and wear.
- Integral 4-Way Pilot: Balanced pilot design maintains consistent shifting forces regardless of pressure fluctuations.
- Muffled Pilot Exhaust: Integrated muffling reduces system noise during operation.
- Non-Locking Manual Override: Recessed manual operator enables field actuation and emergency manual control.
- High Flow Capacity: 10mm spool body provides excellent flow rates for medium-duty applications.
- Low Power Consumption: 120VAC, 2.5W coil rated for energy-efficient operation.
Technical Specifications
| Coil Voltage | 120 VAC |
| Power Consumption | 2.5 W |
| Spool Size | 10 mm |
| Configuration | 4-Way, 2-Position, Single Solenoid |
| Pilot Type | Internal Pilot (Integral 4-Way) |
| Exhaust | Muffled Pilot Exhaust |
| Manual Operator | Non-Locking Recessed |
| Connector Type | Plug-In |
| Pressure Range | 20–120 PSI |
| Port Configuration | Valve Only (No Manifold Base) |
| Series | MAC 42 Series |
Typical Applications
- Industrial machine tool control and automation
- Packaging and labeling equipment
- Material handling systems (conveyors, hoists, positioning)
- Process control and pneumatic logic circuits
- Fixture and clamping systems
- Factory and plant automation
Compatibility & Replacements
Compatible With
- Standard 120VAC pneumatic control systems
- Industrial PLC and logic controller outputs
- Pneumatic manifold systems with integral pilot design
- ISO 4401 (CETOP) cavity compatibility
- Compressed air and inert gas applications
Replaces / Drop-In Replacement For
- MAC 42A-AMA-000-GAAP-1DC (alternative manual operator version)
- Earlier MAC 42 Series 4-way solenoid configurations with 120VAC rating
Works With
- AC voltage supplies (120V, 50/60 Hz)
- Standard pneumatic tubing and quick-disconnect fittings
- Industrial control relay logic and automation platforms
- Compressed air systems rated 20–120 PSI
