Overview

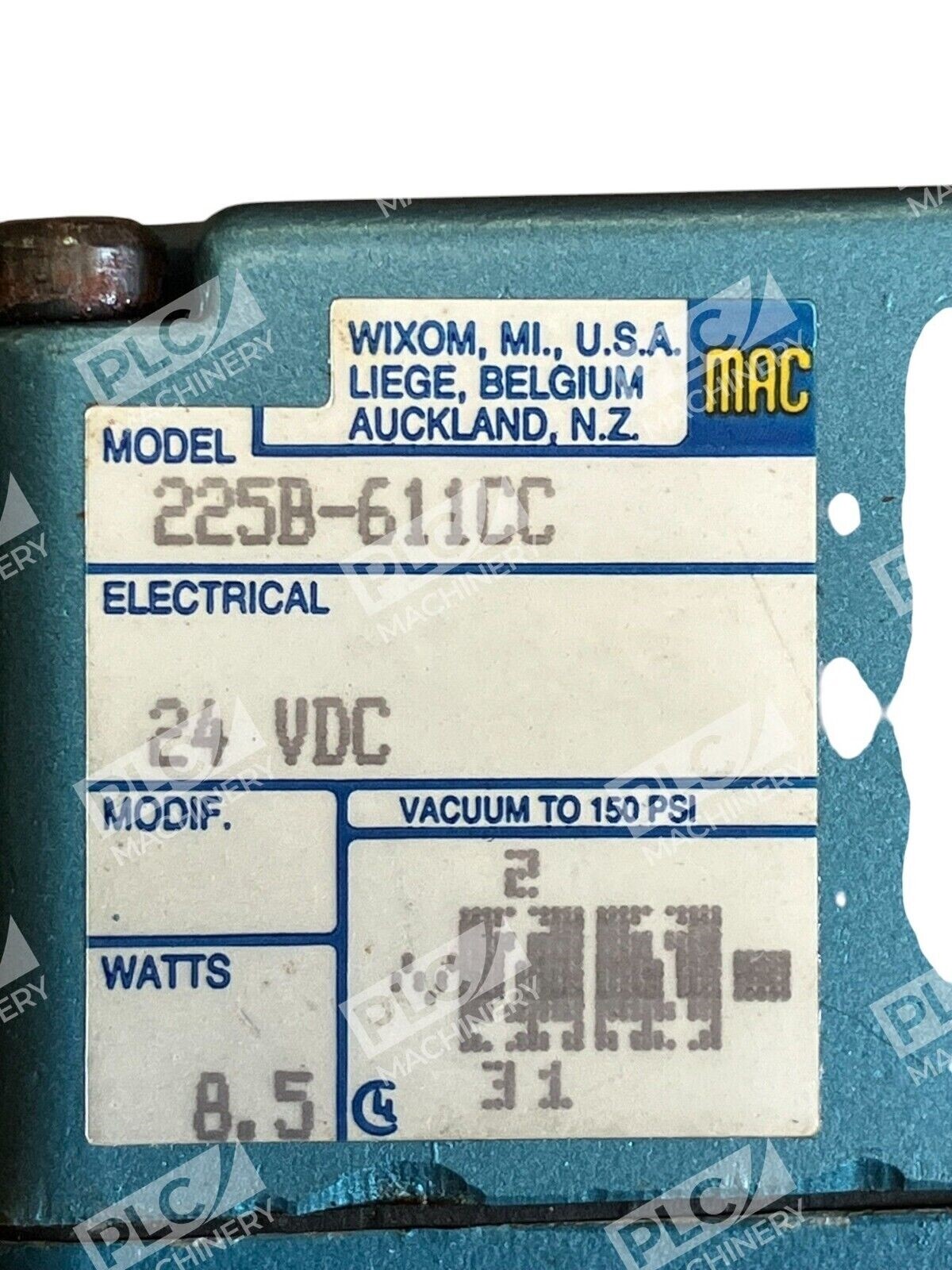

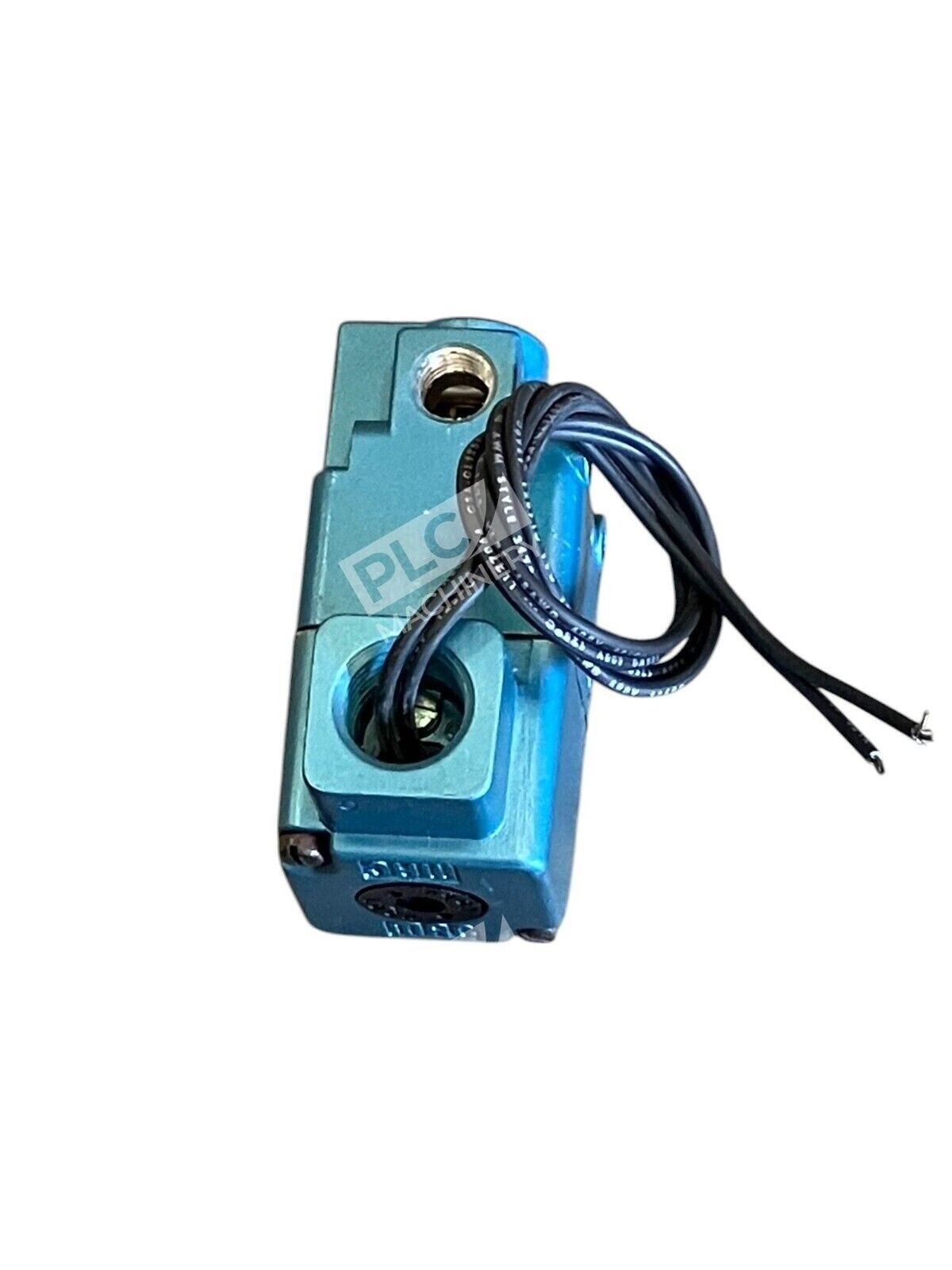

The MAC 225B-611CC solenoid valve is a 3-way, 1/4 inch NPTF pneumatic valve with 24 VDC (8.5 W) coil rating and non-locking recessed manual operator. This model is part of MAC’s 200 Series lineup, engineered for rapid response and extended cycle life in compressed air systems. Ideal for OEMs and maintenance technicians requiring a proven drop-in replacement or primary component for pneumatic control circuits.
Key Features
- 3-Way Valve Design — Provides pilot or direct solenoid control for standard pneumatic applications with flexibility across supply, work port, and exhaust configurations
- Square Electrical Connector — Standard interface for quick electrical integration without custom wiring
- Non-Locking Manual Operator — Allows manual valve actuation for emergency override or testing without electrical power
- Rapid Response & Long Service Life — MAC’s patented MACSOLENOID coil design delivers fast actuation with non-burn-out capability and minimal maintenance downtime
- Port Thread: 1/4 NPTF — Universal porting for standard pneumatic manifold and direct-line installations
- Compact Form Factor — Inline configuration minimizes installation footprint in space-constrained control panels
Technical Specifications
- Series: 200 (3-Way)
- Voltage: 24 VDC
- Coil Power Rating: 8.5 W
- Port Type: 1/4 Inch NPTF (NPT Female)
- Valve Function: 3-Way, universal (reversible)
- Manual Operator: Non-Locking Recessed
- Electrical Connection: Square Connector
- Weight: Approximately 1.3–1.35 lbs
- Response Time: Rapid (typical for 200 Series)
- Service Media: Compressed air (lube or non-lube compatible)
Typical Applications
- Machine tool pneumatic control circuits
- Automated packaging and assembly systems
- Pneumatic press and actuator control
- Air distribution manifold arrays in industrial automation
- OEM equipment valve arrays requiring space efficiency
- System retrofit and component replacement in existing installations
Compatibility & Replacements
Compatible With
- Compressed air systems operating 80–150 PSI (typical industrial)
- 24 VDC control circuits with standard industrial PLC/relay control
- Manifold-mounted valve arrays with NPTF ported bases
- Inline pneumatic tubing and hose connections (1/4″ NPTF fittings)
- Square connector electrical control systems
Replaces / Drop-In Replacement For
- MAC 225B-611BA (same series, alternative connector variant)
- MAC 225B-611JA (same series, alternative manual operator configuration)
- Other MAC 200 Series 3-way valves with matching NPTF port and coil specifications
Works With
- Industrial control software and PLCs with 24 VDC logic outputs
- Relay-based pneumatic control circuits
- Manifold-stackable pneumatic systems
- Compressed air networks with standard pressure regulators and filtration
- LED indicator lights (optional on alternative models like 225B-611JC)
