Overview

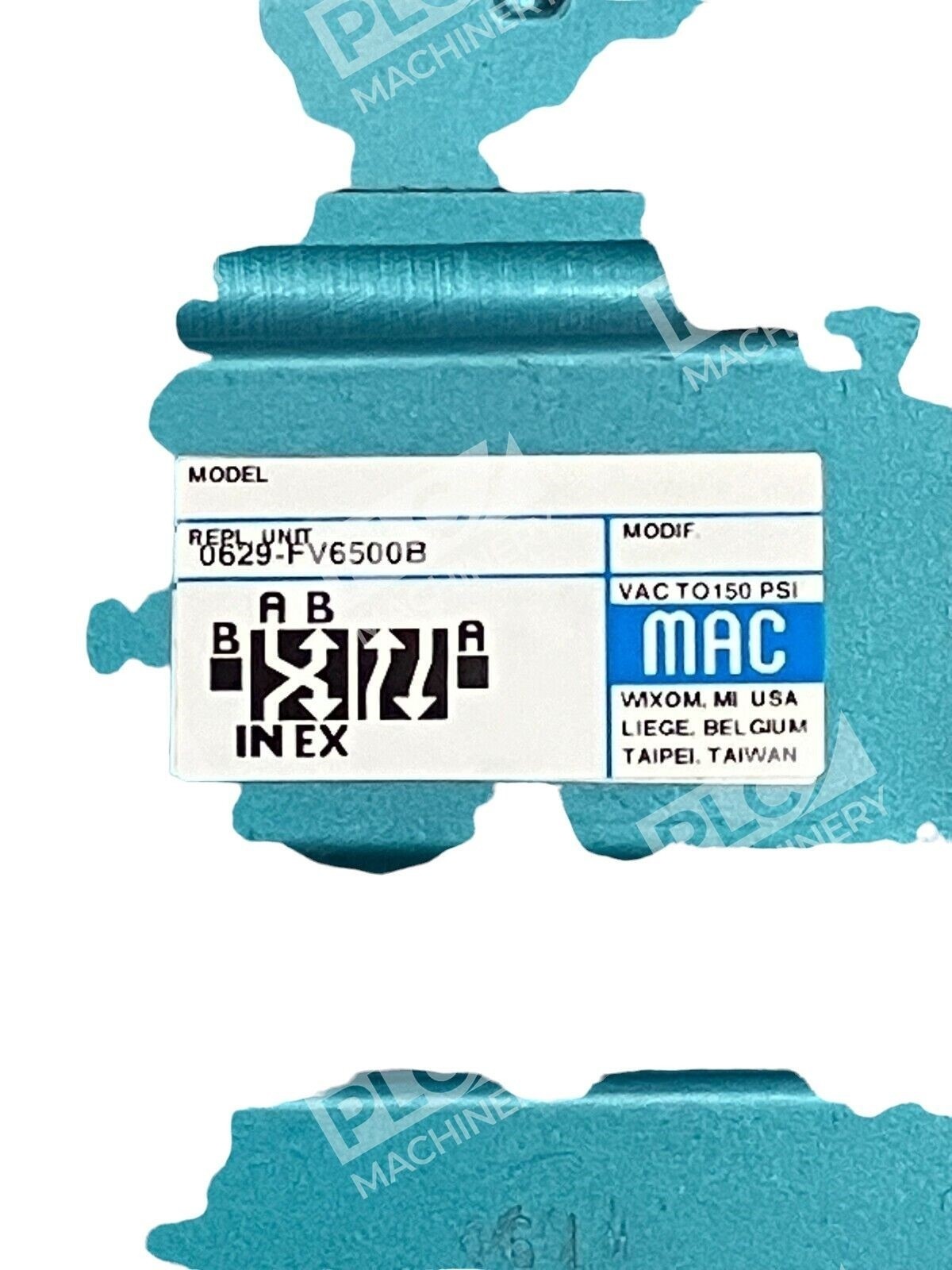

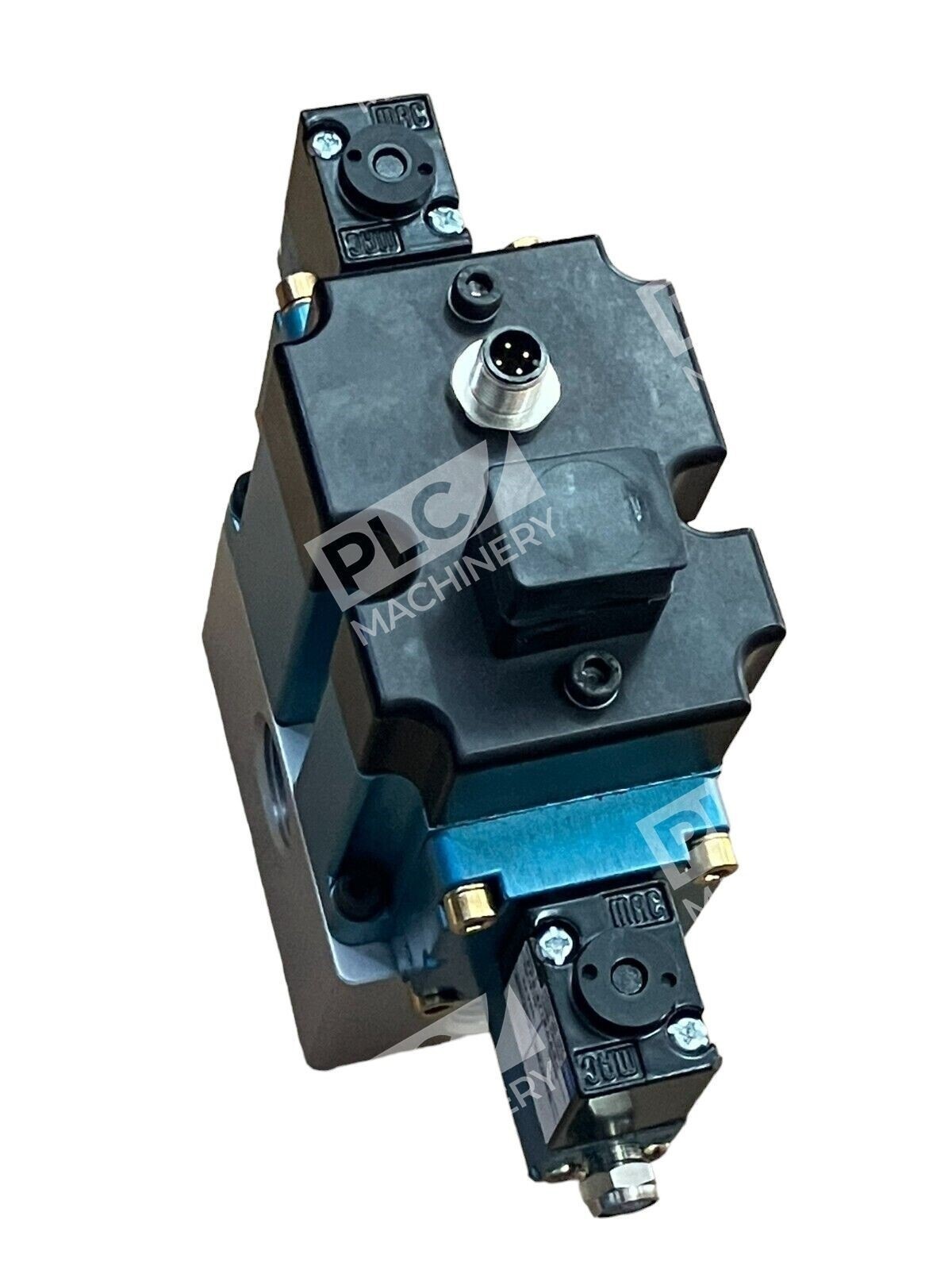

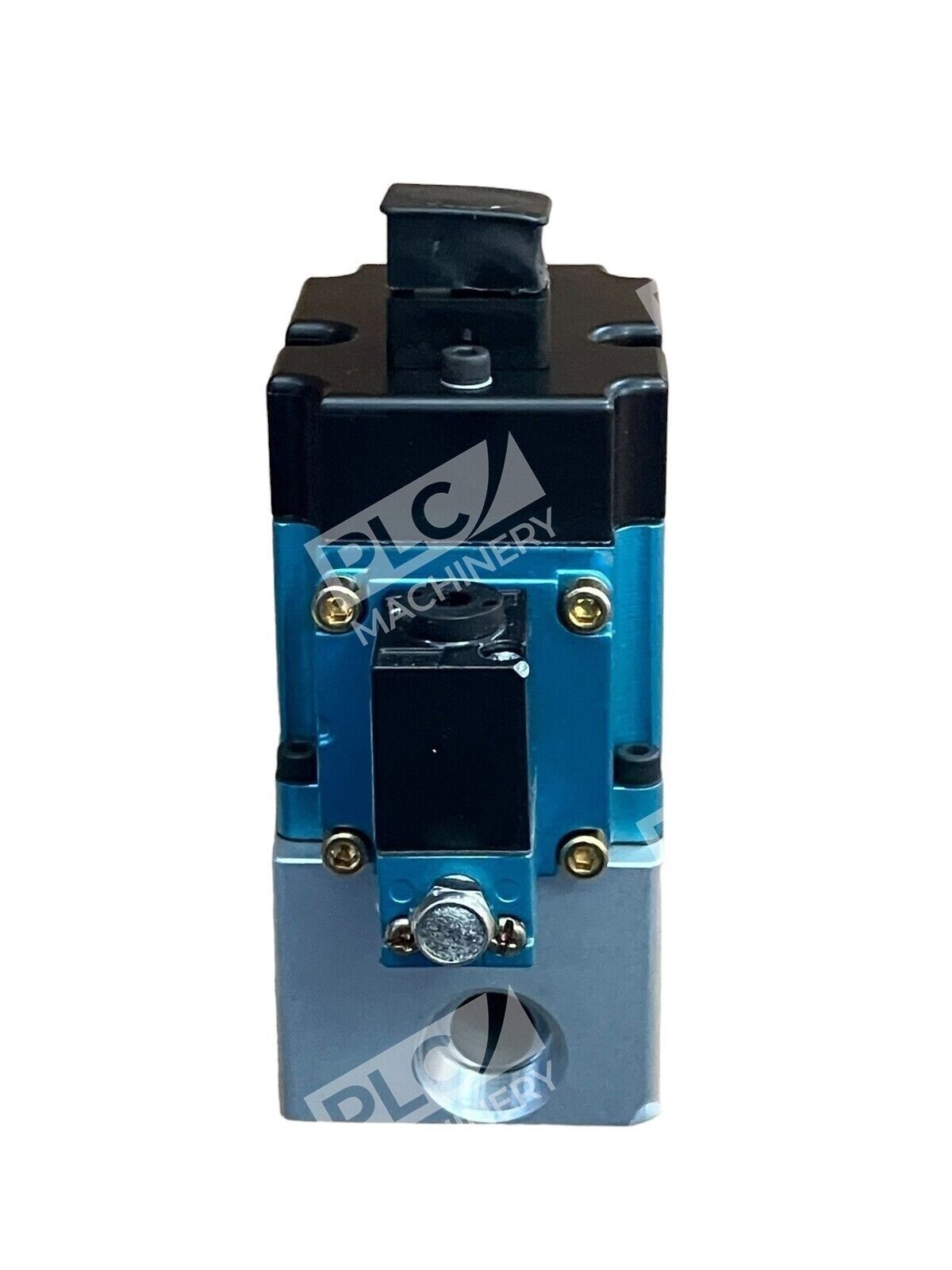

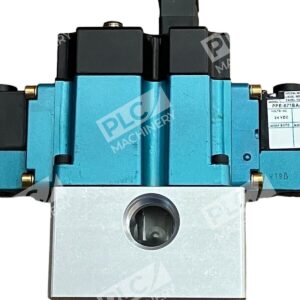

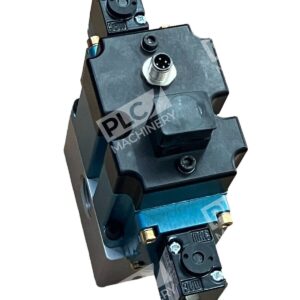

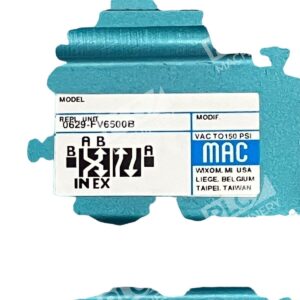

The MAC 0629-FV6500B solenoid valve is a 4-way, 2-position double operator valve from MAC’s proven 6500 Series. Featuring a solenoid-piloted balanced spool design, this 24VDC valve combines responsive shifting with durable construction for dependable operation across diverse pneumatic and industrial applications. The integrated air/spring return mechanism ensures consistent actuation regardless of inlet pressure variations.
Key Features
- Solenoid-piloted 4/2 spool valve design with balanced poppet

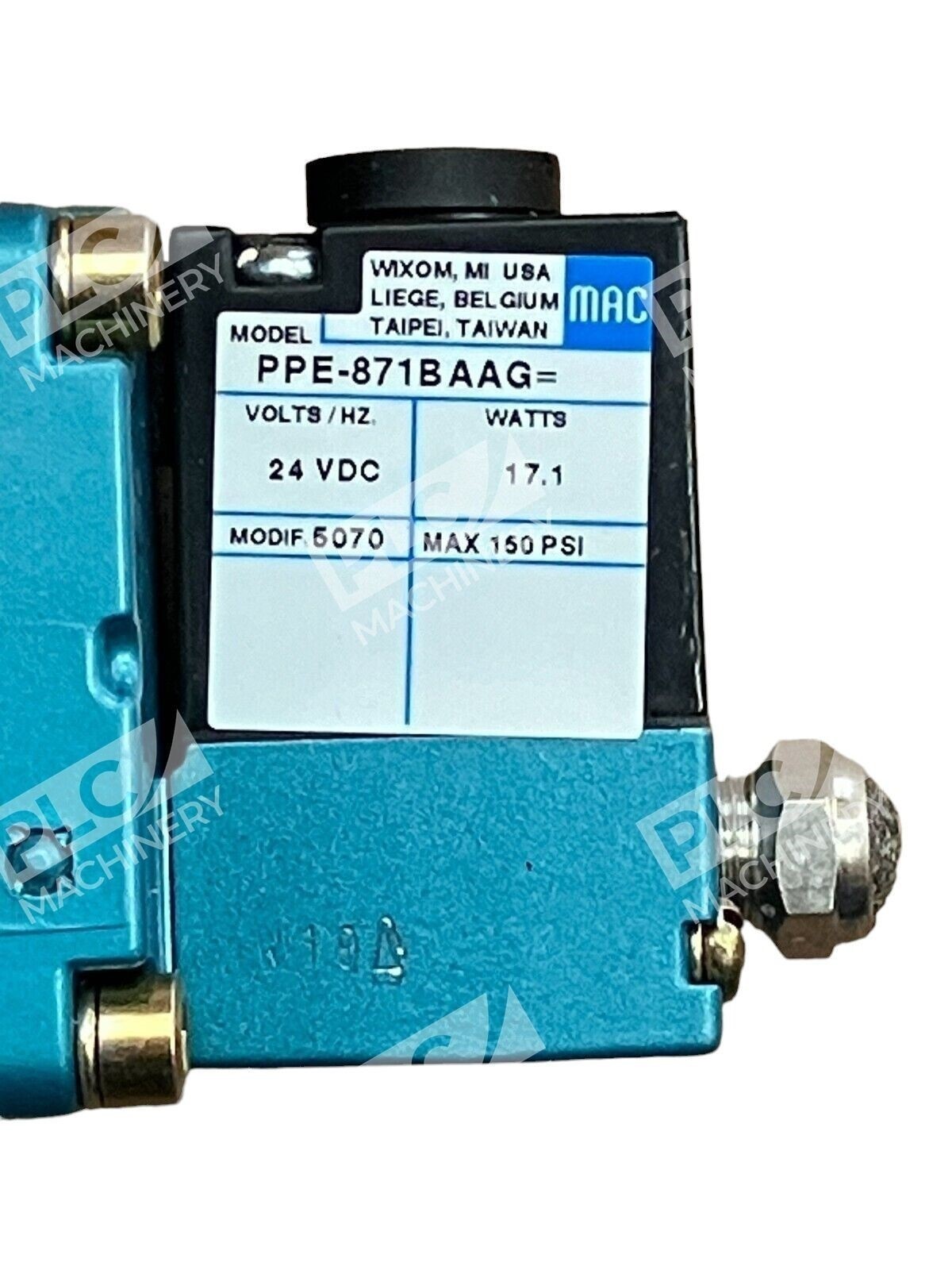

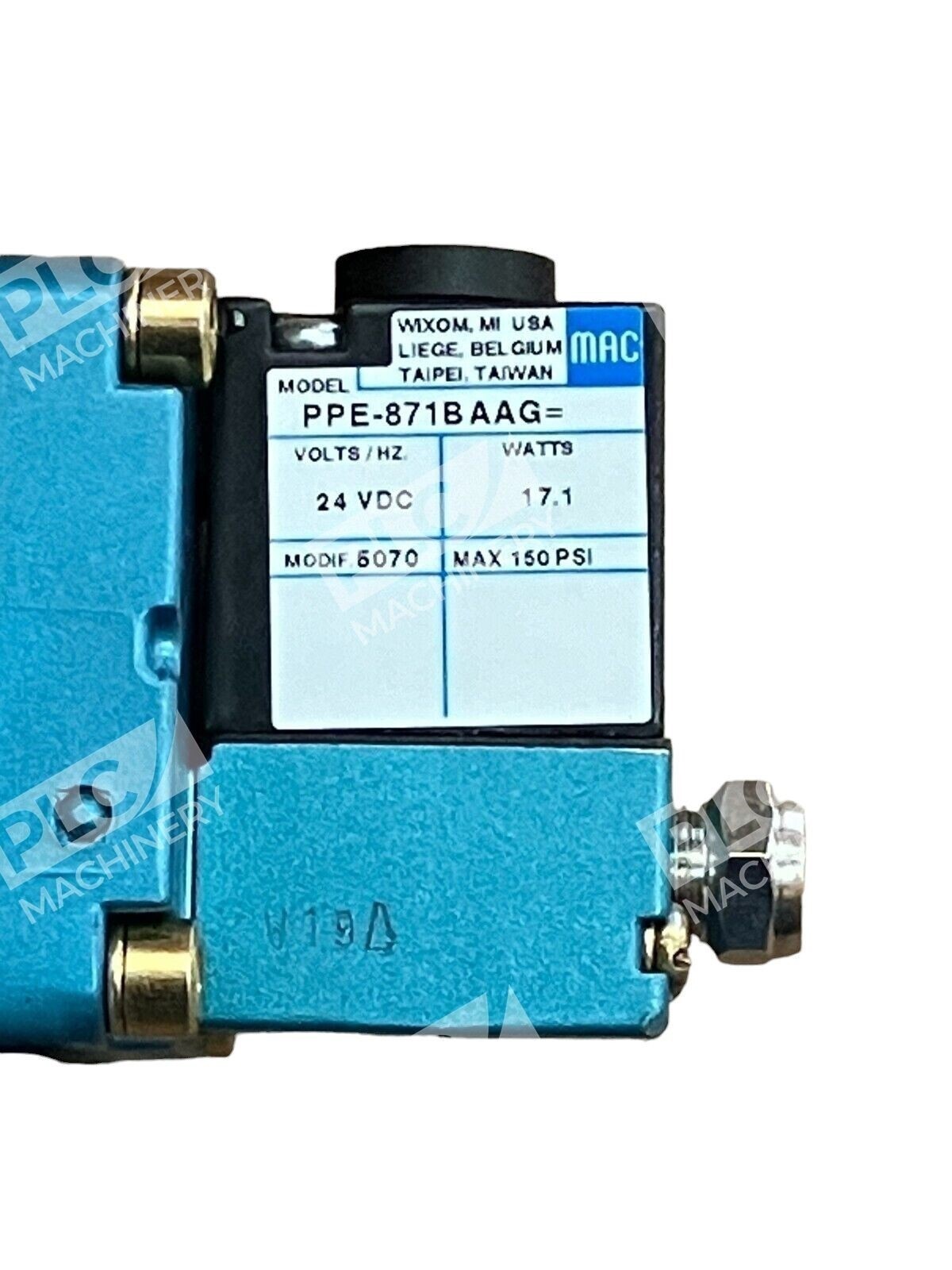

- Double operator coil configuration (PPE-871BAAG 24VDC)
- Air/spring return maintains consistent shifting at varying inlet pressures
- Configurable as 4-way, 3-way, 2-way, or vacuum/diverter applications
- One-piece bonded seal spool for extended service life
- Minimal wear points for long-term reliability
Technical Specifications
Standard 6500 Series specifications:
- Configuration: 4/2 solenoid valve (double operator)
- Valve Type: Solenoid piloted, spool-type

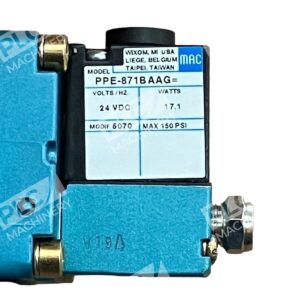

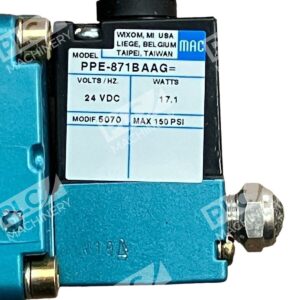

- Coil/Operator: PPE-871BAAG 24VDC
- Actuation: Electric solenoid (dual solenoid)
- Return: Air/spring return
- Spool: Bonded seal, one-piece design
- Applications: Pneumatic control, automation, pilot-operated systems
Typical Applications
- Pneumatic automation and motion control
- Industrial machinery and equipment actuation
- Directional control in fluid power systems
- Vacuum, diverter, and selector valve configurations
- OEM equipment and retrofit installations
- Manufacturing, assembly, and process control systems
Compatibility & Replacements
Compatible With
- Standard ISO pneumatic port configurations
- 24VDC DC power supply systems
- Pneumatic compressor and control networks
- Industrial automation platforms requiring 4/2 directional control
Replaces / Drop-In Replacement For
Consult MAC Valves documentation or your system integrator to confirm drop-in compatibility with legacy valve models. The MAC 6500 Series offers flexible piping options that may replace earlier directional control valves in many configurations.
Works With
- ISO 4401 (CETOP-05) ported manifolds
- Standard pneumatic tubing and fittings
- Industrial PLC and relay control systems
- 24VDC solenoid control circuits
- Pneumatic pilot supply networks
