Overview

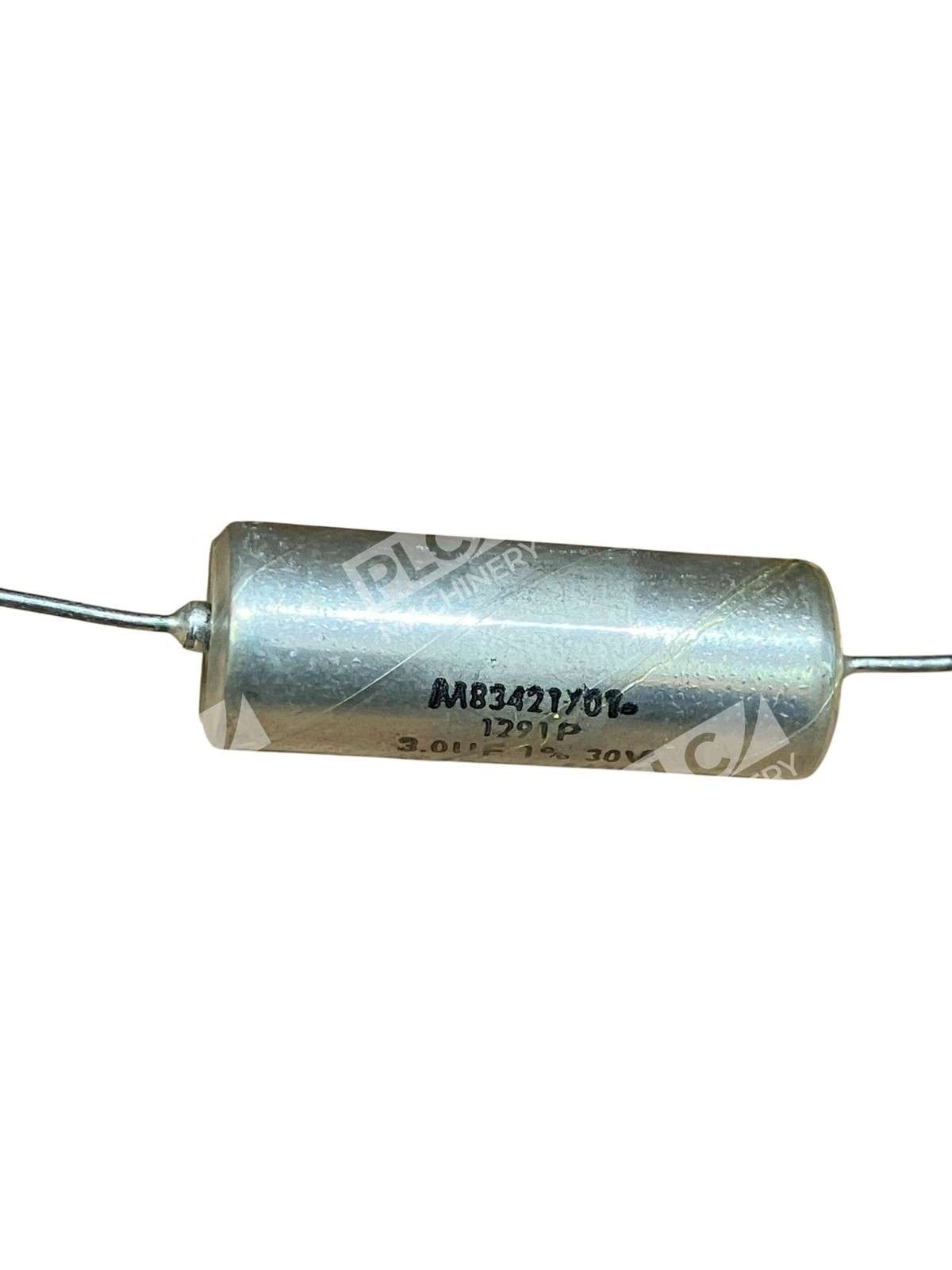

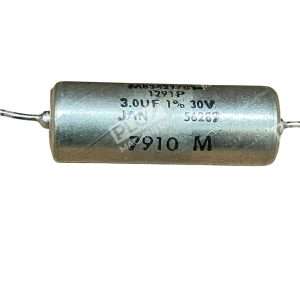

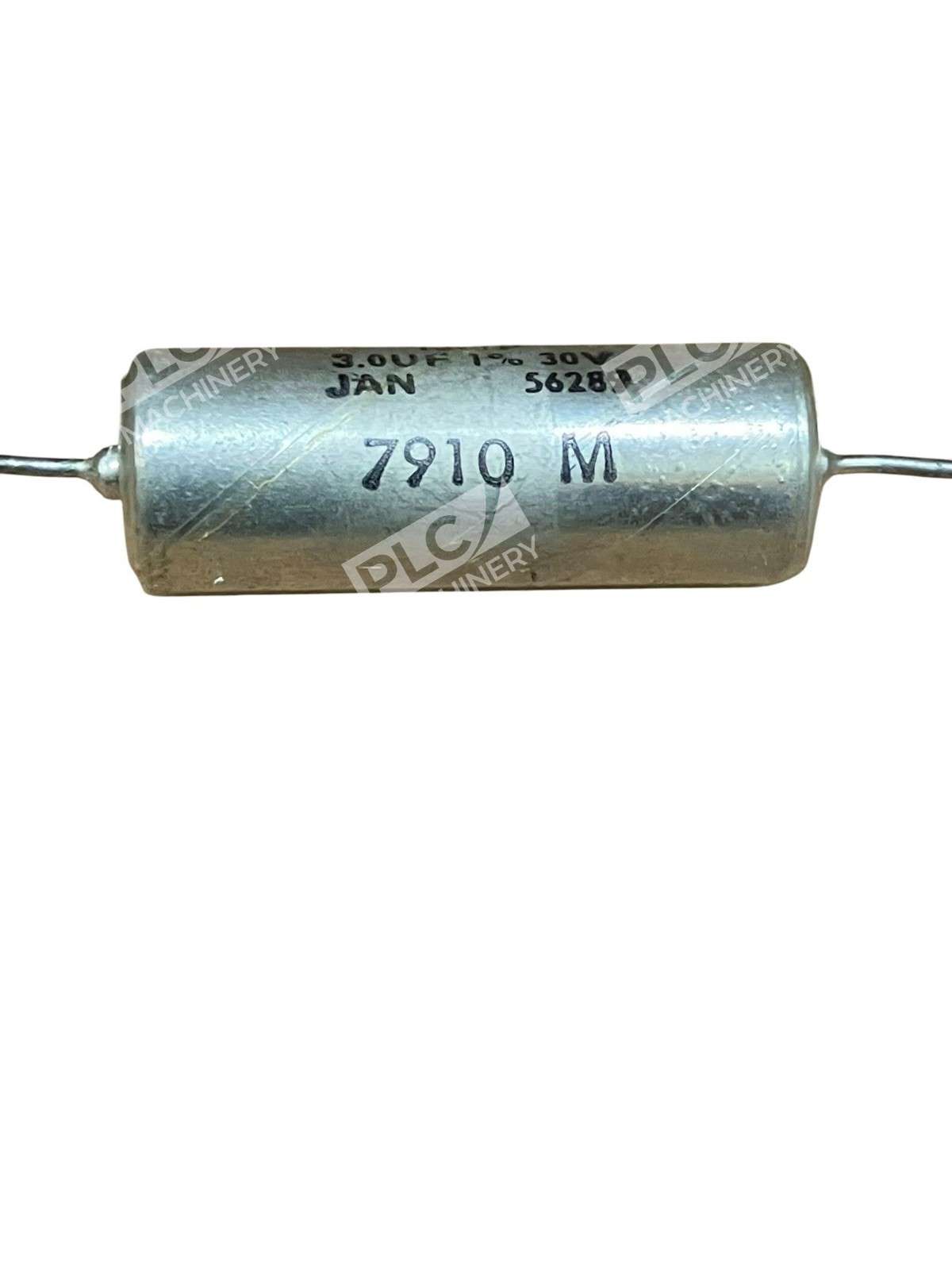

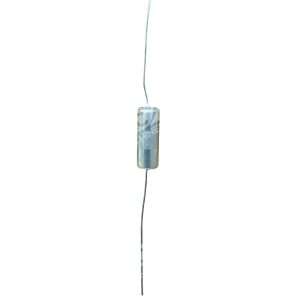

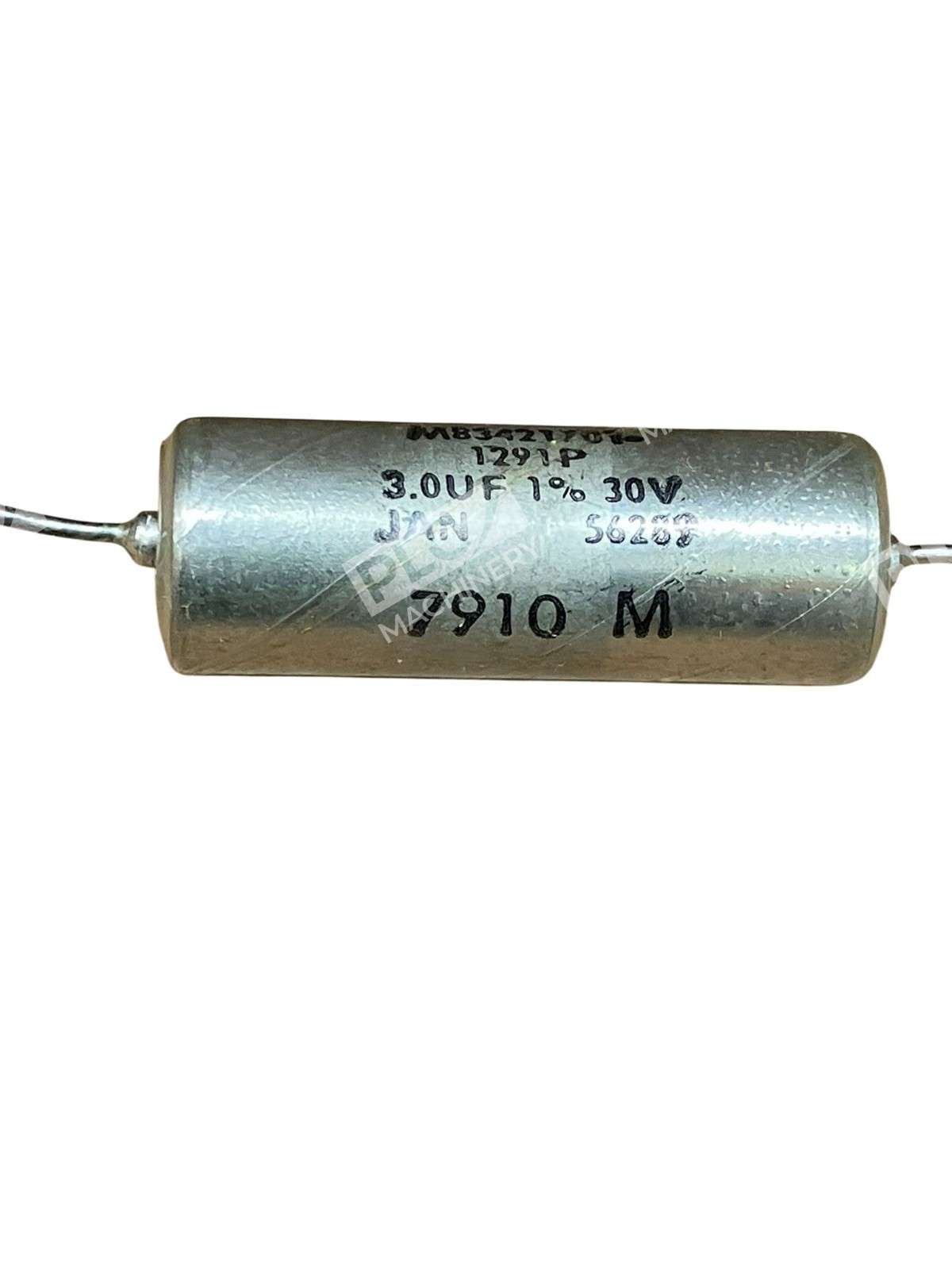

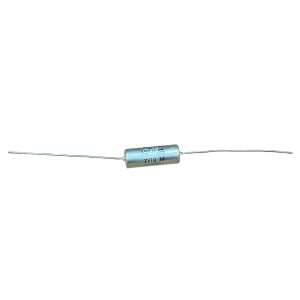

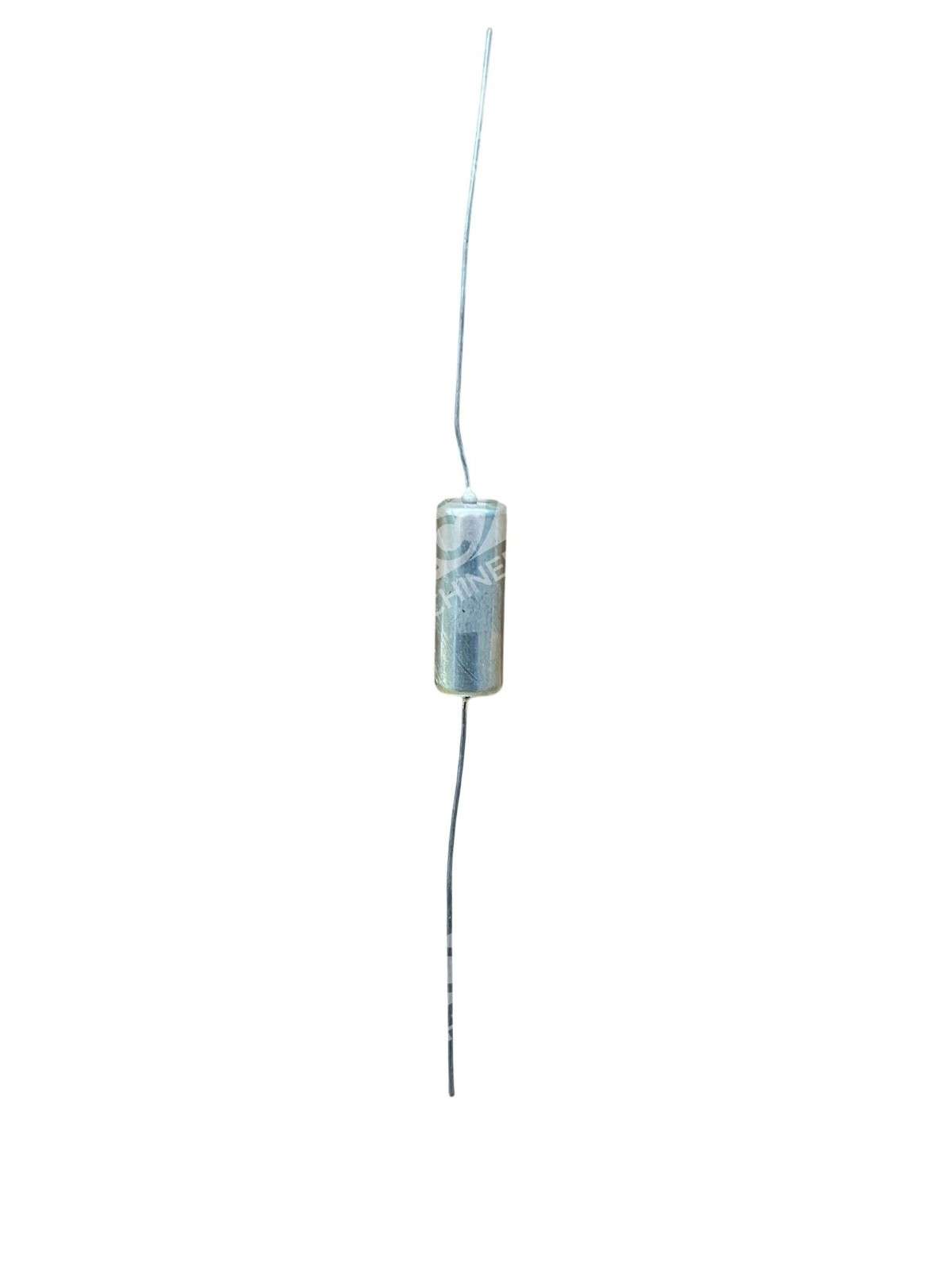

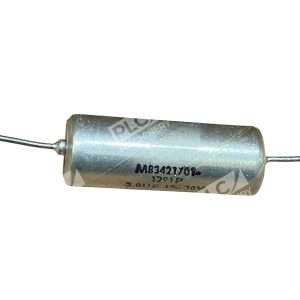

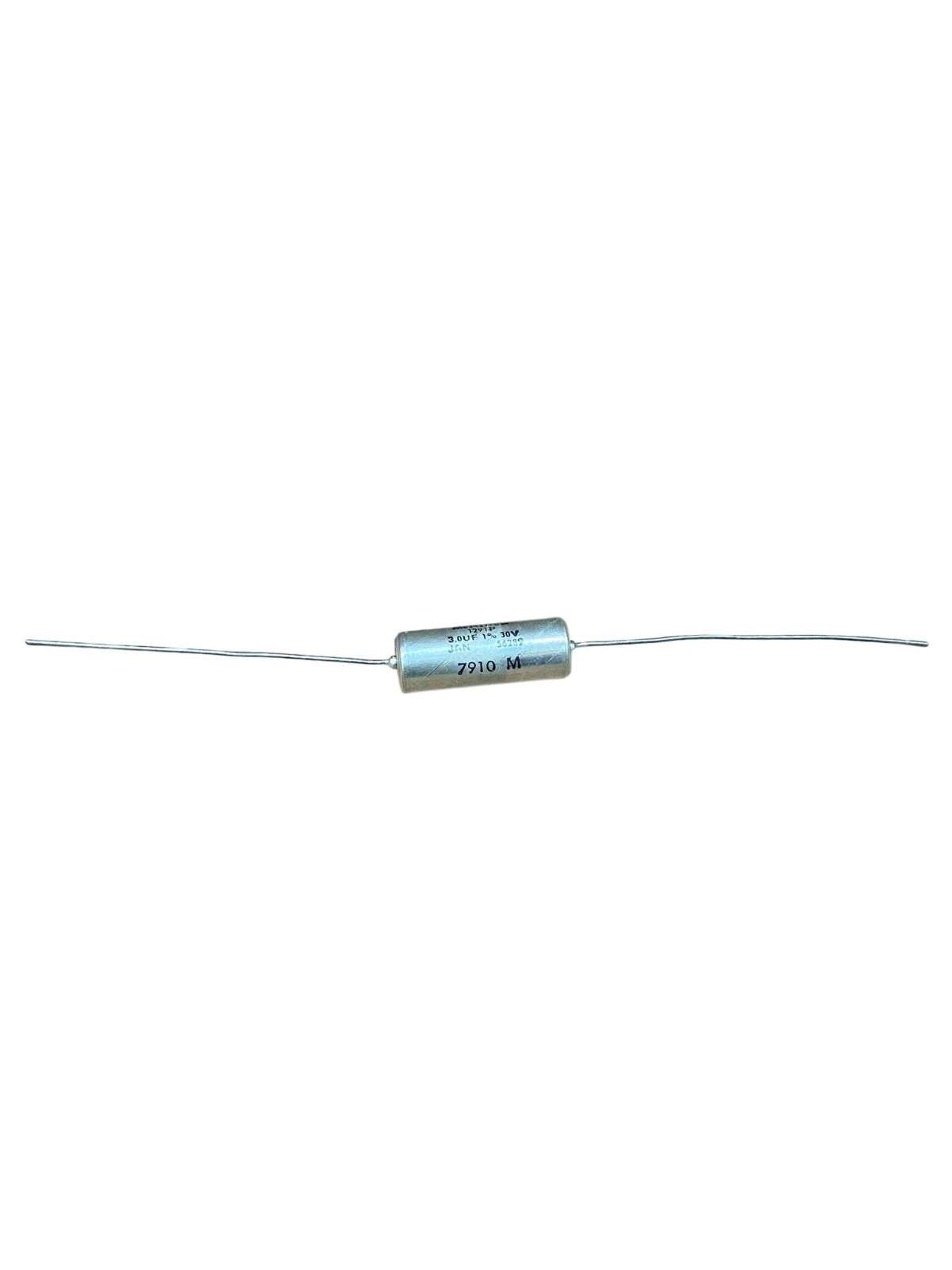

The M83421/01-1291P hermetically sealed capacitor is a metallized plastic film capacitor in the CRH01 style, manufactured to MIL-PRF-83421/1 established reliability specifications. With a capacitance of 3µF and rated working voltage of 30V DC/AC, this component combines compact axial construction with hermetic sealing in a metal case, making it suitable for high-reliability applications requiring long service life and stable performance across temperature ranges.
Key Features
- Hermetically sealed metal case for environmental protection and moisture resistance
- Metallized plastic film dielectric ensures stable capacitance and low dissipation
- Tight ±1% tolerance for precision circuit tuning and filtering
- Axial through-hole leads (CRH01 configuration) for standard PCB assembly
- Established reliability designation per military specification MIL-PRF-83421/1
- Suitable for both DC and AC applications in industrial and aerospace systems
Technical Specifications
The capacitor is rated for 30V DC/AC operation with a capacitance value of 3µF and a tolerance of ±1%. Its hermetically sealed construction protects against moisture ingress and environmental contamination. The axial lead configuration (CRH01 style) simplifies installation in through-hole designs. The metallized plastic film construction provides low equivalent series resistance (ESR) and good frequency response.
Typical Applications
- Power supply filtering and decoupling in industrial control systems
- Timing and RC circuit applications in precision instruments
- Aerospace and defense systems requiring established reliability certification
- Telecommunications and signal conditioning networks
- Legacy equipment repair and replacement in military platforms
Compatibility & Replacements
Compatible With
- Military-specification circuits and assemblies per MIL-PRF-83421/1
- Through-hole PCB designs with standard 0.1″ lead pitch
- DC and AC filtering applications up to 30V rated voltage
- Aerospace and defense equipment requiring established reliability components
Replaces / Drop-In Replacement For
- Equivalent CRH01 3µF 30V ±1% capacitors from the M83421 series
- Legacy applications requiring hermetically sealed film capacitors in axial configuration
- Original equipment in military platforms using established reliability specifications
Works With
- Military specification MIL-PRF-83421/1 (established reliability film capacitors)
- Standard through-hole PCB assembly processes and hand-soldering techniques
- DC bias and AC signal applications in power conditioning and filtering circuits
- Operating temperature ranges per military environmental specifications
