Overview
The Lenze MCS 06F41LRS0B0-B11N-ST5S00N-R2SU servo motor is a synchronous servo motor engineered for high-precision motion control across industrial automation platforms. The MCS series represents Lenze’s proven line of compact, efficient servo motors widely used in OEM equipment and retrofit applications. The 06F motor size with ST. STARR feedback provides repeatable position and velocity control essential for competitive manufacturing environments.
Key Features
- MCS synchronous servo motor platform rated at 4100 RPM nominal speed
- 06F compact motor size with standard 11 mm shaft diameter
- Resolver feedback (ST. STARR configuration) for robust position sensing in harsh environments
- No integrated brake — compatible with external brake mounting where required
- IP54 rating supports natural ventilation in typical industrial enclosures
- Round plug connectors for standard installation and troubleshooting
Technical Specifications

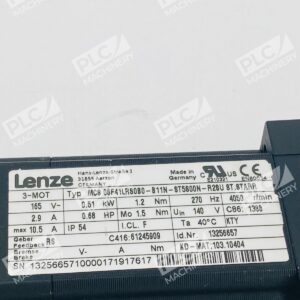

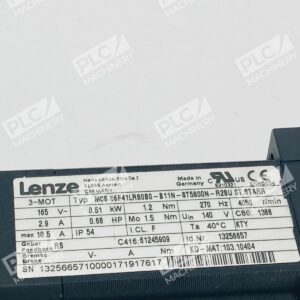

The motor operates on 400 VAC three-phase supply and is rated for 0.51 kW (0.68 HP) output. Current draw is approximately 1.5 A at rated load. Rated speed is approximately 4050–4100 RPM depending on load and drive configuration. Torque rating is 1.20 Nm. Shaft configuration is standard with key (B11N variant). The unit features resolver-based feedback suitable for vector or servo drive control. Mounting is flange-mount compatible with common servo drive systems. Operating temperature range is typical for industrial servo motors (-10°C to +40°C ambient).
Typical Applications
- Packaging machinery: film feed, label placement, and sealing systems
- Material handling: conveyor speed control and positioning
- Assembly automation: spindle drives and quick-change tool indexing
- Textile and printing: web tension control and winding applications
- Food processing: portion control and dosing systems
Compatibility & Replacements
Compatible With
- Lenze inverter drives (vector and servo configurations)
- Third-party servo and vector drives supporting resolver feedback (0–10 V analog control)
- Standard mounting flanges for 06F servo motors
- Integrated automation controllers with analog velocity references
Replaces / Drop-In Replacement For
The Lenze MCS 06F41LRS0B0-B11N-ST5S00N-R2SU directly replaces earlier MCS 06F servo motors with similar electrical ratings. Verify resolver pinout and mechanical flange match with your current motor before ordering. Related models in the MCS 06F series (MCS06F41-RS0B0, MCS06F41-LC40P1) share similar electrical specifications; check part number against your original equipment documentation.
Works With
- Lenze g500 and g700 drive platforms
- Vector drives with analog speed references
- Resolver-to-digital converters (RDC modules)
- Legacy analog servo control systems
- PLC-based motion control with 4–20 mA feedback loops
