Overview

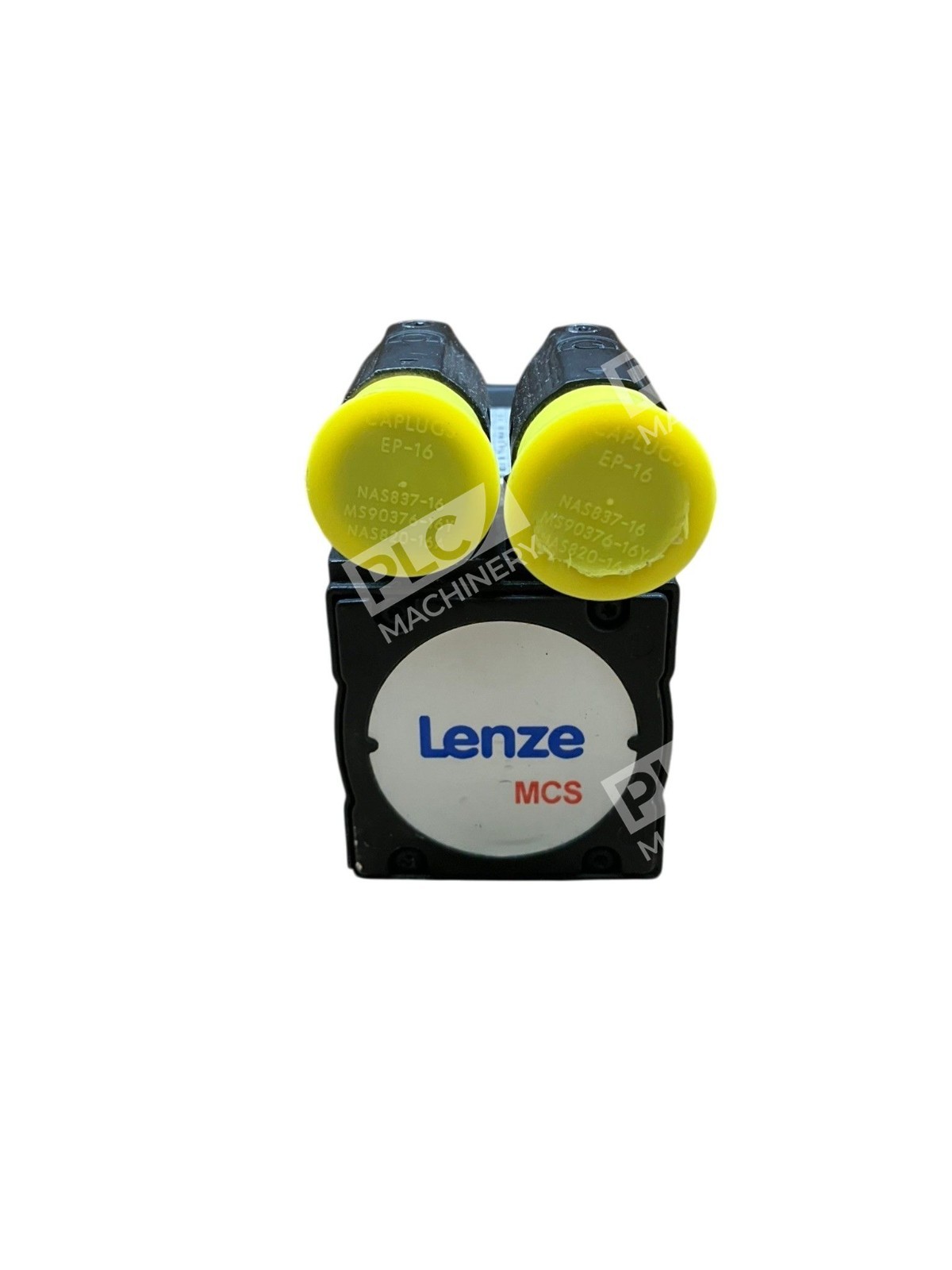

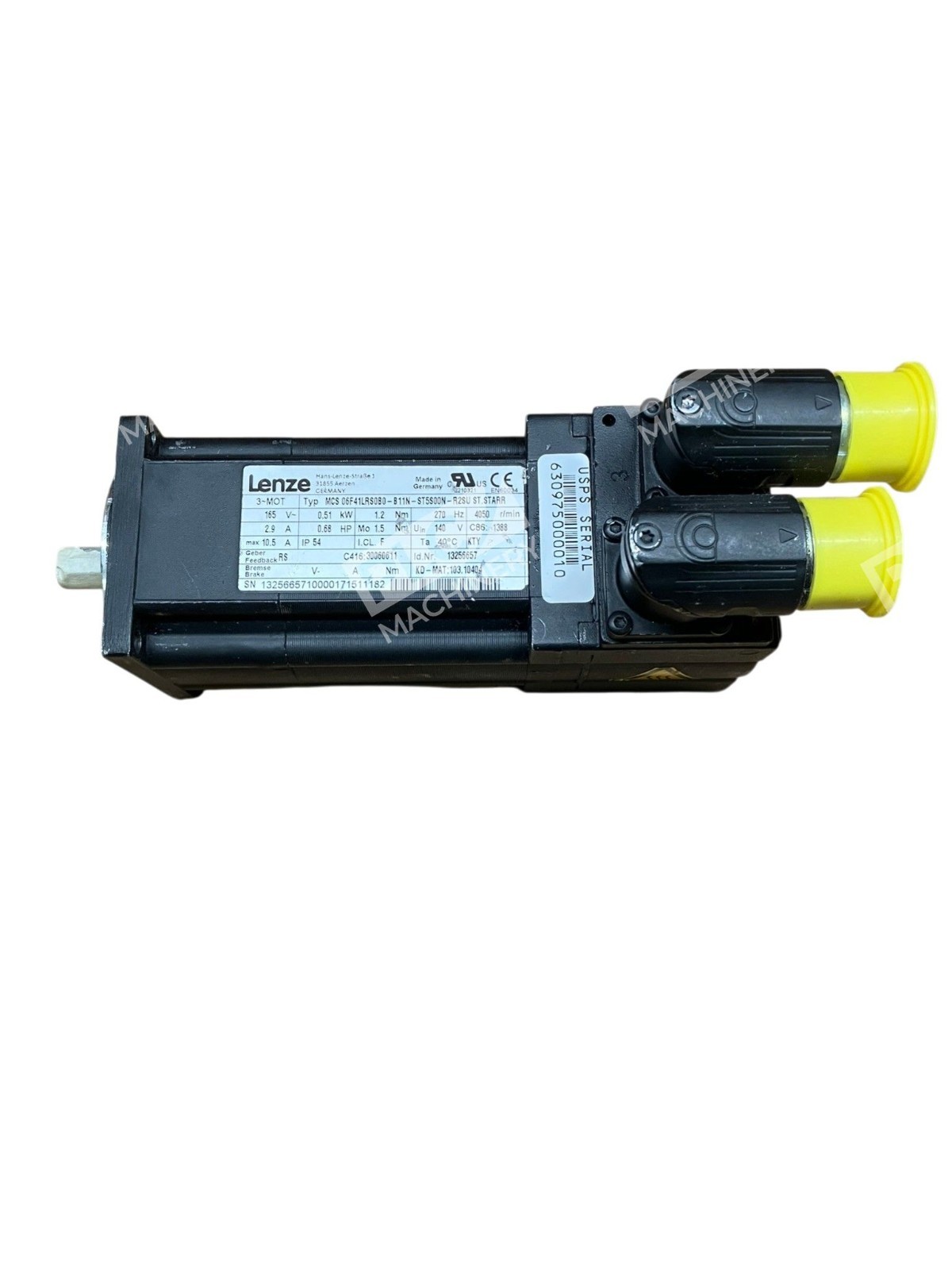

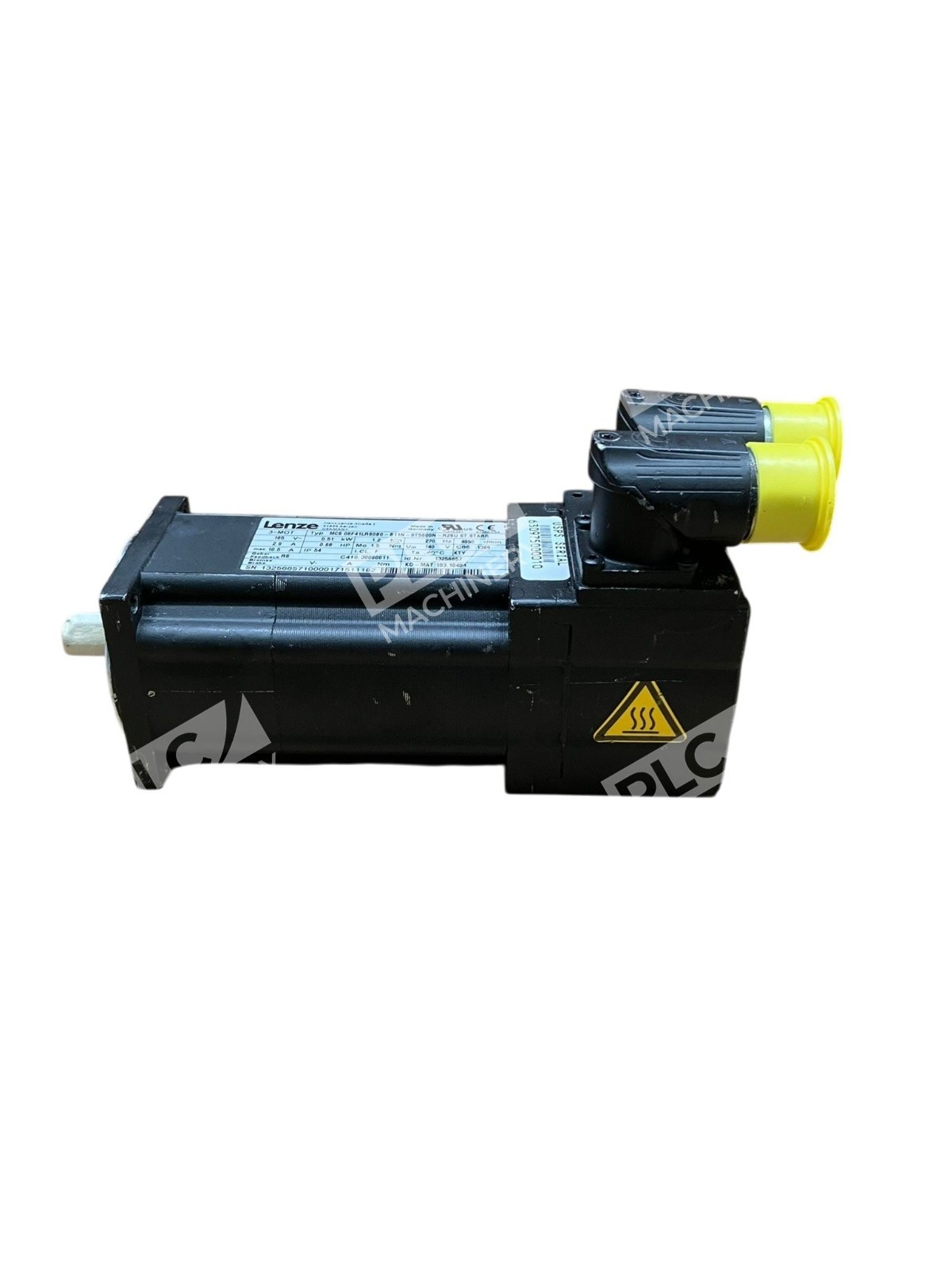

The Lenze MCS 06F41LRS0B0-B11N-ST5S00N-R2SU synchronous servo motor is engineered for high-precision positioning and motion control in industrial automation applications. This 06F frame-size unit combines robust construction with reliable feedback, making it suitable for demanding machine tools, packaging equipment, and motion systems requiring repeatability and smooth operation.
Key Features
- Synchronous motor design for precise speed and torque control
- Resolver feedback for accurate position and speed sensing
- No integrated brake – external brake can be added as needed
- Standard shaft with key for secure coupling
- Round plug connectors for field-friendly installations
- IP54 protection rating with natural ventilation
- STARR series designation for enhanced reliability
Technical Specifications
- Motor Type: MCS Synchronous Servo Motor
- Frame Size: 06F
- Rated Power: 0.51 kW (0.68 HP)
- Rated Torque: 1.20 NM
- Rated Speed: 4100 RPM
- Input Voltage: 400 VAC, 3-phase
- Rated Current: 1.5 A
- Feedback System: Resolver (analog feedback)
- Brake: None (no integrated holding brake)
- Shaft Diameter: 11 mm
- Shaft Type: Standard with key
- Connector Type: Round plugs
- Protection Rating: IP54 (dust and splash resistant)
- Cooling Method: Natural ventilation
- Condition: New – No Box
Typical Applications
- CNC machine tool spindles and feed drives
- Printing and converting equipment
- Packaging machinery requiring precise speed control
- Textile and fabric processing systems
- Material handling and conveyor synchronization
- Assembly equipment with motion coordination
Compatibility & Replacements
Compatible With
- Lenze vector drives and servo drives with resolver inputs
- Allen-Bradley and Siemens servo drives supporting resolver feedback
- Industrial automation systems requiring 400 VAC, 3-phase power
- Direct-coupled or belt-driven mechanical systems
Replaces / Drop-In Replacement For
- MCS 06F41-RS0B0-B11N-ST5S00N-R0SU (similar configuration without STARR designation)
- Other Lenze 06F frame motors with comparable resolver feedback and speed ratings
- Verify exact compatibility with your drive system before ordering
Works With
- Lenze MCS Control modules and inverters
- Industrial resolver-to-digital signal conditioners
- Standard 400 VAC, 3-phase motor starters and soft-starters
- CNC control systems with analog velocity loops
