Overview

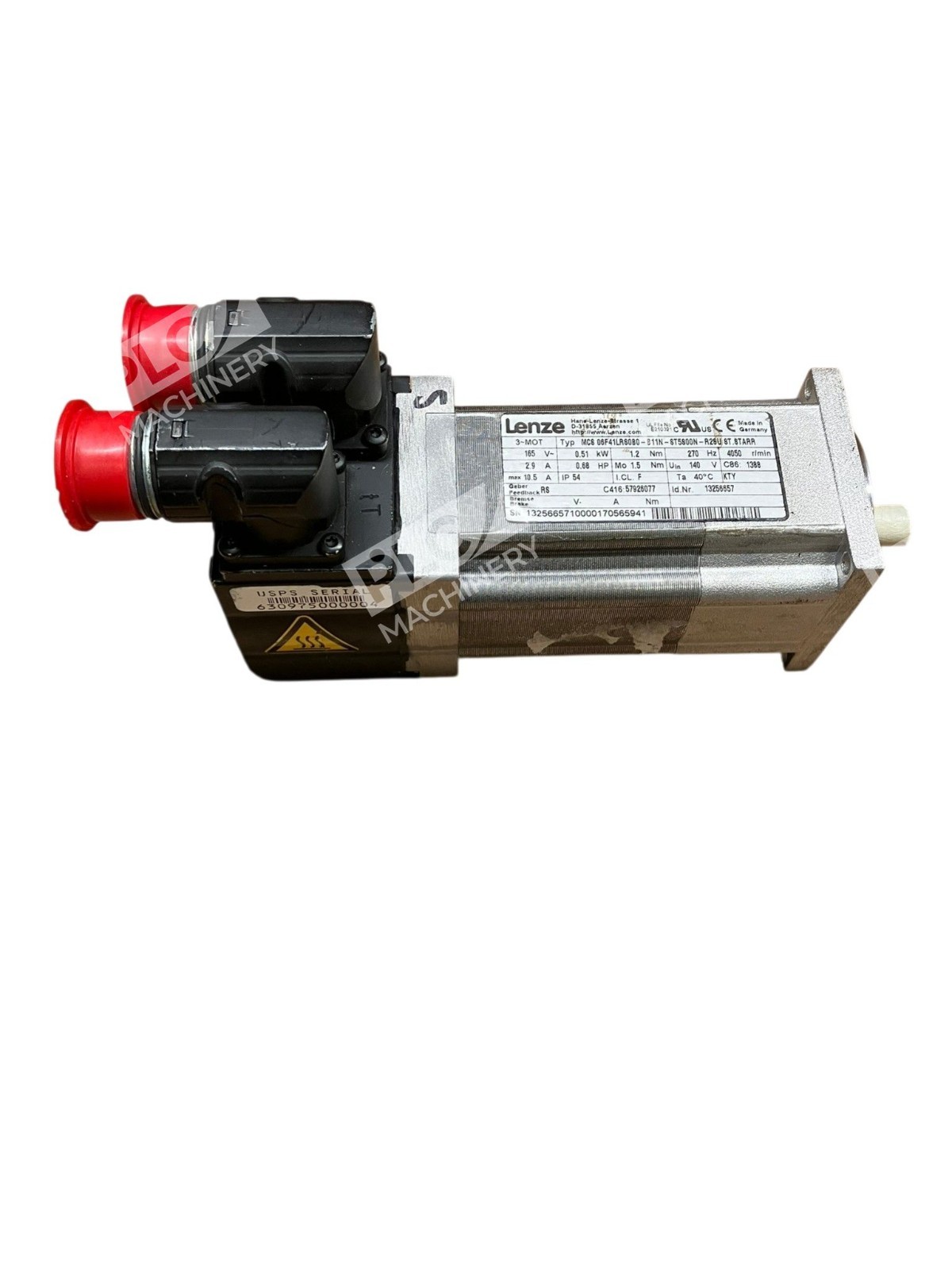

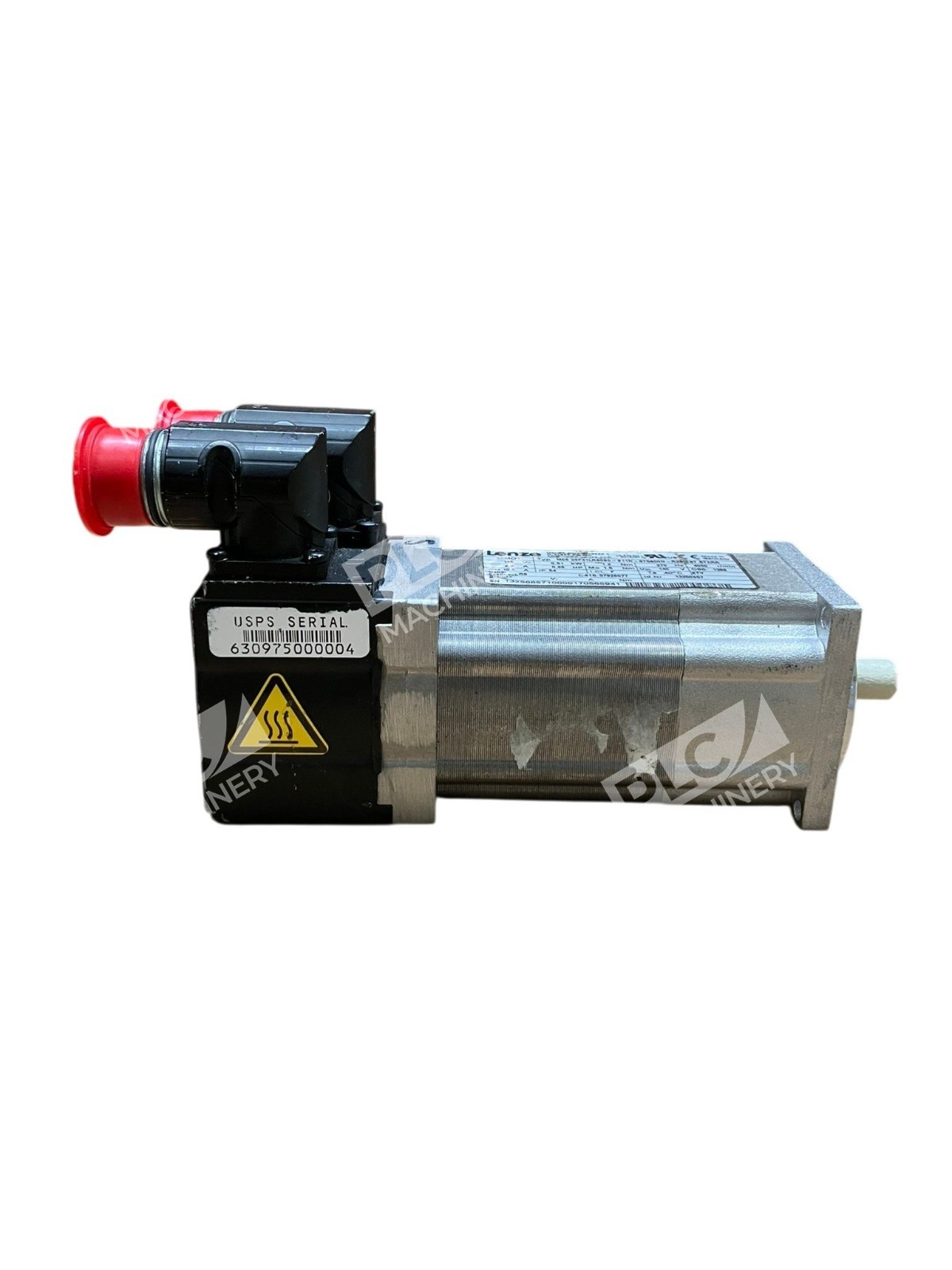

The Lenze MCS06F41LRS0B0-B11N-ST5S00N-R2SU is a compact MCS series synchronous servo motor engineered for demanding industrial automation, positioning, and motion control applications. This 06F frame-size unit delivers 0.51kW (0.68 HP) continuous power at 4050 RPM with resolver feedback for closed-loop operation. The motor features a 11mm standard shaft without keyway and natural ventilation cooling, rated for 400 VAC three-phase input.
Key Features
- Compact MCS 06F frame size — space-efficient installation in control cabinets and integrated systems
- Synchronous servo motor with resolver feedback — enables precise speed and position control
- 400 VAC, 1.5 A rated input — standard industrial three-phase power compatibility
- IP54 protection rating — suitable for shop floor environments with moderate dust and splash
- 1.20 Nm nominal torque — ideal for conveyor drives, spindles, and light-duty positioning
- No internal brake — reduces cost and complexity; external brake integration available if required
Technical Specifications
- Motor Type: MCS Synchronous Servo Motor
- Frame Size: 06F
- Rated Power: 0.51 kW (0.68 HP)
- Rated Speed: 4050 RPM
- Nominal Torque: 1.20 Nm
- Input Voltage: 400 VAC, 3-phase, 50/60 Hz
- Rated Current: 1.5 A
- Feedback Device: Resolver

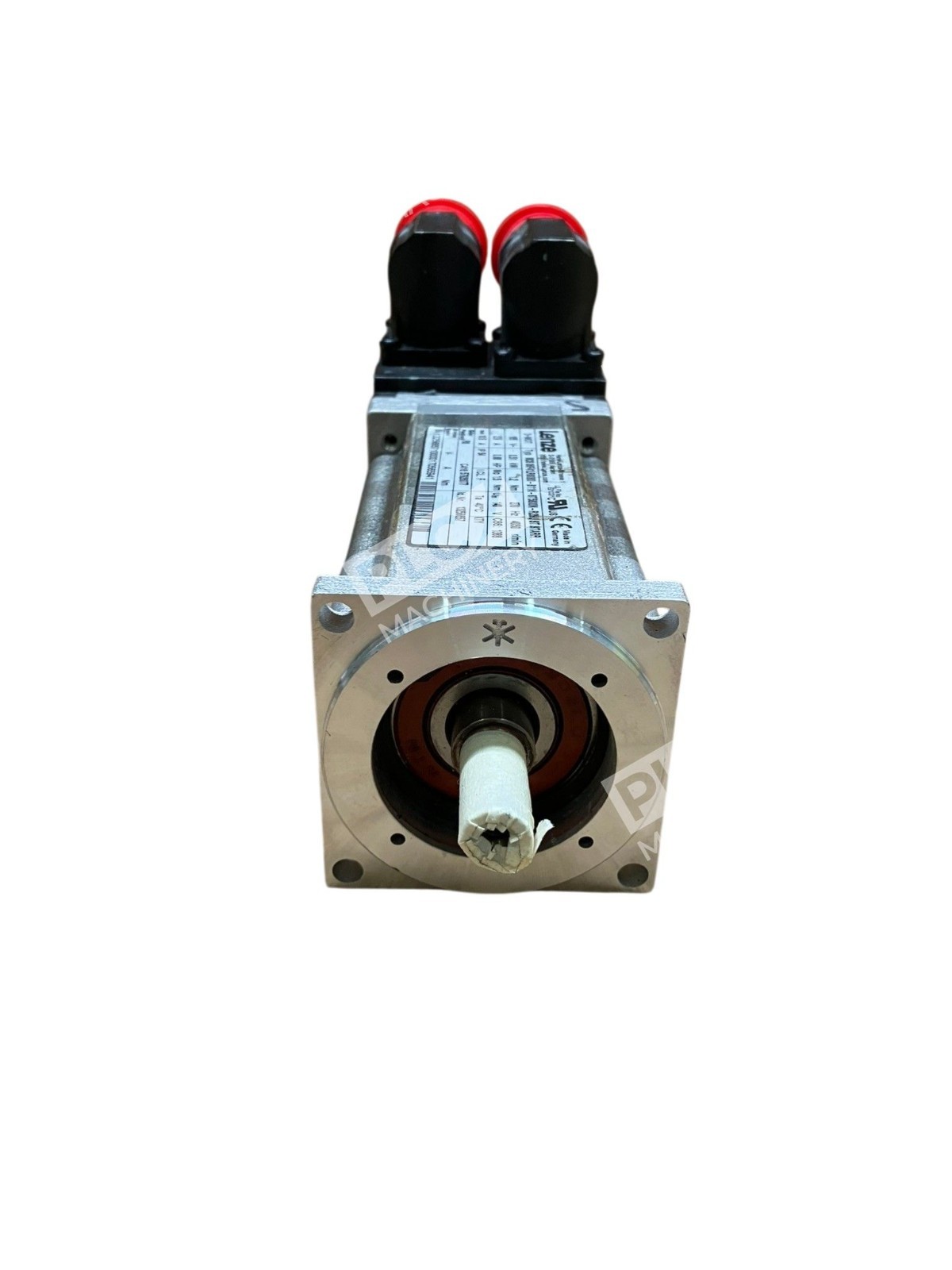

- Shaft Diameter: 11 mm
- Shaft Type: Standard shaft without keyway
- Protection Degree: IP54
- Cooling: Natural ventilation

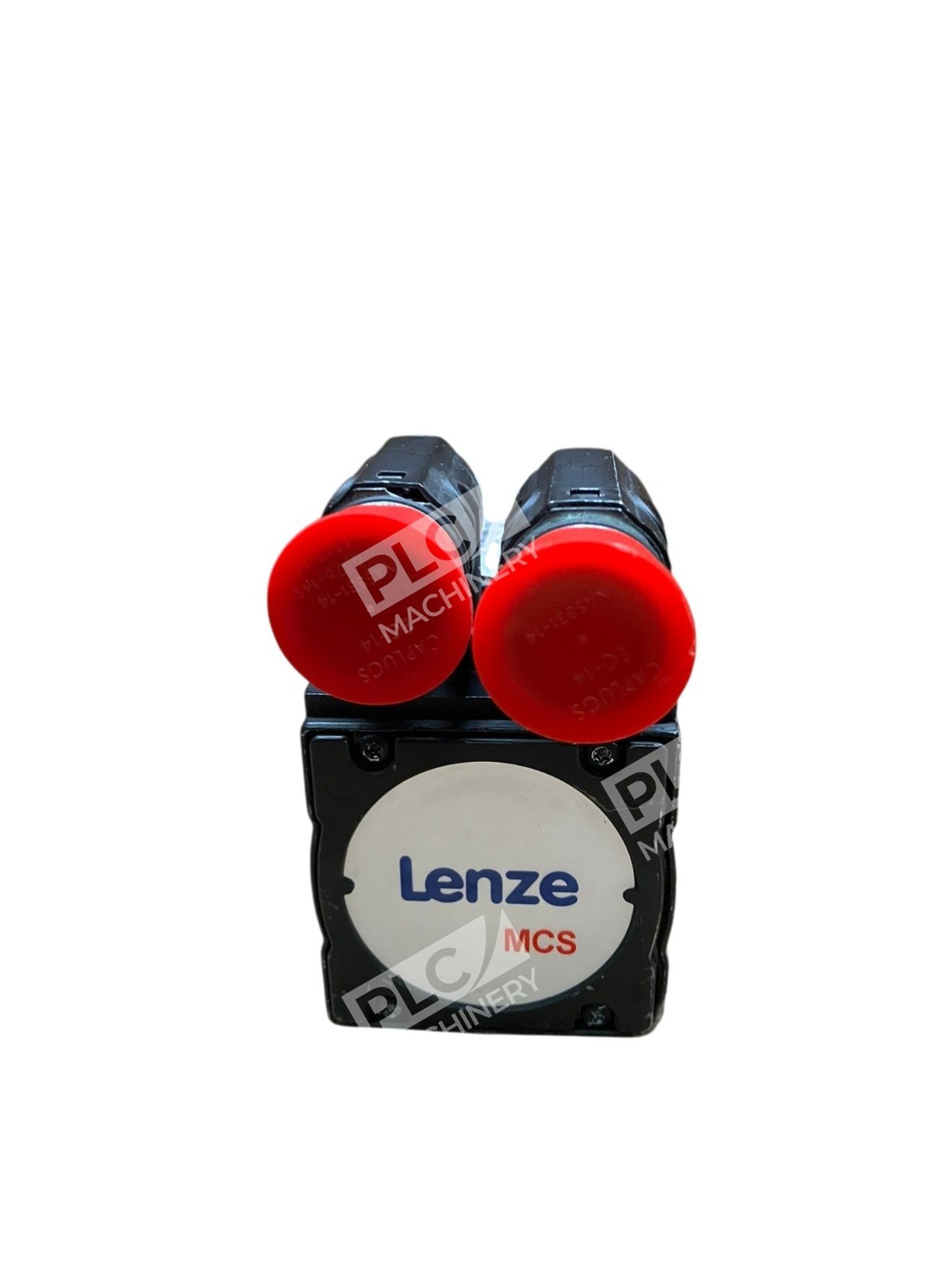

- Connector Type: Round plugs
- Weight: 5.36 lbs
Typical Applications
- Machine tool spindles and positioning axes
- Conveyor and material handling belt drives
- Packaging machinery and label applicators
- Textile and printing equipment
- OEM automation assemblies and test stands
- Light-duty robotic arms and articulated systems
Compatibility & Replacements
Compatible With
- Lenze M motor servo drives (MCS series compatible models)
- Standard 400 VAC three-phase industrial control systems
- Resolver-based feedback loop controllers and inverters
- Industrial motion control platforms requiring synchronous servo operation
- DIN rail-mounted cabinets and modular automation frameworks
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Lenze MCS 06F series motors with matching voltage (400 VAC), speed rating (4050 RPM ±5%), torque (1.20 Nm), and resolver feedback may be interchangeable; however, shaft type and connector configuration must be confirmed.
Works With
- Lenze variable frequency drives (VFDs) and servo amplifiers
- PROFINET and EtherCAT industrial communication protocols
- Lenze MCS/MS synchronous servo control ecosystems
- Standard resolver-to-digital signal conditioning modules
- Legacy automation systems with analog servo command inputs
