Overview

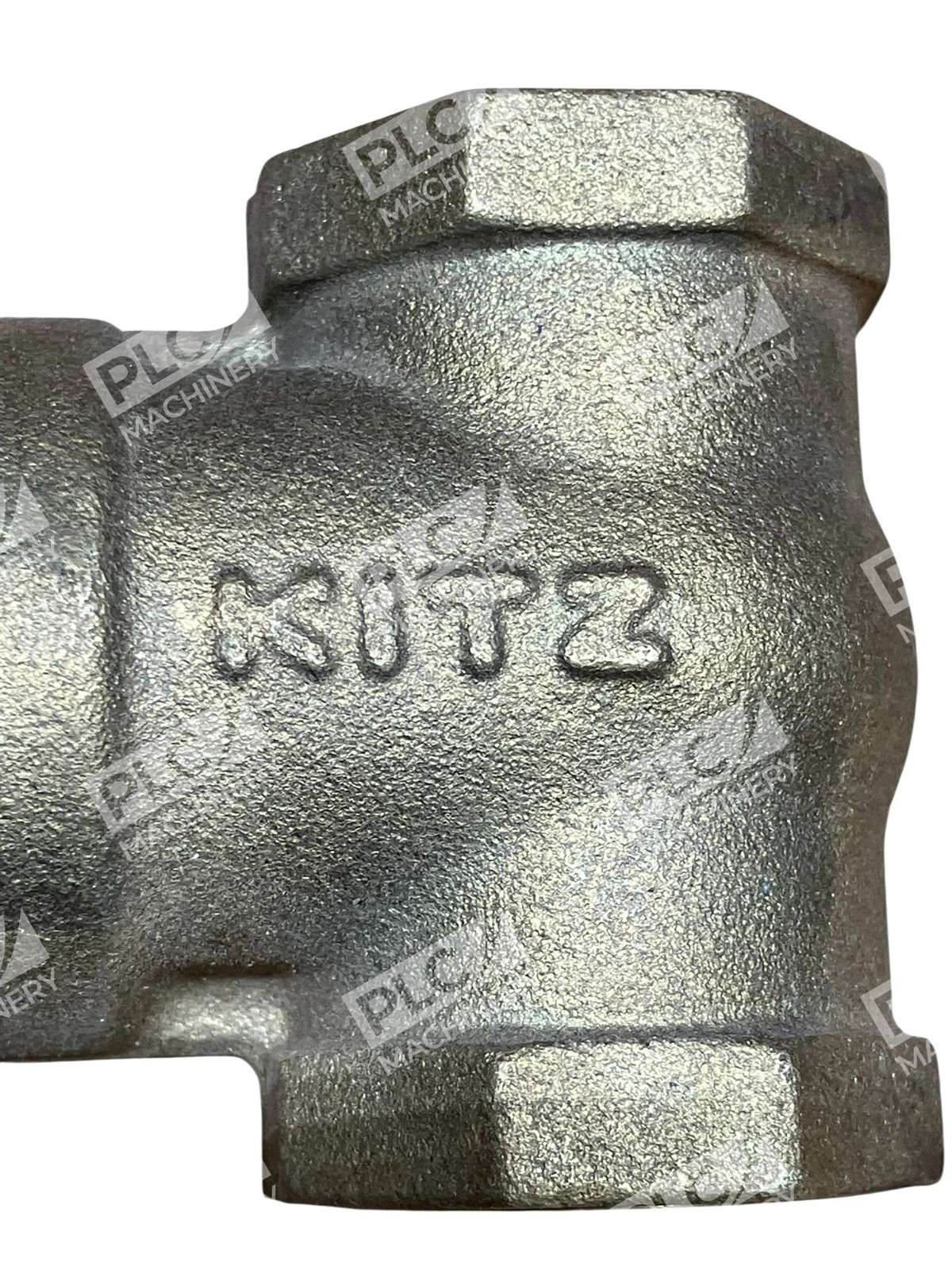

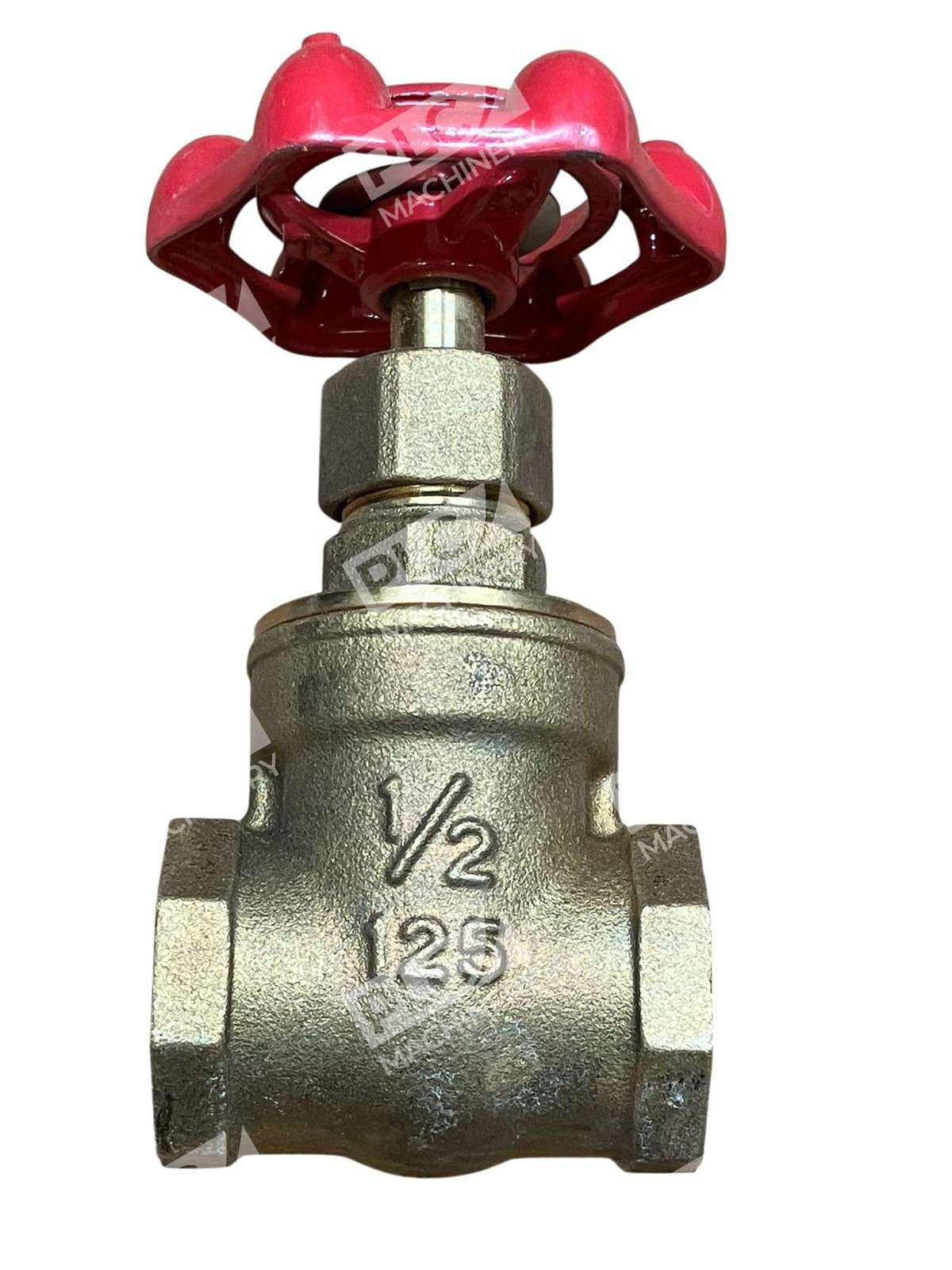

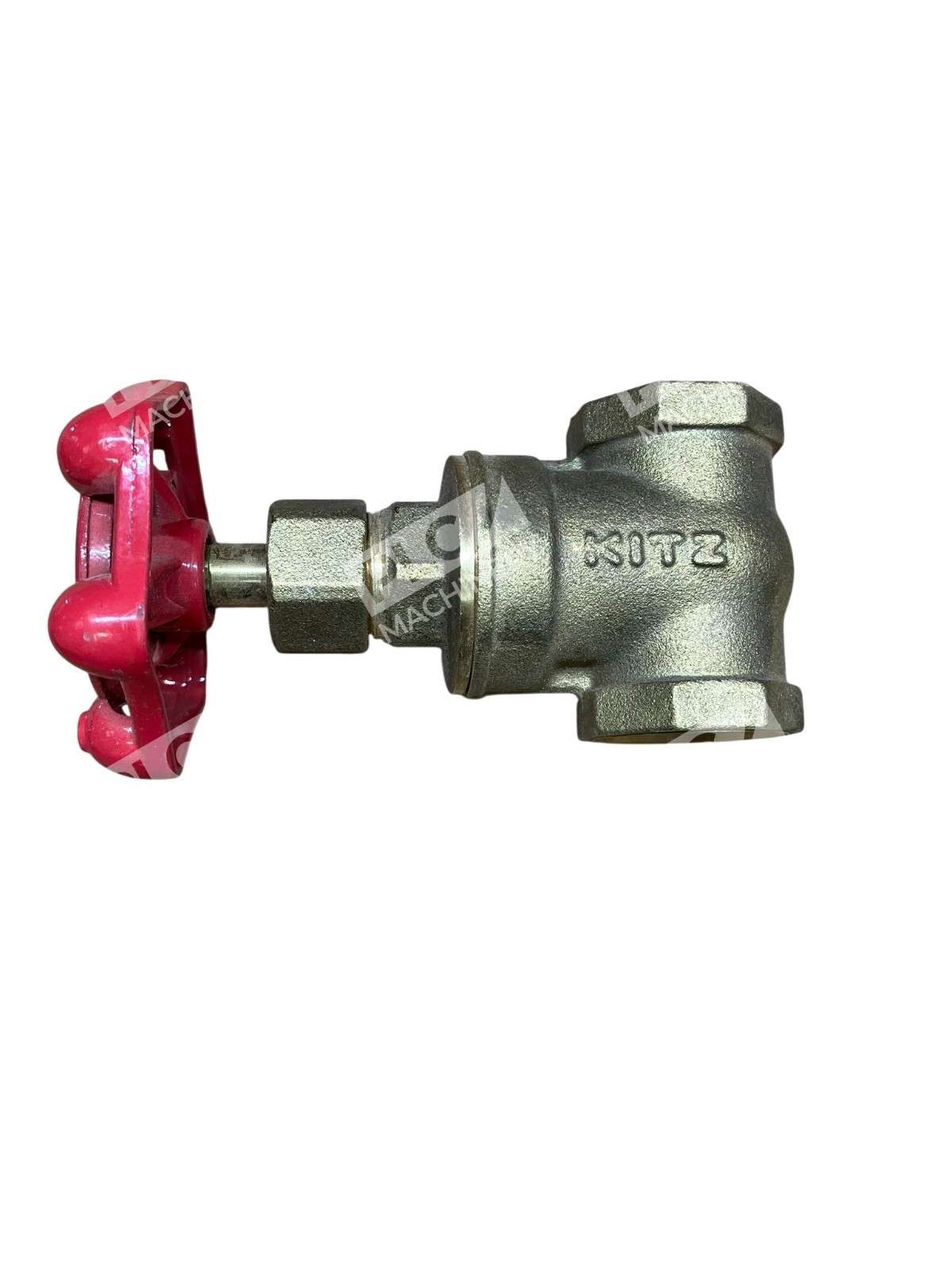

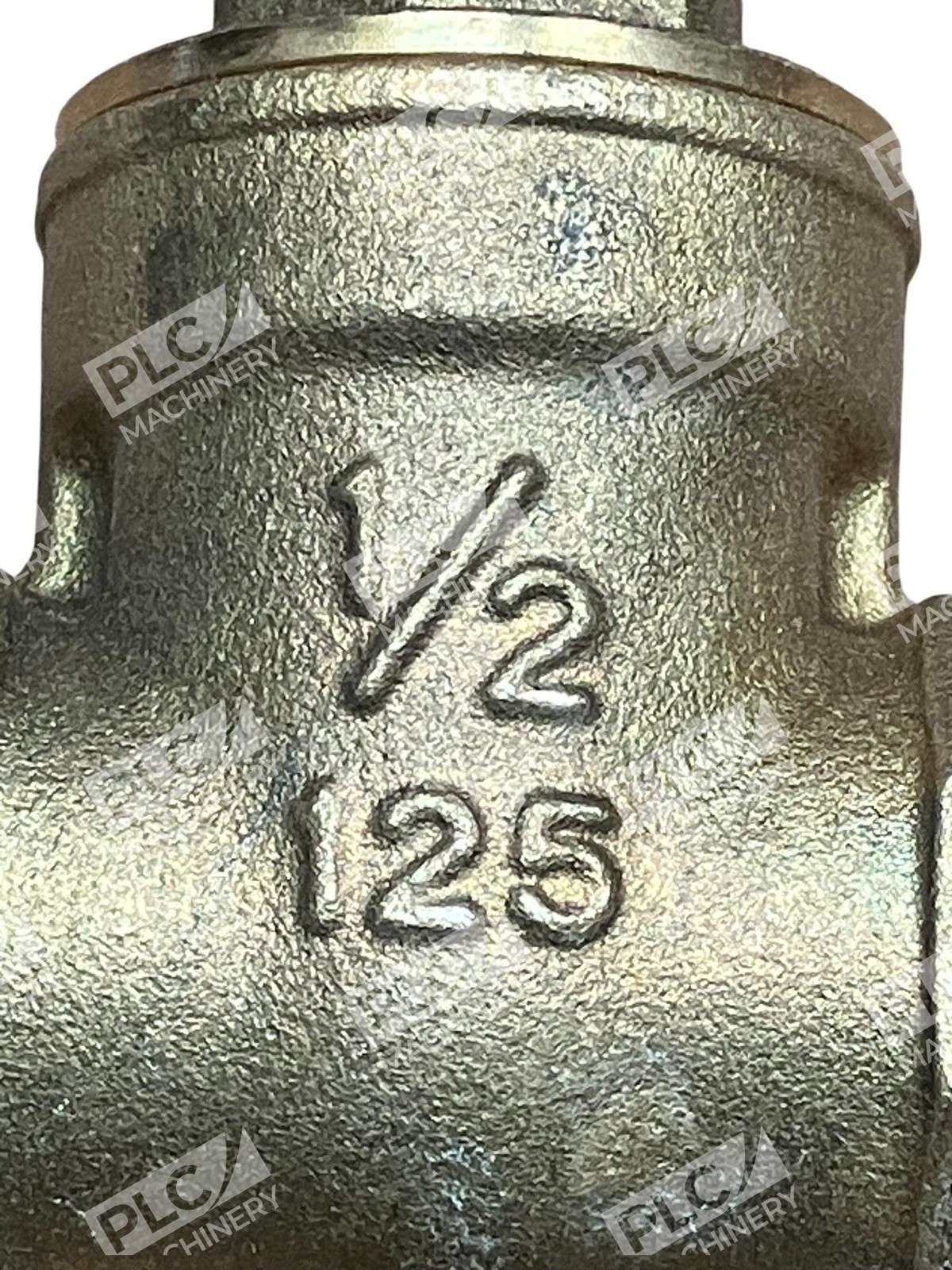

The KITZ 125 brass gate valve is a Class 125 forged brass manual isolation valve with threaded connections and a non-rising stem design. Built to ASME B1.20.1 standards, this valve is rated for 200 WOG (working pressure at 100°F) and 125 WSP (saturated steam). The non-rising stem mechanism keeps the stem inside the valve body, preventing overhead interference in tight installations.
Key Features
- Non-Rising Stem: Stem remains inside the valve body for compact overhead clearance and safety.
- Full-Bore Design: Unobstructed flow path maximizes flow capacity and reduces pressure drop.
- Forged Brass Construction: Superior corrosion resistance and durability in diverse media including water, oil, and gas.
- Screwed Bonnet: Field-replaceable internal components for extended valve life.
- ASME B1.20.1 Threaded Ends: NPT or ISO connections for standard industrial installations.
- Class 125 Rating: Proven ANSI/ASME pressure class for general service applications.
Technical Specifications
- Valve Type: Gate, manual isolation
- Class Rating: 125
- Pressure Rating: 200 WOG / 125 WSP
- Body Material: Forged Brass (ASTM B283 C37700, 3/8" – 2")
- Bonnet Material: Forged Brass
- Stem Material: Brass (dezincification-resistant)
- Disc Material: Forged Brass
- Stem Design: Non-Rising, inside screw
- Connection Type: NPT Threaded (ASME B1.20.1)
- Size Range: 1/4" to 3"
- Operator: Handwheel
- Maximum Operating Temperature: 406°F (210°C)
- Port Type: Full bore
Typical Applications
The KITZ 125 gate valve is ideal for isolation and on-off service in:
- Potable and recirculating water systems
- Hydrocarbon distribution (oil and natural gas)
- HVAC and hydronic heating/cooling circuits
- General industrial fluid control and shut-off
- Plumbing and mechanical systems where manual isolation is required
Compatibility & Replacements
Compatible With
- Standard NPT (National Pipe Thread) threaded piping systems
- ISO 6149 metric threaded connections (available in certain configurations)
- Industrial hydraulic and pneumatic systems rated for 200 PSI service
- Potable water applications (NSF-type compatible)
- Oil and gas isolation service
Replaces / Drop-In Replacement For
- KITZ 07 Series Class 125 brass gate valves (same pressure class and performance)
- KITZ 27 Series Class 125 brass gate valves
- Generic Class 125 forged brass gate valves of equivalent size and thread type
Works With
- ASME B1.20.1 standard piping and fittings
- Manual actuation (no electric or pneumatic controls required)
- Standard brazing, soldering, and thread-seal tape installation methods
- ANSI flange standards (where threaded adapters are used)
