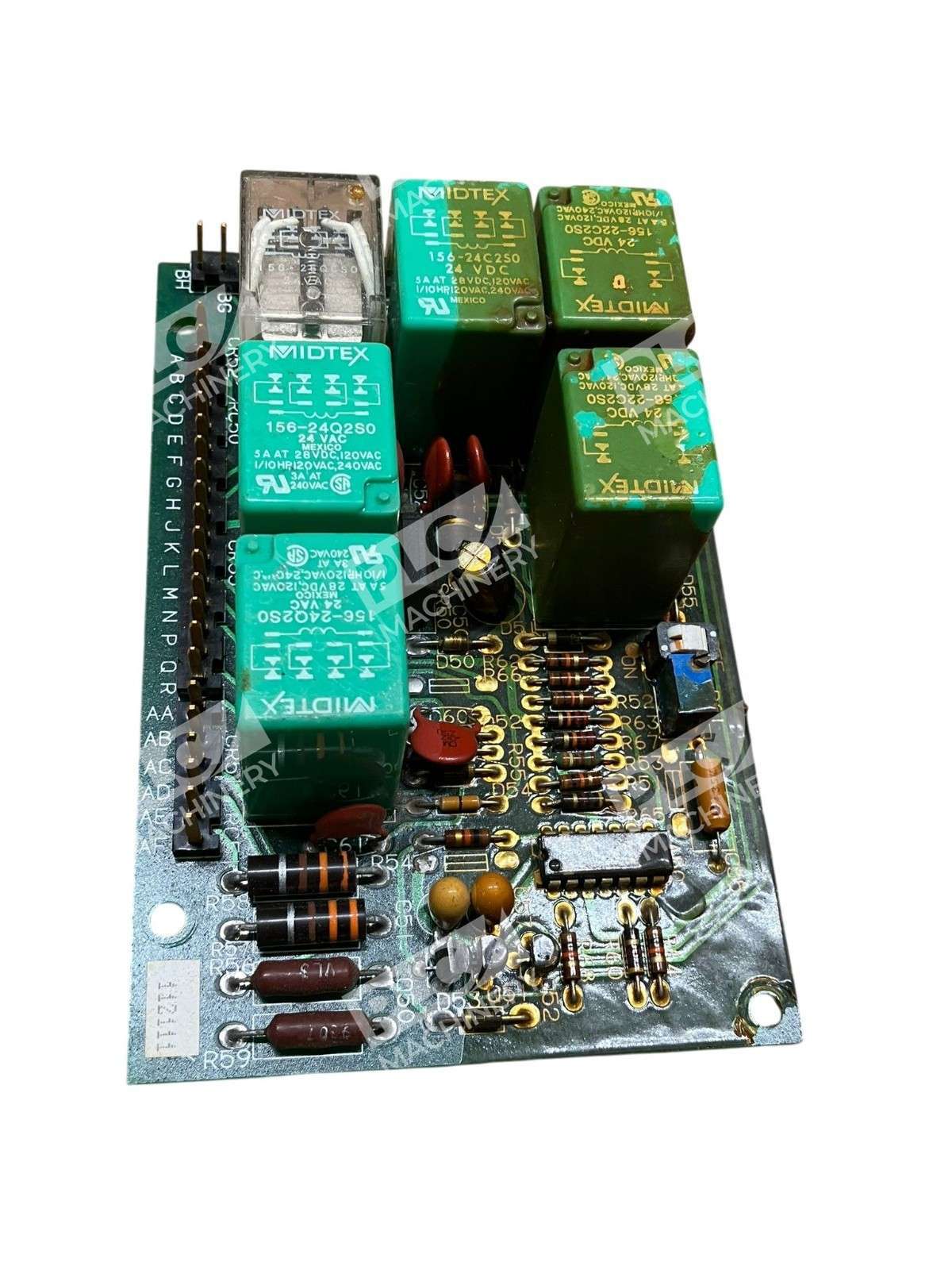

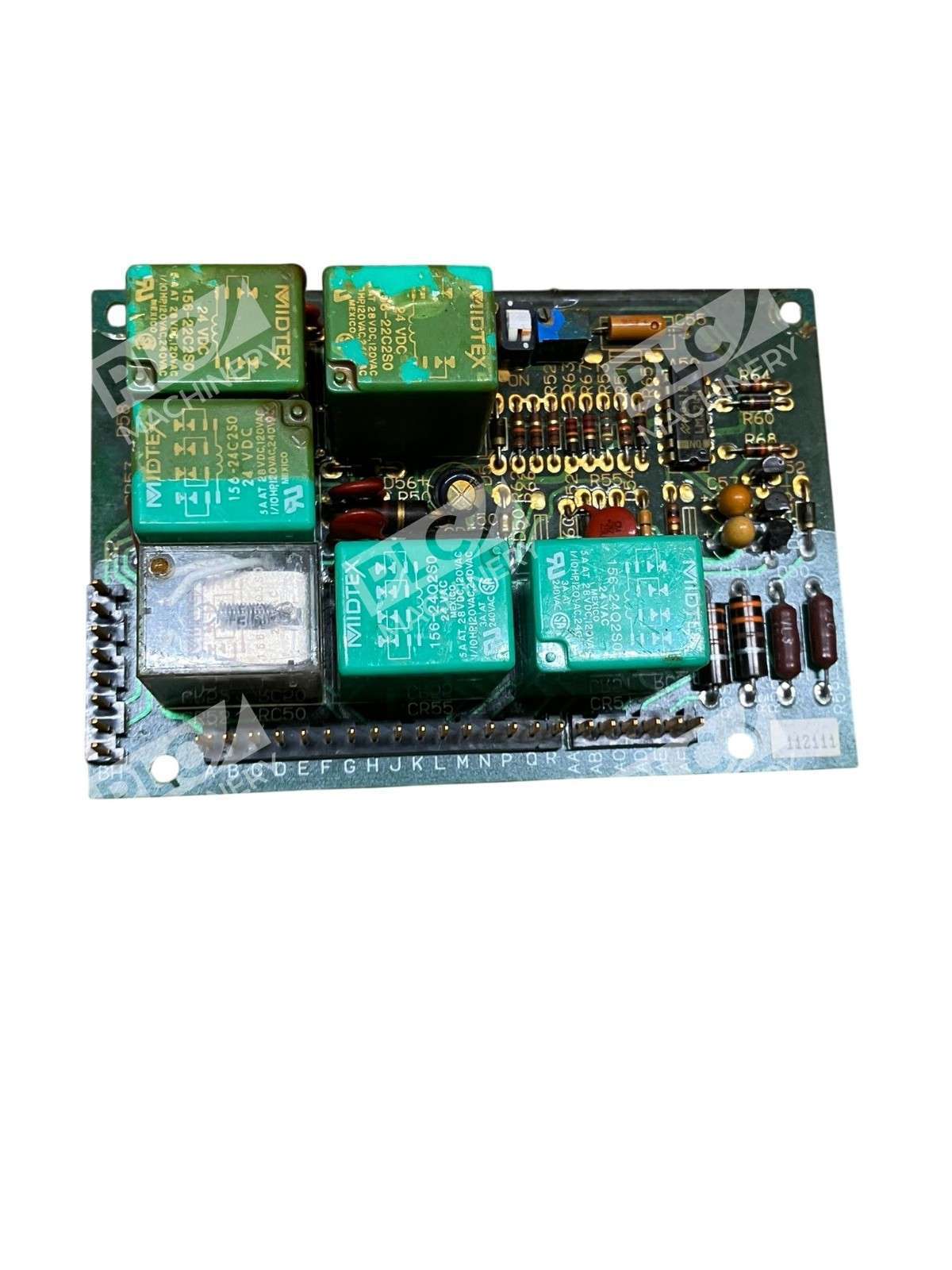

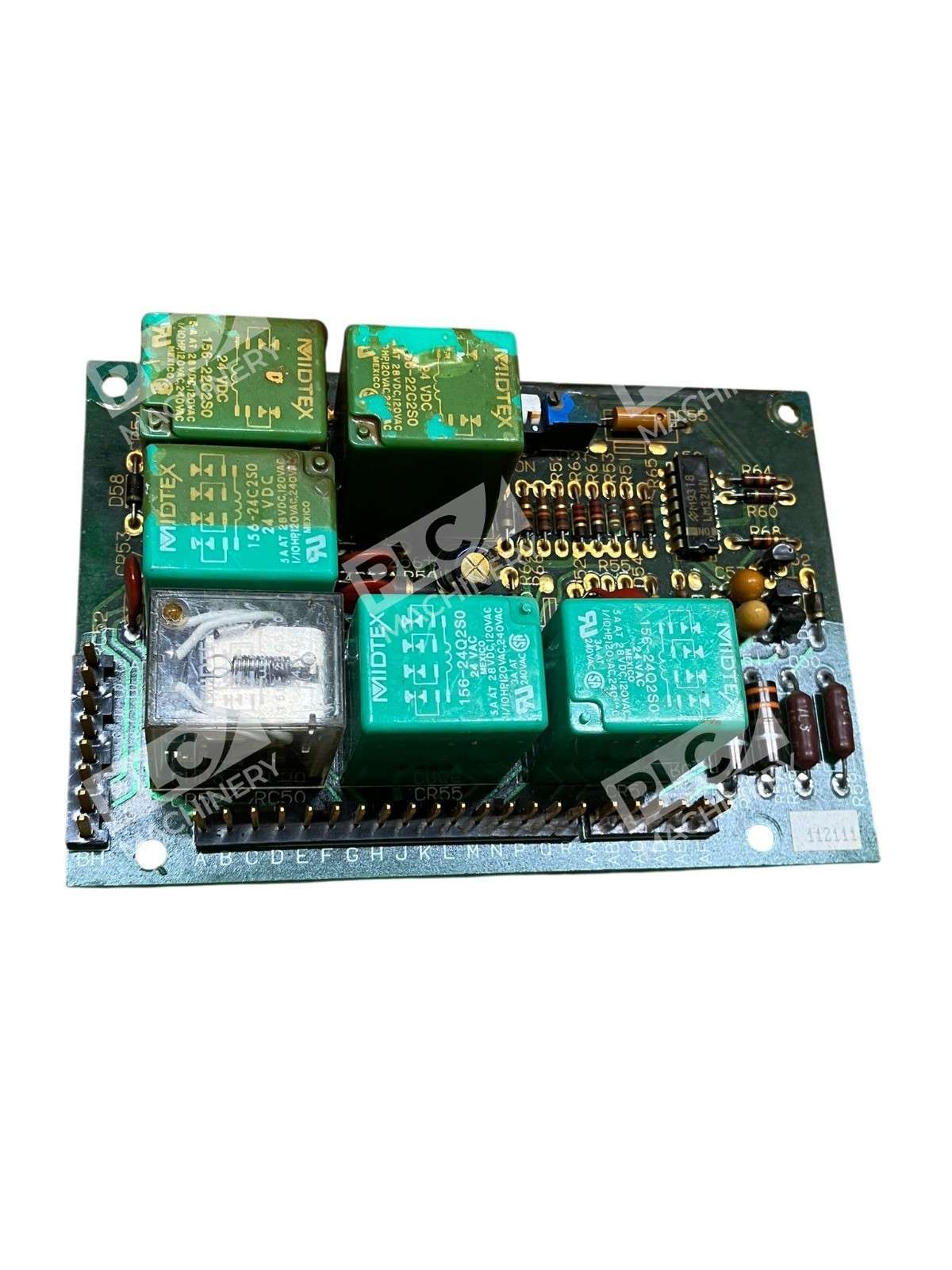

KD-50 Industrial PLC Relay Interface Board with MIDTEX 15A Power Relays
Overview
The KD-50 Industrial PLC Relay Interface Board is a general-purpose relay coupling module designed to bridge programmable logic controllers with power relay switching systems. Equipped with MIDTEX 15A power relays, this interface board provides robust isolation and switching capability between low-voltage PLC outputs and higher-power field devices. Made in the United States, it offers industrial-grade reliability for machinery control and process automation.
Key Features
- Integrated MIDTEX 15A power relays for high-capacity switching
- Direct PLC output coupling without external relay modules
- General-purpose relay configuration suitable for multiple automation applications
- United States manufactured industrial-grade construction
- Compact interface board design for standard panel mounting
Technical Specifications
The following specifications apply to this relay interface board:
- Relay Contact Rating: 15A per relay
- Relay Type: Electromechanical power relay
- Series: KD-50
- Relay Manufacturer: MIDTEX (TE Connectivity)
- Product Category: PLC relay interface board
- Manufacturing Origin: United States
Typical Applications
- Industrial machinery control and automation systems
- Motor starter and pump relay interfaces
- Process control switching and interlocking logic
- Discrete output expansion for PLC systems
- Factory automation and production line control
Compatibility & Replacements
Compatible With
- Standard PLC output modules (24 VDC, AC control signals)
- General-purpose industrial automation controllers
- Power relay systems and contact loads
- DIN rail and panel-mount installations
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This is a general-purpose relay interface board; specific model interchangeability should be confirmed with your application requirements.
Works With
- Relay logic and sequential control systems
- Industrial motor control circuits
- Standard AC and DC switching applications
- Discrete I/O field wiring and terminal blocks
