Overview

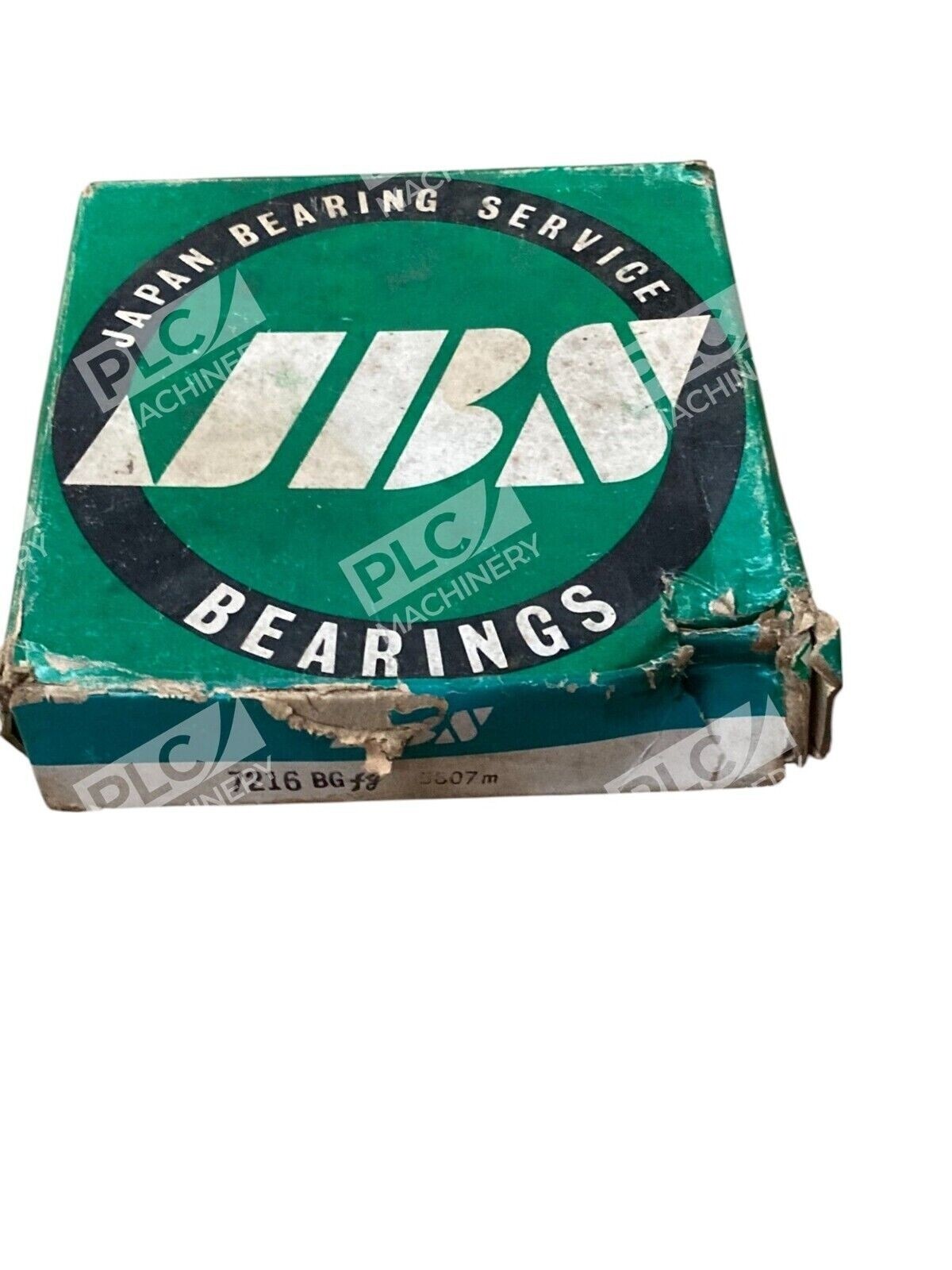

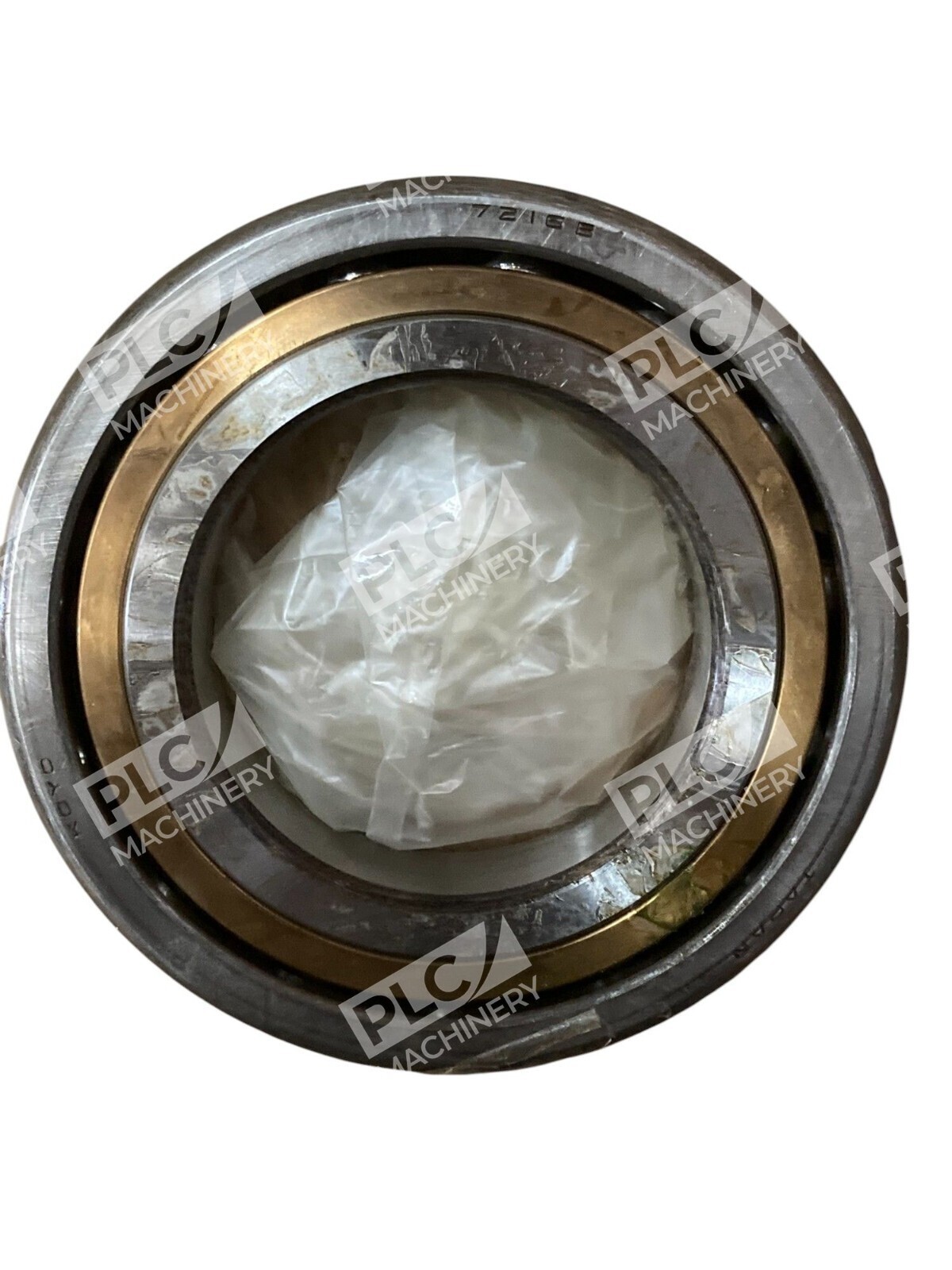

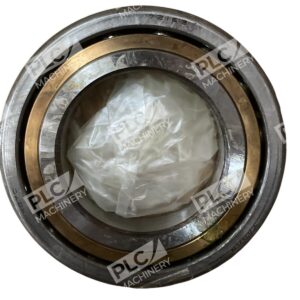

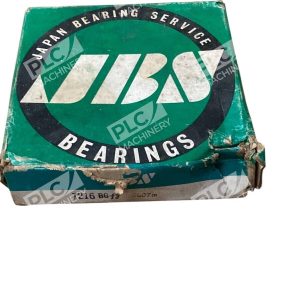

The 7216BG angular contact bearing is a precision-engineered single-row ball bearing designed to handle combined radial and axial loads. With metric dimensions of 80 mm bore, 140 mm outside diameter, and 26 mm width, this bearing delivers reliable performance in demanding industrial applications requiring high-speed, high-precision operation.
Key Features
- Single-row design for compact installation
- 40-degree contact angle optimized for axial load capacity
- High carbon chrome steel construction for durability
- Pressed steel cage for stable ball retention
- Open design—no seals or shields
- Non-separable bearing assembly
Technical Specifications
- Bore Diameter (d): 80 mm
- Outer Diameter (D): 140 mm
- Width (W): 26 mm
- Contact Angle: 40°
- Dynamic Load Rating (Cr): 80,500 N
- Material: High carbon chrome steel
- Cage Type: Pressed steel
- Speed Limit (Grease): 4,300 rpm
- Speed Limit (Oil): 5,700 rpm
- Operating Temperature: −40°C to +120°C
- Closure Type: Open (no shields/seals)
- Separability: Non-separable
Typical Applications
Angular contact ball bearings are commonly used in machine tools, feed screw mechanisms, ball screw support units, pumps, compressors, gearboxes, conveyor systems, and industrial spindles. The 7216BG’s 40-degree contact angle provides excellent thrust capacity when loads are applied in one direction, making it ideal for applications where axial preload is required or where combined loads dominate. These bearings are often mounted in pairs to achieve bidirectional axial load capacity.
Compatibility & Replacements
Compatible With
- Industrial machinery requiring ISO 7216-series bearings
- Machine tool spindles and high-speed applications
- Ball screw support systems
- Gearboxes and transmission assemblies
- Pump and compressor shafts
- Conveyor and assembly line equipment
Replaces / Drop-In Replacement For
The 7216BG designation is an ISO standard bearing size available from multiple OEMs. Verify compatibility with your equipment documentation before ordering. Potential equivalent models across manufacturers include variants from NTN, SKF, FAG, NSK, Rollway, and other bearing manufacturers—all sharing the 80×140×26 mm geometry and 40° contact angle.
Works With
- Grease and oil lubrication systems
- Standard bearing mounting hardware and housings
- Duplex mounting arrangements (bearing pairs)
- Metric shaft and bore specifications
