Overview

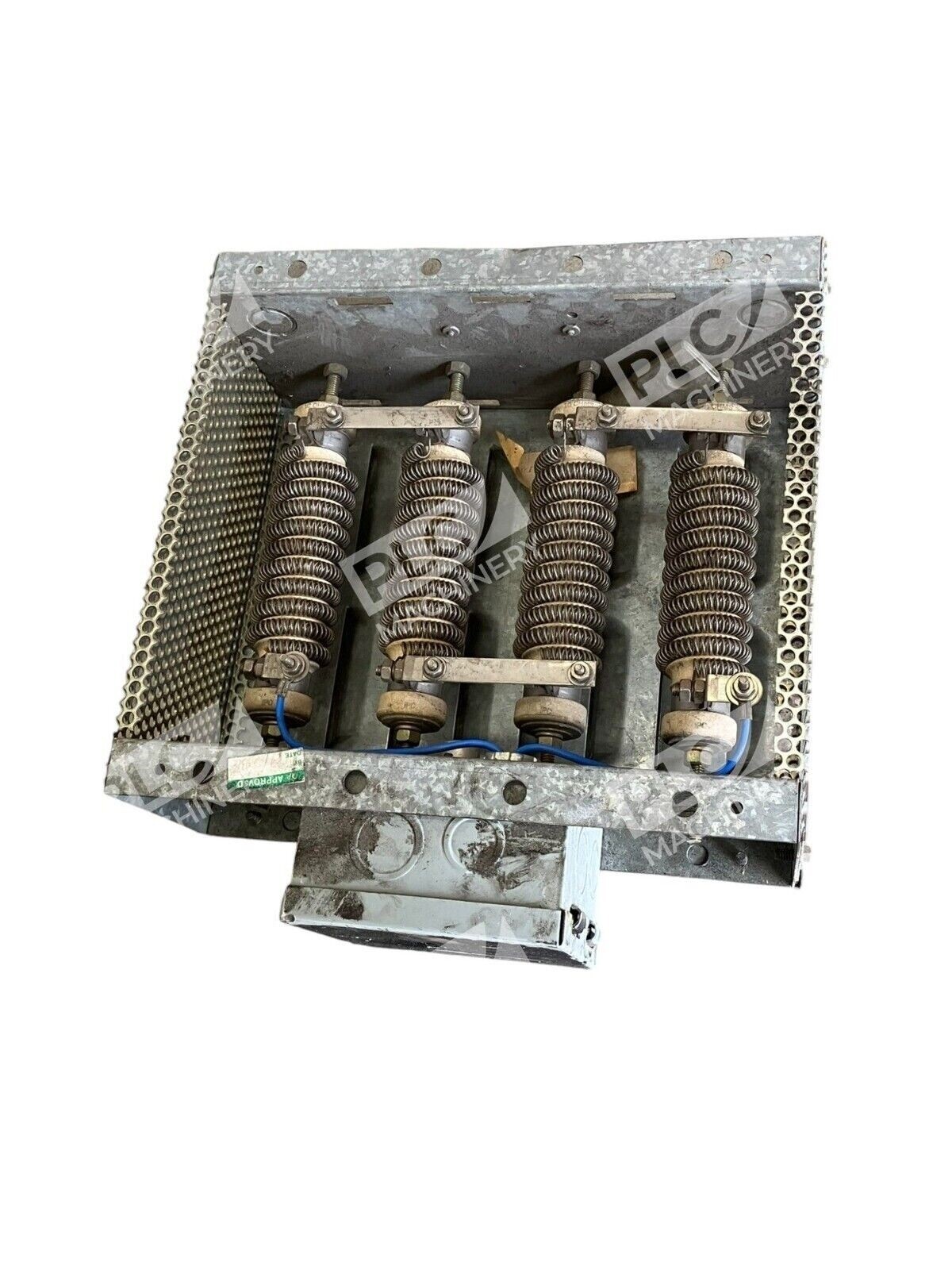

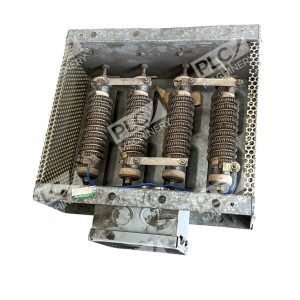

The IPC 05P00041-0759 is a heavy-duty power resistor rated at 40 ohms and 1560 watts. Part of IPC Power Resistors International’s 218-8 series, this unit is designed for dynamic braking, load-dump, and power dissipation applications common in industrial motor drives, VFDs, and automation systems. The IPC 05P00041-0759 provides reliable, predictable resistance in demanding industrial environments.
Key Features
- Resistance: 40 ohms, standard tolerance
- Power Rating: 1560 watts continuous or intermittent duty
- Series: 218-8 heavy-duty design
- Industrial-grade construction suitable for drive and braking circuits
- Used condition; tested for full operability
- Quick-ship availability

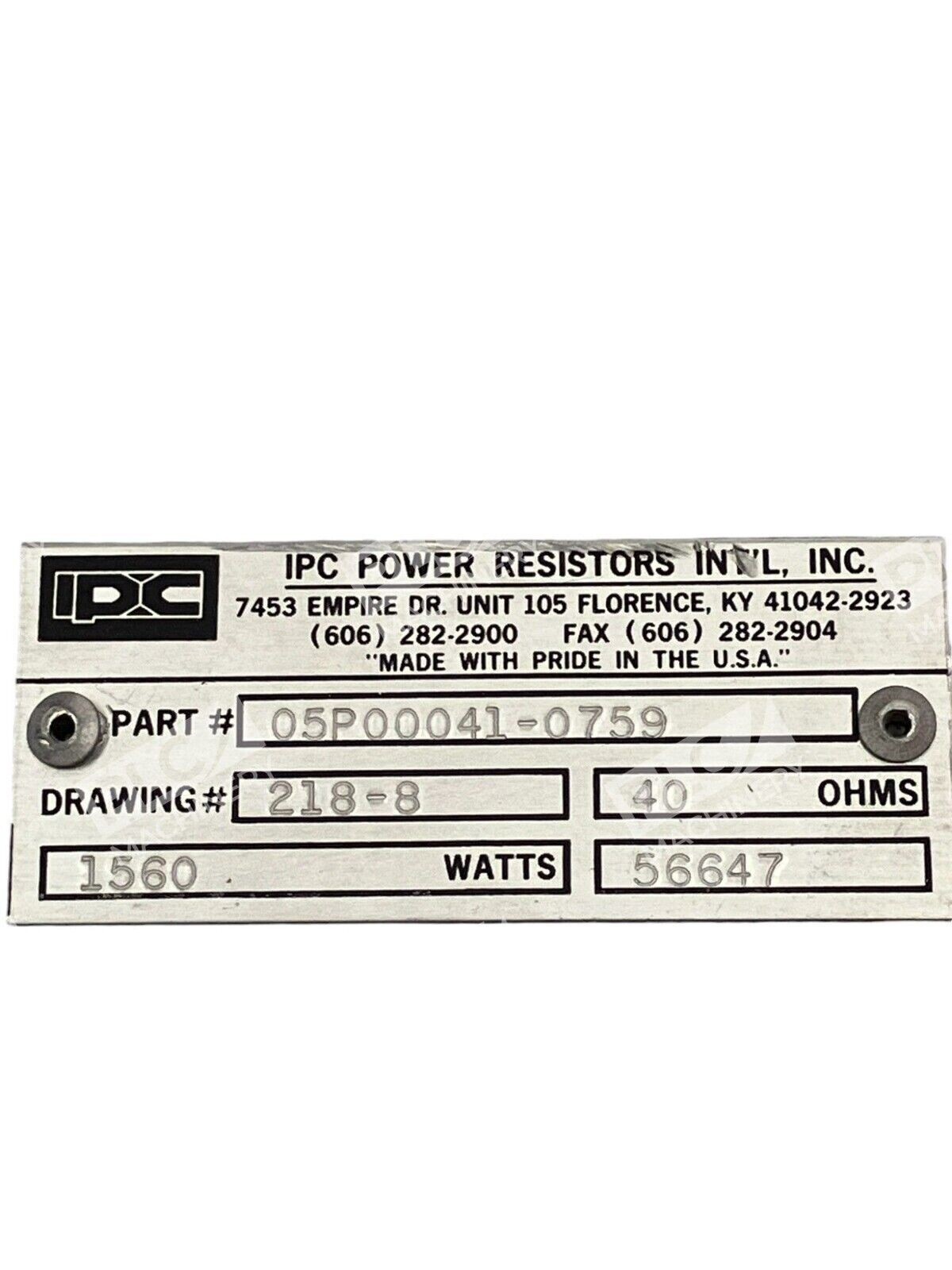

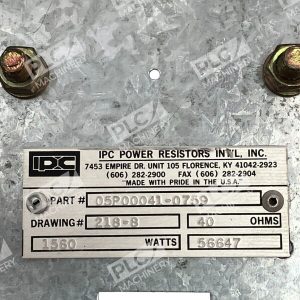

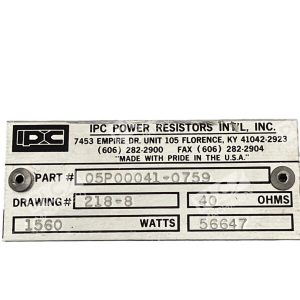

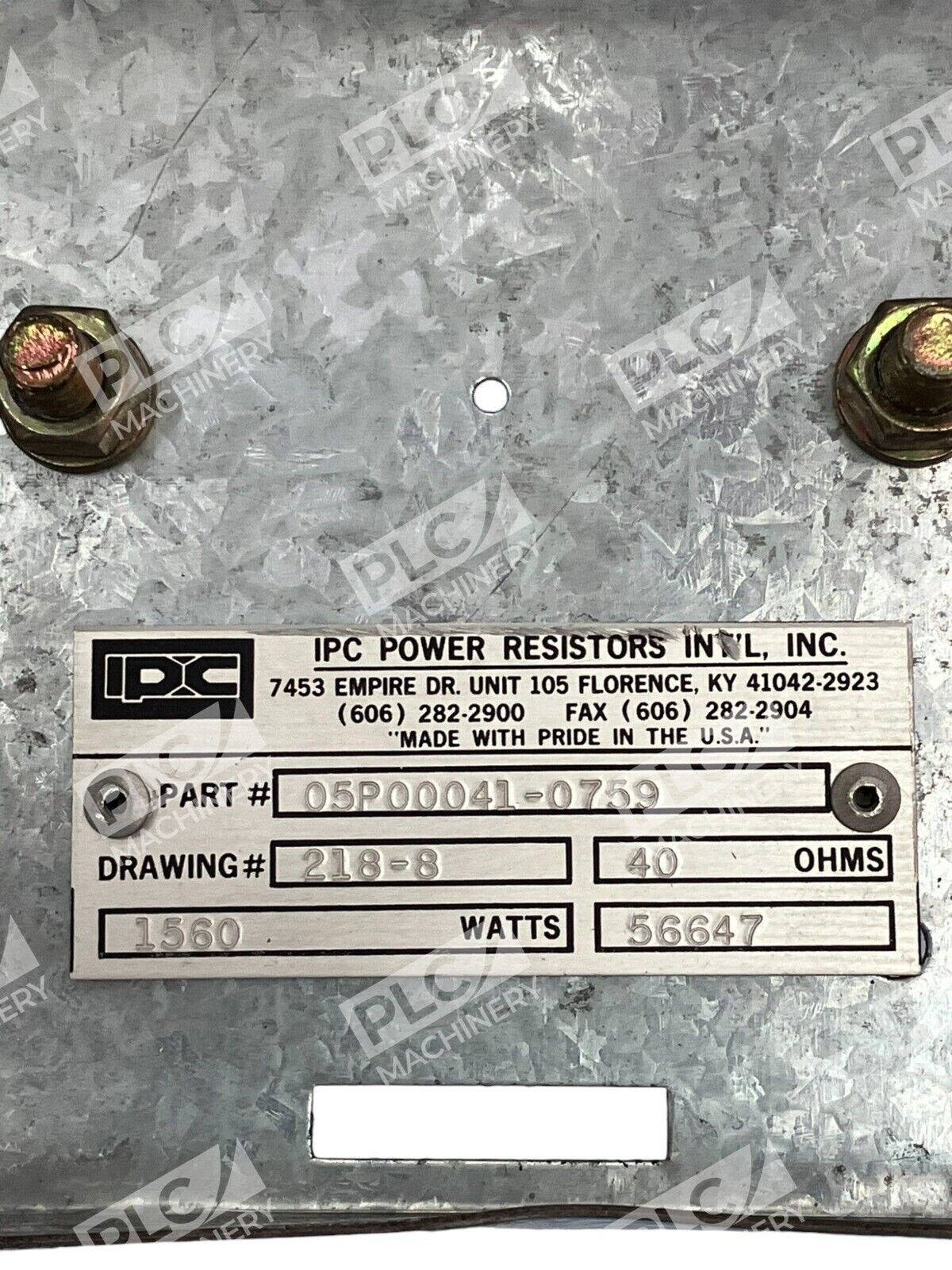

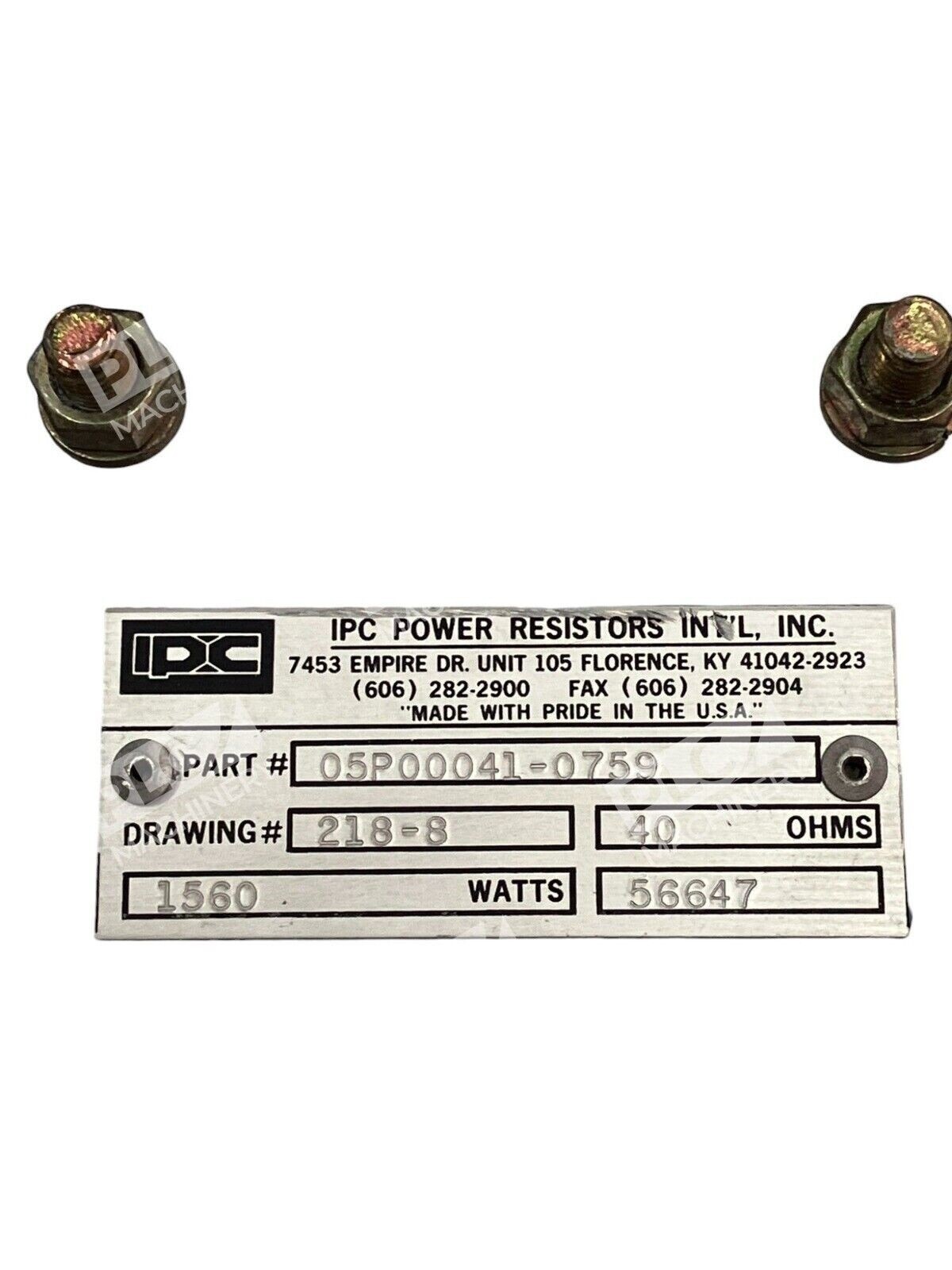

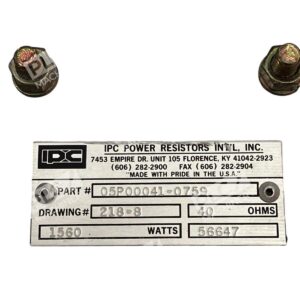

Technical Specifications
- Resistance: 40Ω
- Power Rating: 1560W
- Series: 218-8
- Part Number: 05P00041-0759
- Manufacturer: IPC Power Resistors International
- Construction: Heavy-duty industrial-grade
- Application Type: Power dissipation, dynamic braking
Typical Applications
The IPC 05P00041-0759 is commonly deployed in:
- AC and DC motor drive braking circuits
- VFD regenerative energy dissipation
- Load-dump and dynamic braking resistors
- Industrial automation and process control systems
- Heavy machinery and conveyor systems
- Retrofit and replacement scenarios in legacy control cabinets
Compatibility & Replacements
Compatible With
- AC induction and synchronous motor drives
- DC motor control circuits
- Variable frequency drives (VFDs)
- Soft starters and motor controllers
- Industrial automation control systems
- Standard 3-phase and single-phase drive applications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Other IPC power resistor models in similar resistance and power ranges may be interchangeable; consult application notes and circuit schematics to confirm electrical and mechanical fit.
Works With
- Allen-Bradley and Rockwell Automation drive systems
- Siemens SINAMICS and MICROMASTER drives
- Mitsubishi FR-E and FR-A series VFDs
- Schneider Electric Altivar drives
- ABB ACS and ACH series drives
- Standard industrial enclosures and heatsink assemblies
