<h2>Overview</h2>

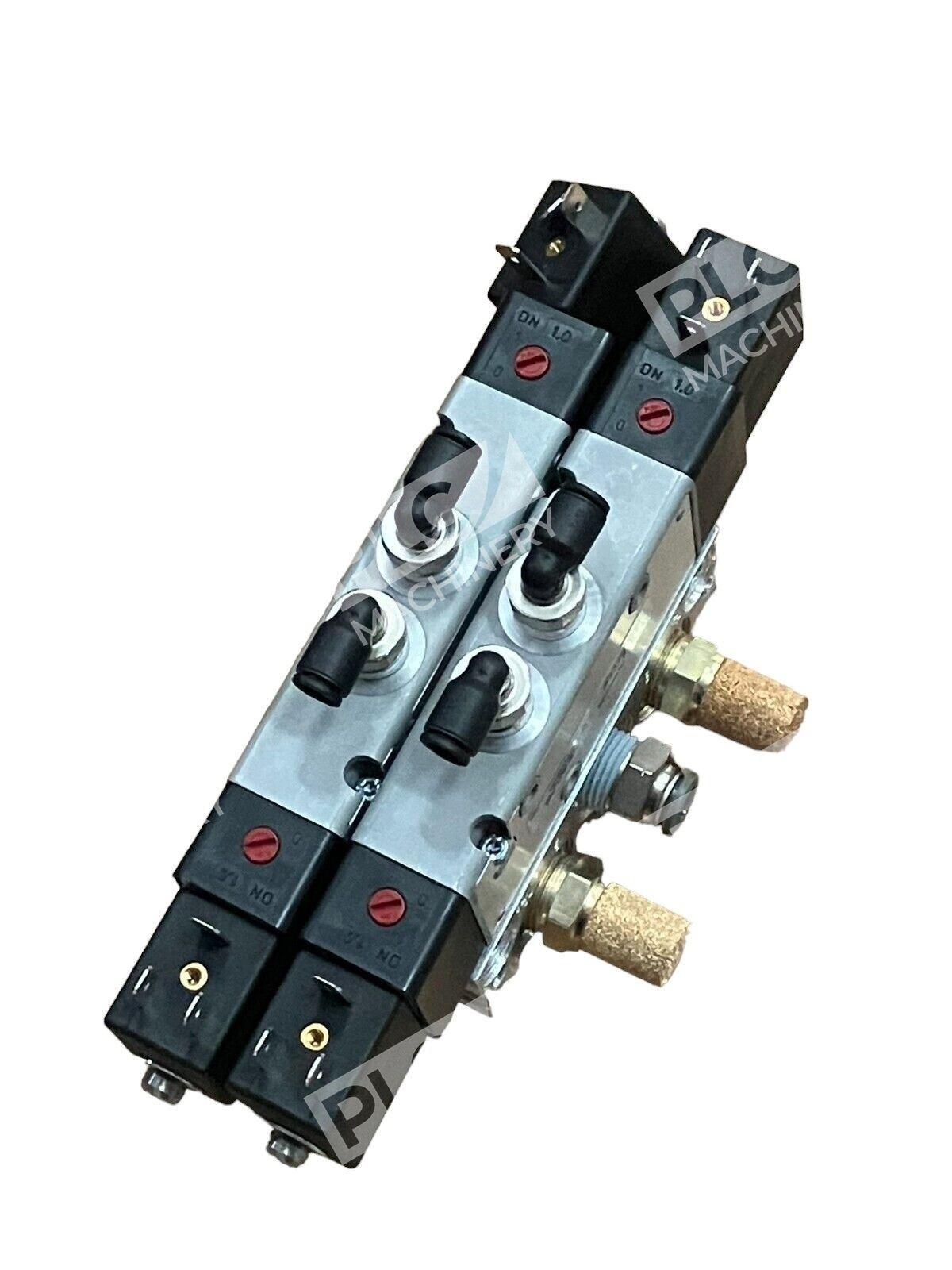

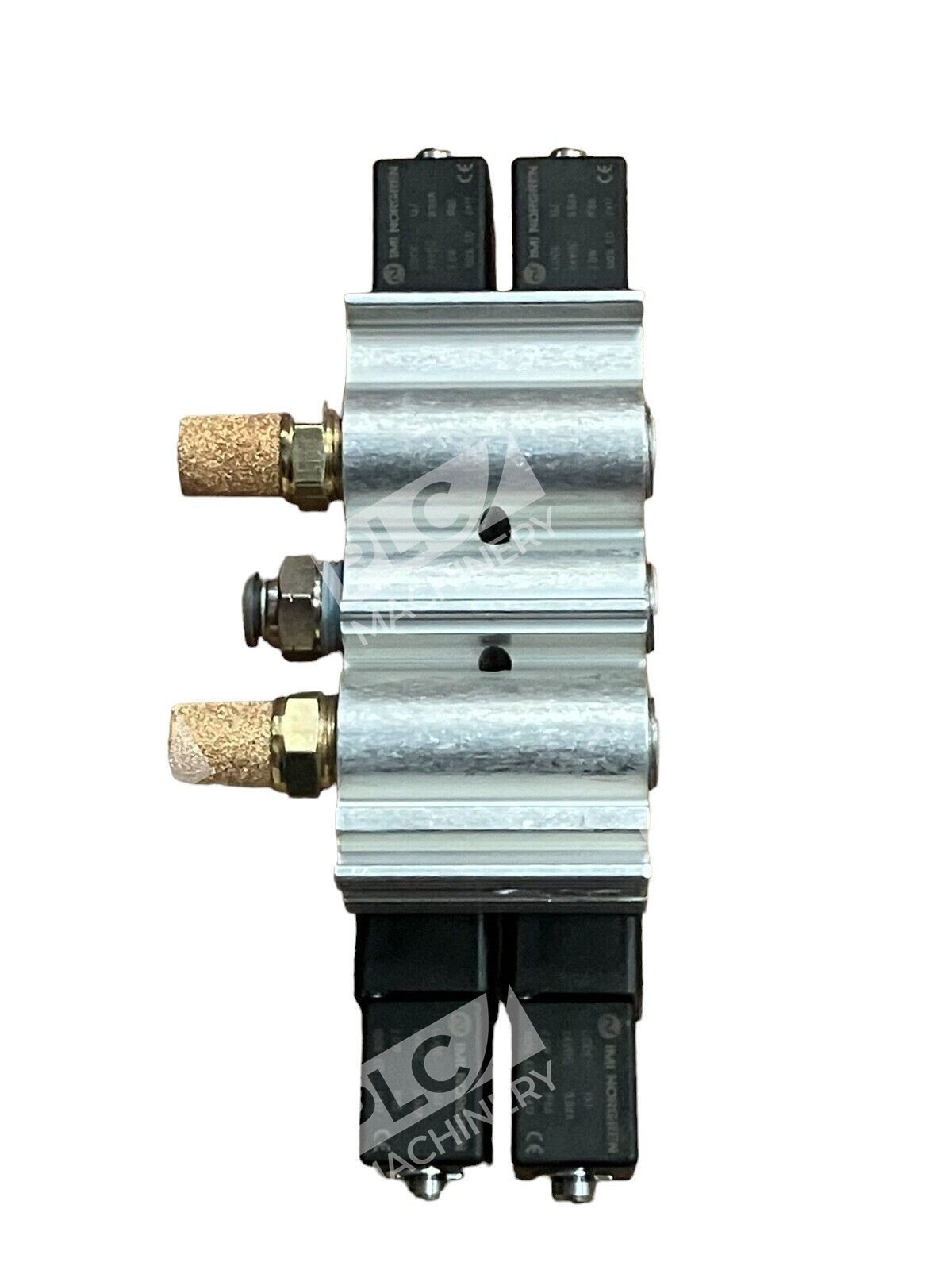

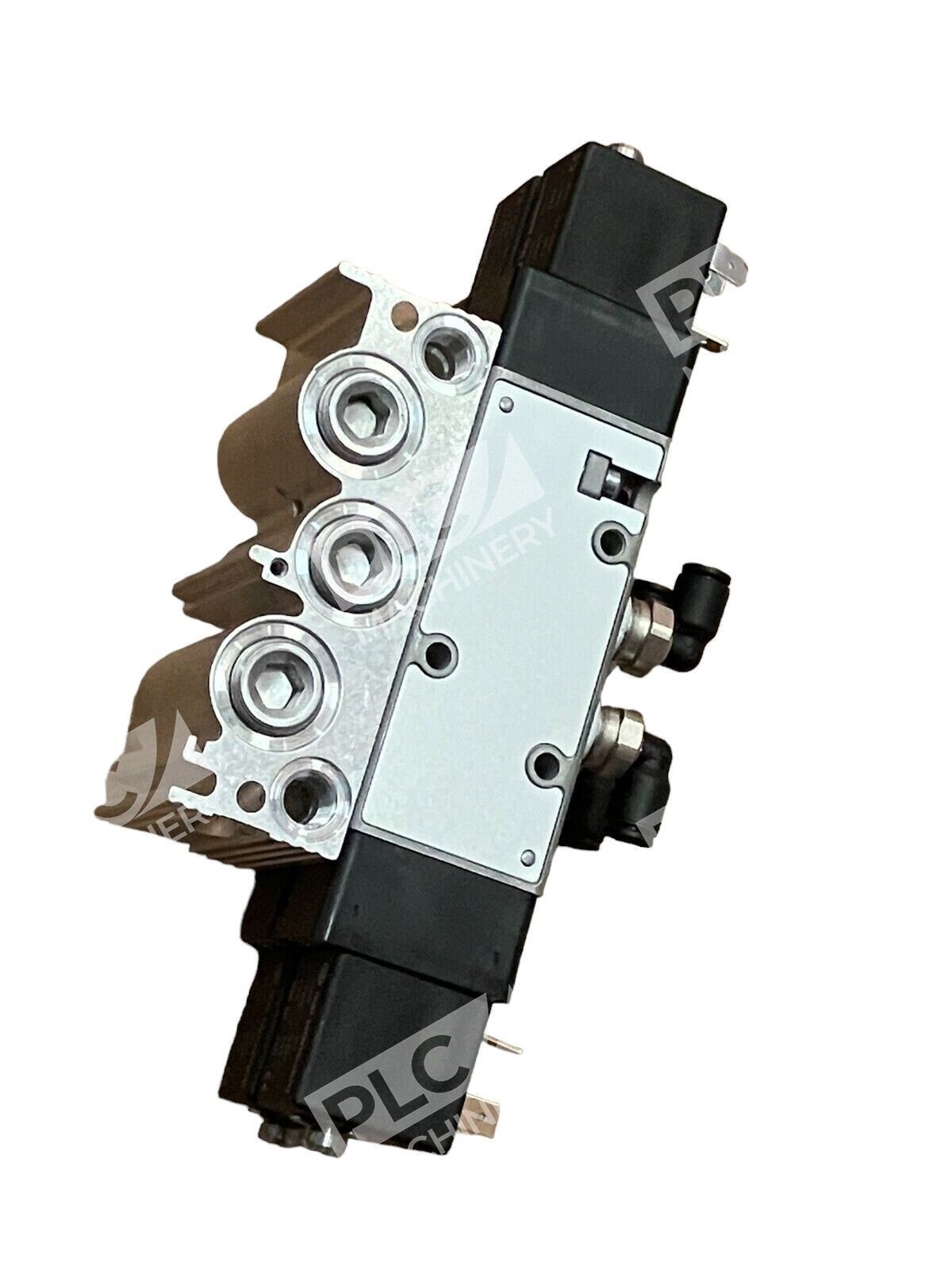

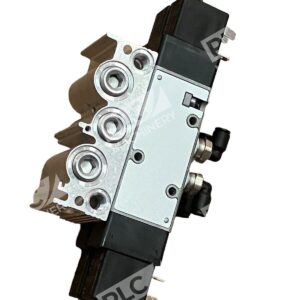

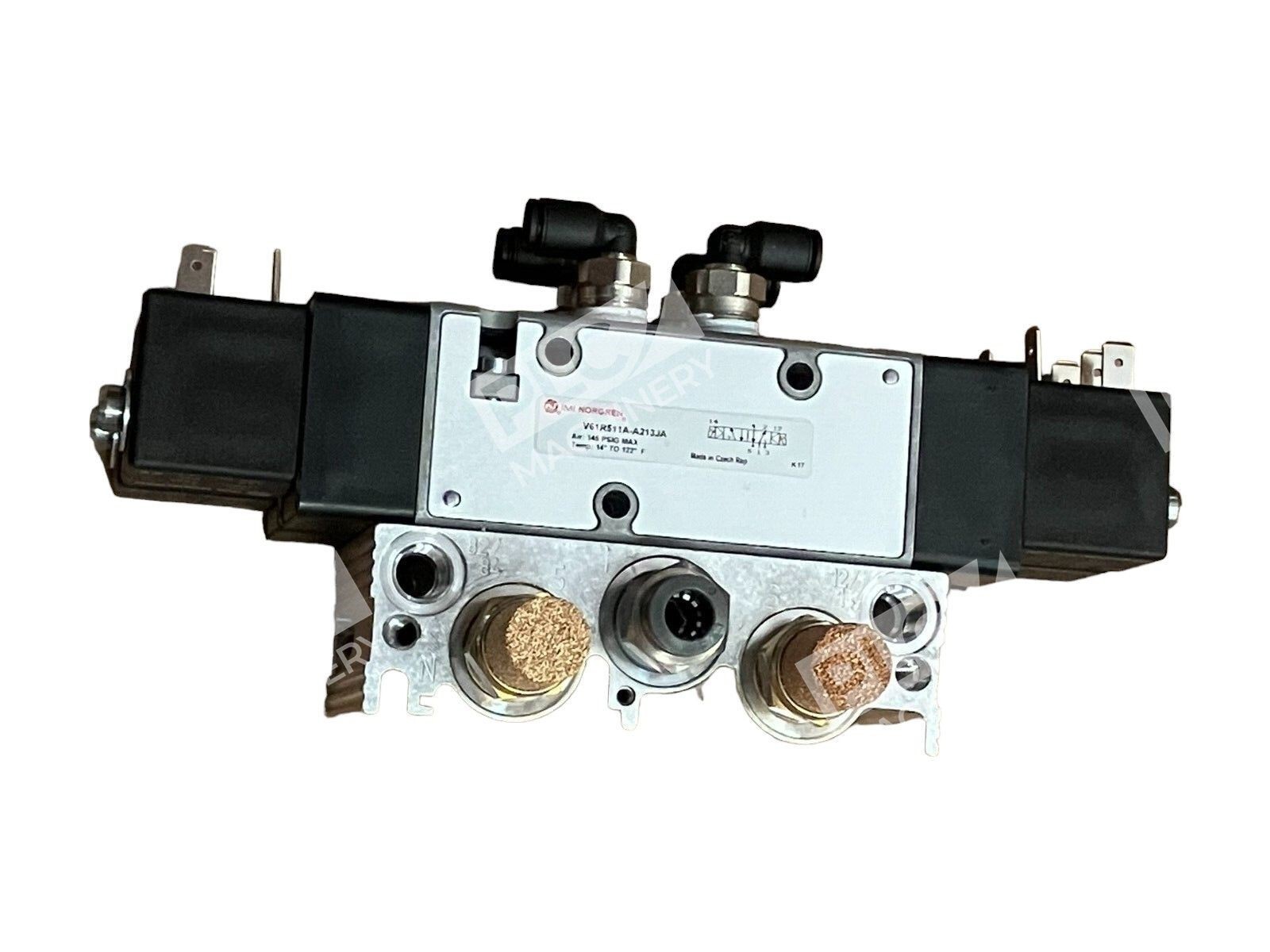

<p>The <strong>Norgren V61R511A-A213JA</strong> is a 5/2 directional control valve from Norgren’s V61 Series, engineered for high-flow pneumatic applications. This unit features 24VDC solenoid actuation with solenoid return logic, delivering reliable, compact operation in industrial automation, machine control, and fluid power systems. The valve operates on compressed air filtered to 50 microns and is designed for both lubricated and non-lubricated air streams.</p>
<h2>Key Features</h2>
<ul>
<li>5/2 directional control valve with two solenoids (solenoid-actuated / solenoid return)</li>
<li>24VDC low-power, energy-efficient solenoid coil rated for continuous duty</li>
<li>High flow capacity: 1,300 L/min at rated pressure</li>
<li>Rated for 145 psi (10 bar) maximum operating pressure</li>
<li>1/4" NPT port size for standard industrial connections</li>
<li>Aluminum housing and stainless steel internals for durability</li>
<li>IP65 ingress protection for harsh industrial environments</li>
<li>Low maintenance design, compatible with filtered compressed air</li>
</ul>
<h2>Technical Specifications</h2>
<ul>

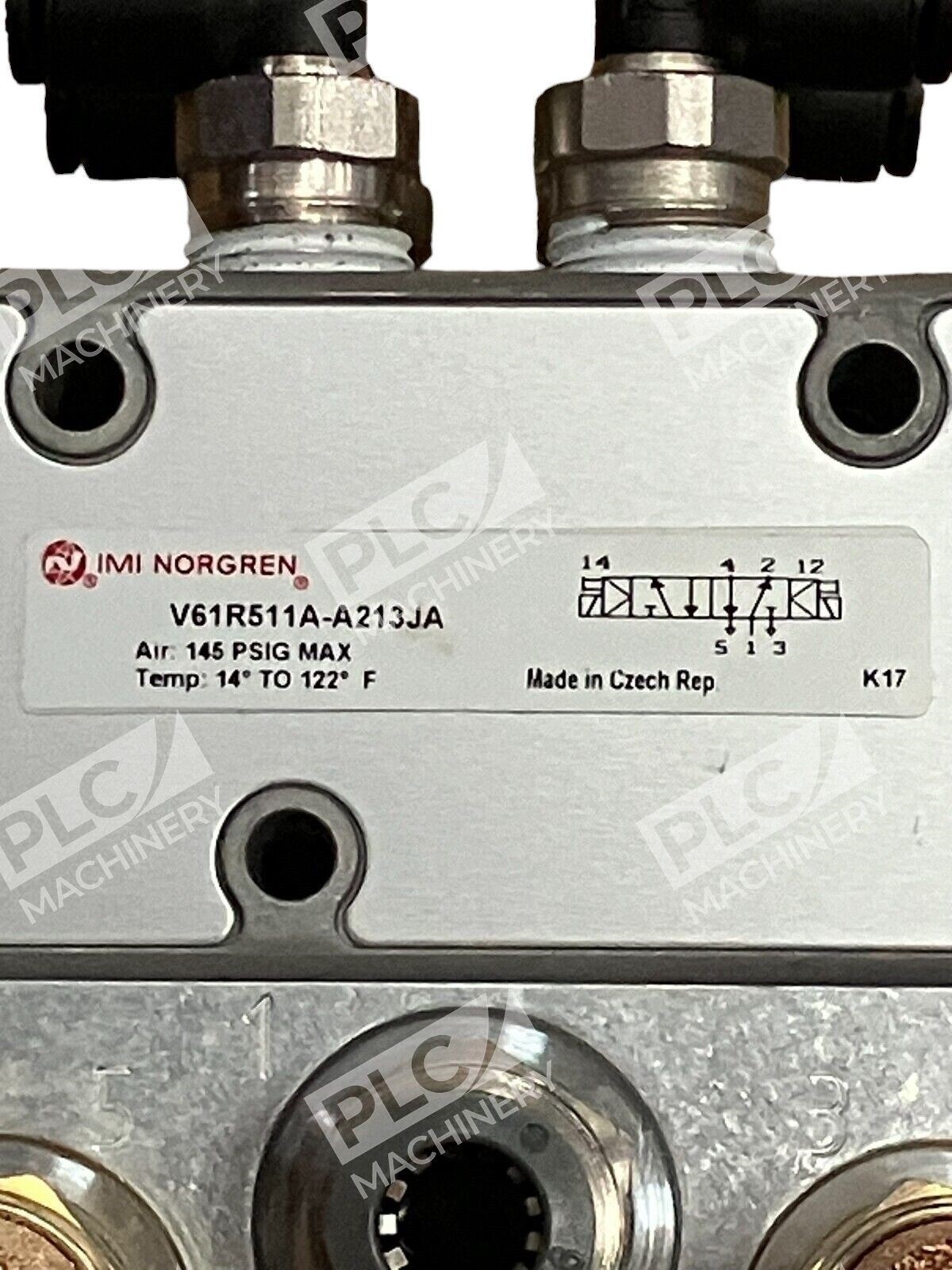

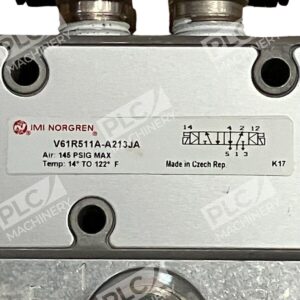

<li><strong>Valve Type:</strong> 5/2 directional control, solenoid-actuated/solenoid return</li>
<li><strong>Voltage:</strong> 24VDC</li>
<li><strong>Port Size:</strong> 1/4" NPT</li>
<li><strong>Maximum Pressure:</strong> 145 psi (10 bar)</li>
<li><strong>Minimum Pressure:</strong> 29 psi (2 bar)</li>
<li><strong>Flow Rate:</strong> 1,300 L/min</li>
<li><strong>Operating Temperature:</strong> −10 to 50°C (14 to 122°F)</li>
<li><strong>Medium:</strong> Compressed air, filtered to 50 μm, lubricated or non-lubricated</li>

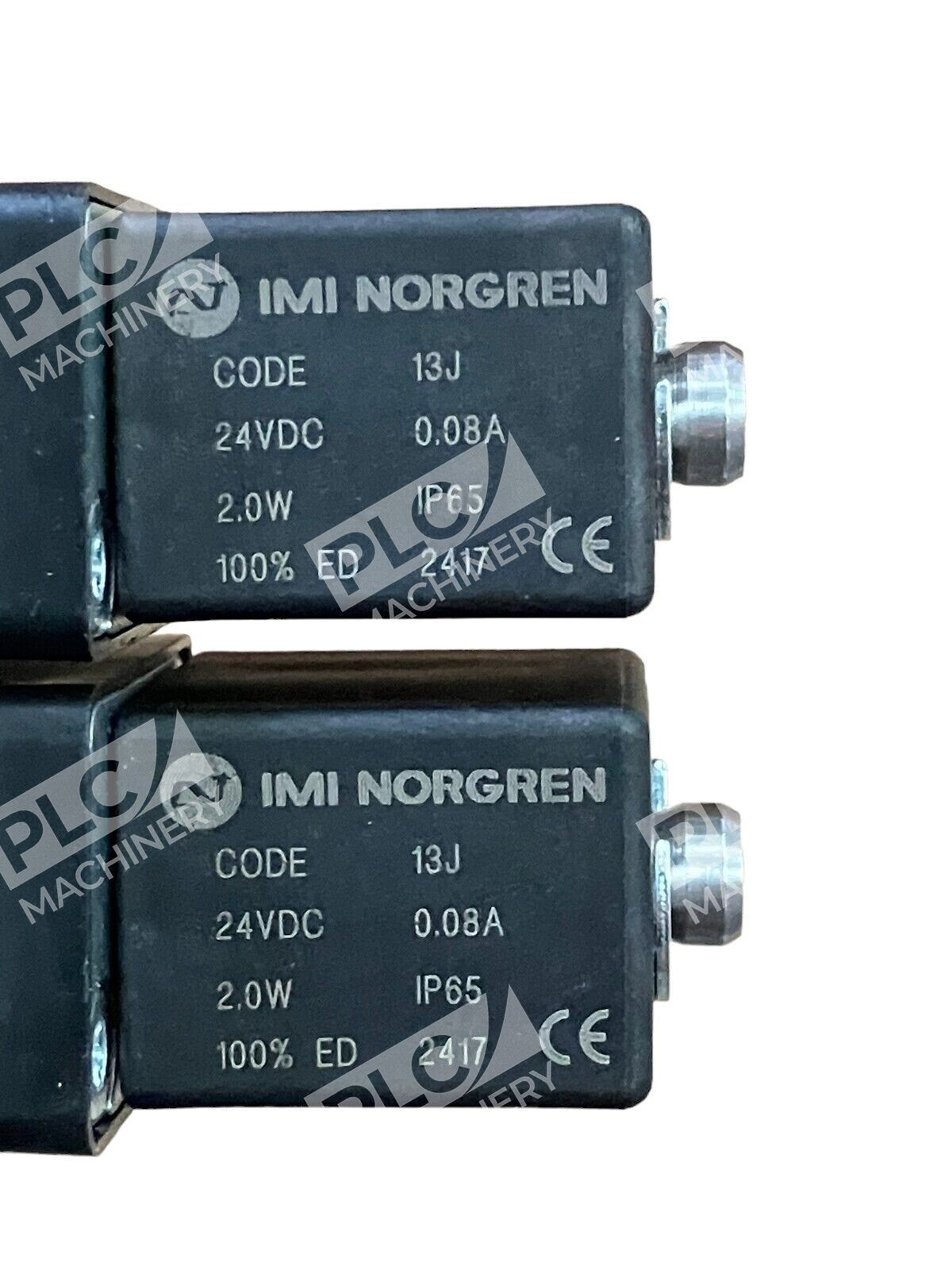

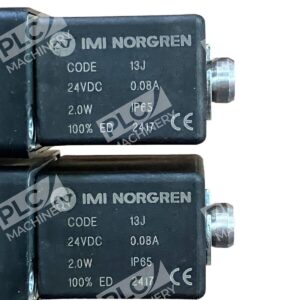

<li><strong>Solenoid Power:</strong> 2W (low-power continuous duty)</li>
<li><strong>IP Rating:</strong> IP65</li>
<li><strong>Housing Material:</strong> Aluminum</li>
<li><strong>Seals:</strong> NBR (Nitrile)</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Pneumatic automation and machine control systems</li>
<li>Actuator switching and cylinder control</li>
<li>Air and fluid power distribution in manufacturing</li>
<li>Industrial process control and automation</li>
<li>OEM equipment and replacement systems</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Standard 24VDC pneumatic automation systems</li>
<li>Industrial compressed air networks (50 micron filtered)</li>
<li>1/4" NPT port pneumatic manifolds and hose connections</li>
<li>Norgren V61 Series accessory components (silencers, fittings, mountings)</li>
<li>Allen-Bradley, Siemens, and other industrial PLC/automation controllers</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>V61R511A-A213JB (24VAC variant on special request)</li>
<li>Other 5/2 solenoid directional valves with 1/4" NPT ports and 24VDC coils</li>
<li>Verify compatibility with your system integrator before ordering.</li>
</ul>
<h3>Works With</h3>
<ul>
<li>24VDC solenoid coil connector standards (standard industrial plugs)</li>
<li>Standard pneumatic compressed air networks</li>
<li>Norgren sub-base manifold systems (check base compatibility)</li>
<li>Industrial automation software and control systems</li>
</ul>
