<h2>Overview</h2>

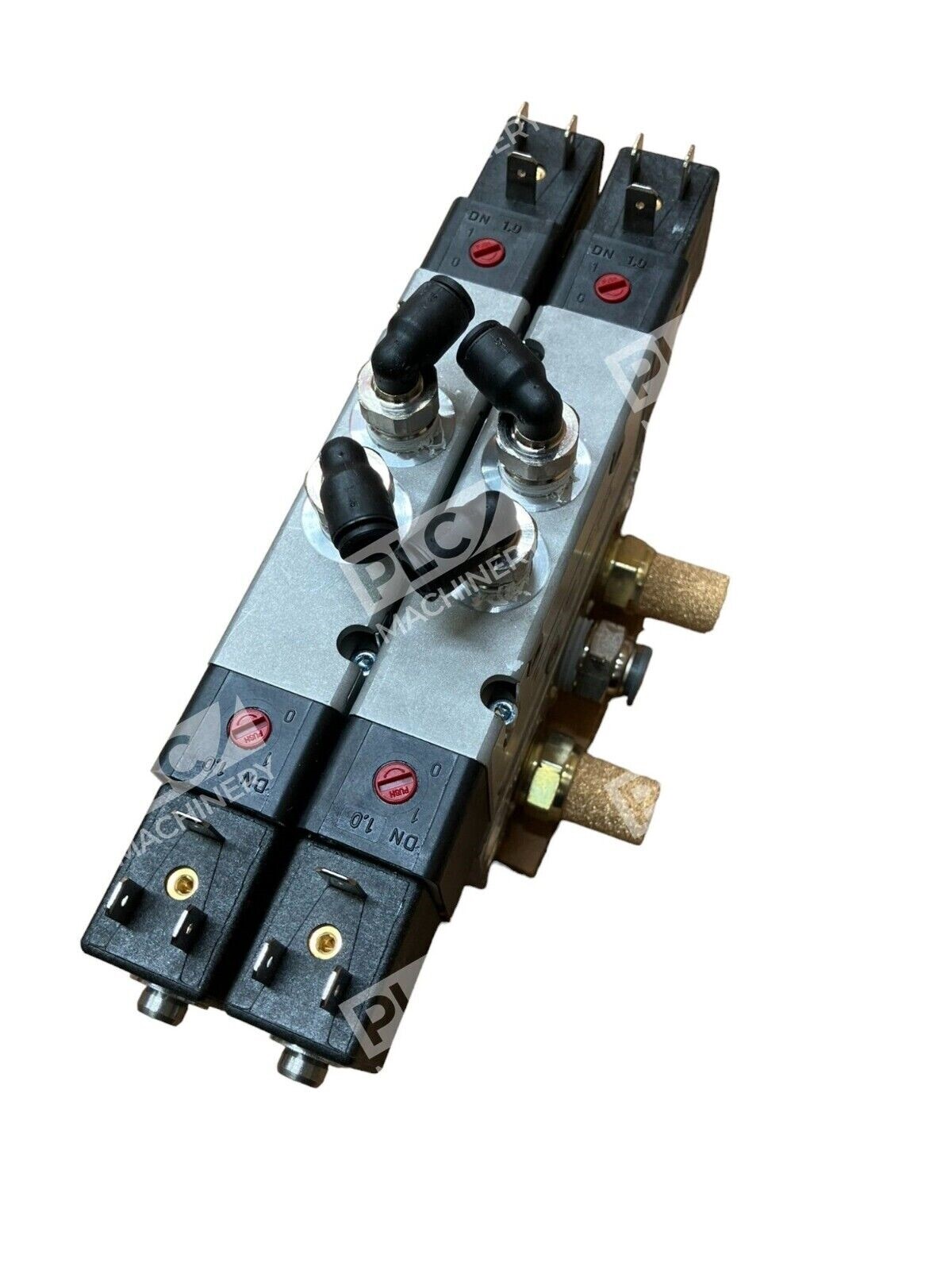

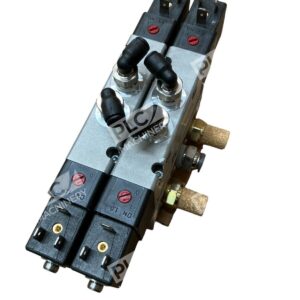

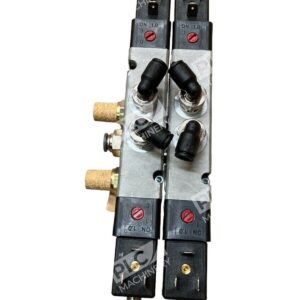

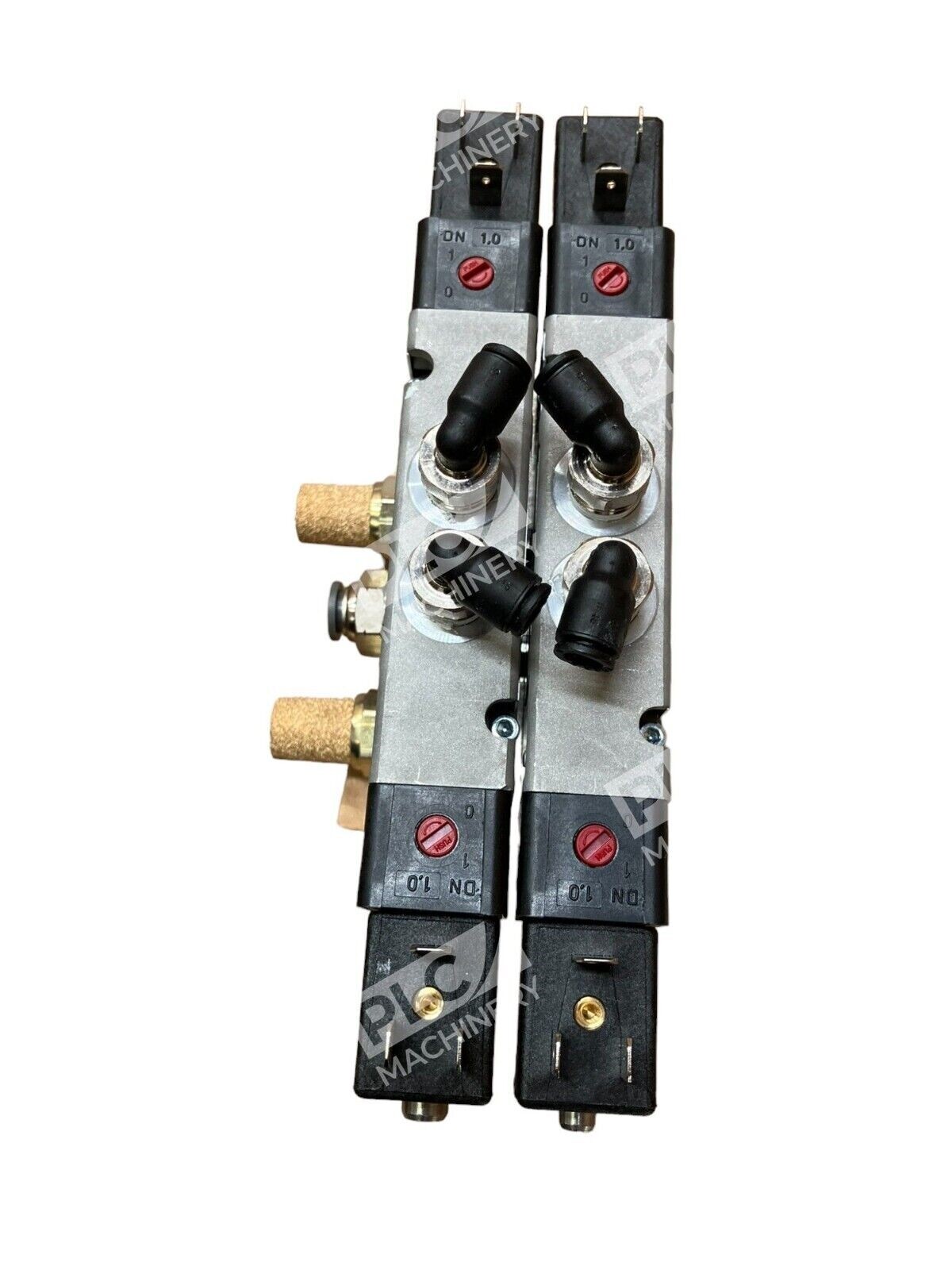

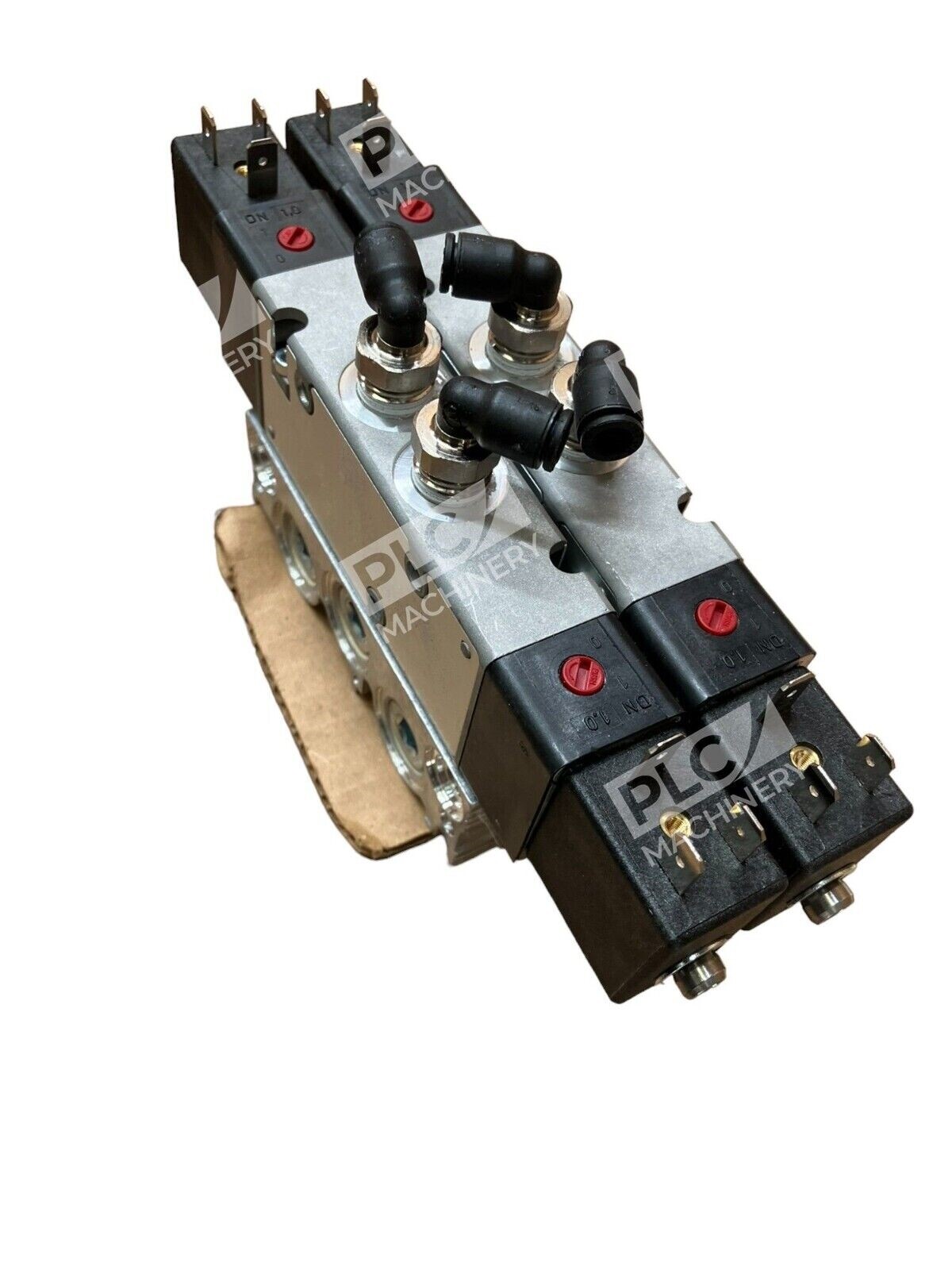

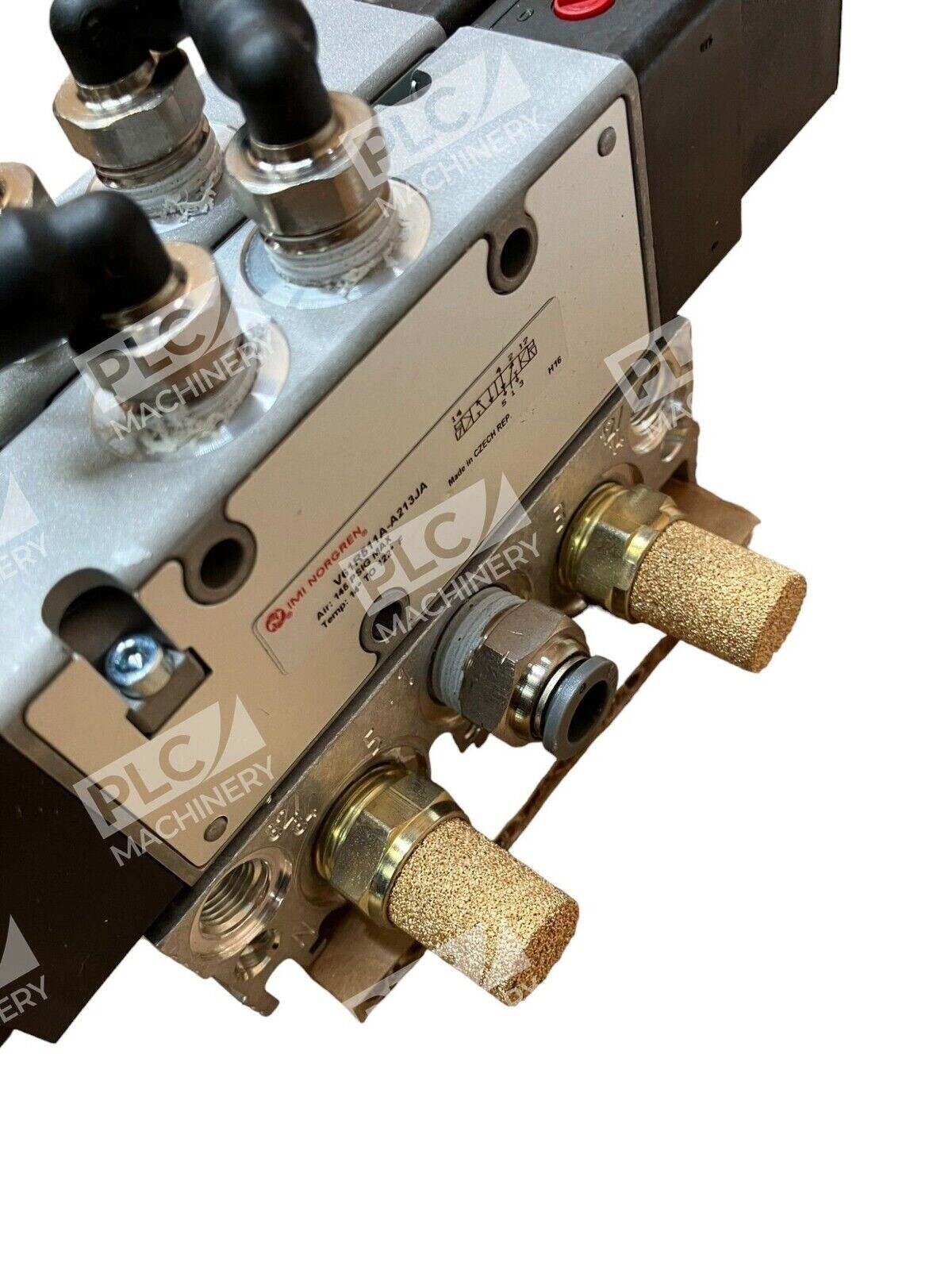

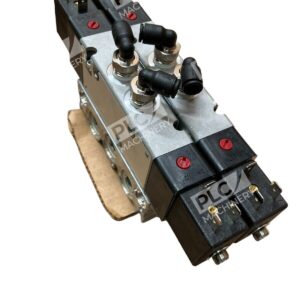

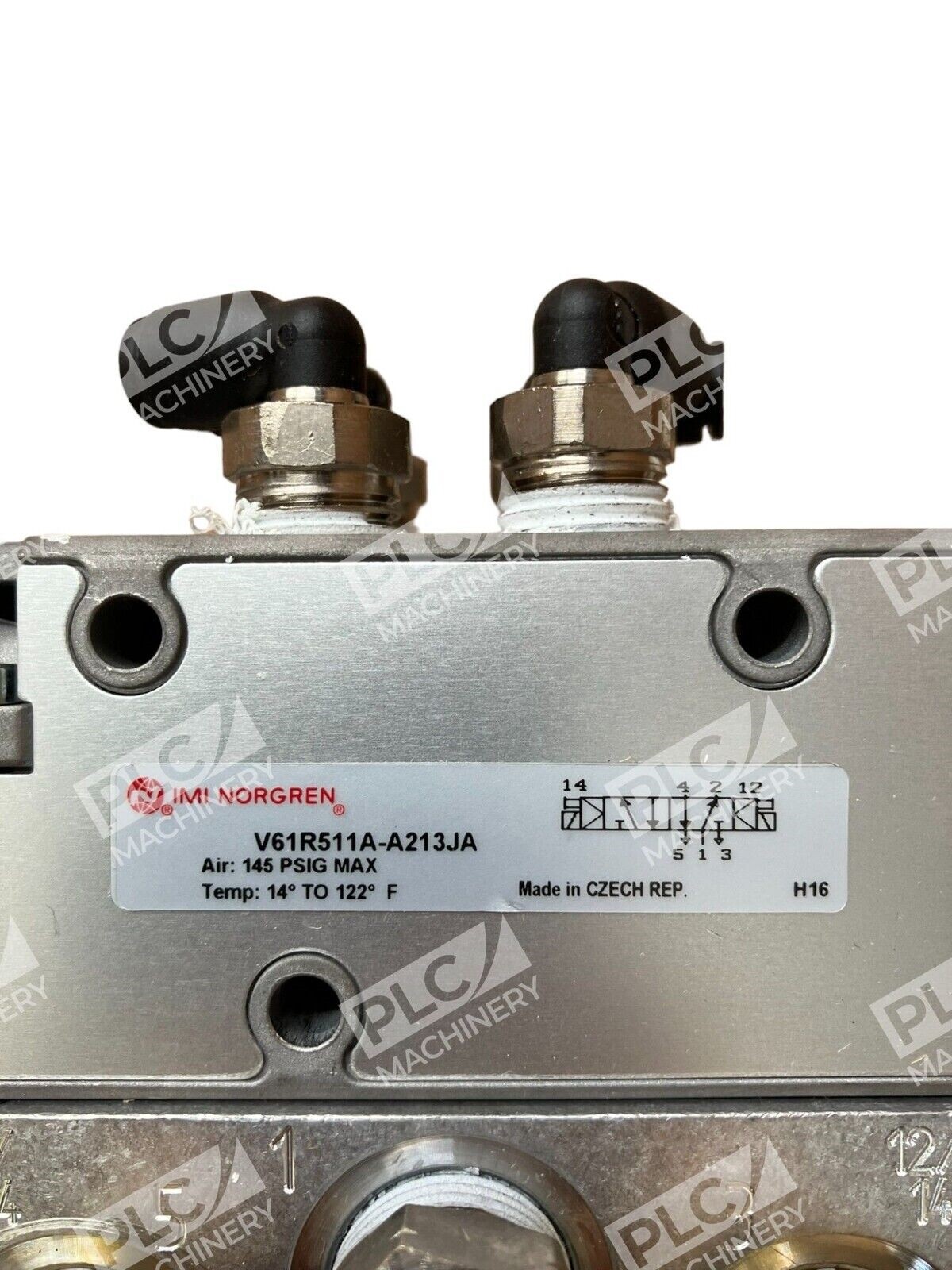

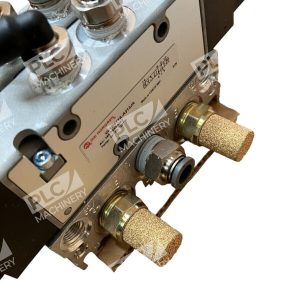

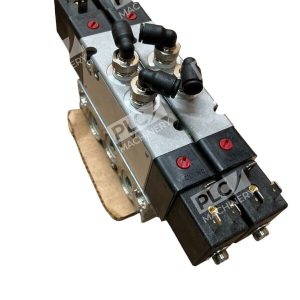

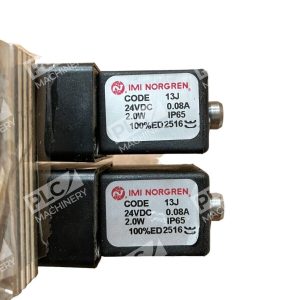

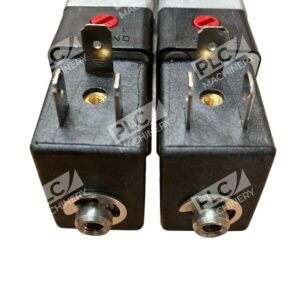

<p>The <strong>IMI Norgren V61R511A-A213JA</strong> is a 5/2 pneumatic directional solenoid valve engineered for compressed air systems in industrial automation, machine tools, and manufacturing equipment. This valve features dual solenoid actuation, allowing precise control of air flow direction without manual intervention. With 24VDC electrical operation and a rugged aluminum housing, it delivers reliable performance in high-speed pneumatic circuits.</p>
<h2>Key Features</h2>
<ul>
<li><strong>5/2 Configuration</strong> — Two solenoids control flow direction with locking spool action for stable state retention</li>

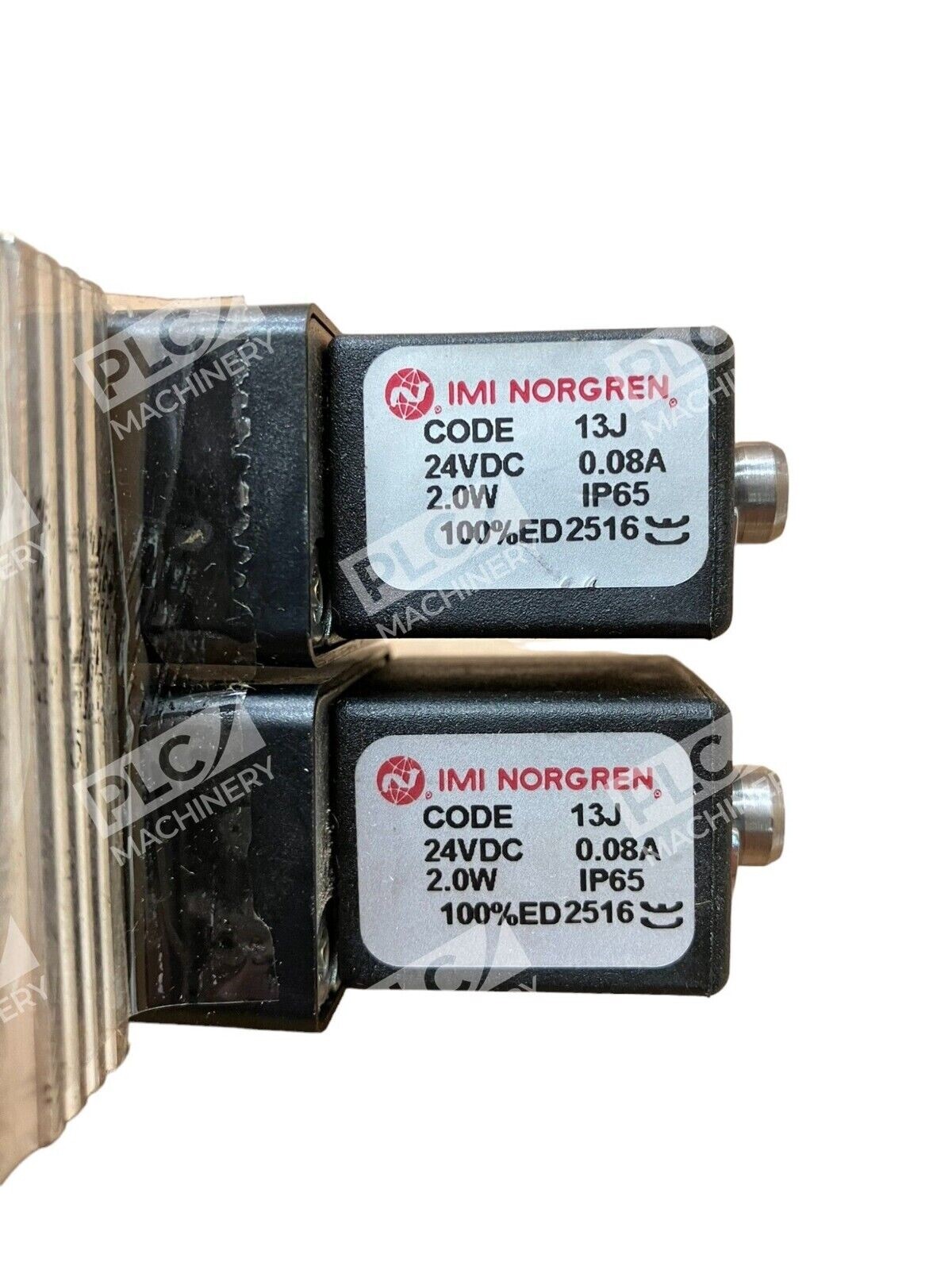

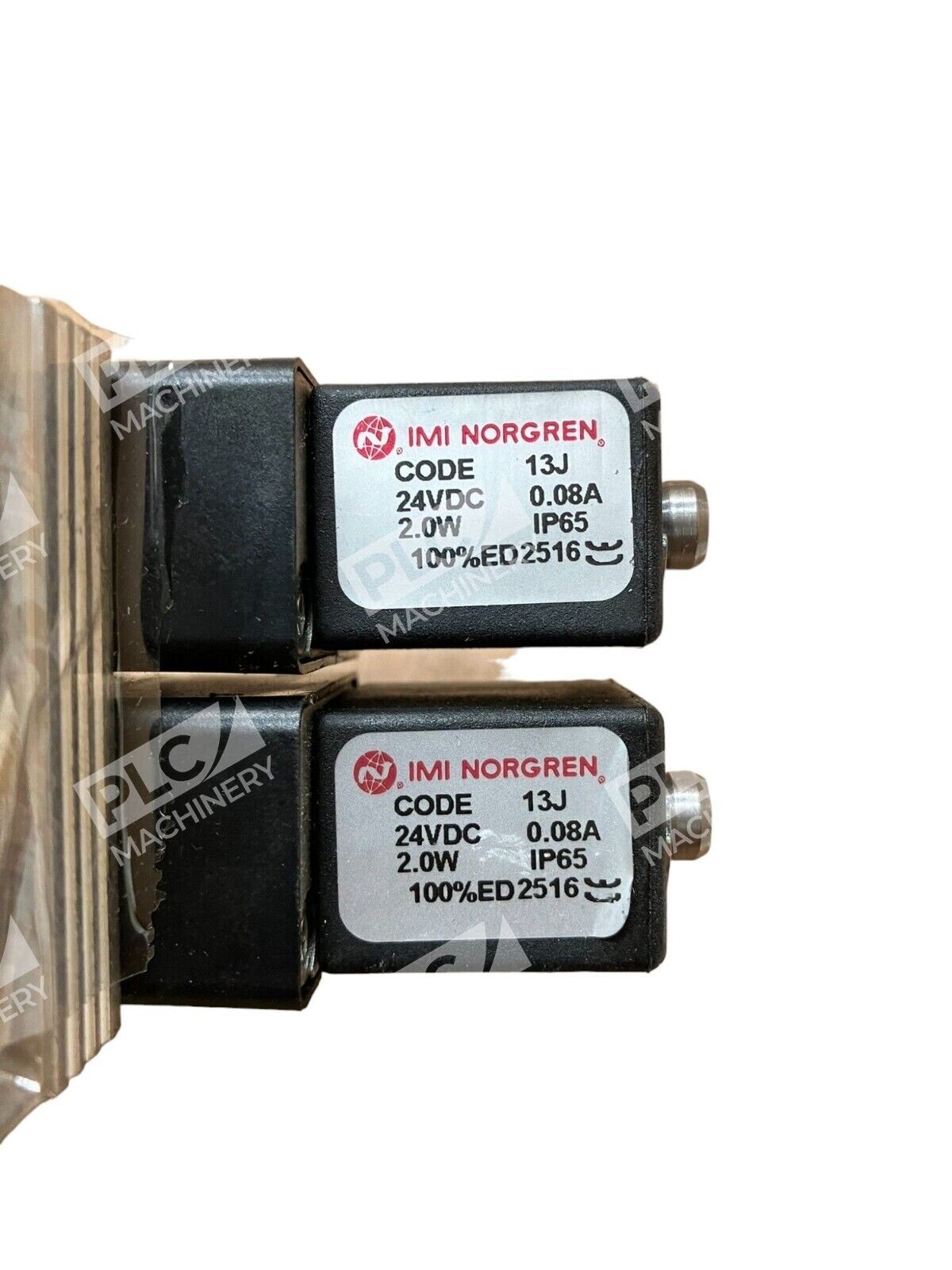

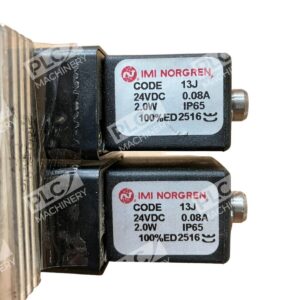

<li><strong>24VDC Low-Power Solenoids</strong> — Rated for continuous duty, IP65 ingress protection for industrial environments</li>
<li><strong>High Flow Capacity</strong> — 1300 l/min at rated pressure enables fast cycle times in demanding applications</li>
<li><strong>1/4″ NPT Porting</strong> — Standard NPT threads simplify plumbing integration into existing manifolds</li>
<li><strong>NBR Seals & Stainless Steel Components</strong> — Corrosion-resistant construction extends service life in diverse environments</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Operation Type:</strong> 5/2 Solenoid Actuated (Solenoid Return)</li>
<li><strong>Voltage:</strong> 24 VDC</li>
<li><strong>Port Size:</strong> 1/4″ NPT</li>
<li><strong>Maximum Pressure:</strong> 145 PSI (10 bar)</li>
<li><strong>Operating Pressure Range:</strong> 29–145 PSI (2–10 bar)</li>
<li><strong>Flow Rate (Max):</strong> 1300 l/min</li>
<li><strong>Operating Temperature:</strong> –10°C to +50°C (14°F to 122°F)</li>
<li><strong>Fluid Medium:</strong> Compressed air (filtered to 50 μm, lubricated or non-lubricated)</li>
<li><strong>Housing Material:</strong> Aluminum</li>
<li><strong>Seals:</strong> NBR</li>
<li><strong>Ingress Protection:</strong> IP65</li>
<li><strong>Series:</strong> V61 Inline Directional Control Valve</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Automated assembly and packaging machinery</li>
<li>CNC and machine tool pneumatic circuits</li>
<li>Material handling and conveyor automation</li>
<li>Automotive manufacturing and stamping presses</li>
<li>Textile and printing equipment control</li>
<li>Food and beverage processing lines</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Pneumatic cylinders (single and double acting) with 1/4″ NPT ports</li>
<li>Air compressors and compressed air distribution systems</li>
<li>PLC and industrial control systems accepting 24VDC output signals</li>
<li>Pneumatic manifold blocks and subbase assemblies</li>
<li>Industrial solenoid coils rated 24VDC, IP65 or higher</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The V61R511A-A213JA is a direct replacement for OEM systems originally equipped with this exact part number. Related valve models in the Norgren V61 series (V61B511A, V61R611A) may share similar specifications; verify pinout and electrical ratings before substitution.</p>
<h3>Works With</h3>
<ul>
<li>24VDC electrical sources and control relays</li>
<li>Pneumatic solenoid coil connector standards (DIN 43650C, mini DIN)</li>
<li>Compressed air filtration (50 μm recommended)</li>
<li>Manifold-mounted accessories including pilot restrictors, flow controls, and check valves</li>
</ul>
