Overview

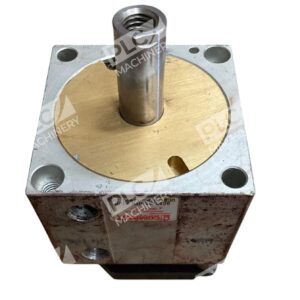

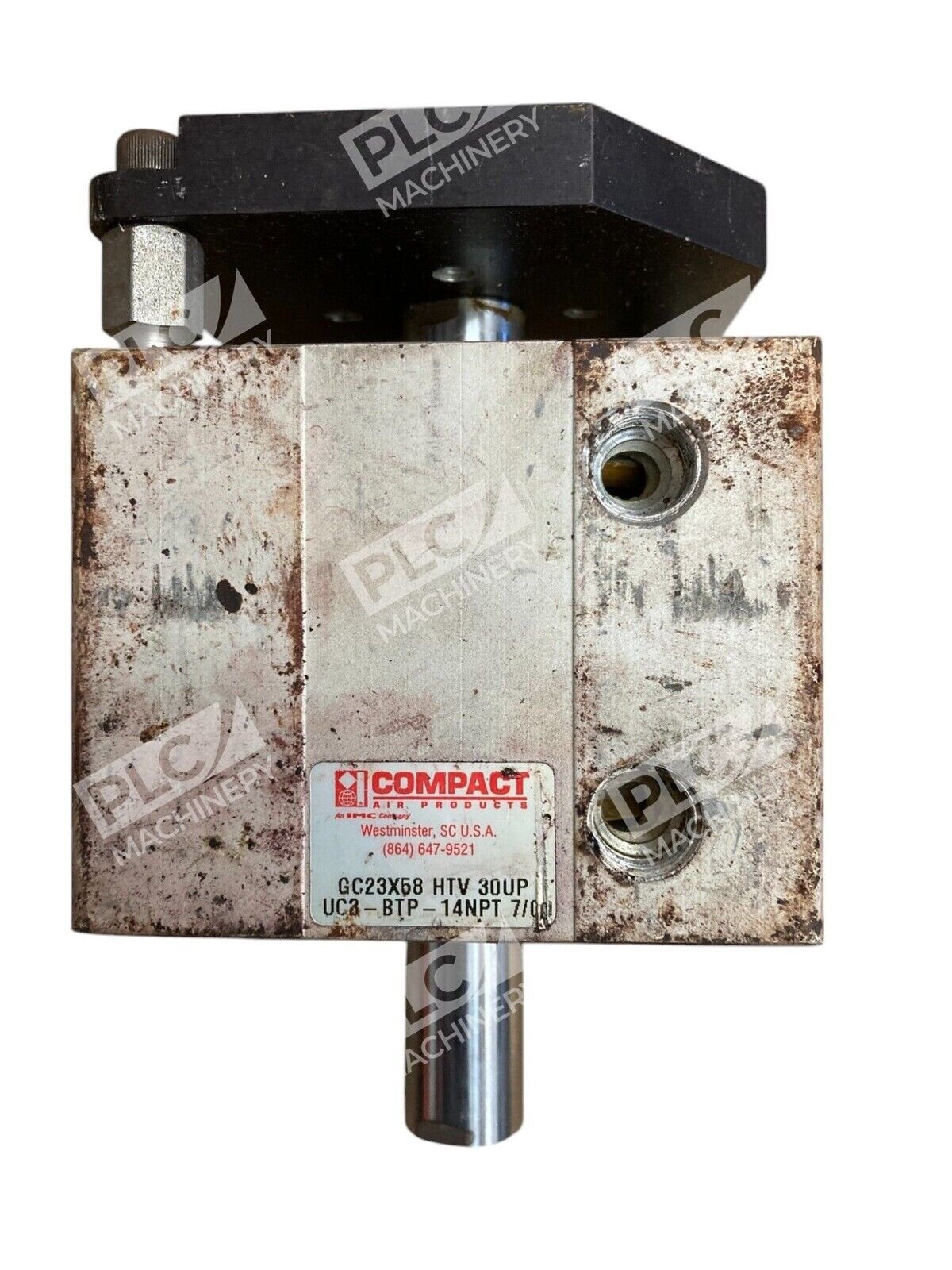

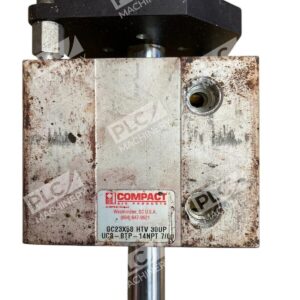

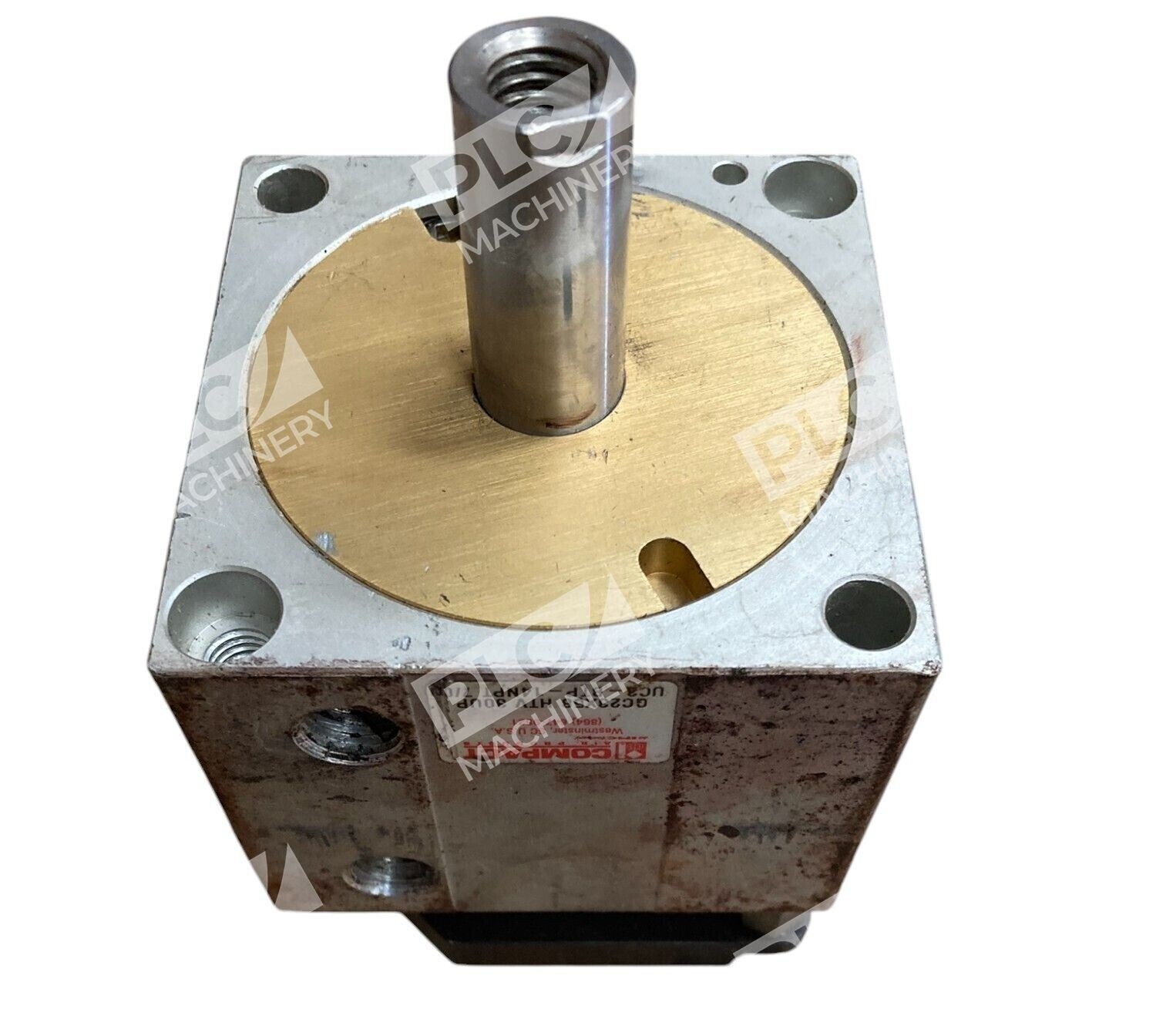

The Compact Air Products GC23X58 HTV 30UP is a pneumatic cylinder engineered for industrial linear motion control. Compact Air Products (also known as Compact Automation) is a well-established manufacturer of pneumatic actuators, cylinders, and motion control solutions trusted by manufacturing and automation professionals. The GC23X58 HTV 30UP model designation (UC3-BTP014NPT 7/00) indicates standard NPT port threading and proven durability across decades of operational use.
Key Features
- Standard NPT threaded ports (UC3-BTP014NPT) for direct connection to pneumatic systems
- Compact, space-efficient design suitable for machinery and automation enclosures
- Bore and stroke configured for general-purpose linear actuation tasks
- Industrial-grade construction for manufacturing, assembly, and production environments
- Used condition, fully functional for immediate deployment
Technical Specifications
- Manufacturer: Compact Air Products
- Model: GC23X58 HTV 30UP
- Part Number: UC3-BTP014NPT 7/00
- Port Type: NPT (National Pipe Thread)
- Type: Single-rod pneumatic cylinder
- Connection Standard: NPT threaded
- Application Class: Industrial linear actuation
- Condition: Used, fully functional
Typical Applications
The Compact Air Products GC23X58 HTV 30UP is suited for a wide range of pneumatic motion control tasks:
- Assembly line automation and machine tool positioning
- Manufacturing equipment clamping and ejection systems
- Industrial press and punch operations
- Automated handling and material transfer systems
- Machine tool fixture actuation
- General factory automation linear drive applications
Compatibility & Replacements
Compatible With
- Standard compressed air systems operating at industrial pressures
- NPT-threaded pneumatic valve manifolds and control blocks
- CETOP and cavity-mount directional control valves
- Industrial PLC and motion controller systems with pneumatic I/O
- Standard pneumatic solenoid valve packages
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. While the GC23X58 HTV 30UP is a standard industrial cylinder, mounting and porting configurations should be confirmed against original installation documentation to ensure drop-in compatibility.
Works With
- NPT-threaded pneumatic fittings and hoses
- ISO 4400 and NFPA (National Fluid Power Association) standard valve interfaces
- Standard compressed air control systems
- Industrial automation control platforms with pneumatic actuation modules
