Overview

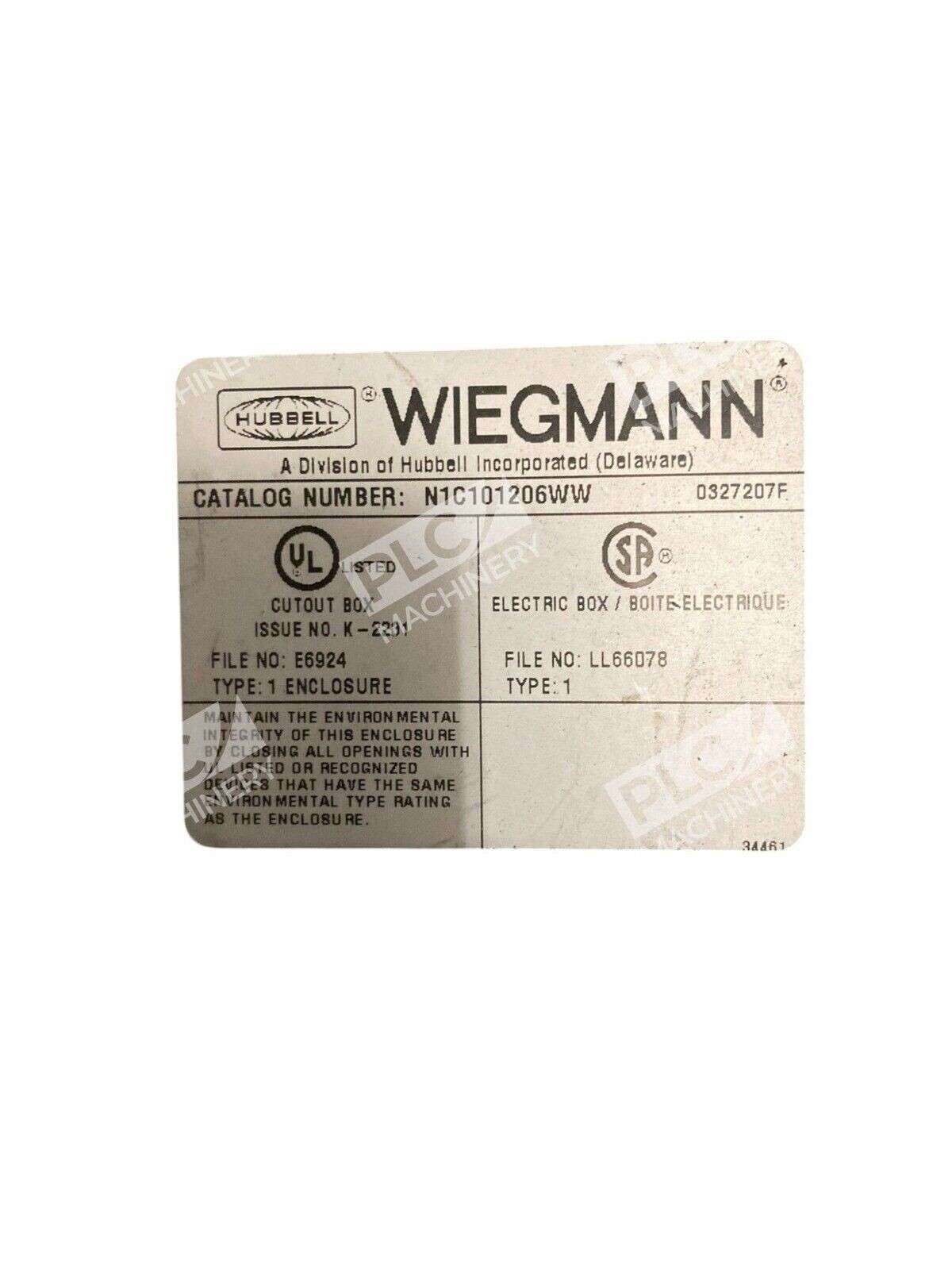

The Hubbell Wiegmann N1C101206WW is a NEMA 1 rated Type 1 enclosure manufactured by Hubbell’s Wiegmann division. Built from carbon steel with a polyester powder-coat gray finish, this compact hinged-cover enclosure is engineered for use as a control enclosure and instrument case in indoor electrical environments. The N1C101206WW model is commonly found in retrofit, maintenance, and panel-building applications where cost-effective, code-compliant component protection is required.
Key Features
- NEMA 1 rated protection—safeguards against dust, light, and indirect splashing in indoor settings
- Continuous hinged cover design with quarter-turn latch for tool-free access
- 14-gauge carbon steel body and door construction
- Wall-mount ready with back-mounting holes
- Internal back panel support (weldnuts provided for optional panels)
- Polyester powder-coat finish in gray
Technical Specifications
- Enclosure Type: NEMA 1 Type 1 Hinged Cover
- External Dimensions: 10″ W × 12″ H × 6″ D
- Internal Panel: 8.25″ W × 10.25″ H
- Internal Volume: 720 cubic inches
- Material: Carbon Steel (14-gauge)
- Finish: Polyester Powder Coat, Gray
- Door Latch: Quarter-turn flush-mount
- Mounting: Wall-mount with back holes
- Series: Wiegmann N1C
- Weight: Approximately 18 lbs
Typical Applications
The N1C101206WW is ideal for:
- Control enclosures and instrument cases in factory and commercial settings
- Junction boxes and service disconnect enclosures indoors
- Electrical panel sub-mounts and equipment protection
- Retrofit and maintenance replacements in existing installations
- General-purpose electrical equipment mounting and protection
Compatibility & Replacements
Compatible With
- Standard electrical circuit breakers, contactors, relays, and terminal blocks rated for indoor use
- Universal mounting rails and DIN-rail adapters (internal panel supports)
- Hubbell/Wiegmann back panels and sub-panel kits
- Standard wall-mount systems and cable entry knockouts
Replaces / Drop-In Replacement For
- Wiegmann N1C series enclosures of identical dimensions (10×12×6)
- Verify compatibility with your system integrator before ordering for application-specific replacements
Works With
- NEMA 1 rated electrical components and standard circuit protection devices
- Universal electrical wiring and cabling systems
- Optional Wiegmann accessories: back panels, mounting kits, and cable knockouts
