Overview

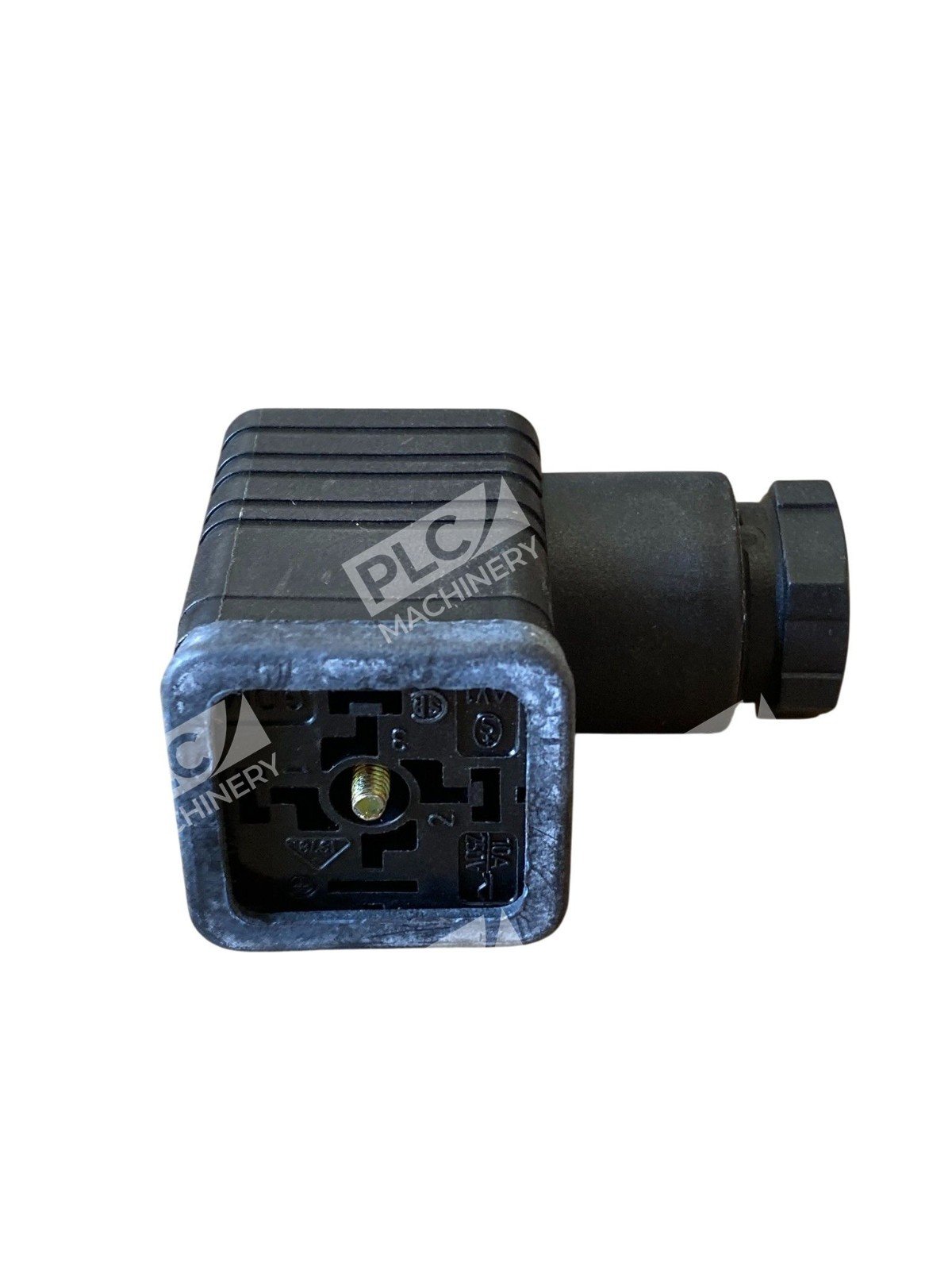

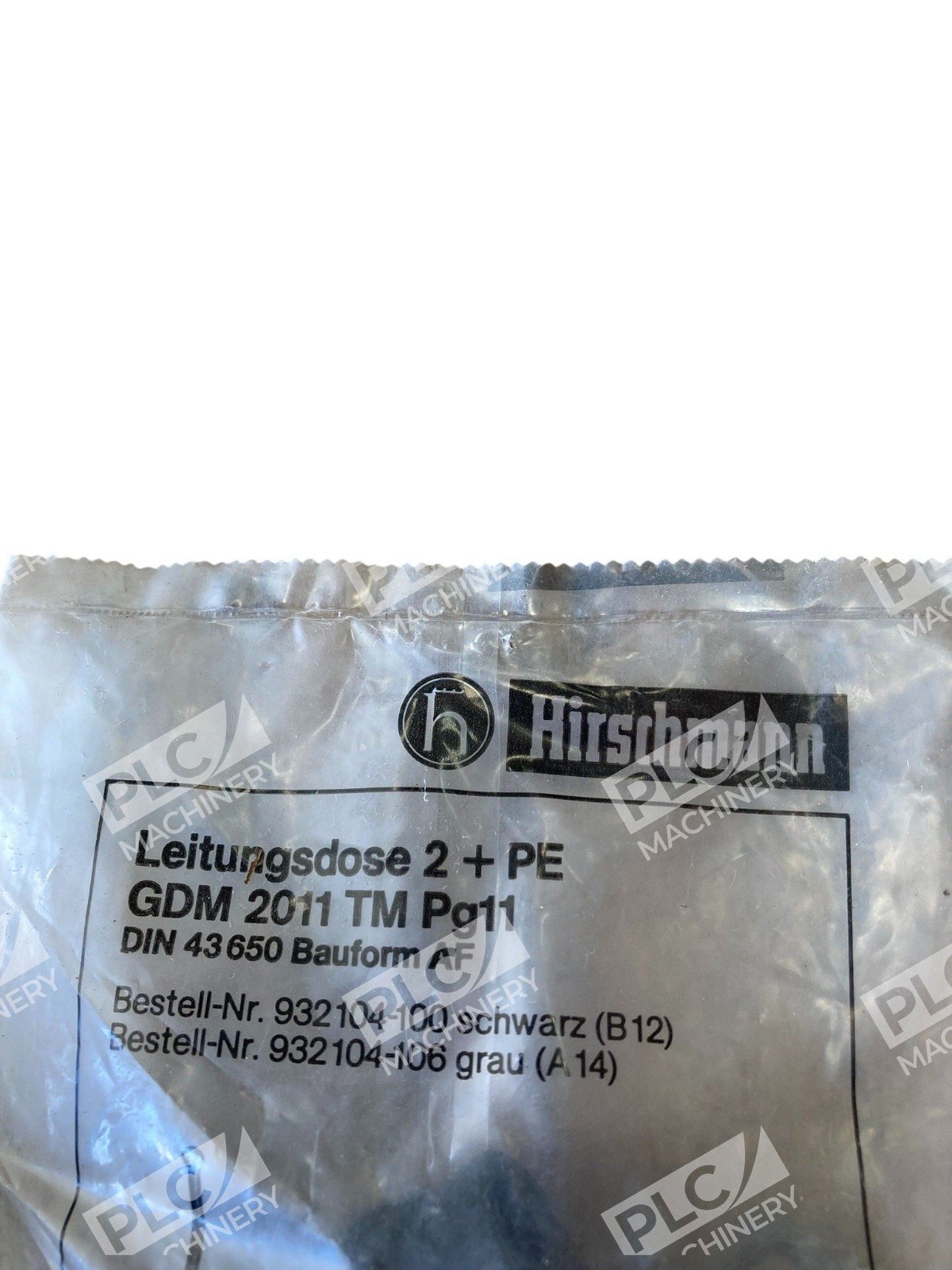

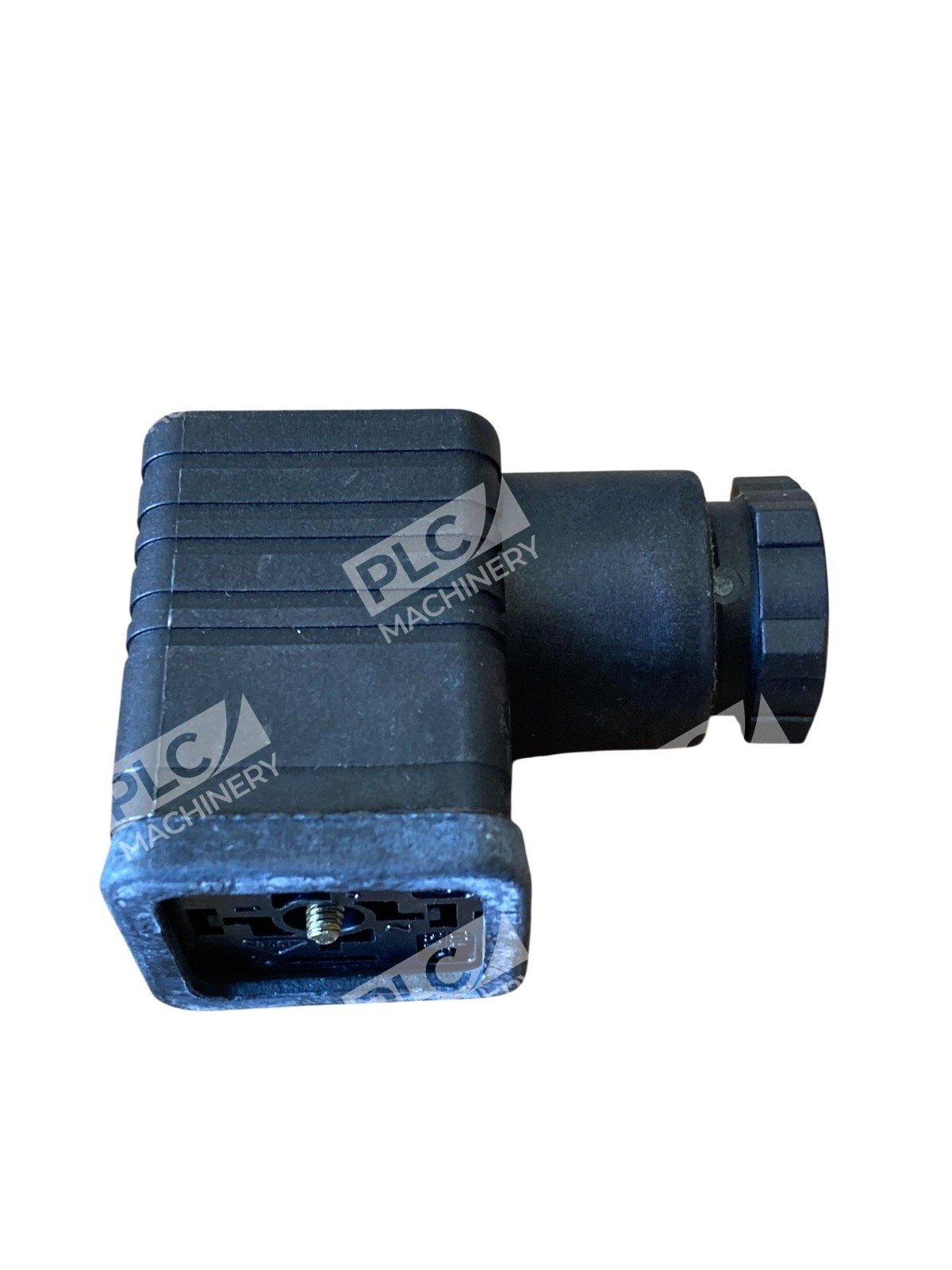

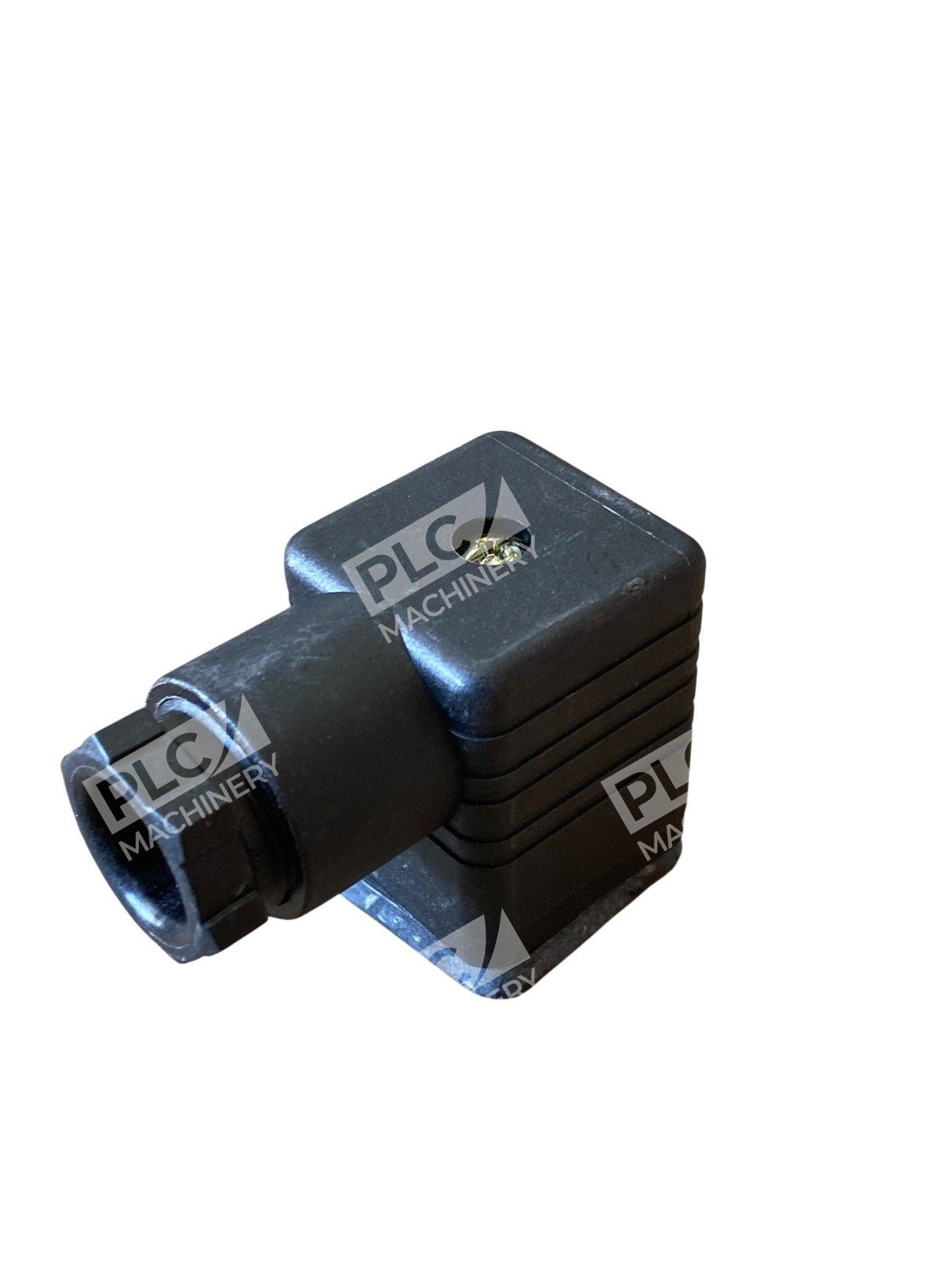

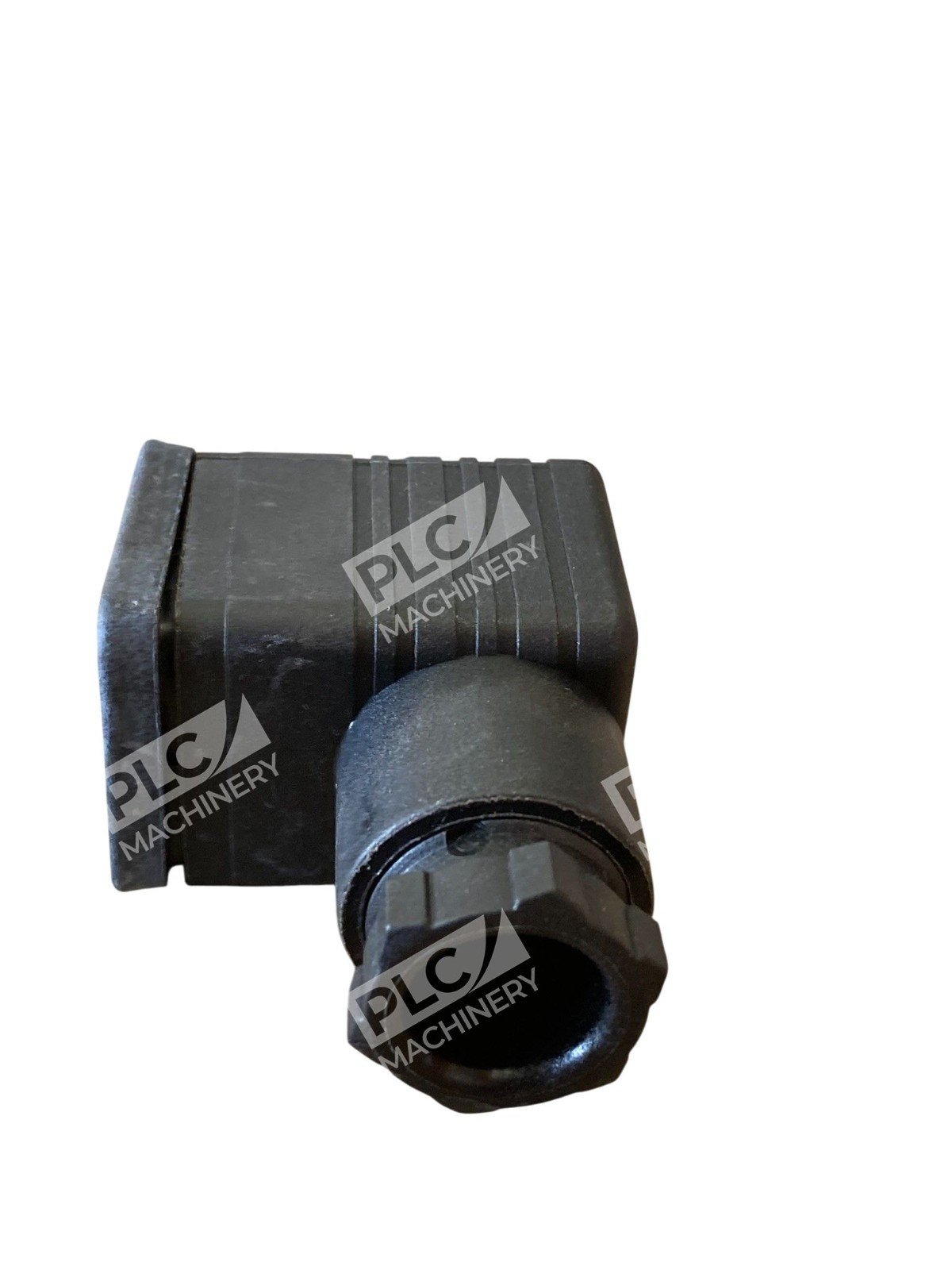

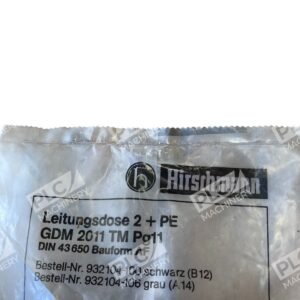

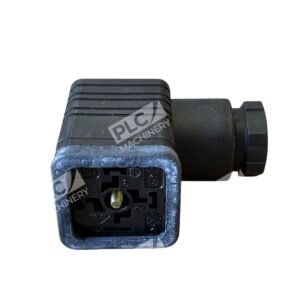

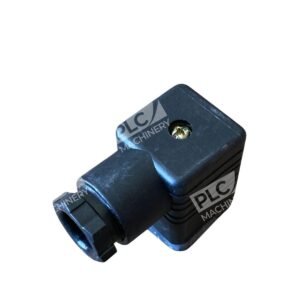

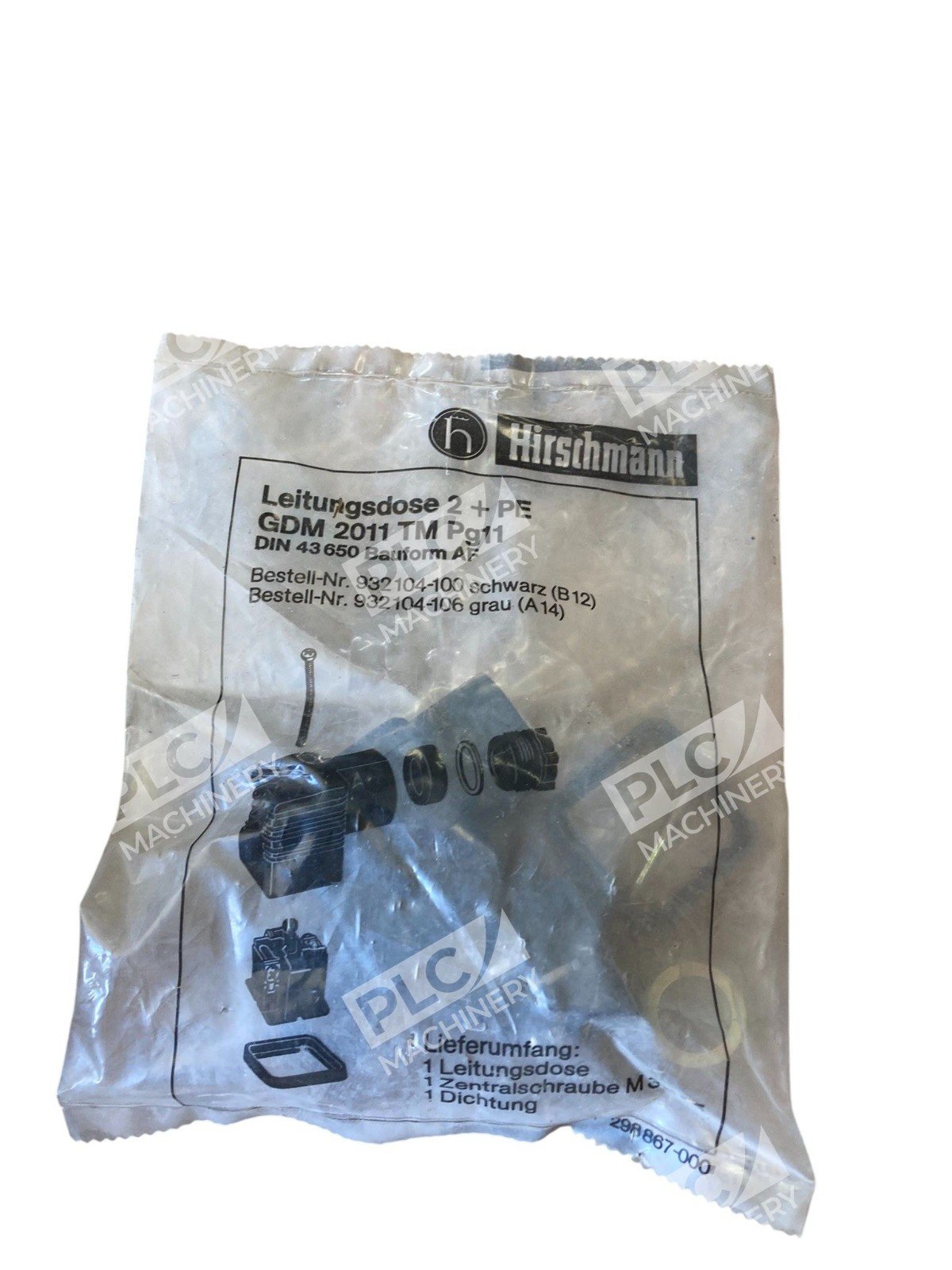

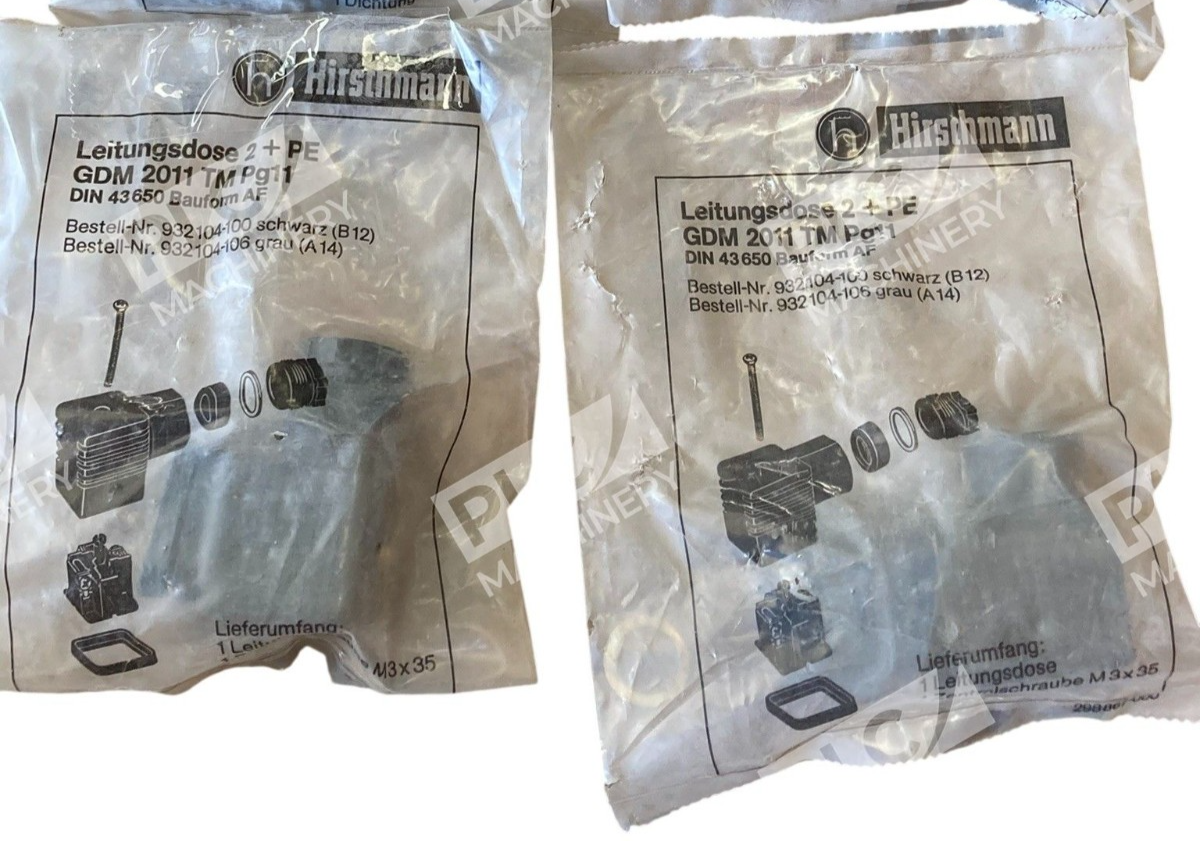

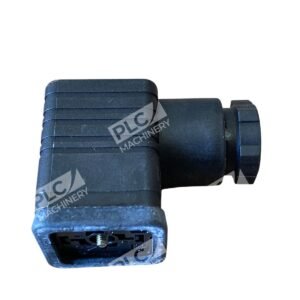

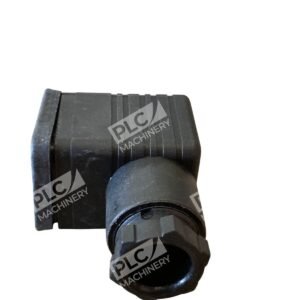

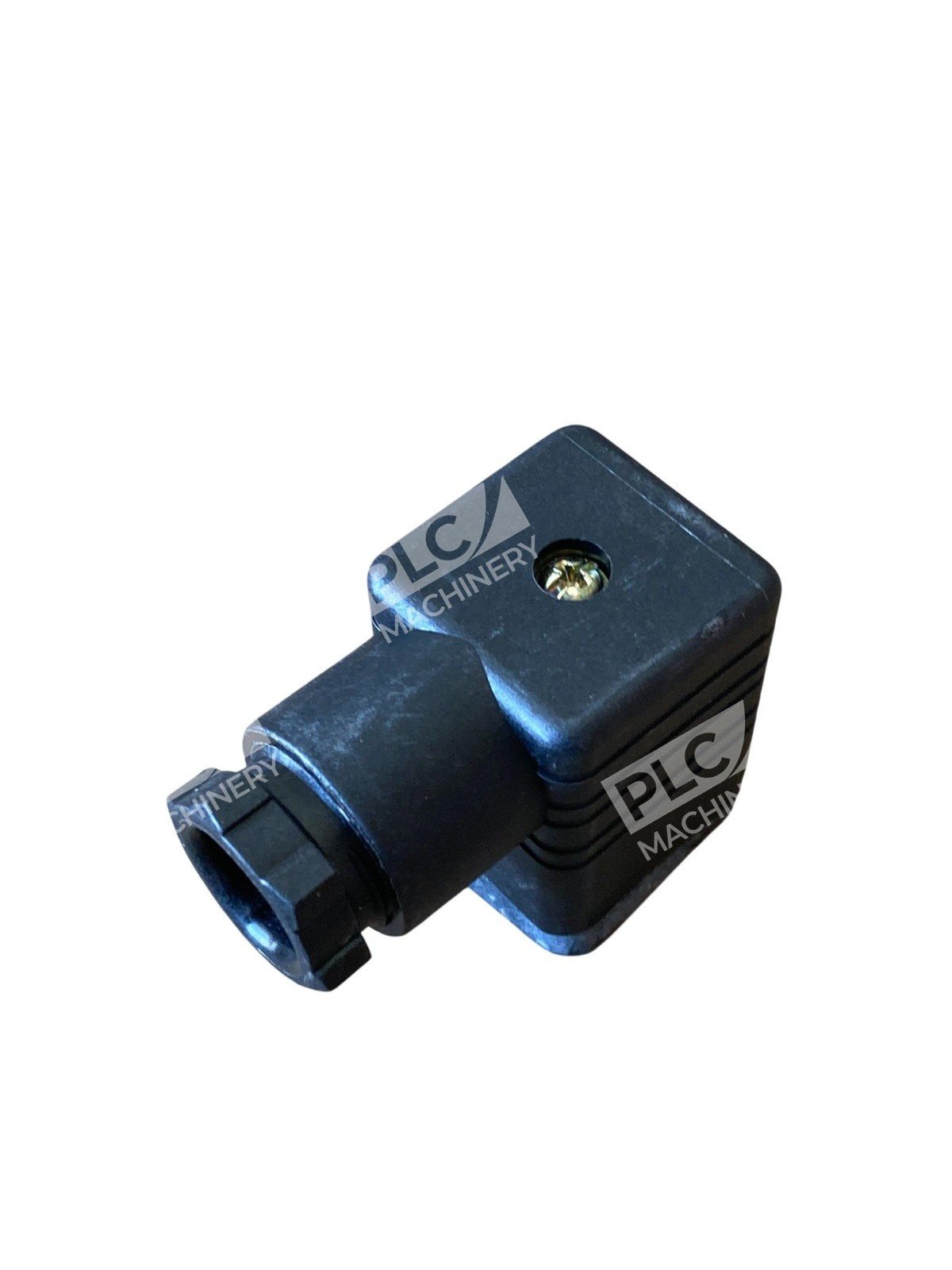

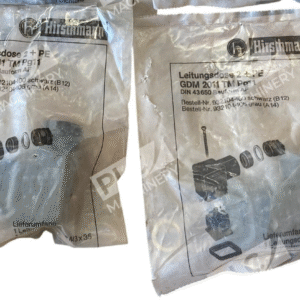

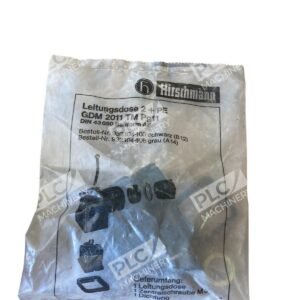

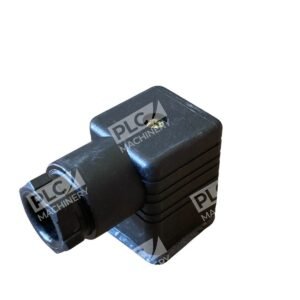

The Hirschmann GDM 2011 TM solenoid valve connector is a rugged rectangular connector designed for industrial hydraulic, pneumatic, and electromagnetic actuator applications. This DIN 43650 Form A compliant plug features a 250V 10A rating with PG11 cable gland, making it suitable for a wide range of control systems and valve switching applications.
Key Features
- Operating voltage UC 250V and operating current 16A capability
- Global permits from VDE, GL, CSA and UL
- Dust-proof and hose-proof construction
- Protection class IP65, temperature range -40 °C to +125 °C
- 3-pin female form A configuration with 18mm pin spacing
- DIN 43650 Form A standard with 18 mm pin spacing
Technical Specifications
- Operating Voltage: 250V AC/DC
- Current Rating: 10A (up to 16A capability)
- Connector Type: Female, Form A
- Pin Configuration: 3 poles + ground
- Pin Spacing: 18mm
- Cable Gland Size: PG11
- Cable Diameter: 6–9mm
- Protection Class: IP65
- Temperature Range: -40 °C to +125 °C
- Connector Standard: DIN EN 175301-803
Typical Applications
- Hydraulic solenoid valve switching and control
- Pneumatic actuator and directional control valve connections
- Electromagnetic pressure sensors and flow indicator circuits
- Industrial automation and fluid power systems
- OEM equipment integration where DIN 43650 Form A connectors are required
Compatibility & Replacements
Compatible With
- DIN 43650 Form A standard solenoid valve receptacles
- Hydraulic and pneumatic control systems using DIN 43650 connectors
- PG11 cable entry systems and gland assemblies
- Industrial control cabinets with Form A socket compatibility
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This unit is compatible with equipment designed for DIN 43650 Form A plugs in 250V 10–16A applications.
Works With
- DIN 43650 Form A female receptacles and coupler assemblies
- Hirschmann GDM series socket and connector families
- Standard PG11 cable glands and M32 mounting configurations
- Solenoid valve manifolds using DIN 43650 interface standards
