Overview

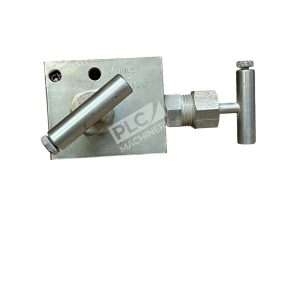

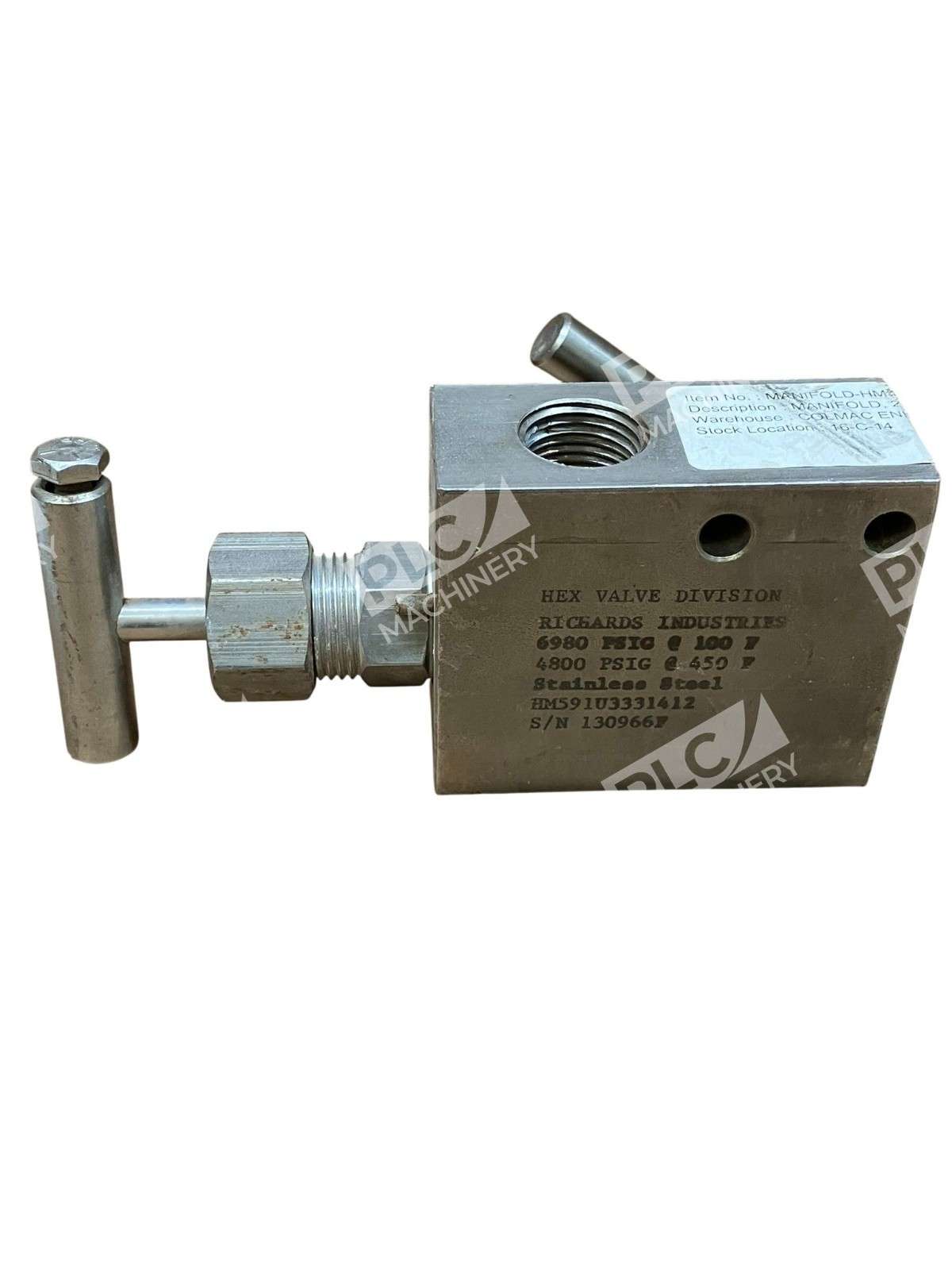

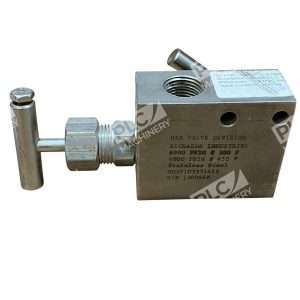

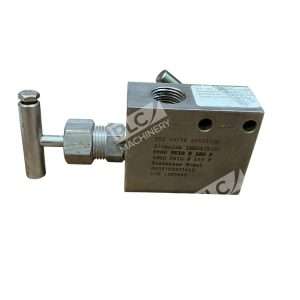

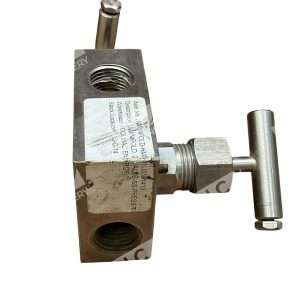

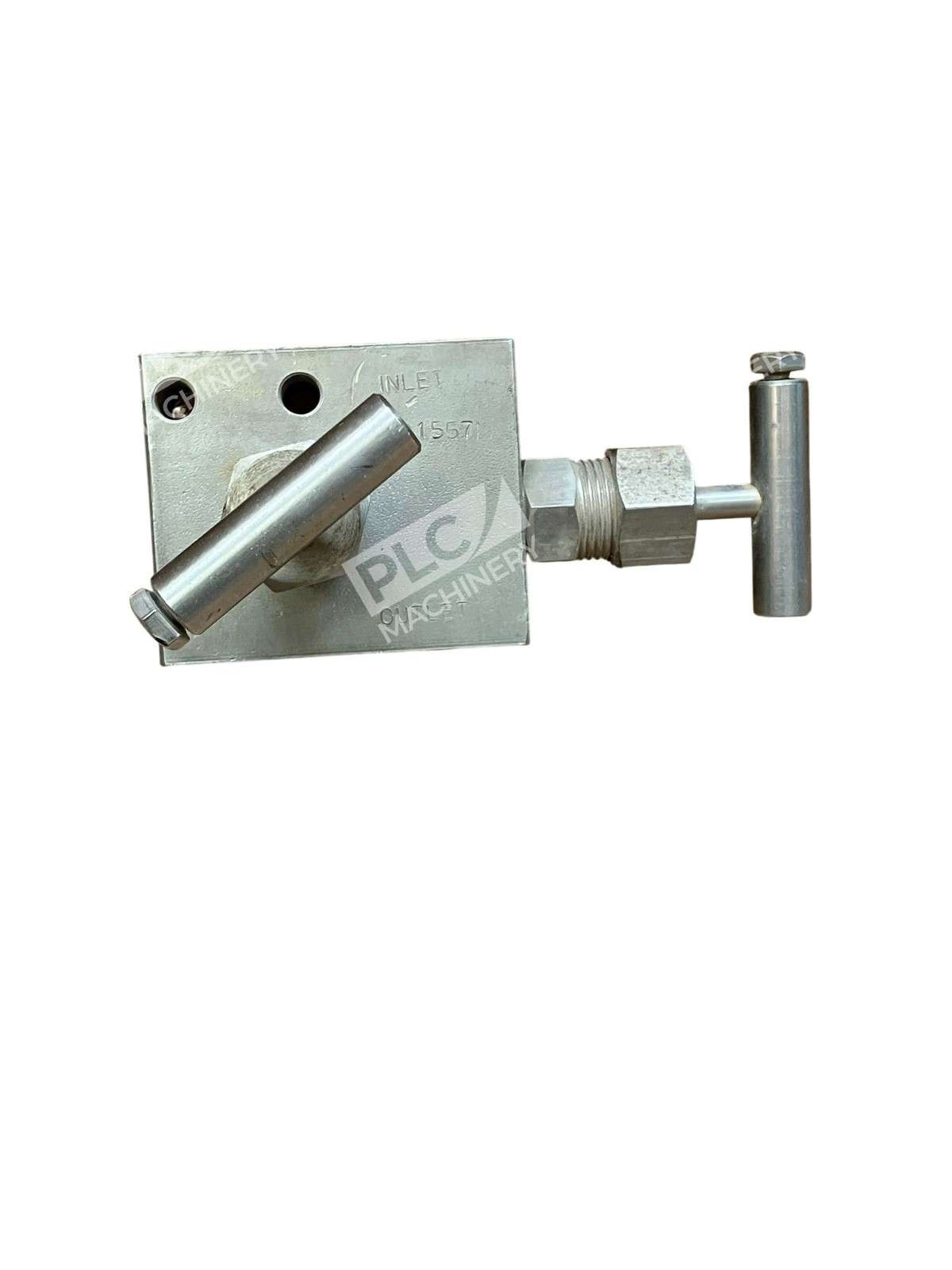

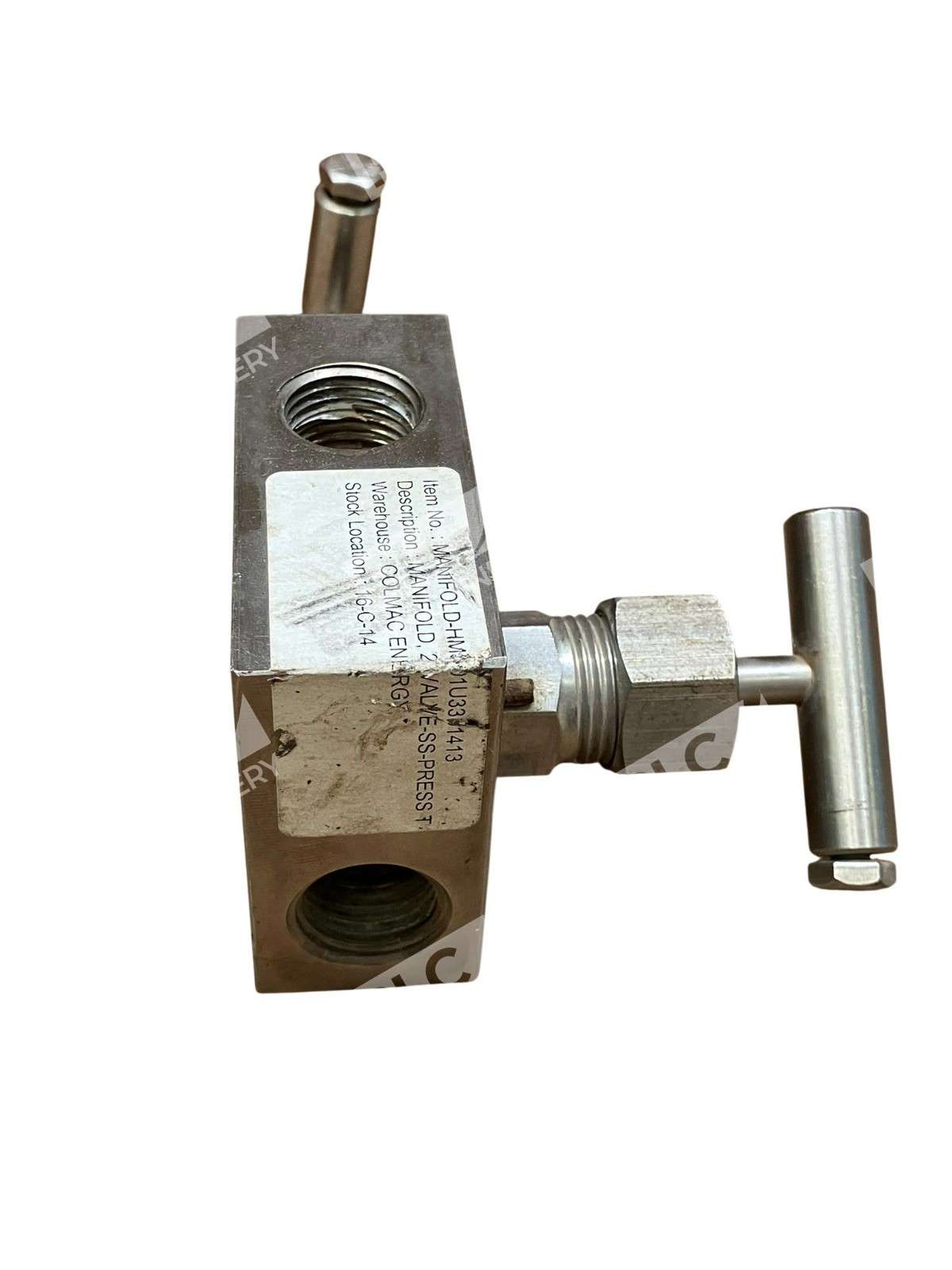

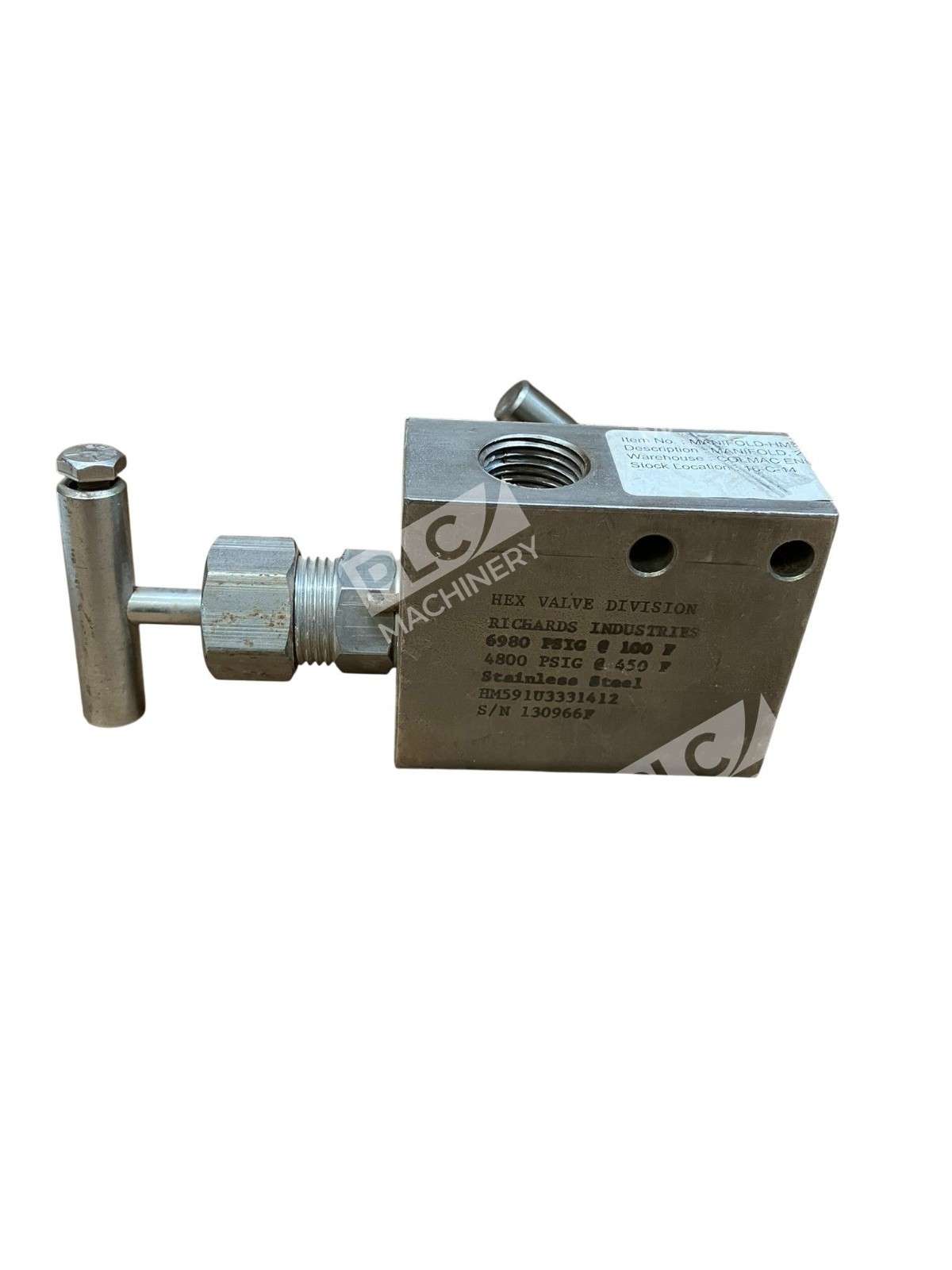

The Hex Valve HM591U3331412 is a compact two-valve instrument manifold engineered for static pressure instrumentation systems. This stainless steel manifold combines shutoff and bleed valve functionality into a single, cost-effective assembly. The HM591U3331412 eliminates the need for multiple individual nipples, pipes, elbows, and gate valves, streamlining installation and reducing potential leak points in your pressure measurement lines.
Key Features
- Two-valve design provides both isolation and bleed capability
- Stainless steel body with integral hard seat for durability
- 316/316SS NRT stem and tip materials ensure corrosion resistance
- TFE/Chevron packing for reliable sealing across pressure cycles
- 1/2″ NPTF female inlet and outlet for direct gauge and transmitter connections
- Significantly fewer threaded connections compared to traditional piping assemblies
Technical Specifications
- Manifold Type: Line-mounted two-valve instrument manifold
- Valve Configuration: Shutoff and bleed
- Pressure Rating: 6000 PSI nominal at ambient temperature
- Body Material: Stainless steel
- Stem/Tip Material: 316/316SS NRT (non-rotating tip)
- Packing: TFE/Chevron
- Inlet Connection: 1/2″ NPTF female
- Outlet Connection: 1/2″ NPTF female
- Seat Type: Integral hard seat
Typical Applications
- Pressure gauge and transmitter isolation in industrial instrumentation
- Static pressure measurement systems for hydraulic, pneumatic, and fluid systems
- Pressure relief and pilot line protection in high-pressure applications
- Equipment protection and maintenance during sensor replacement
- Compact manifold solutions for confined installation spaces
Compatibility & Replacements
Compatible With
- Standard 1/2″ NPT gauge and transmitter ports
- Industrial pressure measurement instruments rated to 6000 PSI
- Hydraulic, pneumatic, and fluid power systems requiring isolation valves
- Static pressure instrumentation requiring shutoff and bleed capability
Replaces / Drop-In Replacement For
- Hex Valve HM59 series two-valve manifolds with identical port and configuration
- Custom piping assemblies using nipples, tees, elbows, and individual shutoff/bleed valves
- Other stainless steel 1/2″ NPTF dual-valve manifolds with 6000 PSI rating
Works With
- Pressure gauges with 1/2″ NPT connection
- Pressure transmitters with 1/2″ NPT port connection
- Differential pressure instruments requiring isolation and equalization
- Hydraulic and pneumatic test equipment
