Overview

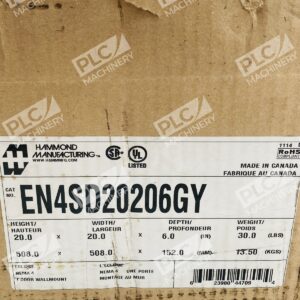

The Hammond EN4SD20206GY is a Type 4/NEMA 4 wall-mount enclosure engineered to house and protect electrical and electronic equipment in demanding industrial applications. This mild steel wall-mount enclosure is designed to enclose electrical and/or electronic equipment and protect against harsh environments for wall-mount applications. The enclosure is 20″ high, 20″ wide, and 6″ deep with an IP66 rating and NEMA 3R, 4, 12 certifications. The gray powder-coated finish meets ANSI 61 standards and is recoatable.
Key Features
- Hidden hinges and attractive latching systems make the Eclipse suitable for high-tech equipment installations.
- Hinges are constructed from 304 stainless steel with stainless steel hinge pins.
- Quarter turn latch and multi-point handle are key lockable and zinc die-cast with black epoxy finish.

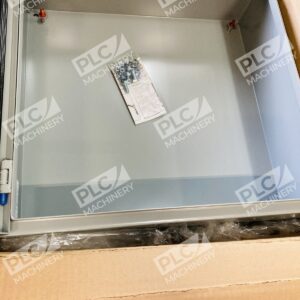

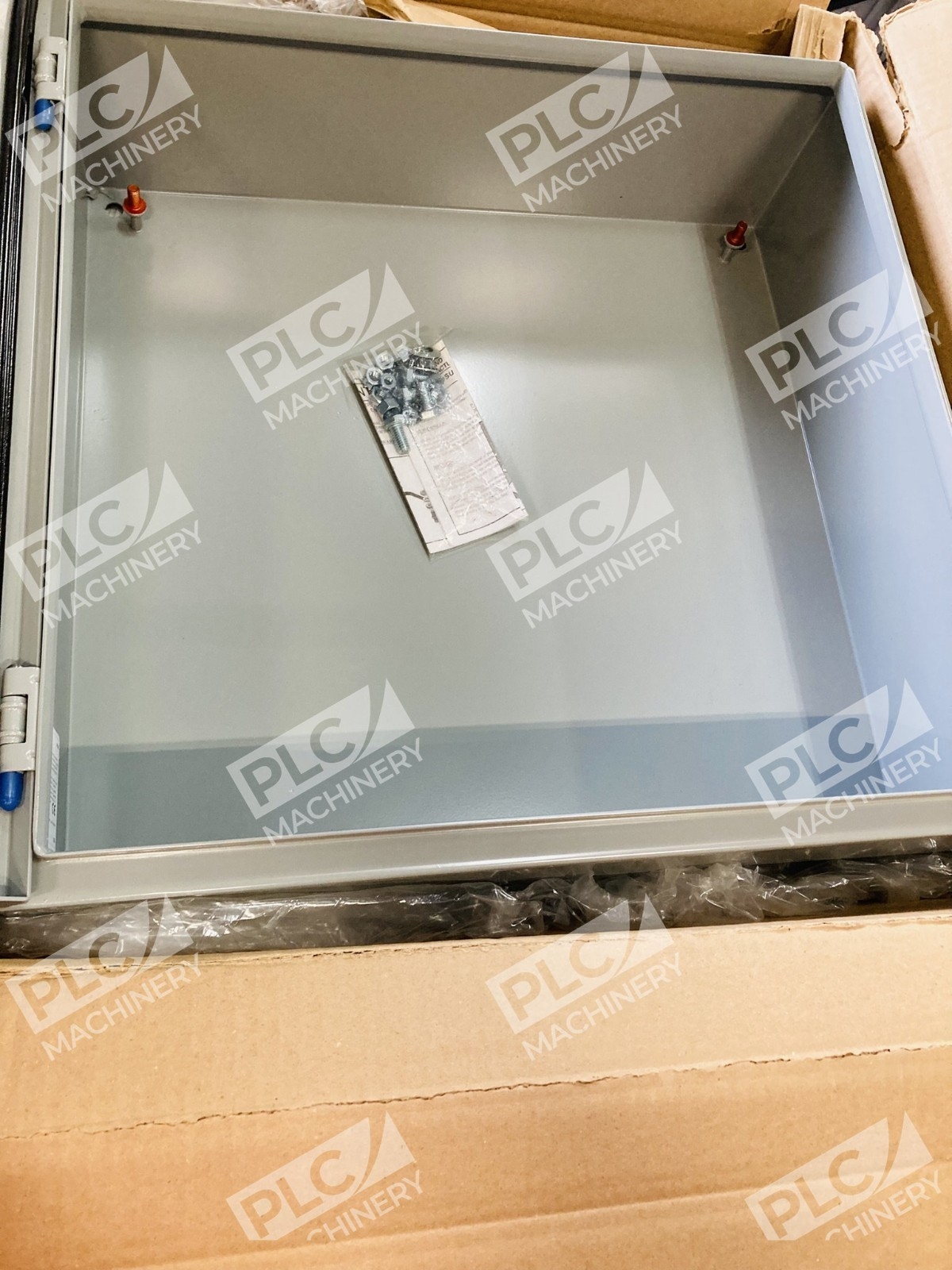

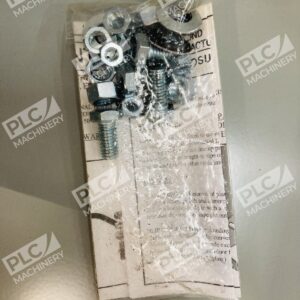

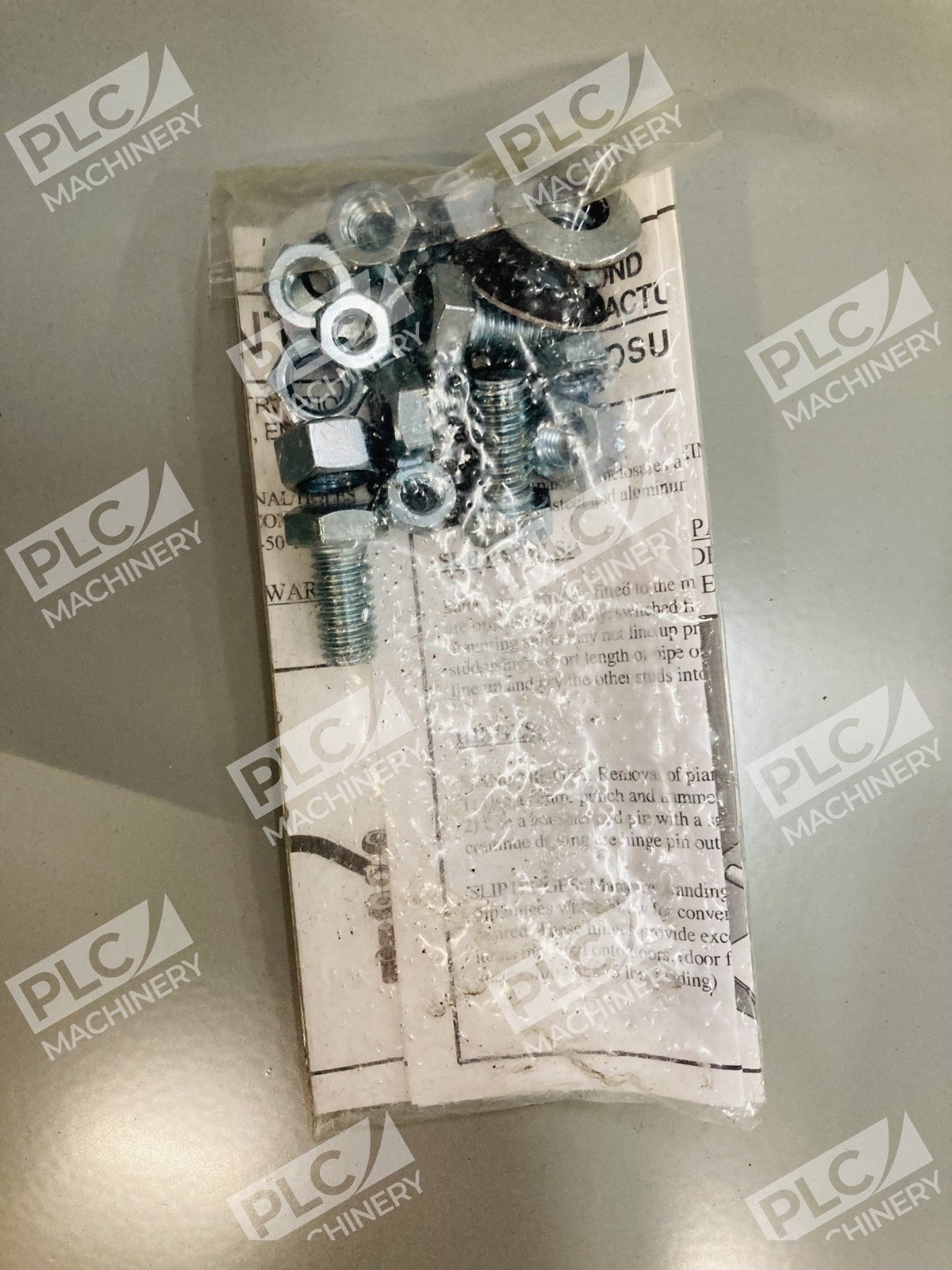

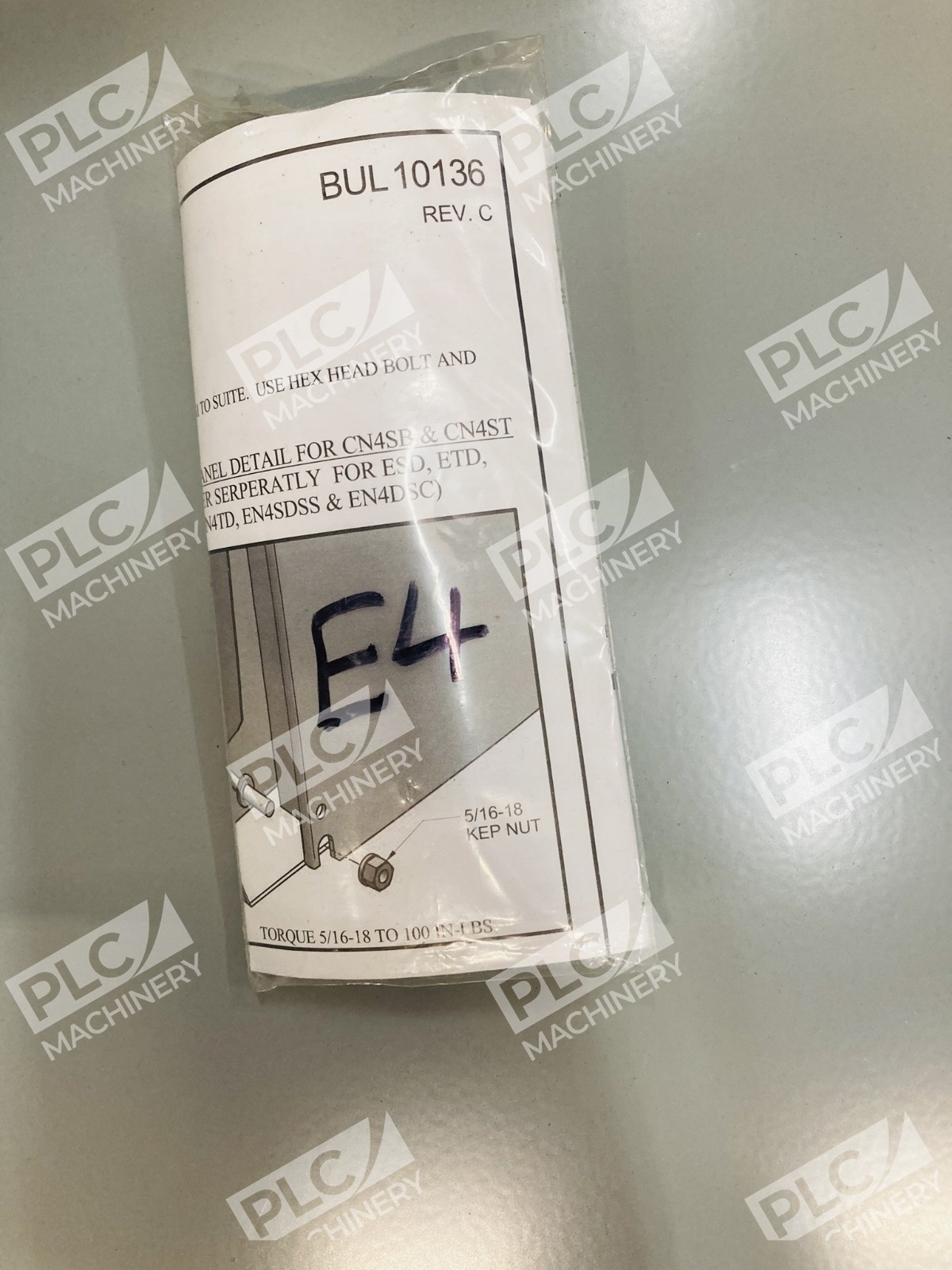

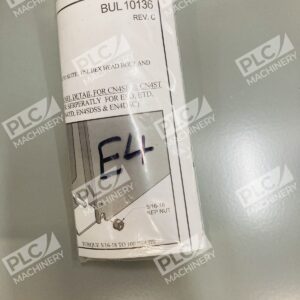

- Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
- Smooth, continuously welded seams are ground smooth.
- Phosphatized and powder-coated finish inside and out with ANSI 61 smooth gray color.
Technical Specifications
- Door stiffeners provide increased strength and rigidity and permit additional mounting options.
- Formed 16 gauge steel (for 24×20″ and smaller models).
- NEMA 3R, 4, 12 ratings with IP66 protection level.
- Enclosure type: Hinged, single-door, quarter-turn latch
- Material: Mild steel
- Standards: UL, CSA, CE, RoHS, REACH compliant
Typical Applications
The Hammond EN4SD20206GY Eclipse enclosure is ideal for:
- Industrial control panel installations requiring NEMA 4 protection
- Electrical equipment protection in wet, corrosive, or dust-laden environments
- Wallmount junction box applications
- Manufacturing equipment and machine automation
- Outdoor or high-moisture indoor environments
Compatibility & Replacements
Compatible With
- Standard DIN rail mounting accessories
- Industrial PLCs, drives, and I/O modules
- Control relays and circuit protection devices
- Terminal blocks and cable glands
- Pushbuttons, indicators, and selector switches
Replaces / Drop-In Replacement For
The EN4SD20206GY is a direct replacement for earlier Hammond Eclipse N4 20x20x6 enclosure models. Verify compatibility with your specific legacy model before ordering.
Works With
- Standard electrical wiring and conduit systems
- NEMA-rated cable glands and connectors
- Industrial automation platforms (Allen-Bradley, Siemens, Mitsubishi, Omron)
- IP66-rated enclosure accessories and cooling units (sold separately)
