Overview

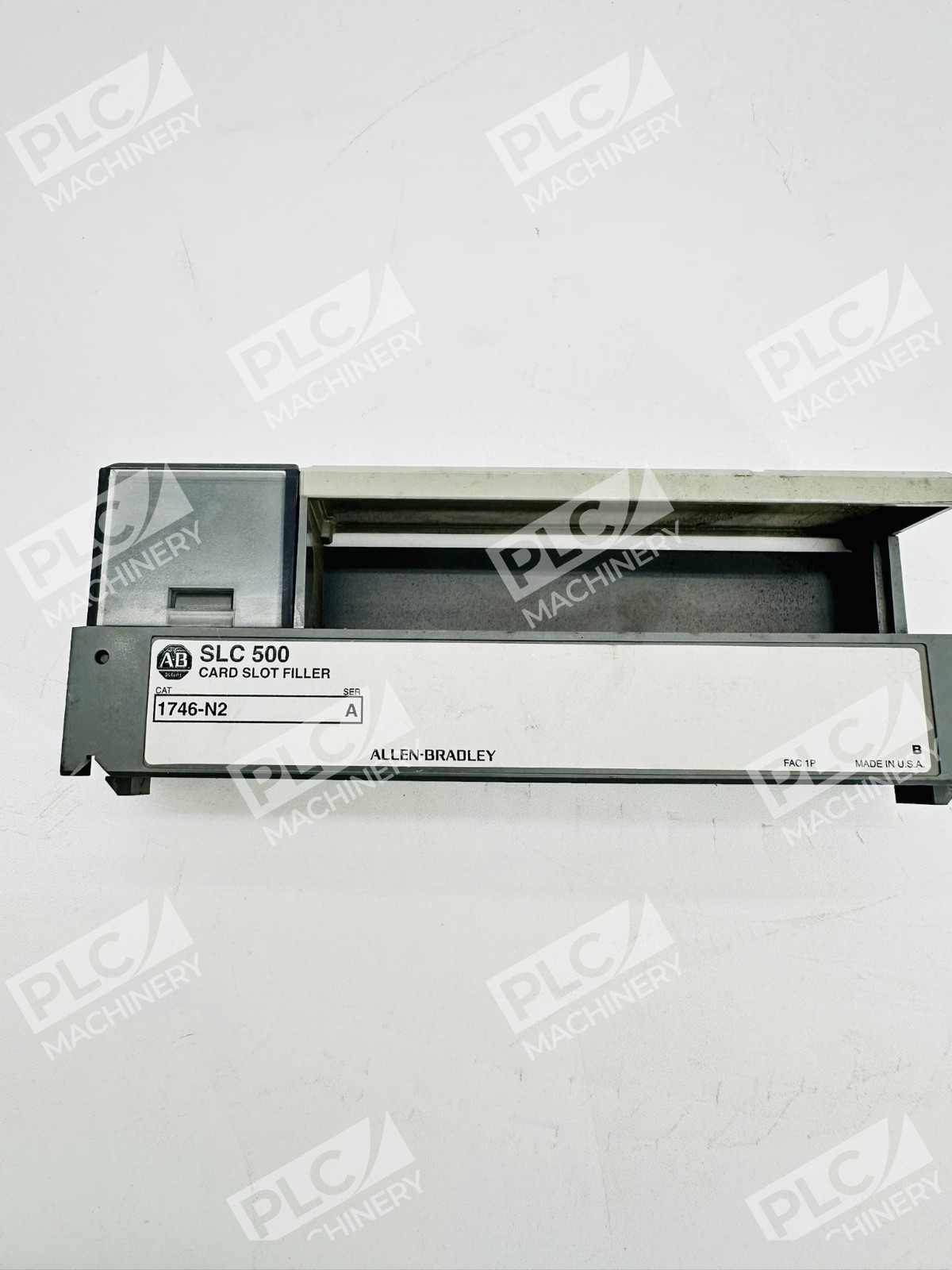

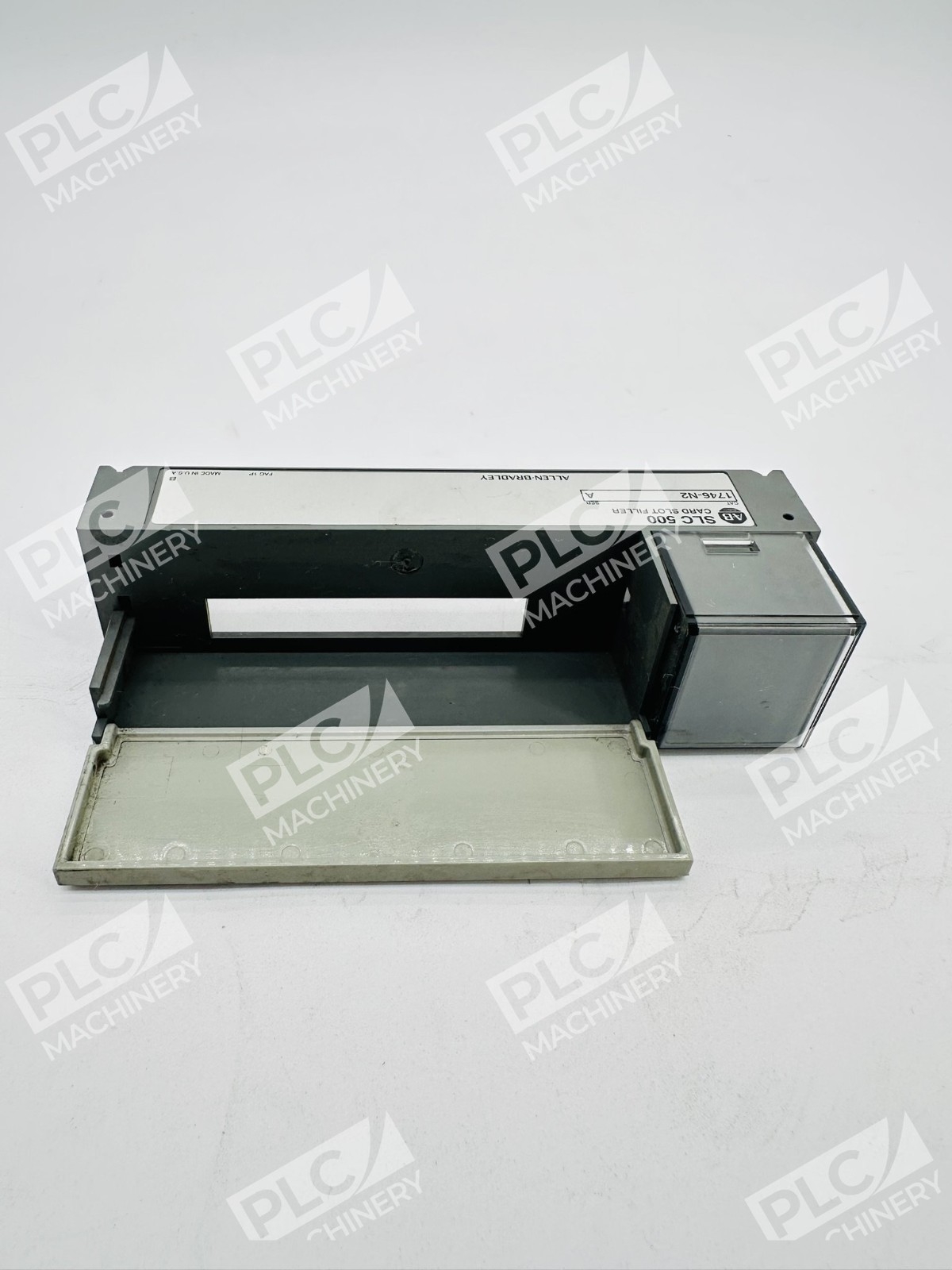

The Allen-Bradley 1746-N2 is a SLC 500 modular card slot filler used to cover all unused slots in SLC 500 chassis. This slot filler prevents defects in the backplane by helping to keep debris from falling into unused slots and protects those slots from dust. Each unit serves as a protective placeholder and ensures proper spacing and alignment within your SLC control system.
Key Features
- Used to fill empty slots in SLC control systems and serves as a placeholder to ensure proper spacing and alignment of other modules
- Tested to meet EN 61131-2 Programmable Controllers requirements and Directive 73/23/EEC of the Low Voltage Directive Board
- Protects unused slots from environmental contamination
- Suitable for use in Class I, Division 2, Group A, B, C, D, and non-hazardous locations
- Easy installation in SLC 500 chassis slots
Technical Specifications
- Operating Temperature: -25 to 60°C (-13 to 140°F)
- Non-Operating Temperature: -40 to 85°C (-40 to 185°F)
- Relative Humidity: 5% to 95% without condensation
- Dimensions: 12.7 x 7.62 x 20.32 cm (5 x 3 x 8 inches)
- Weight: Approximately 0.045 kg (0.1 lbs) per unit
- Operating Vibration: 2 g at 10 to 500 Hz
- Shock Rating: 30 g
- Product Series: SLC (Bulletin 1746 / 1747)
Typical Applications
The Allen-Bradley 1746-N2 is essential for:
- Covering unused slots in SLC 500 control systems to maintain backplane integrity
- Protecting chassis from dust and environmental contamination
- Ensuring proper module alignment in multi-slot configurations
- Preventive maintenance in industrial automation environments
- Retrofit applications where original slot fillers are missing or damaged
Compatibility & Replacements
Compatible With
- SLC 500 chassis platforms
- SLC 500 modular controller systems
- All SLC 500 I/O slot configurations
- Allen-Bradley PLC automation systems using SLC architecture
Replaces / Drop-In Replacement For
- 1746-N2 Series A (verified compatible)
- 1746-N2 Series B (verified compatible)
- Original equipment manufacturer (OEM) slot fillers for SLC 500 chassis
Works With
- Allen-Bradley SLC 500 operating system
- Rockwell Automation SLC platform
- Industrial automation systems using SLC 500 architecture
