Overview

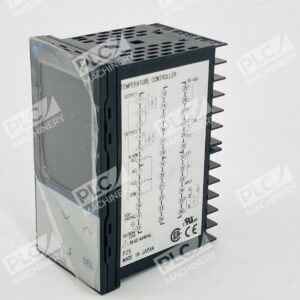

The Fuji Electric PXF5ACY2-FVGA1 is a self-tuning 1/8 DIN (48 × 96mm) compact digital temperature controller engineered as a successor to the PXR5 series. Built for precise temperature and process control, this compact unit combines fast sampling speed with improved measurement accuracy across industrial heating, drying, and process control applications.
Key Features
- 50ms Sampling Speed: 10 times faster processing speed than conventional models
- High Measurement Accuracy: ±0.2% reading accuracy improved from ±0.5%
- Universal Input Support: Use any input among RTD, thermocouples, voltage, current, and mV with easy parameter change switching
- MVA LCD Display: High contrast, wide viewing angle display with white process value indication
- Compact Design: 36% smaller than conventional models with 58mm depth shallow body
- Optional Functions: Watt-hour metering for energy consumption monitoring and operating days alarm for maintenance scheduling
Technical Specifications
- Form Factor: 1/8 DIN panel mount
- Panel Dimensions: 48 × 96mm (H × W)
- Depth Behind Panel: 58mm
- Sampling Speed: 50ms
- Input Accuracy (RTD): ±0.2% of indication value ±1 digit or ±0.8°C ±1 digit (whichever is larger)
- Control Output 1: SSR drive output
- Alarm Output: 2 points
- Power Supply: 100–240 VAC
- Weight: Approximately 170g
- Compatible Models: Direct replacement for PXR5 series
Typical Applications
- Industrial ovens and heating chambers
- Food and beverage processing temperature control
- Plastic injection molding and extrusion
- Textile and printing process control
- Laboratory and test equipment thermal management
- Pharmaceutical and chemical batch processing
Compatibility & Replacements
Compatible With
- RTD and thermocouple input sensor systems
- Voltage and current analog input sources
- SSR (solid-state relay) and relay-based output systems
- Standard 48 × 96mm 1/8 DIN panel cutouts
- Industrial temperature control cabinets and panels
Replaces / Drop-In Replacement For
- Fuji Electric PXR5 series temperature controllers
- Other legacy 1/8 DIN temperature controllers requiring universal input capability
Works With
- Parameter loader interface cable (optional accessory)
- RS-485 communication for remote monitoring
- Standard temperature control relay and contactor circuits
- Valve motor drive and proportional control systems
