Overview

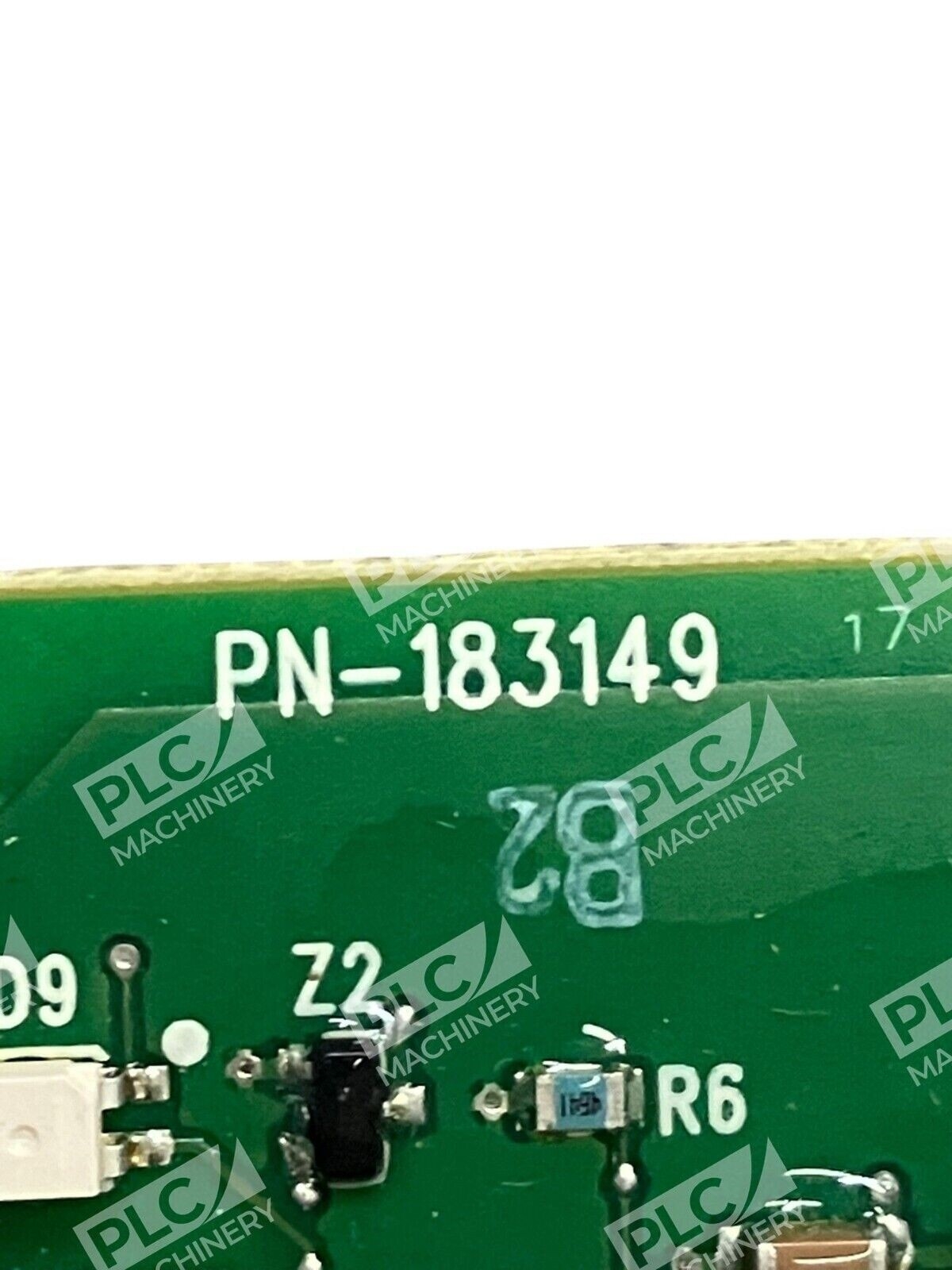

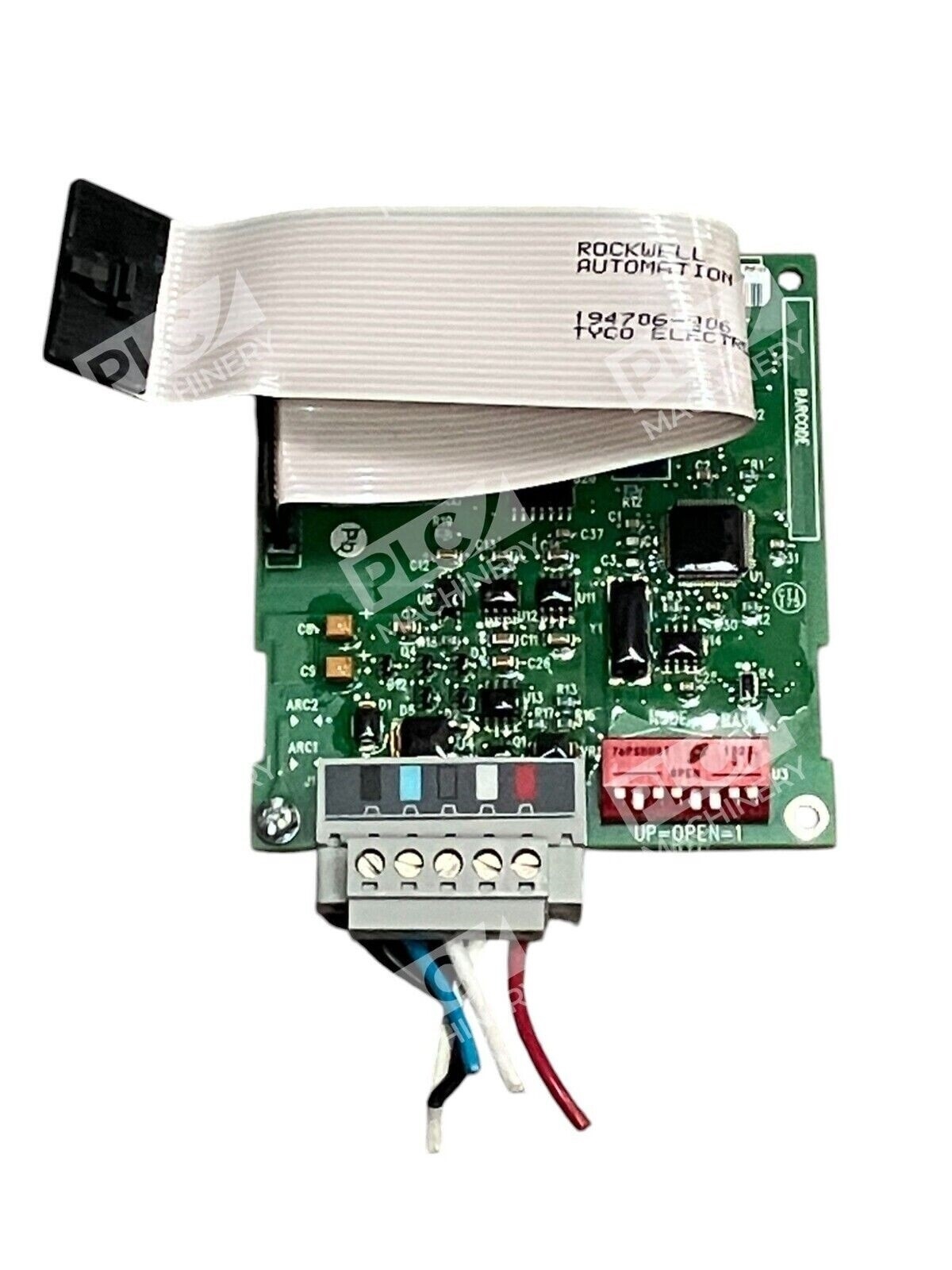

The Allen-Bradley 22-COMM-D /A is a PowerFlex DeviceNet adapter designed for seamless integration of PowerFlex drives into industrial DeviceNet networks. This communication module converts DeviceNet signals to Drive Serial Interface (DSI) protocol, enabling remote monitoring, control, and diagnostics of PowerFlex AC drives in manufacturing and process automation environments.
Key Features
- DeviceNet network communication with support for 125/250/500 Kbps baud rates
- Compatible with PowerFlex 4, 40, 40P, 400, 523, and 525 series drives
- Node address selection via rotary switches for easy configuration
- Three (3) LED status indicators for module and network diagnostics
- Supports single-drive and multi-drive daisy-chain operations
- Explicit messaging enabled for advanced diagnostic and control functions
- Automatic Device Replacement (ADR) support for network fault tolerance
- Compact design suitable for panel or internal drive mounting
Technical Specifications
| Label | Value |

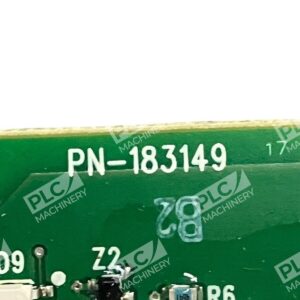

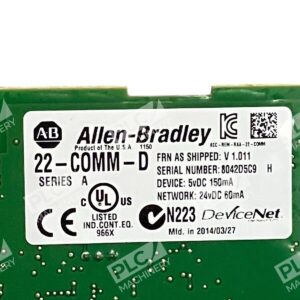

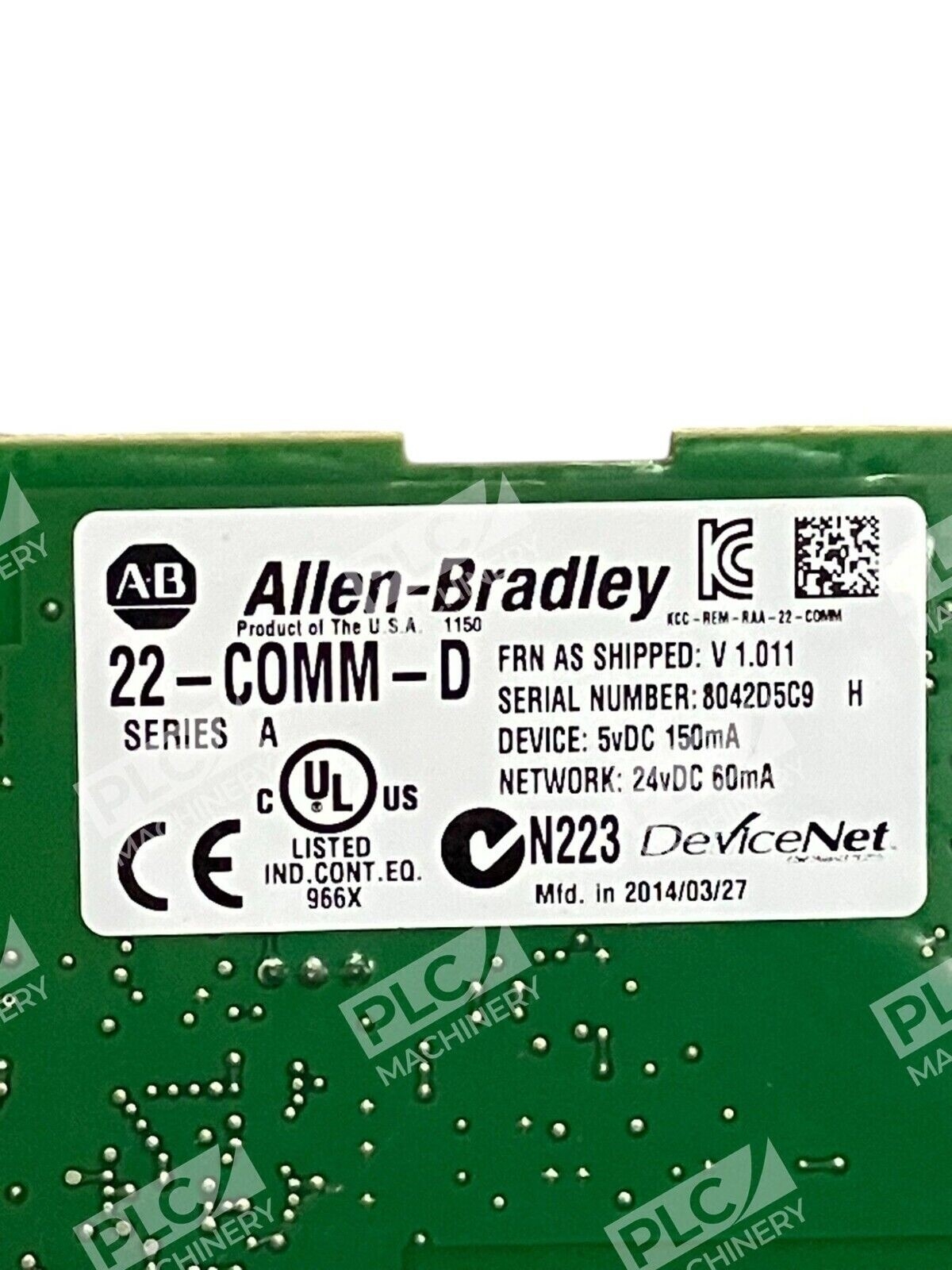

| Catalog Number | 22-COMM-D |
| Series | A (FRN 1.011+) |
| Product Type | DeviceNet to DSI Communication Adapter |
| Communication Protocol | DeviceNet (125/250/500 Kbps) |
| Connectors | 5-pin DeviceNet, 20-pin DSI |
| Power Supply | 5V/24V DC (drive-powered or external) |
| Current Draw | 150/60 mA @ 5V/24V |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 85°C |
| Mounting | Internal to PowerFlex drive or panel mount |
| Dimensions | 86 mm (L) × 78.5 mm (W) × 19 mm (D) |
| Weight | Approximately 0.163 kg |
| Certifications | CE, UL, cUL, C-Tick, KC, CCC, GOST |
| Compatible Models | PowerFlex 4, 40, 40P, 400, 523, 525 |
Typical Applications
The 22-COMM-D is deployed in industrial settings where PowerFlex drives require DeviceNet integration for coordinated multi-axis control. Common use cases include:
- Multi-drive coordination in food, beverage, and packaging lines
- Material handling and conveyor systems with networked speed control
- Pump and fan applications requiring centralized diagnostics
- Process automation where real-time drive communication is critical
- Retrofit projects integrating legacy PowerFlex drives into modern DeviceNet networks
Compatibility & Replacements
Compatible With
- PowerFlex 4 series AC drives
- PowerFlex 40 series AC drives
- PowerFlex 40P series AC drives
- PowerFlex 400 series AC drives
- PowerFlex 523/525 series drives
- Rockwell Automation DeviceNet networks
- Third-party DeviceNet-enabled systems (ODVA-compliant)
- RSLogix 5 and Studio 5000 for configuration
- Connected Components Workbench (CCW)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 22-COMM-D /A is the Series A firmware revision and may differ from earlier firmware versions in legacy installations.
Works With
- DeviceNet protocol (ODVA-compliant)
- Rockwell Automation Logix controllers
- Studio 5000 Logix Designer
- RSLogix 5 and RSLogix 500 (for legacy systems)
- Connected Components Workbench (CCW)
- Drive Serial Interface (DSI) networks
- EtherNet/IP systems (via Logix controller gateway)
