Overview

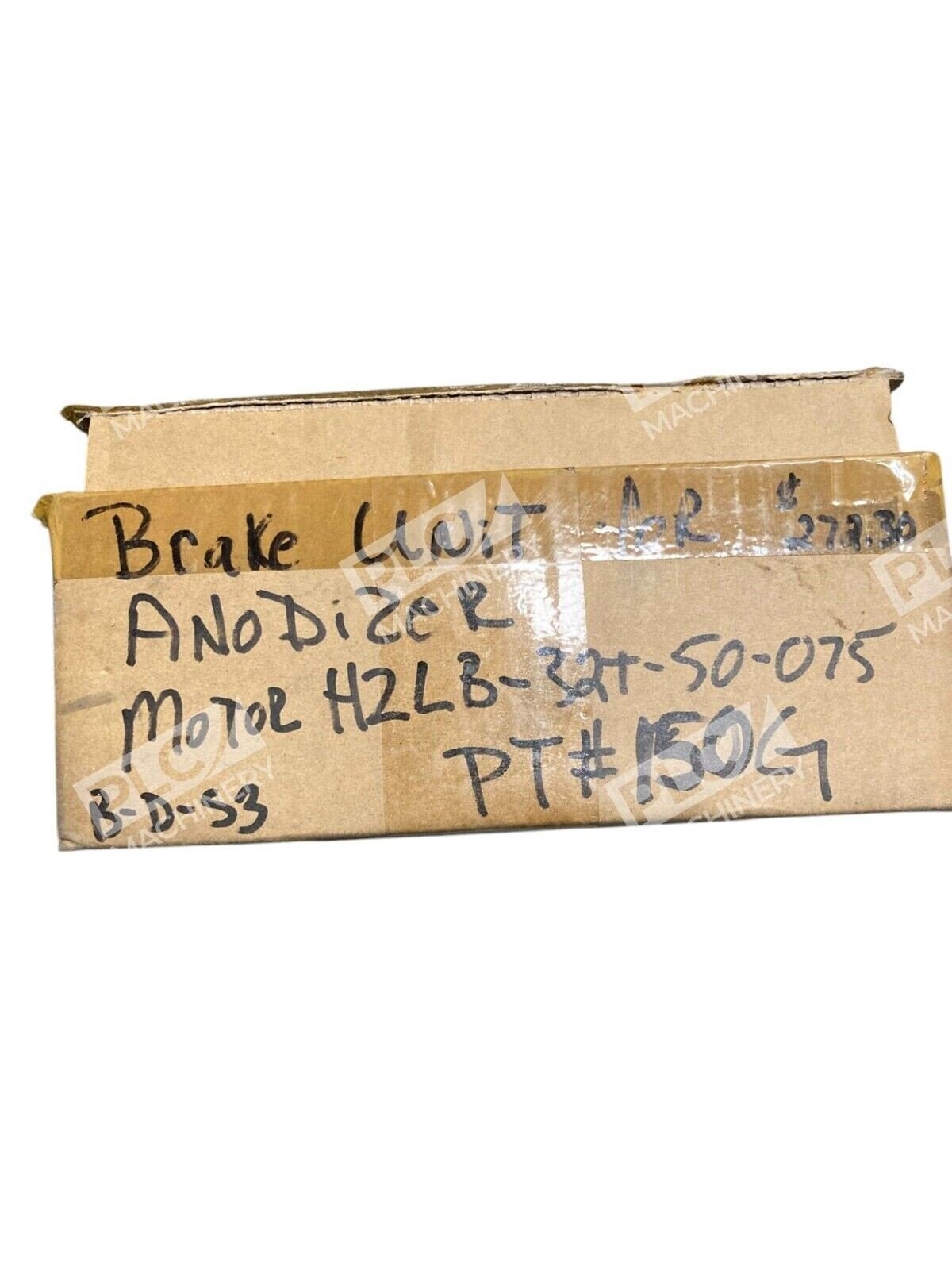

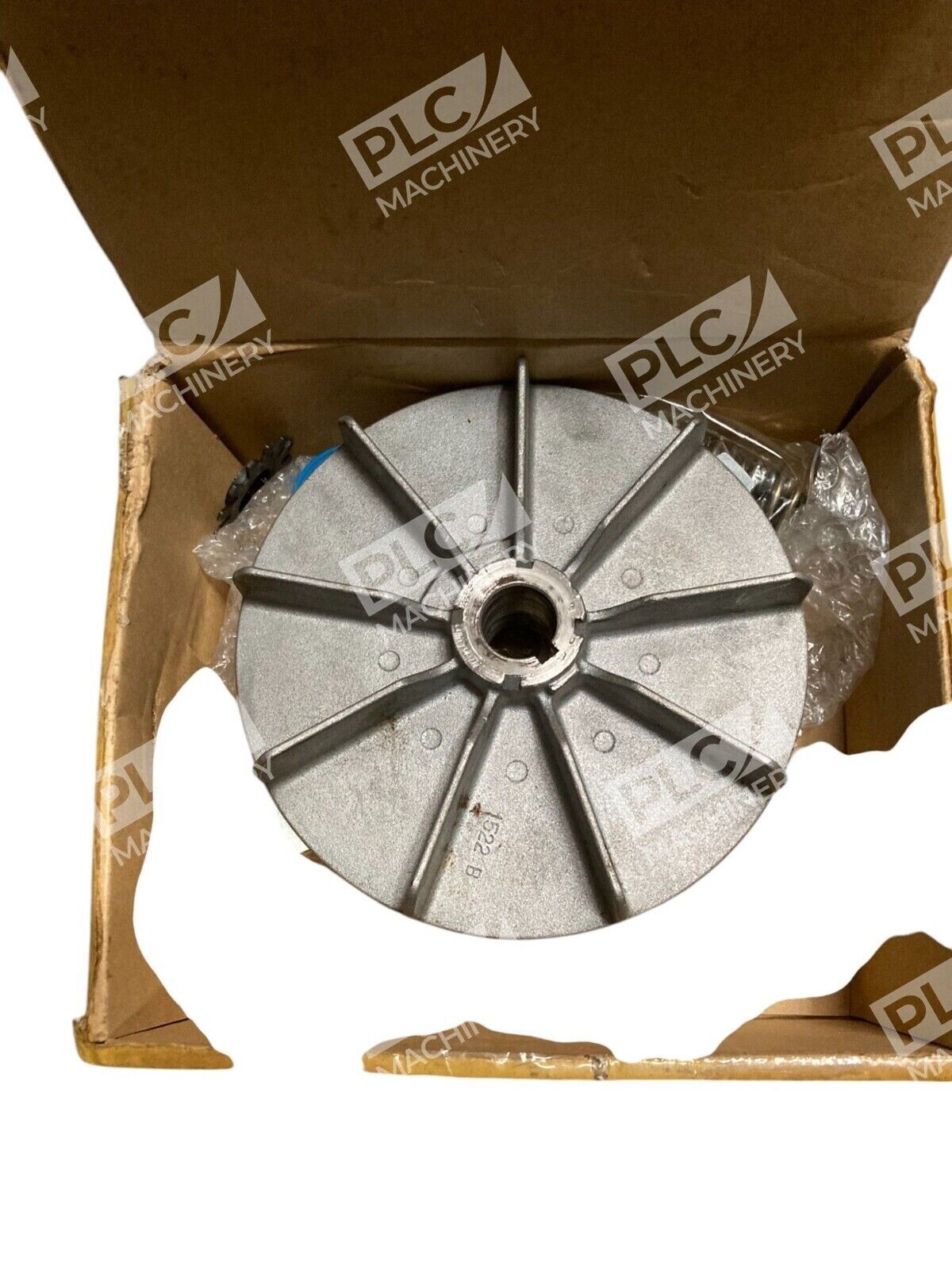

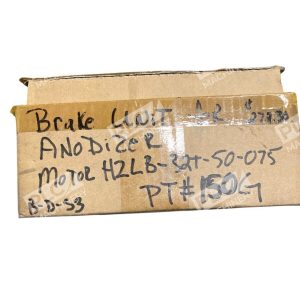

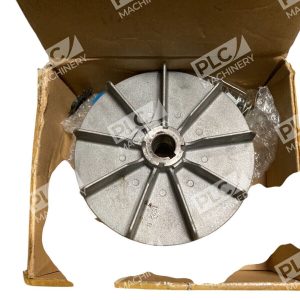

The GTR 150G brake unit is a precision braking component engineered for integration with the H2LB-32T-50-075 anodizer motor. This assembly provides reliable holding and dynamic braking capability for industrial anodizing equipment and manufacturing automation systems. The GTR 150G is designed to mount directly to the compatible motor and delivers consistent stopping torque for repetitive industrial cycles.
Key Features
- Engineered for H2LB-32T-50-075 motor platform
- Industrial-grade braking mechanism suitable for anodizer and plating line applications
- Direct mount design with minimal installation time
- Holding brake capability for vertical or horizontal motor applications
- Designed for standard 50 Hz / 60 Hz industrial power systems
Technical Specifications
- Brake Model: GTR 150G
- Compatible Motor Model: H2LB-32T-50-075
- Brake Type: Holding / Stopping brake
- Mounting: Direct motor mount
- Industrial Class: Standard duty cycle
- Operating Temperature: 0 to 50 °C (standard industrial range)
Typical Applications
- Anodizing equipment and tanks
- Plating line machinery
- Industrial conveyor and handling systems
- Manufacturing automation requiring precise motor braking
- Motor load-holding applications in vertical drive configurations
Compatibility & Replacements
Compatible With
- NISSEI/GTR H2LB-32T-50-075 motors
- NISSEI H2LB series gearmotors (50 frame)
- Standard industrial 0.75 kW motor platforms
- 50 Hz and 60 Hz three-phase AC power systems
Replaces / Drop-In Replacement For
- Original GTR 150G brake units
- NISSEI original equipment brake components for H2LB-32T motors
Works With
- NISSEI/GTR H2LB series motor control systems
- Standard industrial variable frequency drives (VFDs)
- Manual and automated motor starters
- Direct-on-line (DOL) motor starting circuits
