Overview

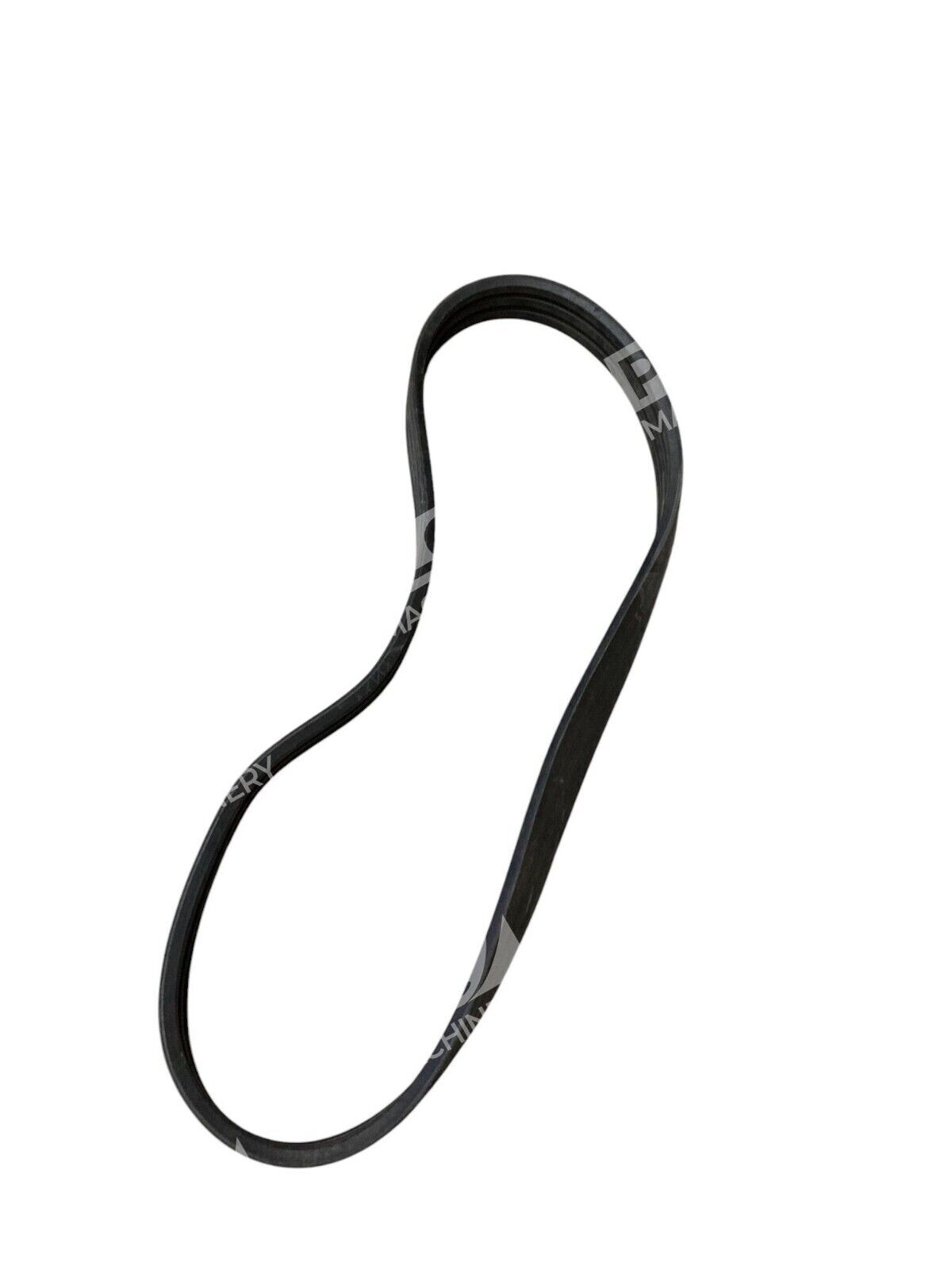

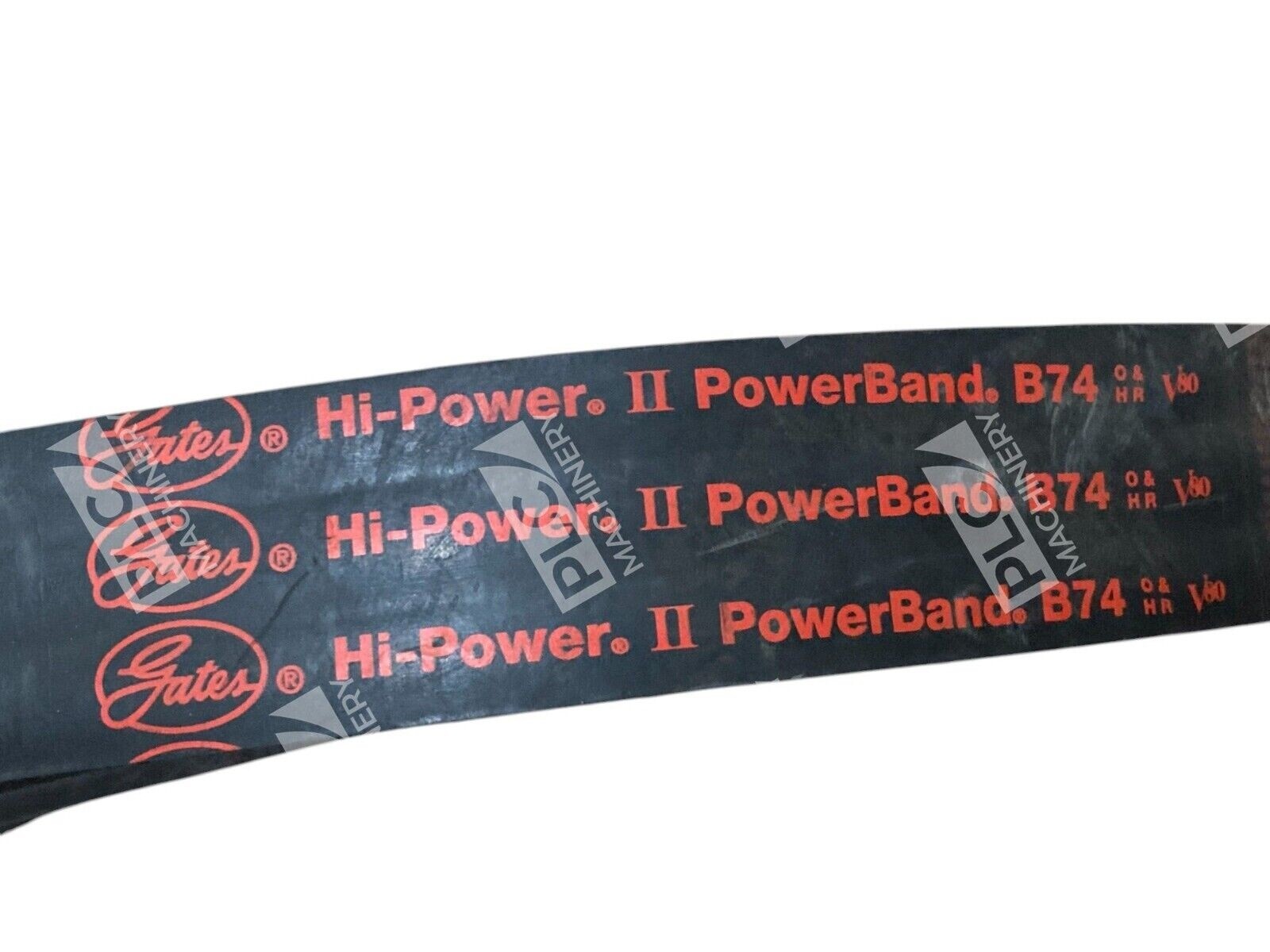

The Gates B74 Hi-Power II PowerBand is a banded V-belt engineered for industrial power transmission applications requiring reliable torque delivery and load stability. The PowerBand technology consists of several V-belts joined together by a permanent, high strength tie band, providing more powerful, tougher performance than the sum of the belts measured separately. This construction eliminates vibration, turning over, and belt slippage issues common in single-belt drives. Available in multiple strand configurations (2, 3, 4, and 16-strand units), the B74 suits demanding industrial, agricultural, and equipment-drive applications.
Key Features
- PowerBand Construction: Multiple belts function as one belt, with even load distribution and each strand fitting securely in the sheave groove.
- Flex-Bonded Cords: Strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration.
- Oil and Heat Resistance: Composite, multi-purpose construction resists oil and heat, ozone, sunlight, weather, and aging. Material is EPDM-based and engineered to prevent self-ignition even with severe slippage.
- Flex-Weave Cover: Patented fabric construction for longer cover life, providing extended protection to the belt core from oil, dirt and heat.
- Precision Tolerances: All sizes meet Gates V80 system matching tolerances and meet ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements.
Technical Specifications
Specification details for the single-belt B74 model (additional strand units increase weight proportionally):
- Belt Section: B (Classical)
- Outside Circumference: 77 in (1975 mm)
- Nominal Length: 74 in
- Top Width (Single Strand): 21/32 in (0.6563 in)
- Height: 13/32 in
- Cord Material: Polyester (Flex-Bonded)
- Cover Material: Flex-Weave EPDM
- Belt Angle: 40°
- Operating Temperature Range: −22°F to +140°F (−30°C to +60°C)
- Static Conductive: Yes
- Construction: Smooth (uncogged) banded V-belt
- Certifications: REACH and RoHS 2 compliant
- Recommended for: Multi-Duty Sheaves and V-flat drives
Typical Applications
Gates B74 Hi-Power II belts are suitable for all industrial applications, including v-flat drives. The PowerBand design is particularly suited for high-power drives experiencing pulsating loads, vibration, or belt slippage issues. Common uses include:
- Industrial pump and motor drives
- Agricultural equipment and machinery
- Textile and printing equipment
- Mining and material handling systems
- Multi-belt drive systems requiring synchronization and stability
Compatibility & Replacements
Compatible With
- B-section pulley sheaves (40° groove angle)
- Multi-Duty Sheaves
- V-flat drive systems
- Industrial machinery using classical V-belt sections
- Gates V80 matching system drives
Replaces / Drop-In Replacement For
The Gates B74 Hi-Power II PowerBand is available in single B74 and banded configurations (2/B74, 3/B74, 4/B74, 16/B74). Each configuration drop-replaces corresponding single-belt or banded V-belt installations with matching B-section and 77 in outside circumference specifications. Verify your existing belt configuration (strand count and construction) before ordering to ensure correct replacement.
Works With
- Classical B-section V-belt systems
- Gates V80 matched belt sets and systems
- Pulley and sheave assemblies rated for B-section belts
- Industrial power transmission networks using wrapped or banded V-belts
